Name: Eurosystems E3-EVO RM - Petrol Tiller - Rato RV170S-Pro Engine
Brand: Eurosystems
SKU: K610123
Price: 652.25 EUR
Availability: InStock

Description

Eurosystems E3-EVO RM

The Eurosystems E3-EVO RM S/R tiller is a powerful and versatile machine, designed to deliver high performance during soil cultivation operations. Thanks to its robust structure and advanced technical features, it is perfectly suited for gardens, vegetable plots, and small agricultural plots, ensuring precise and efficient work.

The Rato RV170S-Pro petrol engine with recoil start and a displacement of 170 cc delivers a power of 3.1 kW, ideal for tackling medium-intensity tilling tasks. The tiller speed, reaching 130 rpm, allows for quick and uniform soil cultivation. Additionally, the tool is equipped with 16 high-quality riveted steel blades, with a diameter of 32 cm and a width of 50 cm, to ensure excellent penetration and deep soil cultivation.

The MA gear shift offers a tilling gear, ensuring maximum versatility in use. The transmission, consisting of a worm gear in an oil bath and a belt, ensures reliability and durability over time. The belt clutch system is simple and intuitive, allowing optimal control of the machine.

The Eurosystems E3-EVO RM S/R is equipped with an adjustable handlebar both vertically and laterally, to adapt to different work needs and ensure maximum comfort for the operator. The ergonomic control levers are equipped with an integrated safety system, increasing protection during use. The double rear wheel and rear spur offer excellent stability, while the sheet metal protection cover and plant-saving discs protect crops during work.

Main Features:

Rato RV170S-Pro Engine: Petrol-powered with a displacement of 170 cc and a power of 3.1 kW, ideal for medium-intensity tilling tasks.
MA+RM Gear Shift: Tilling gear and reverse gear
16-Blade Tool: Riveted steel blades with a diameter of 32 cm and a width of 50 cm for deep and precise soil cultivation.
Adjustable Handlebar: Handlebar adjustable both vertically and laterally to ensure comfort and customization during use.
Safety and Protection: Ergonomic control levers with integrated safety system, sheet metal protection cover, and plant-saving discs.

Eurosystems E3-EVO RM - Petrol Tiller - Rato RV170S-Pro Engine

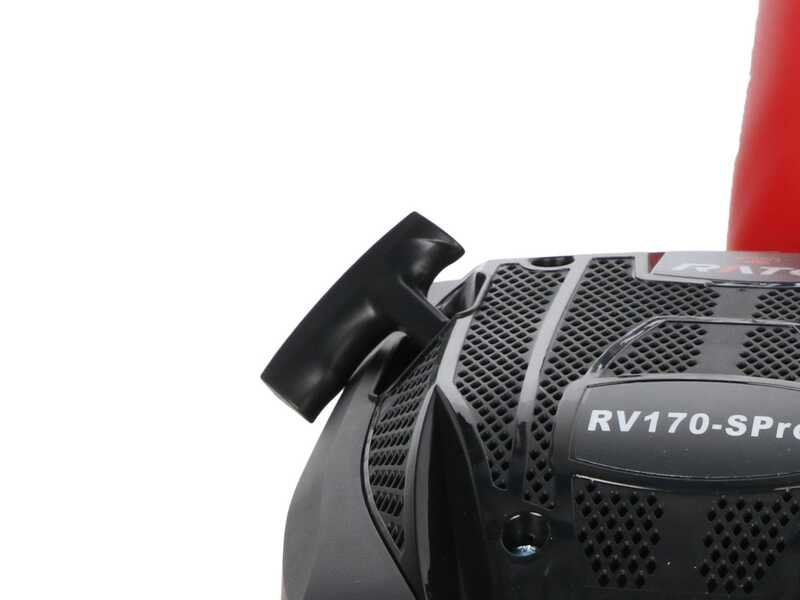

Rato RV170S Pro Engine

The Rato engine is lightweight and high-performance, suitable for tasks requiring moderate power.

The engine is a 170 cc four-stroke petrol engine with overhead valves "OHV", a single cylinder, and a forced air cooling system.

Fuel tank capacity: 0.8 litres

Equipped with a cold start primer and recoil start. The electronic ignition transistor is used for reliable ignition and the splash lubrication system ensures a constant oil supply to the internal components, protecting the engine and extending its lifespan.

Detail of the start primer to facilitate cold engine starting

Nominal Power: 5.5 HP
The more correct term would be "Commercial Power", referring to the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still widely used and advertised in the main commercial sales channels, although it is an inflated figure compared to the actual power.

Actual Power: 4.08 HP
Corresponds to the real power expressed at the engine shaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

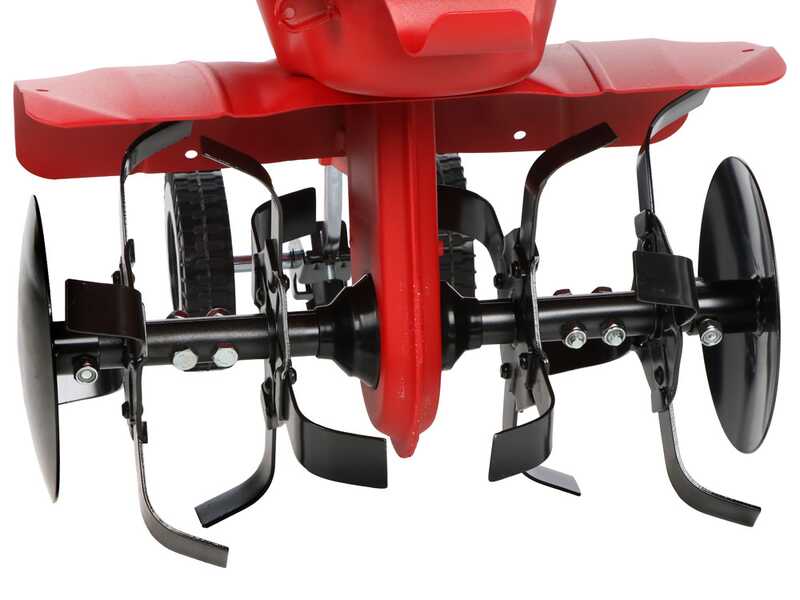

50 cm Tiller and Transmission

50 cm tiller with 4 rows of blades.

Robust central transmission with worm gear in oil bath

The belt, protected by a robust casing.

Detail of the protection discs.

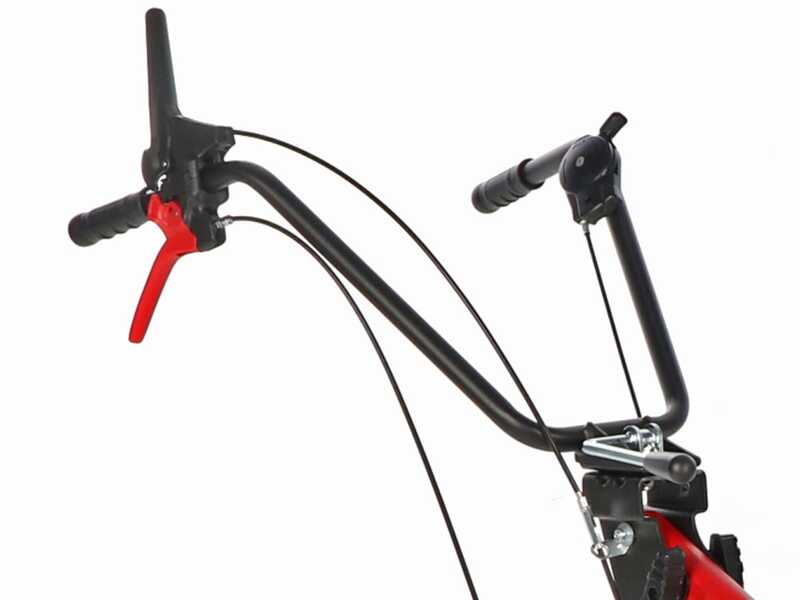

Gear Shift, Handles, and Controls

The controls of the tiller are practically all located on the handles.

The advancement of the tiller is controlled via the upper lever equipped with a safety system.

The machine is equipped with a throttle lever.

The handles are height adjustable via a specific system and laterally via the lever located at their base.

Free items & Standard equipment

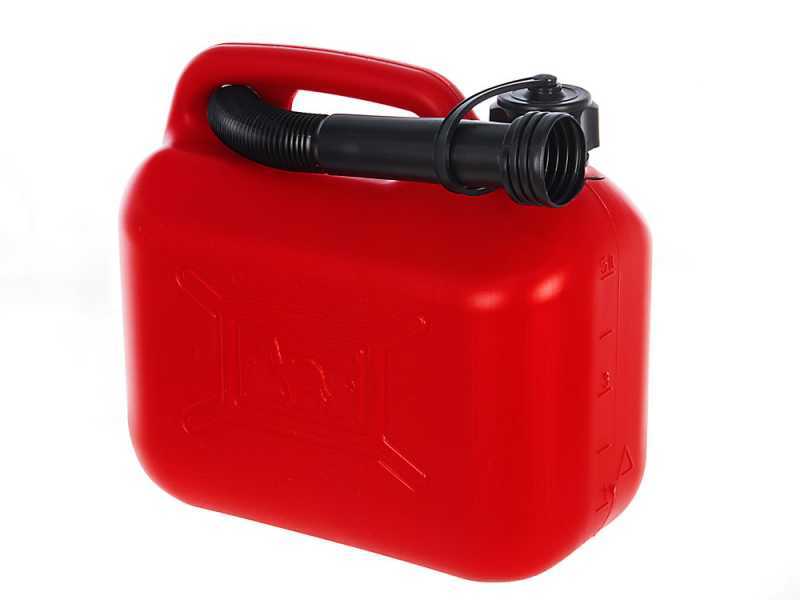

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

1° GIFT: Spare parts and Maintenance kit for B&S engines - 450E-500E Series - Safety equipment

COMPLIMENTARY: Spare parts set and accessories for the maintenance of the following BRIGGS&STRATTON engines.

450E series
500E series

WARNING: This kit is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The service set for power tools includes:

Professional spark plug for the engine.
Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Engine air filter.
Specific syringe for oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel oil draining and refilling.

2° GIFT: Protection Kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: OIL

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
