Name: Eurosystems E3-EVO RM - Petrol Tiller - 70 cm Tiller - Loncin 139cc Engine
Brand: Eurosystems
SKU: K610451
Price: 689.52 EUR
Availability: InStock

Description

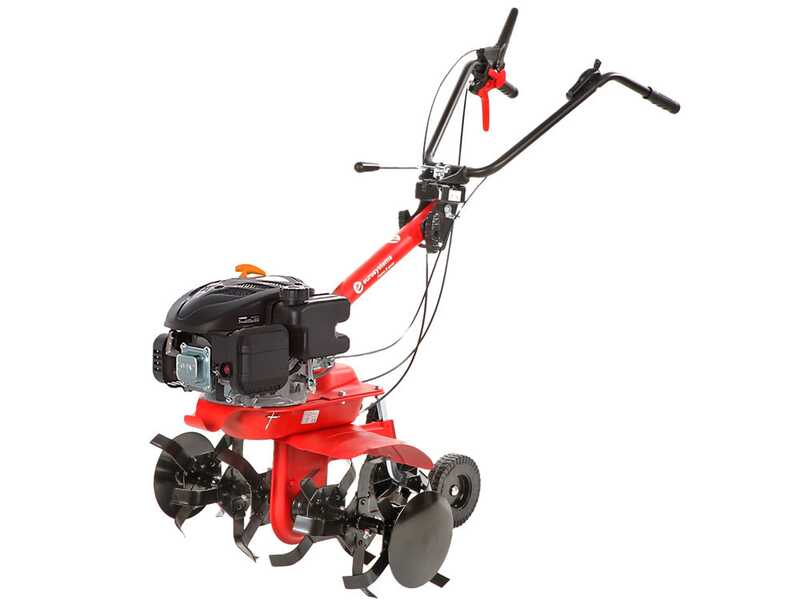

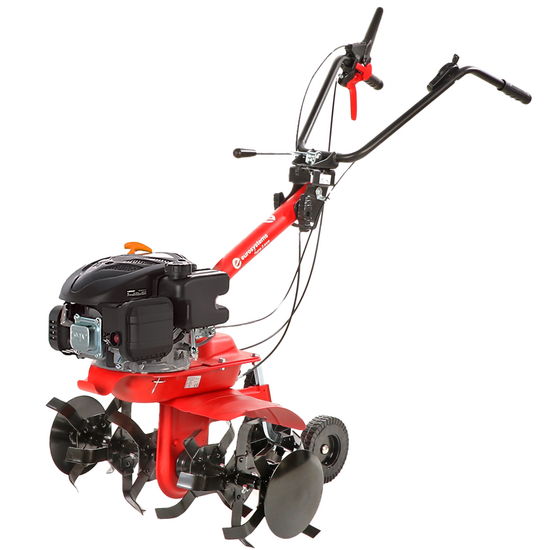

Eurosystems E3-EVO RM

The Eurosystems E3-EVO RM tiller is designed for working in vegetable gardens, gardens, and small agricultural plots. Thanks to the combination of robust components and advanced specifications, it offers effective soil preparation.

The heart of the machine is the Loncin 139 OHV petrol engine. With a displacement of 139 cc and a power of 2.7 kW, it ensures reliable performance for medium-intensity tilling. The 0.9-litre tank provides good working autonomy. The manual recoil start allows for simple and immediate starting.

The tilling system consists of 24 riveted knives made of hardened steel. Each knife has a diameter of 32 cm. The working width of 70 cm allows for high productivity, with a consistent and precise working depth. The tiller speed reaches 130 rpm, promoting effective soil crumbling.

The transmission employs a worm gear in an oil bath coupled with a belt, ensuring reliability and long-lasting durability. The MA+RM gear shift offers a forward gear and reverse, improving manoeuvrability even in tight spaces. The belt clutch facilitates machine control during use.

The handlebar is adjustable both in height and laterally, adapting to the operator's ergonomics. The ergonomic control levers are equipped with safety systems for protected use. The double rear wheel and adjustable spur ensure perfect stability on different terrains. The sheet metal protection cover and plant-saving discs complete the safety package.

Distinctive Features:

Loncin Engine: petrol, 139 cc, 2.7 kW power, 0.9-litre tank.
Tilling System: 24 steel knives, 32 cm diameter, 70 cm working width.
Robust Transmission: worm gear in oil bath and belt, belt clutch.
MA+RM Gear Shift: forward and reverse gear for easy manoeuvring.
Comfort and Safety: adjustable handlebar, ergonomic levers, integrated protection systems.

Eurosystems E3-EVO RM - Petrol Tiller - 70 cm Tiller - Loncin 139cc Engine

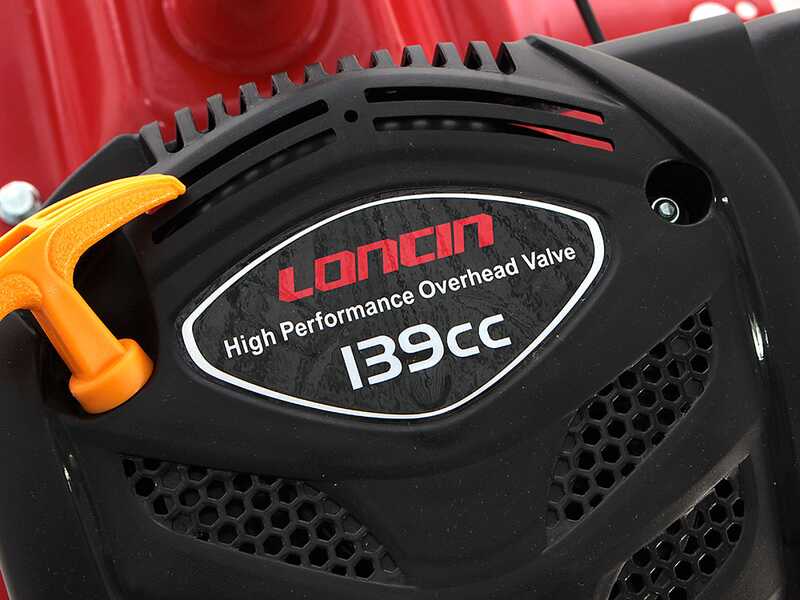

Petrol engine

The LONCIN engine is lightweight and high-performance, suitable for tasks requiring moderate power.

The engine is a four-stroke petrol engine of the latest generation 139 cc displacement with overhead valves "OHV", a single cylinder and forced air cooling system.

Fuel tank capacity: 0.9 lt

Oil tank capacity: 0.55 lt

Equipped with a cold start primer and recoil start. The electronic ignition transistor is used for reliable ignition and the splash lubrication ensures a constant oil supply to the internal components, protecting the engine and extending its life. The air filter with 2 foam filter elements makes maintenance simpler and faster.

Detail of the cold start primer to facilitate starting with a cold engine

Detail of the pair of engine air filters

Nominal Power: 4 HP
The more correct term would be "Commercial" Power, meaning the classic standard definition of power officially used until a few years ago by all the most well-known engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased figure compared to the actual power.

Effective Power: 3.67 HP
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is data that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

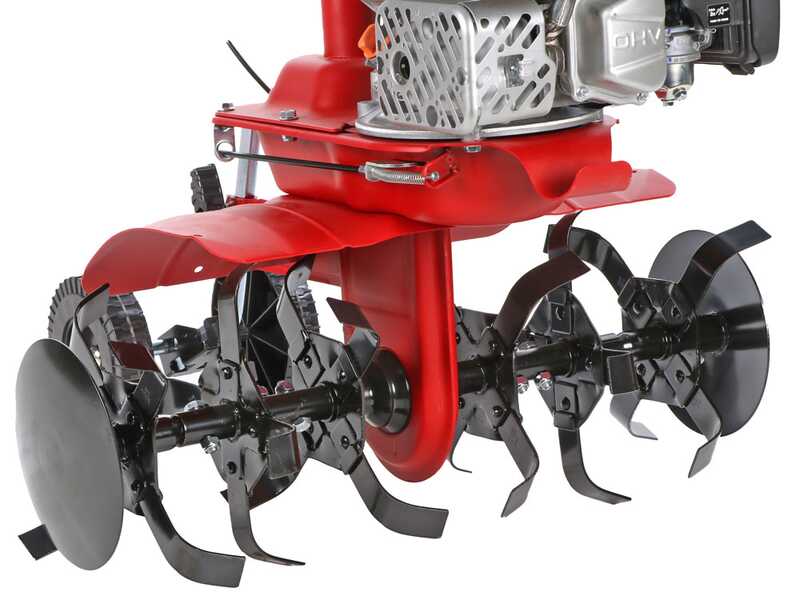

70 cm Tiller and Transmission

70 cm Tiller with 6 rows of blades. (Alternative with 4 rows of blades)

Robust central transmission with worm gear in oil bath

The belt, protected by a robust casing.

Detail of the protection discs.

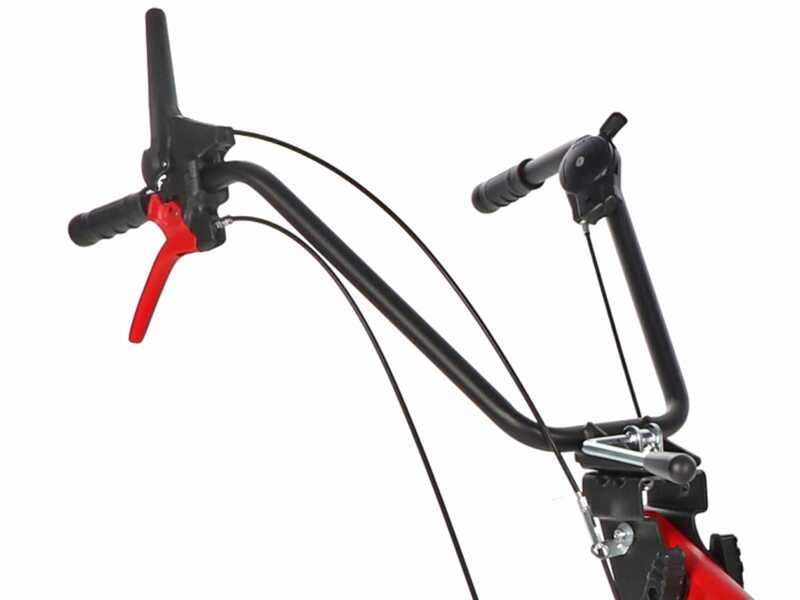

Gear Shift, Handles and Controls

The controls of the tiller are practically all located on the handles.

The advancement of the tiller is controlled via the upper lever, equipped with a safety system.

The machine is equipped with a throttle lever.

The handles are adjustable via a specific system and laterally via the lever located at their base.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

No. 01 original GeoTech spark plug

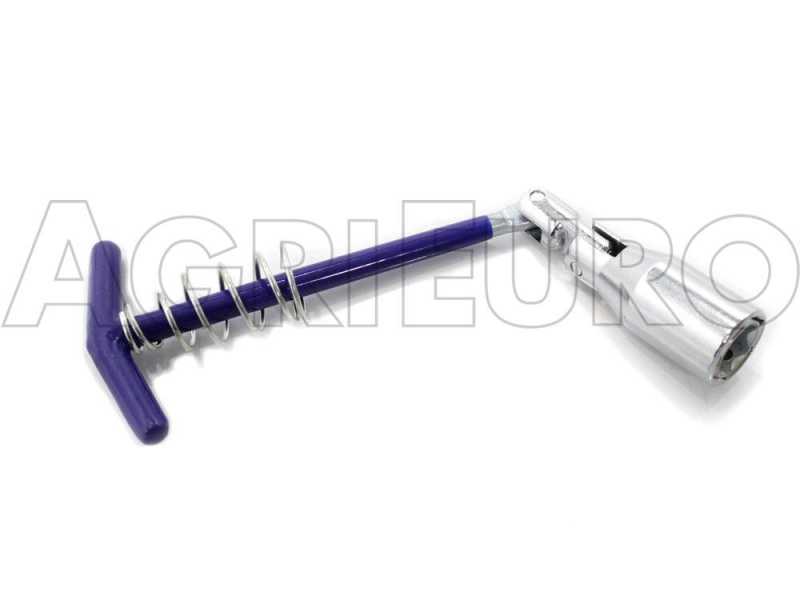

No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

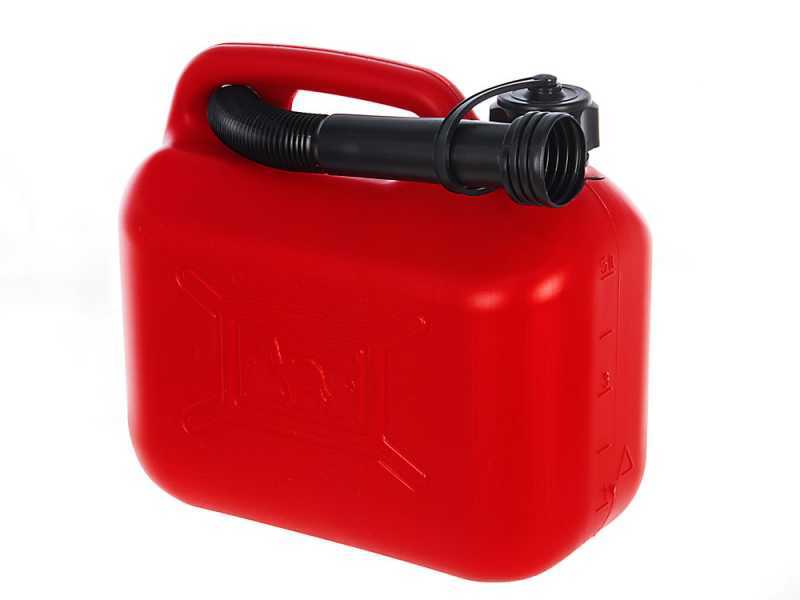

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
