Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

Hobby
Questions & Answers (1)
ID: K501901

EAN: 8025004010895

MPN: 946510100

Eurosystems
Catalogue Eurosystems
8,9/10
After-sales assistance & Spare parts
48Pictures
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Replacement air filterReplacement air filter
Oil engine replacement kitOil engine replacement kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Free gift: fuel jerrycan 5 ltFree gift: fuel jerrycan 5 lt
Standard milling cutter width
50 cm
Recommended surface
50 m²
Motor type
4-stroke
Motor brand
Briggs&Stratton
Motor Model
450 E
Cubic capacity
125 cm³
Nominal power
3.5 HP
Transmission type
Belt and worm screw
Gears
1+1
Soil consistency
Soft
Manufacturing country
Italy
Product Features
Model:
E3-EVO RM B&S 450 E
Operating mode:
Spark ignition
Recommended surface:
50 m²
Soil consistency:
Soft
Soft soil:
✔
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Briggs & Stratton
Motor Model:
450 E
Motor type:
4-stroke
Cubic capacity:
125 cm³
No. of cylinders:
1
Nominal power:
3.5 HP
Rated power (HP):
2.76 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
0.8 L
Manufacturing country:
USA
Transmission data
Transmission type:
Belt and worm screw
No. of forward speeds:
1
No. of reverse speeds:
1
Gears:
1+1
Operating mode:
Control levers
Cutting data
Standard milling cutter width:
50 cm
Milling cutter diameter:
32 cm
No. of blade holders:
4
No. of blades:
16
Blade engagement:
Lever on the handle
Equipment
Milling cutter accessory:
Included as standard
Side crop protection discs:
Yes
CE Accident prevention system:
Yes
Transport wheel:
Yes
Rear stake:
Yes
Adjustable stake:
Yes
Furrower:
On request
Pair of milling cutter extensions:
On request
Spring rotor:
On request
Blade rotor:
On request
16 cm milling cutter narrowing:
On request
Clutch:
Belt tensioner
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine maintenance kit:
For free
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140 x 55 x 110 cm
Net weight:
40 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80 x 58 x 56 cm
Weight including packaging:
42 Kg
Assembly time:
15 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
€ 726,80
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

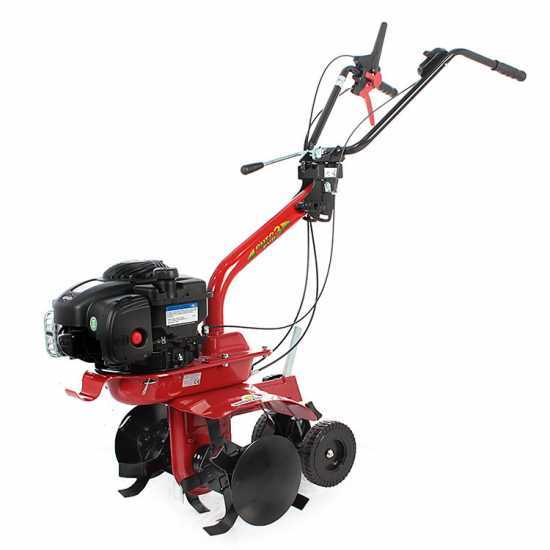

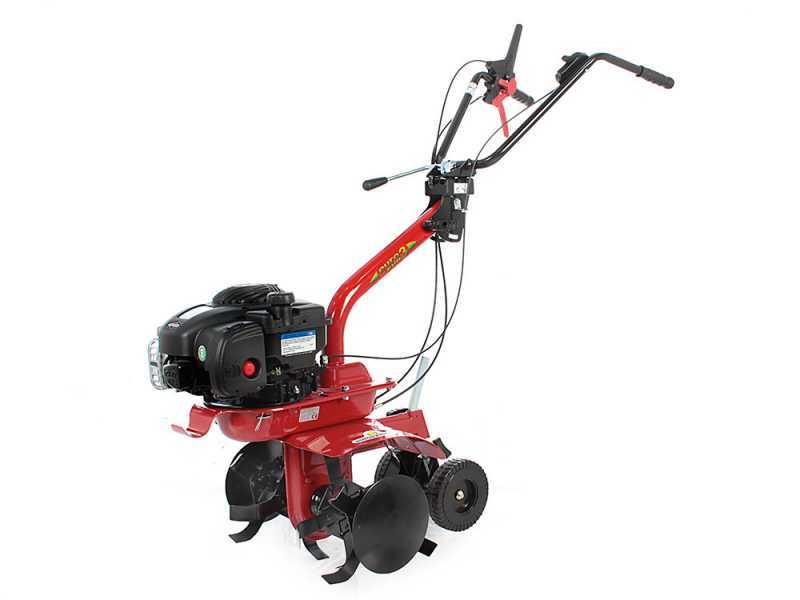

Eurosystems E3-EVO RM Garden Tiller

The Eurosystems E3-EVO RM garden tiller is a compact small-sized, handy, powerful and highly-reliable machine.

The engine performance of this garden tiller combined with its ease of use make it suitable for both hobbyists and professional users.

Particularly recommended for tilling the soil of small orchards, gardens and greenhouses. Thanks to its light weight and the folding steering handles, this garden tiller can be easily transported.

Also remarkable are the ergonomics of the controls and ease of use coupled with safety at all times for the operator.

COMPLIMENTARY:

GARDEN TILLER MAINTENANCE KIT

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

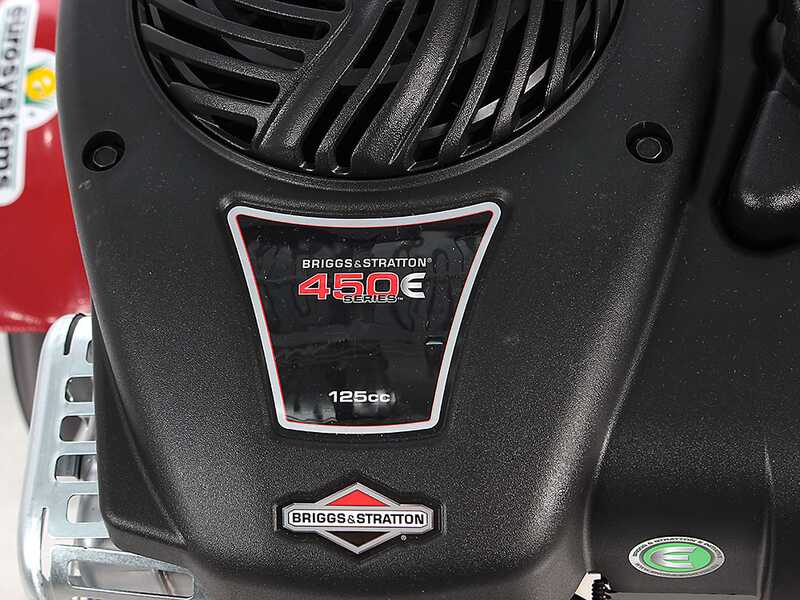

Briggs&Stratton 450 E engine

The Briggs&Stratton 450 E is a high-performing petrol engine, suitable for operations that require high reliability and durability over time.

Features:

Engine type:
Single cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
125 cm³
Power supply:
Petrol
Max. rpm:
3600 rpm
Start-up:
Manual



New generation 4-stroke engine with overhead valve system "OHV” technology and automatic decompressor start-up.

Starting primer bulb.

Focus on the air filter.

Nowadays, the great majority of agricultural and gardening equipment available on the market features unbranded (or unknown) engines made in China.


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Nominal Power: 3.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 2.76 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

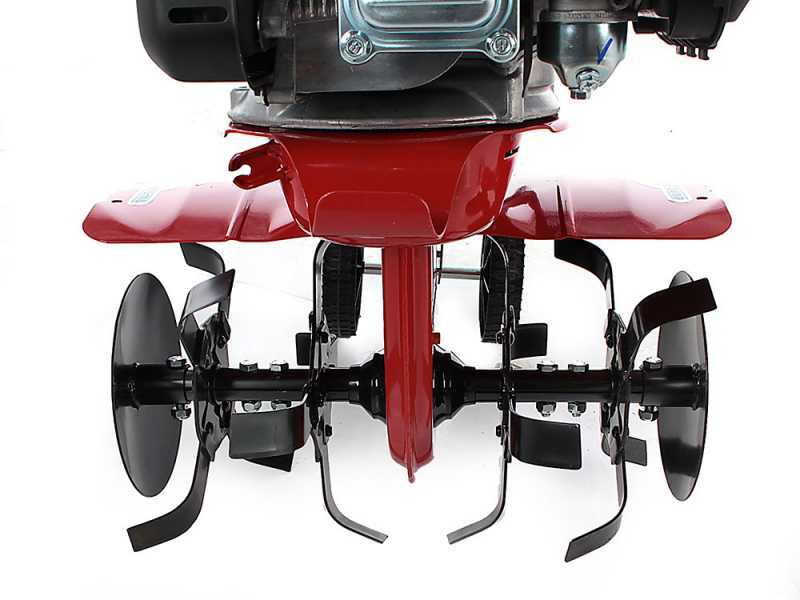

Transmission and 50 cm tine

Tine: 50 cm with 4 rows of rotary hoes.

Sturdy central drive with worm screw in oil bath.

The lower transmission to the belt-driven engine is protected by a sturdy housing.The replacement of the rear transfer wheel with the stake is quick and easy.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

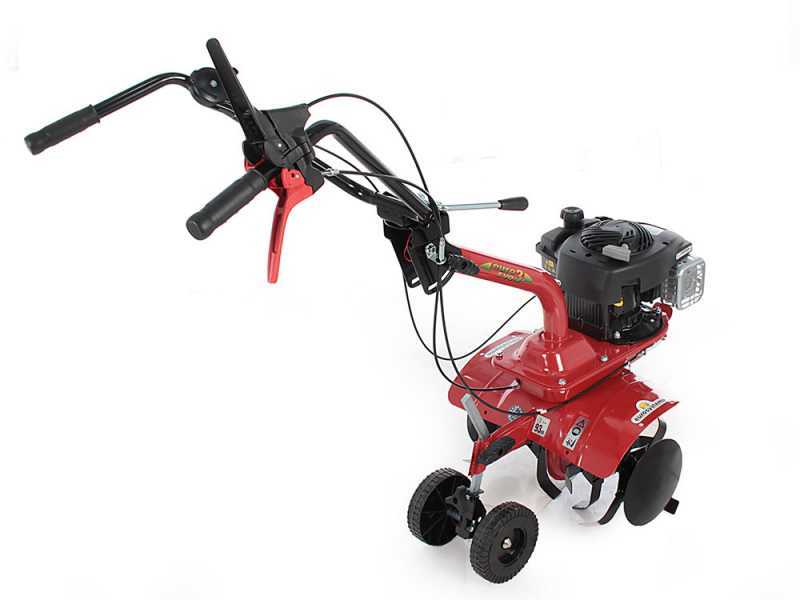

Gearbox, steering handles and controls

The controls of the garden tiller are all located on the steering handles.

The tiller forward motion is managed by the upper lever, which is equipped with safety system.

The reverse gear is engaged through the lower black lever.

The machine is equipped with a throttle lever.

The steering handles can be adjusted in height by means of the special handle, and on the sides through the lower lever located between them.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Free items & Standard equipment

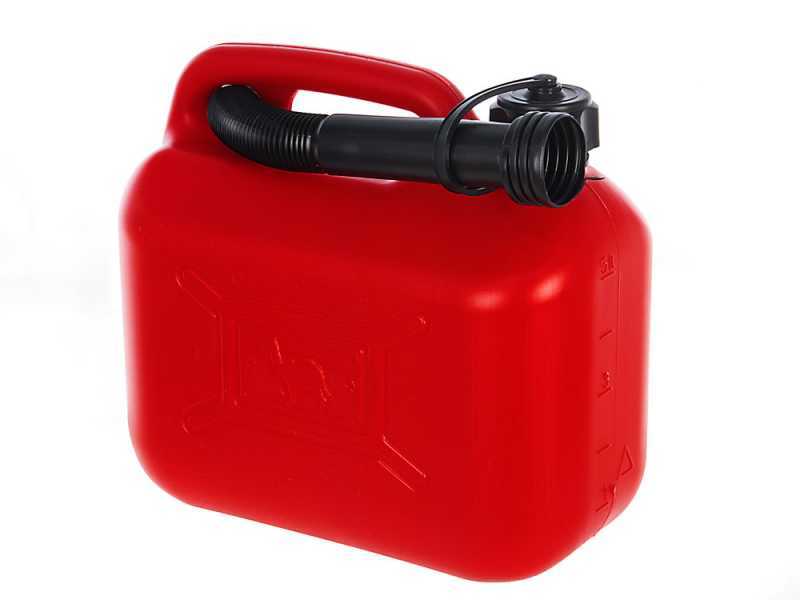

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

1° GIFT: Spare parts and Maintenance kit for B&S engines - 450E-500E Series - Safety equipment

COMPLIMENTARY: Spare parts set and accessories for the maintenance of the following BRIGGS&STRATTON engines.

  • 450E series
  • 500E series

WARNING: This kit is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The service set for power tools includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Engine air filter.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

2° GIFT: Protection Kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

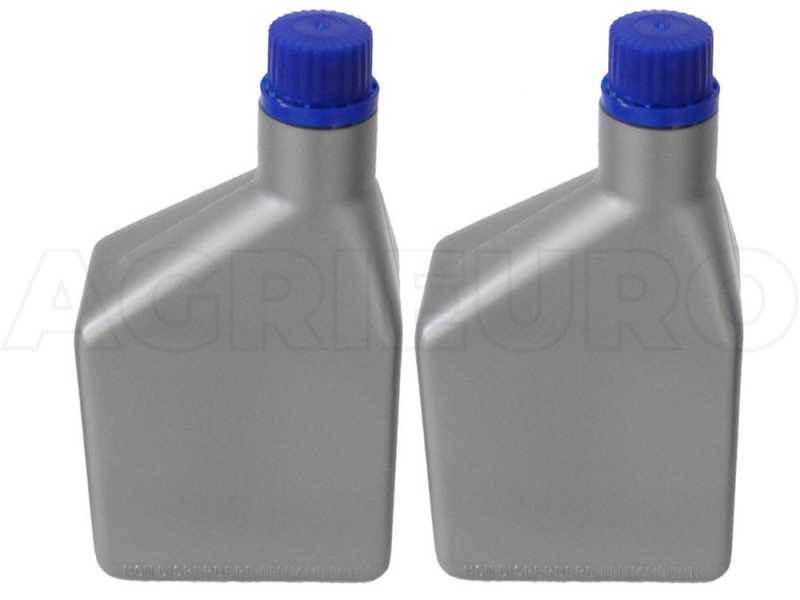

3° GIFT: OIL

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

4° GIFT: Blade Sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine

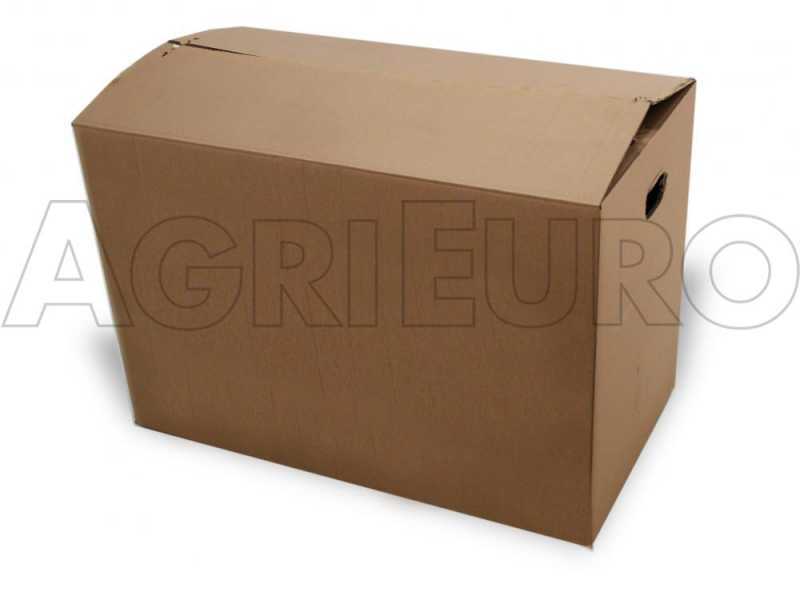

Standard equipment

The garden tiller is shipped in its original packaging.

Instructions manual included.

Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine Eurosystems E3-EVO RM - 3.5 HP Petrol Garden Tiller - B&S 450 E Engine
