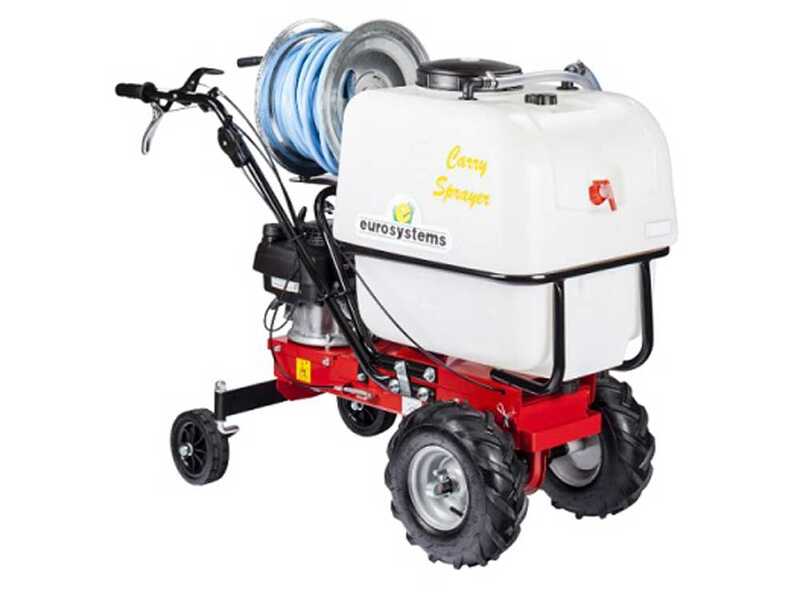

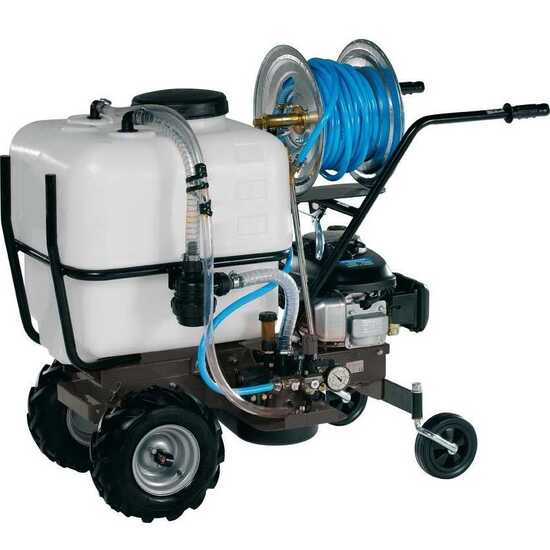

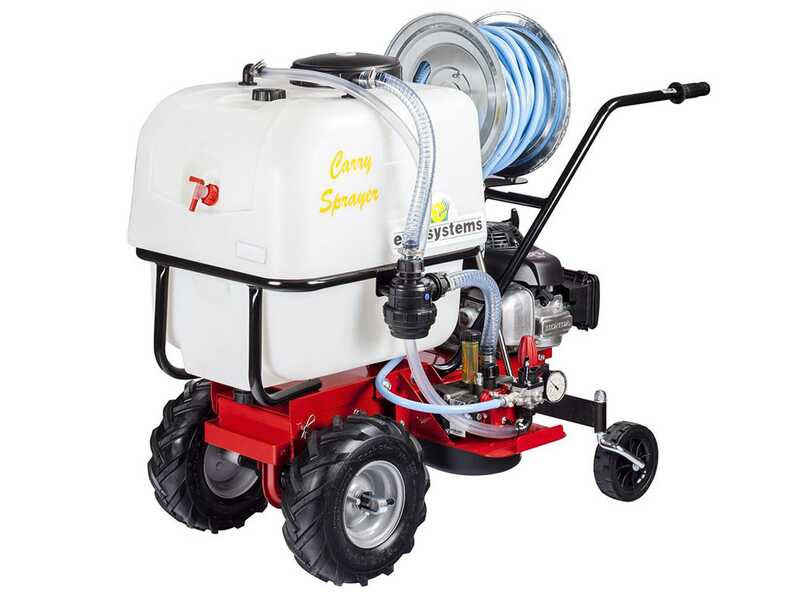

Self-propelled sprayer pump with wheels and tank
EUROSYSTEMS - CARRY SPRAYER
with Briggs&Stratton engine - 675 series
also known as "self-propelled power barrow with sprayer pump"
-- MADE IN ITALY --
Carry Sprayer self-propelled sprayer pump is an efficient and convenient machine to treat your olive grove, orchard or vineyard simply, quickly and effortlessly. An innovative combination of self-propelled power barrow + built-in sprayer pump which makes everyday work easier and faster.
The large 120 L tank and the high-pressure membrane pump provide high performance.
This self-propelled power barrow with integrated sprayer pump and tank has 25 mt rubber hose reel and spraying lance included, for even more flexibility.
The pneumatic Tractor wheels ensure really good drive, even on not perfectly even or sloping terrain (up to a good 20%). The rear pivoting wheels ensure manoeuvrability in tight spaces, while the automatic parking brake provides maximum safety.
The petrol engine of Eurosystems Carry Sprayer is built by the world's largest manufacturer of small petrol engines for agriculture and gardening, Briggs&Stratton. It guarantees excellent reliability, low fuel consumption and easy starting.
This self-propelled wheeled power barrow with sprayer pump and tank is really user-friendly, also suitable for beginners (we recommend, however, that you always read the instruction manual carefully).
TECHNICAL FEATURES:
Powerful original Briggs&Stratton engine, 675 series
150 cc displacement
These are the most famous engines in the world, both for self-propelled power barrows and sprayer pumps, and more generally for the agricultural and farming sectors.
Briggs&Stratton engines are MADE IN USA
Focus on the recoil start system with self-winding
Self-propulsion (traction) on the two treaded pneumatic wheels.
2 SPEEDS:
- 1 forward gear
- 1 reverse gear
Internal transmission with gears and
worm gears in oil bath and belts
Tank capacity: 120 lt
Focus on the external heavy-duty cartridge filter
Sprayer pump with 2 IMOVILLI membrane PUMPS, M 29 model
Heavy-duty pump (made in Italy)
Equipped with a heavy-duty pressure adjustment knob.
Working pressure: 0 - 30 bar
Max. flow rate: 29 l/min.
The pressure regulation unit has a (front cap) second outlet (allowing you to operate a second lance)
Heavy-duty steel hose reel, with 25 mt high-pressure hose and lever lance
Automatic parking brake: as soon as the traction lever is released, not only will the power barrow stop instantly, but this parking brake will automatically activate, ensuring that the machine remains stationary, even on slopes.
Large pneumatic drive wheels with Tractor tread:
13 x 5.00 - 6
Provides excellent traction on all types of surfaces, even on gravel or soft ground.
Equipped with parking brake release system: by opening the two metal jumpers for locking the wheels, they will be in "LOOSE" position. Very useful to move the barrow when the engine is off.
Rear swiveling rubber wheels, ensuring excellent handling even in narrow spaces.
In addition, they are mounted on a swiveling axle, which allows them to better adapt to uneven terrain.
Focus on the handlebars where all the main functions are placed.
Lower metal lever: operates forward gear
Black side lever: operates the reverse gear
Focus on the accelerator handle
Briefly:
EXTREME SAFETY:
accidents are impossible with this self-propelled sprayer pump sprayer. Simply let go of the controls and the machine immediately stops, remaining locked thanks to the parking brake
Focus on the tank lid and mesh filter at the opening
Weight: 85 kg
ACCESSORIES ON REQUEST:
- GUN LANCE (can be used in place of the standard lever lance supplied)
- MITRA LANCE (can be used in place of the standard lever lance supplied)
- 85 lt standard hot-galvanised tank, equipped with plate, handle and quick release
- PLATFORM made of 60x80 cm sheet metal.
Equipped with 10 cm tubular frame and plastic tank with plate and handle
- FRONTAL SNOW PLOUGH: this snow plough is suitable for snow, sand, soil, etc...
- PAIR OF SNOW CHAINS: suitable for the FRONT SNOW PLOUGH accessory
THE COLOURS IN THE PICTURE MAY NOT CORRESPOND TO THE ACTUAL COLOURS OF THE PRODUCT
