Name: Eurosystem Minieffe RM - Multifunctional Rotary Mower - Rato RV200
Brand: Eurosystems
SKU: K610416
Price: 1368.95 EUR
Availability: InStock

Description

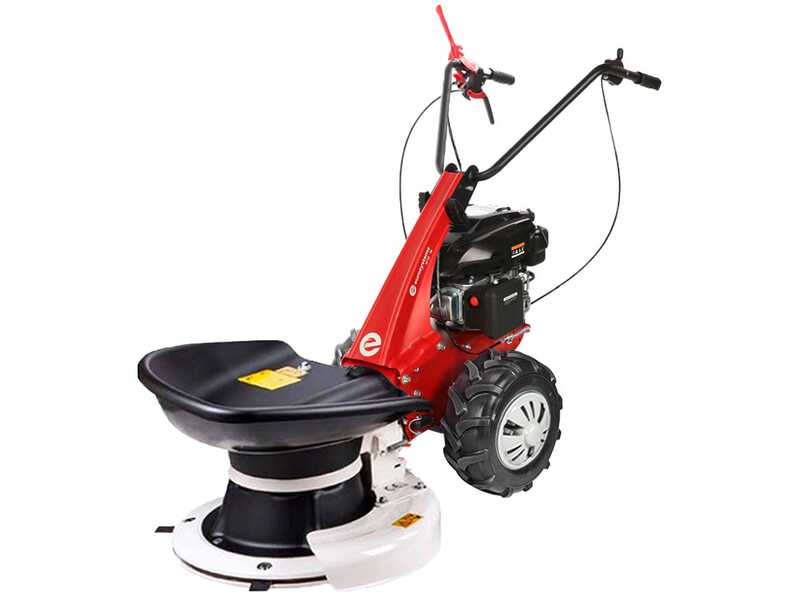

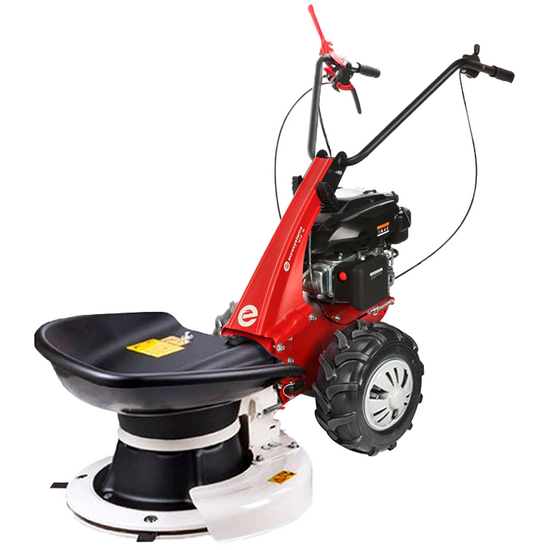

Eurosystem Minieffe RM Rotary Mower

The Eurosystems Minieffe RM is a rotary mower with a combustion engine, self-propelled and equipped with tractor tread pneumatic wheels driven by a worm gear transmission in an oil bath.

Its 57 cm rotating blade consists of a rotating disc equipped with 4 blades that rotate on their own retractable axis (the blades retract into the housing with each rotation) in case of impact.

The machine is equipped with a powerful Rato RV200 engine with a displacement of 200cc.

This mower can work on any type of surface but especially with any consistency of grass, whether high or low, thick or thin, straight or inclined or flattened by weather conditions.

Eurosystem Minieffe RM - Multifunctional Rotary Mower - Rato RV200

Optional Accessories not included in the price

WARNING:
these accessories are not included in the purchase price of the machine.

CUTTING BAR 87 cm

MULCHING DECK 53 cm: transforms this combustion engine all-purpose mower into a powerful combustion engine all-purpose mulcher (for finely shredding and grinding grass)

COLLECTOR BRUSH WITH BASKET: allows this machine to be transformed into a functional self-propelled sweeper

FRONT BRUSH 105 cm

FRONT BLADE: suitable for small quantities of snow, sand, earth, etc...

PAIR OF SNOW CHAINS: suitable for use with the FRONT BLADE accessory

WARNING!

The photos are for illustrative purposes only and may differ from the main product.

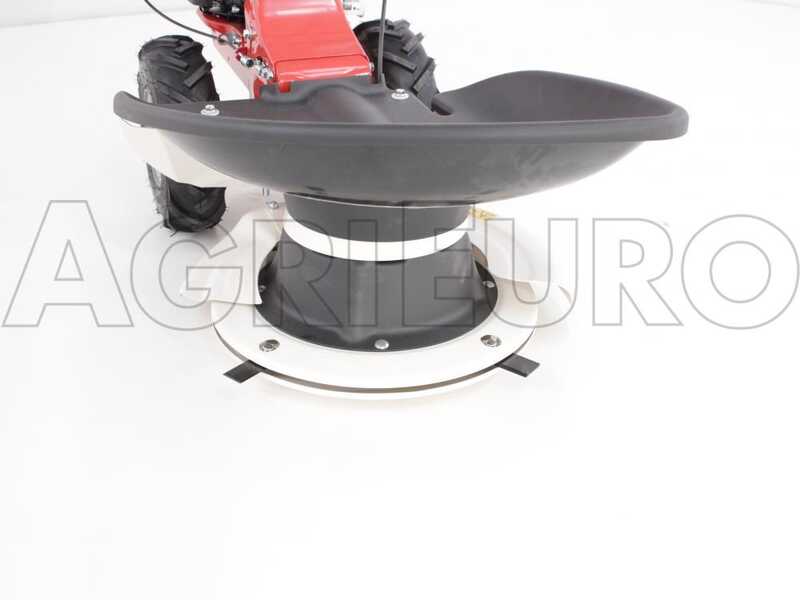

57 cm Rotating Blade

Cutting diameter: Ø57 cm

Blade rotation speed: 2300 rpm

Cutting height: 36 mm

Cutting system: 4 floating knives arranged at 90° to each other with double cutting edge retractable in case of impact with obstacles or stones

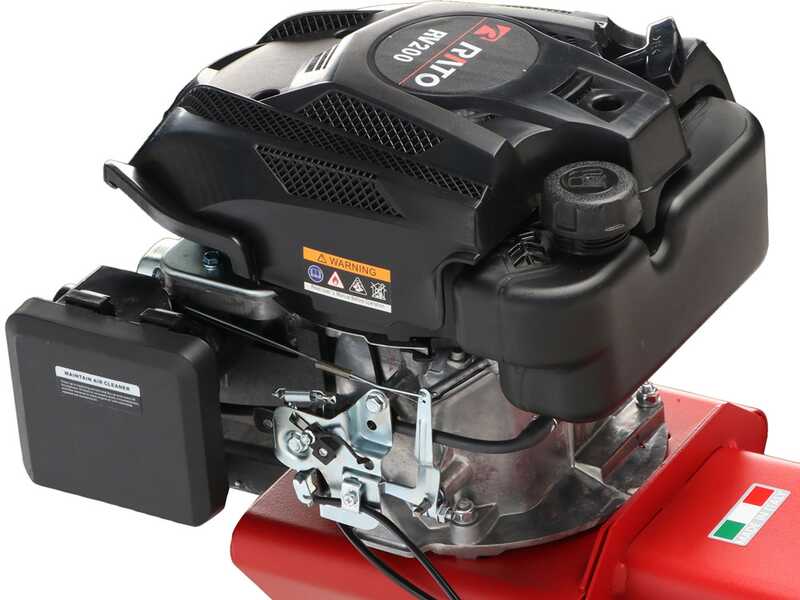

Rato RV200 Engine

The machine is supplied with a powerful Rato RV200 engine.

Features:

Engine type: Single-cylinder 4-stroke;
Cylinder type: Aluminium;
Displacement: 200cc;
Starting: Manual, pull-start;
Fuel: Petrol;

WARNING!

The engine is supplied without oil. Fill the oil to the correct level before first use.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also referred to as "Commercial" Power, this is the classic power definition standard that was officially used until a few years ago by all the most well-known engine manufacturers. This data is still widely used and advertised in the main commercial sales channels.

Controls and Handles

The handles are adjustable vertically using the appropriate knobs.

The red lever and the black lever are the levers to engage the forward and reverse gears of the machine, respectively.

Machine activation lever.

Throttle control.

The Minieffe series introduces a new and effective anti-vibration system , with between the handlebar and its connection to the machine to absorb vibrations from the engine and the accessory mounted on the machine. Additionally, the grips are anti-vibration with rubber covers.

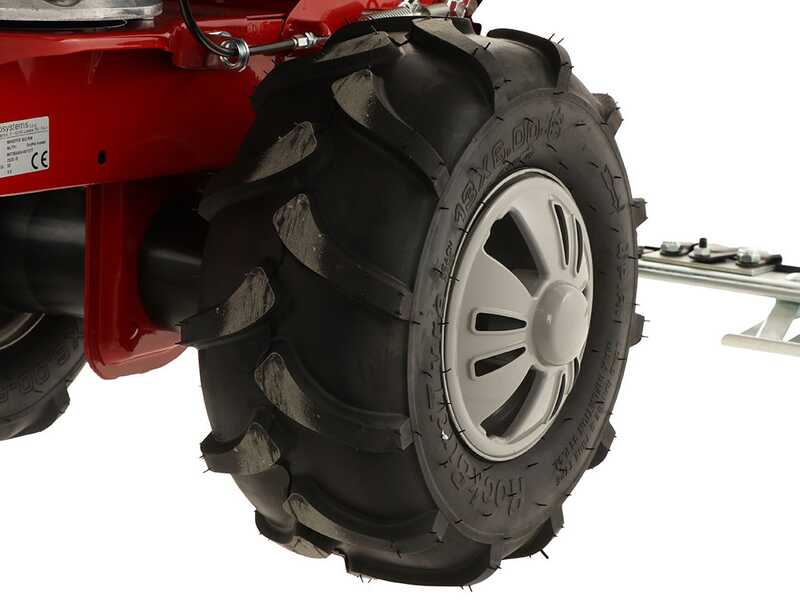

Intermediate Transmission and Tractor Wheels

The intermediate transmission is a worm gear in an oil bath.

The wheels are of the tractor type with generous dimensions: 13x6.00 - 6

Their significant tread pattern allows the mower to advance even on the most difficult terrains while maintaining ideal traction.

Wheel removal screws.

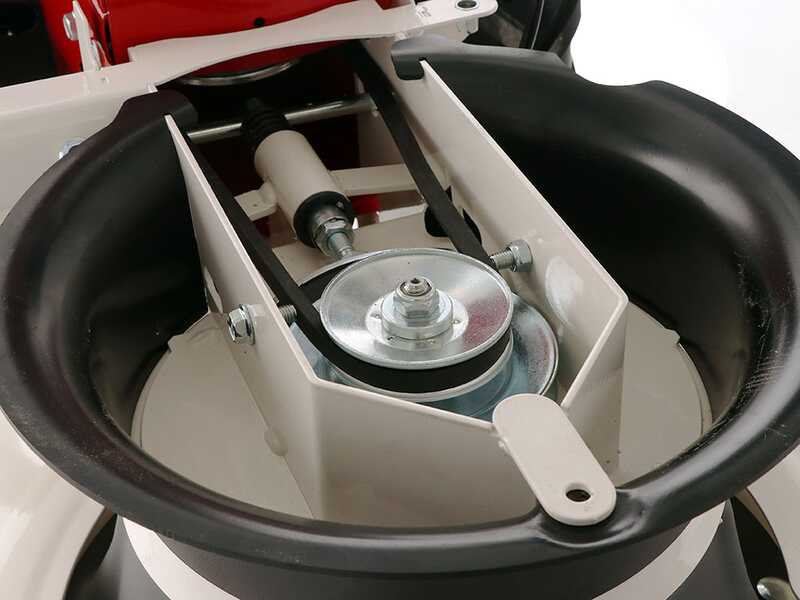

Final Belt Transmission

Final belt transmission between the rotating blade and the central transmission of the machine (protected by the black front cover in the photo).
This extends the overall lifespan of this mower. The belt acts similarly to a clutch (slipping in case of impact by the moving blades, often preventing the most wear-prone components of the machine from being damaged).

However, we advise against taking impacts with this mower or working on rocky terrains.

Another major benefit associated with the presence of the belt transmission is the blade engagement and disengagement lever (red lever at the top). This self-propelled combustion engine mower allows it to be activated only when necessary, for example, at the point where work is to be done, and to deactivate it whenever necessary. For instance, it allows for movement using the wheel traction but with the blade stationary.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

No. 01 original GeoTech spark plug

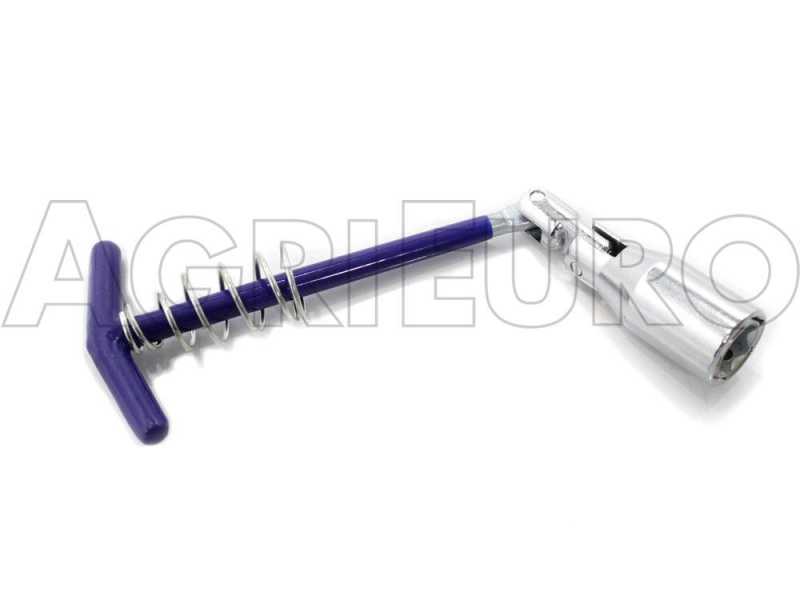

No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

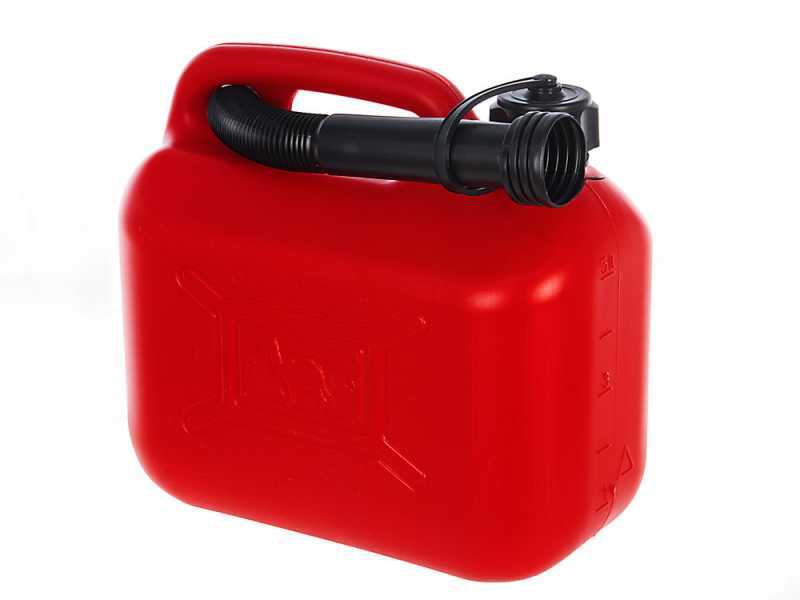

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
