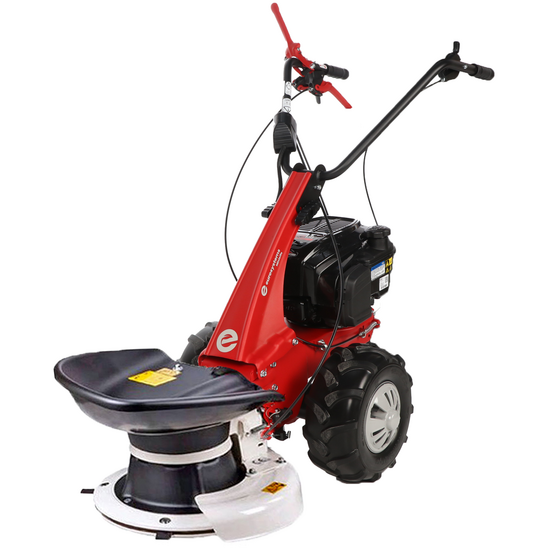

Name: Eurosystem Minieffe RM - Multifunction Rotary Mower - B&S 675 iSi
Brand: Eurosystems
SKU: K610460
Price: 1616.95 EUR
Availability: InStock

Description

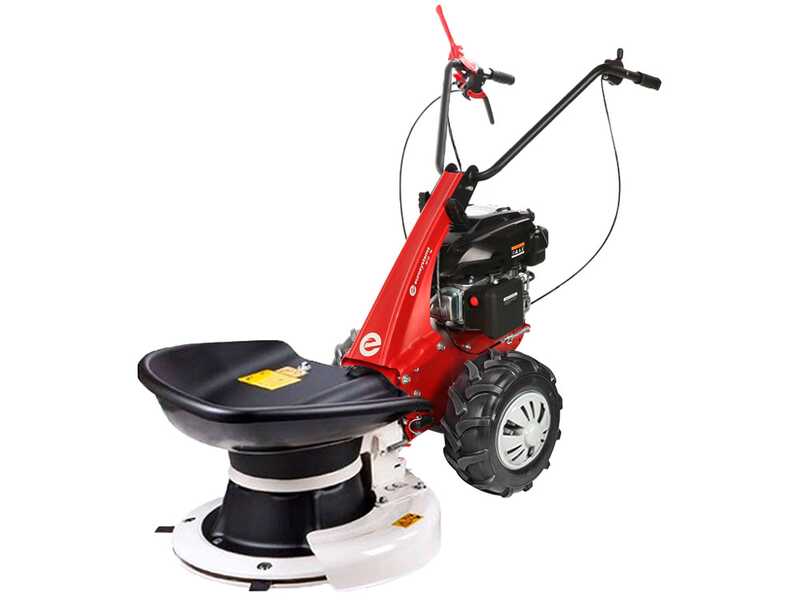

Eurosystem Minieffe RM Rotary Mower

The Eurosystems Minieffe RM is a self-propelled rotary mower with sculpted pneumatic tractor wheels driven by an oil-bath worm gear transmission.

Its 57 cm rotary blade consists of a rotating disc equipped with 4 blades that rotate on their retractable axis (the blades retract into the housing with each rotation) in case of impact.

The machine is equipped with a powerful B&S 675 iSi engine with 163 cc.

This mower can work on any type of surface, especially with any consistency of grass, whether high or low, thick or thin, straight or inclined, or flattened by weather conditions.

Eurosystem Minieffe RM - Multifunction Rotary Mower - B&S 675 iSi

Optional Accessories not included in the price

WARNING:
these accessories are not included in the purchase price of the machine.

87 cm CUTTING BAR

53 cm MULCHING DECK: transforms this petrol-powered all-terrain mower into a powerful petrol-powered mulching mower (for finely shredding and grinding grass)

COLLECTING BRUSH WITH BASKET: allows you to transform this machine into a functional self-propelled sweeper

105 cm FRONT BRUSH

FRONT BLADE: suitable for small quantities of snow, sand, earth, etc...

PAIR OF SNOW CHAINS: suitable for use with the FRONT BLADE accessory

WARNING!

The photos are for illustrative purposes only and may differ from the main product.

57 cm Rotary Blade

Cutting diameter: Ø57 cm

Blade rotation speed: 2300 rpm

Cutting height: 36 mm

Cutting system: 4 floating knives arranged at 90° to each other with double cutting edge retractable in case of impact with obstacles or stones

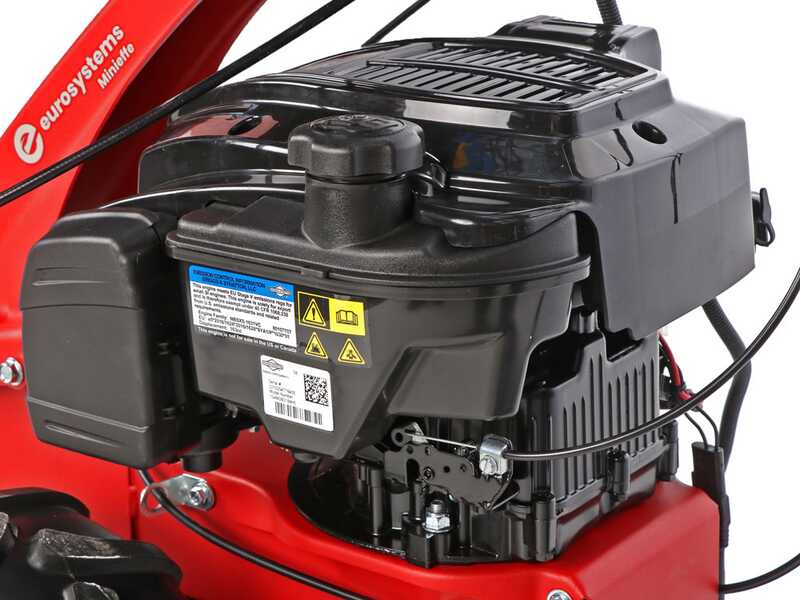

B&S 675 iSi Engine

The B&S engine is a 4-stroke OHV petrol engine, air-cooled with an aluminium cylinder.

It is a 163cc displacement engine and develops good power.

Features:

Engine type: Single-cylinder 4-stroke;
Cylinder type: Aluminium;
Displacement: 163cc;
Starting: Electric;
Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 5.5 HP

Effective Power: 3.67 HP

WARNING!

*Also known as "Commercial" Power, this is the classic power definition standard that was officially used until a few years ago by all major engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

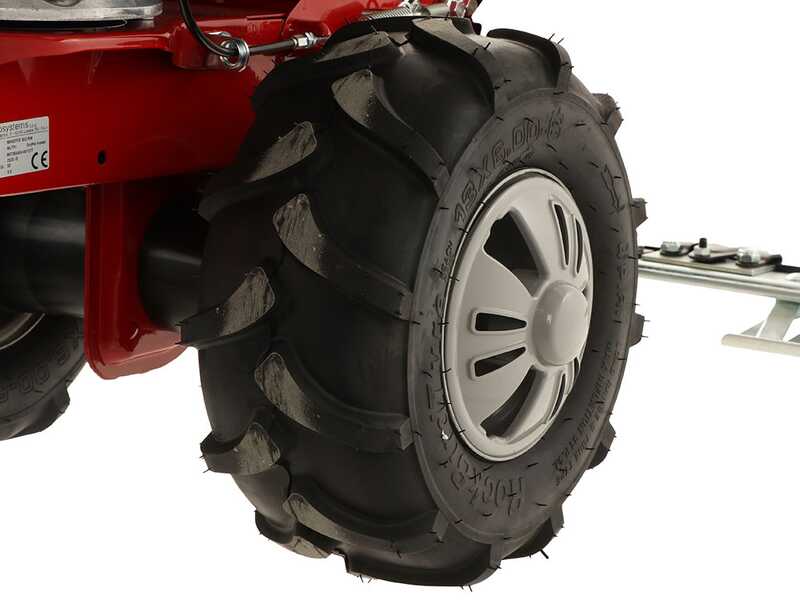

Intermediate transmission and Tractor wheels

The intermediate transmission is an oil-bath worm gear.

The wheels are of the tractor type with generous dimensions: 13x6.00–6

Their significant tread pattern allows the mower to advance even on the most difficult terrains while maintaining ideal grip.

Wheel disassembly screws.

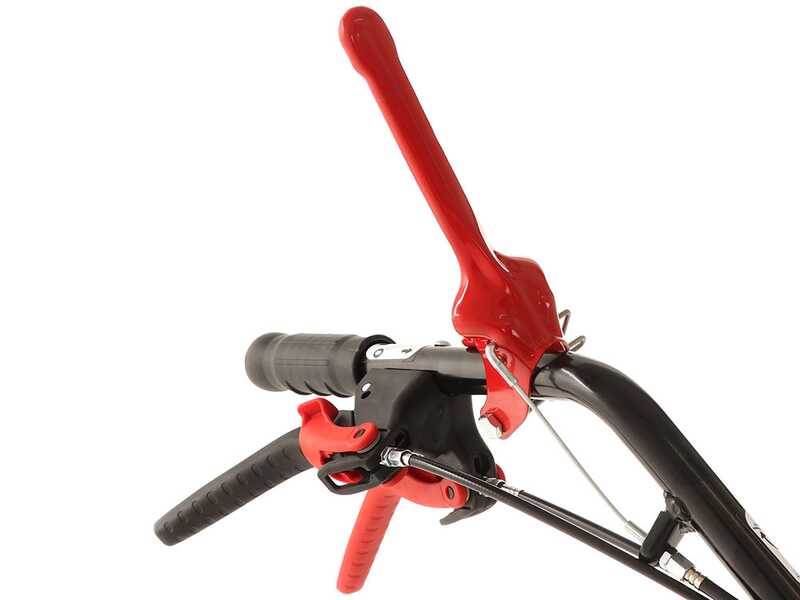

Controls and handlebars

The handlebars are adjustable vertically using the appropriate knobs.

Engine start button located on the handlebar

The red lever and the black lever are the levers to engage the forward and reverse gears of the machine, respectively.

Machine activation lever.

Throttle control lever.

The Minieffe series has introduced a new and effective anti-vibration system, with elements between the handlebar and its connection to the machine that will absorb vibrations coming from the engine and the accessory mounted on the machine. Additionally, the grips are anti-vibration with rubber covering present on them.

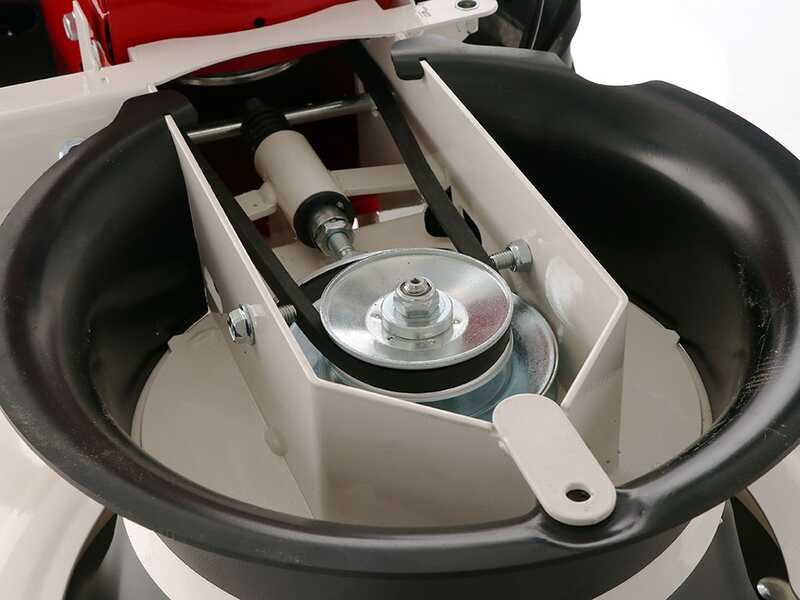

Final Belt Transmission

Final belt transmission between the rotary blade and the central transmission of the machine (protected by the black front cover in the photo).
This extends the overall lifespan of this mower. In fact, the belt performs a function similar to that of a clutch (slipping in case of impact by the moving blades, often preventing the most wear-prone components of the machine from being damaged).

However, we advise against taking impacts with this mower or working on rocky terrains.

Another great benefit associated with the presence of the belt drive is the blade engagement and disengagement lever (red lever at the top). This petrol-powered traction mower allows it to be activated only when necessary, for example, at the point where the work needs to be done, and to deactivate it whenever necessary. For instance, it allows for movements using the wheel traction but with the blade stopped.

Free items & Standard equipment

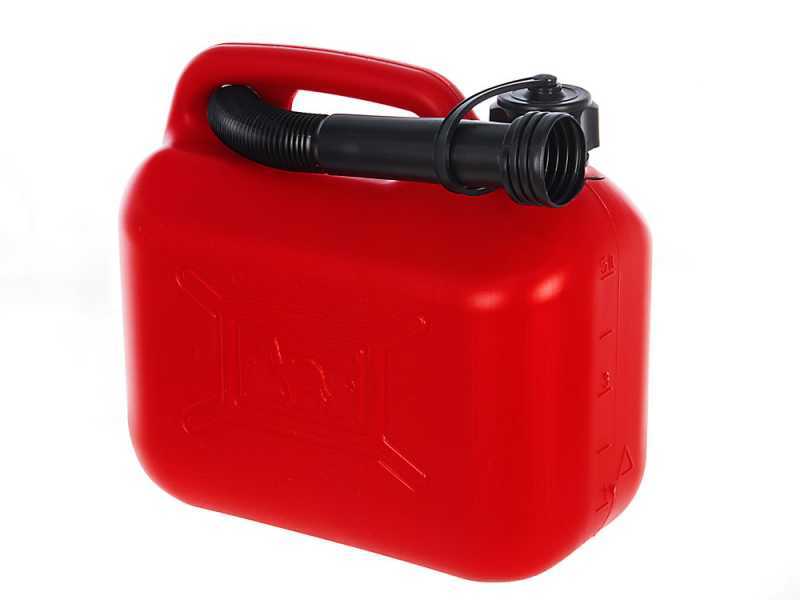

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

1° GIFT: spare parts, accessories and maintenance kit for B&S 190/223 cc OHV engine

Spare parts and maintenance kit for the following BRIGGS & STRATTON engines:

875 Series
850 Series
825 Series
1000 Series

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

Professional spark plug for the engine.
Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Specific syringe for engine oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 1 L oil bottles

FOR FREE: 2x 1 L sae 10W 40 bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.
