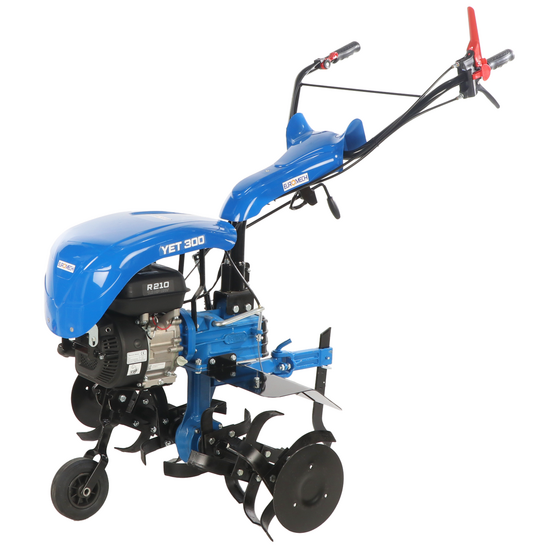

Euromech YET 300 - Petrol and diesel garden tiller - 7 HP - Yagmur R210

The Euromech YET 300 rotary tiller is designed for tilling operations on medium and large agricultural land and green surfaces.

The tilling unit consists of six rows of hoes mounted on a sturdy steel rotor, with an operating width of 90 cm and a maximum working depth of 30 cm.

Side containment discs are provided to delimit the furrow and contain soil dispersion, improving precision, especially along the edges.

The engine is a 212 cc, 4-stroke Yagmur R210 petrol engine, which develops 7 HP. This mechanical configuration ensures high performance on various types of terrain, reducing operator fatigue.

The 4-speed mechanical gearbox includes 3 forward gears and 1 reverse, facilitating manoeuvring and offering good control during operation, even on uneven terrain.

The width of the milling apparatus can be adjusted up to 52 cm, ideal for finishing work or for operating in tighter spaces, such as between rows or along borders.

The machine is built with a solid and compact structure, designed to ensure stability and ease of use even for operators with limited experience in using rotary hoes.

Main features:

• Working width of 90 cm: suitable for large, already tilled areas, it allows for deep tilling up to 30 cm and has sturdy steel hoes.

• Yagmur R210 engine: petrol-powered, with 7 HP, ideal for soft or pre-treated soil, reducing fatigue during tilling.

• 4-speed mechanical gearbox: 3 forward speeds and 1 reverse, facilitating manoeuvring even in confined spaces and improving control during work.

• Side containment discs: define the furrow and limit soil dispersion, ensuring a neat result.

• 52 cm adjustable cutter: perfect for finishing and passing between rows, it offers greater precision in narrow areas and can be easily configured without tools.

The standard Yagmur R210 engine
Powerful and professional, latest generation with OHV overhead valve technology.

Features:

Nominal power: 7 HP
The most correct term would be 'Commercial Power', meaning the classic standard definition of power officially used until a few years ago by all the best-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 5.76 HP
This corresponds to the real power expressed at the crankshaft. It is the figure indicated as official in the manual or in the technical data provided by the engine manufacturer.

* This figure may vary for the same engine model, depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

The direct gear transmission (oil bath) on the crankshaft requires very low maintenance and provides maximum resistance to stress when working on hard ground.

A gear transmission is much more solid and reliable than a belt drive because the components are already in contact with each other and as soon as one moves, all the others move too, and the motion from the engine to the cutter is immediate.

ATTENTION!

The transmission is SUPPLIED WITHOUT OIL.
Before starting it, read the instruction manual carefully.

The gearbox supplied with this rotary tiller is an excellent 3 +1 gear gearbox that can be selected using the appropriate lever.

Its main features are:

• Size and robustness, which are also visible
• Superior gear hardening
• Precision of the gear change
• Precision in gear manufacturing

The cutter is equipped with a 6-star cutter, for a working width of 90 cm; it is easy to manoeuvre thanks to the height-adjustable ergonomic handle and controls on the handle.

It is also possible to adjust the width to 52 cm by removing one row of hoes on each side.

Thanks to the front wheel, moving the rotary tiller is extremely easy, even on different types of terrain.

Transmission shaft hex diameter: 27 mm.

ATTENTION!

The transmission is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Front transfer wheel: to move the machine around with the engine off, avoiding damage to delicate surfaces and floors, the wheel can be raised and lowered using the special mechanism.

This is ideal, for example, for the storage of the rotary hoe.

It must be removed for the working phase (tilling) and refitted for any movements.

Thanks to this system, the rotary tiller can be configured for work mode.

Clutch lever: activates the movement of the cutters and the forward motion.

Lever for adjusting the height of the handlebar.

Lever for 180° handlebar adjustment

Accelerator.

The rear spur is positioned on its own attachment axis and is adjustable.

Cutter protective casing.

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.
