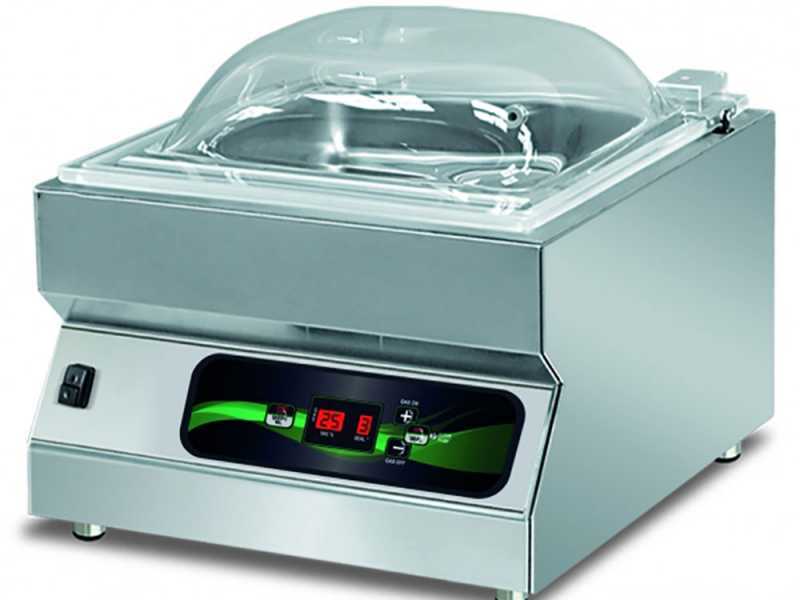

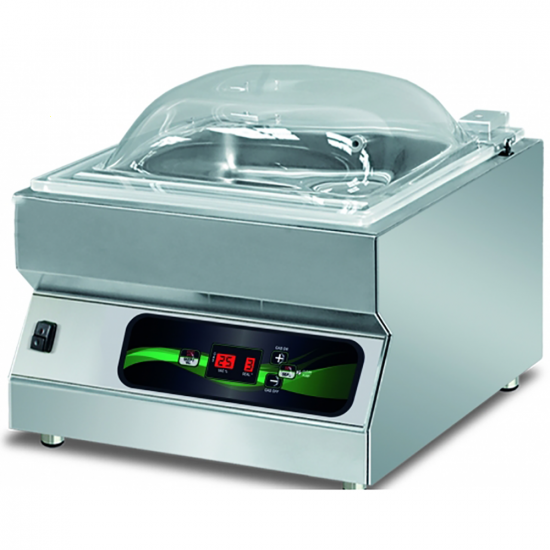

Euro 4100 Pro Inox Chamber Vacuum Sealer - 40cm Sealing Bar

The AgriEuro TopLine Euro 4100 Pro Stainless Steel professional chamber vacuum cleaner is designed to guarantee a high level of performance for those seeking quality, robustness and operational flexibility.

The machine, made entirely of stainless steel, offers superior strength and long service life.

Thanks to its compact design, with a footprint of 510x580x450 mm, it fits perfectly into different work areas, while maintaining a large 410x450x220 mm packaging chamber.

The 400 mm sealing bar ensures secure and strong sealing of the pouches, making the packaging process extremely efficient.

The oil vacuum pump with a capacity of 20 m³/h ensures a fast and deep vacuum, ideal for preserving the freshness and characteristics of products.

With a weight of 55 kg and a power consumption of 1.15 kW, the machine operates at a voltage of 230 V/50 Hz, making it compatible with most electrical installations.

Distinctive features include the oil self-cleaning system and the possibility of using inert gases for modified atmosphere packaging.

This ensures that the most delicate products are not crushed, prolonging shelf life and preserving the organoleptic qualities .

It is also equipped with an advanced control panel that allows precise adjustment of the vacuum level, for tailor-made packaging.

Main features:

• Robust Stainless steel body:
• Wide packaging chamber (410x450x220 mm)
• 400 mm sealing bar.
• 20 m³/h oil vacuum pump
• Possibility of packaging in a modified atmosphere (inert gases)
• Oil self-cleaning system

One of the most advanced features of the AgriEuro TopLine Euro 4100 Pro Stainless Steel vacuum bell is the possibility of packaging in a modified atmosphere using inert gases.

This system is particularly suitable for delicate foods such as cheeses, cold cuts or bakery products, which may suffer cosmetic damage or loss of freshness when completely vacuumed.

During the packaging cycle, after vacuum is created inside the bell, the machine introduces a mixture of inert gas (such as nitrogen or carbon dioxide), which acts as a protective cushion for the products.

This process keeps the shape of the product inside the package, preventing it from being crushed, as could happen with vacuum alone.

In addition, inert gases slow down microbial oxidation and growth processes, significantly extending food shelf life.

The sealing bar of the Euro 4100 Pro Stainless Steel is equipped with special nozzles from which the inert gas escapes, which is inserted directly into the bag before the completion of packaging.

The entire cycle is fully automatic: The machine releases the required amount of gas and then seals the bag, ensuring an airtight and secure seal.

This technology is widely used in the professional sector, especially for packaging fresh food products intended for long-term storage.

The modified atmosphere packaging option offers numerous advantages, including preserving the organoleptic qualities of the product and protecting it from physical damage during transport or storage.

Main advantages of packaging with inert gases:

• Prevents the product from being squeezed, preserving its shape
• Prolongs product shelf life by slowing down deterioration processes
• It preserves the organoleptic qualities of the food
• Ideal for delicate products such as cheese, cold cuts and baked goods

Thanks to this functionality, the Euro 4100 Pro Stainless Steel vacuum bell stands out as a highly professional and versatile solution for food packaging.

The AgriEuro TopLine Euro 4100 Pro Stainless Steel professional chamber vacuum chamber is designed for maximum efficiency and flexibility during packaging.

The large dimensions of the room, 410x450x220 mm, allow you to work even with large products, ensuring optimal management of the internal space.

This allows food products to be packaged easily and quickly, and also adapts perfectly to smaller products thanks to the removable raised shelves, supplied as standard, which can be inserted into the chamber.

The Euro 4100 Pro Stainless Steel sealing bar has a length of 400 mm and is made of very high temperature resistance materials, ensuring a long-lasting, airtight seal of the envelopes.

Thanks to its detachable design, the sealing bar makes cleaning and maintenance as easy as possible, which is crucial to keep the machine in top condition even during intensive use.

Furthermore, the bar is designed to withstand intense work cycles without compromising on packaging quality.

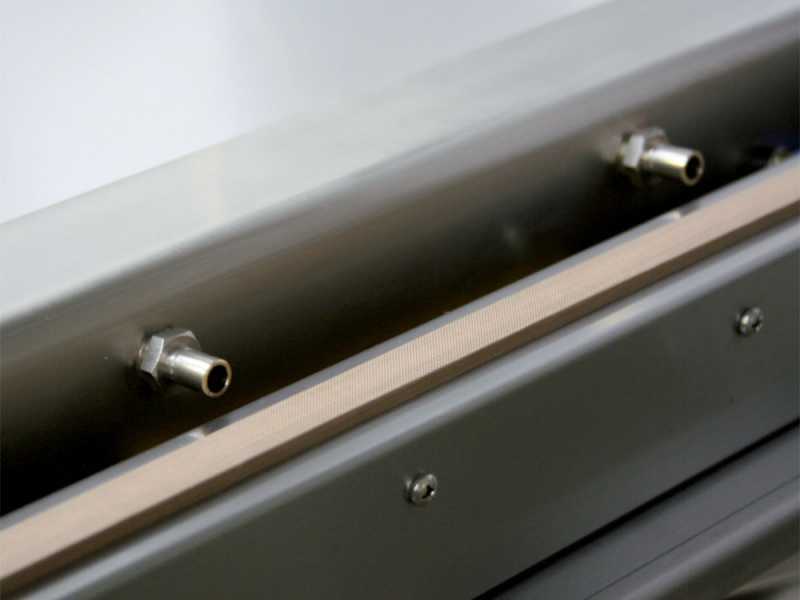

Above the solder bar are the inert gas packaging nozzles.

The process is fully automatic: A tightening sensor starts the packaging cycle once the bell is closed, while hydraulic pistons lift the cover at the end of the process.

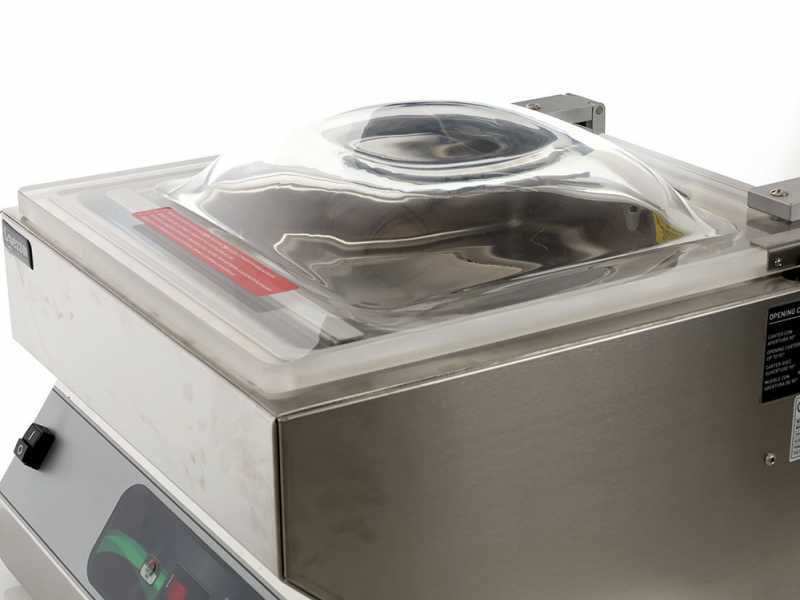

The bell cover is made of thick impact-resistant plexiglass, ensuring safety and durability even in intensive working environments.

Specifications of the solder bar and vacuum chamber:

• Vacuum chamber dimensions: 410x450x220 mm
• 400 mm long, removable, heat-resistant sealing bar
• Thick impact-resistant plexiglass for the lid
• Removable elevating plates for the packaging of small products
• Automatic system with clamping sensor and hydraulic pistons

This system ensures maximum efficiency and ease of use, allowing the optimal management of different types of food products.

The automatic duty cycle of the AgriEuro TopLine Euro 4100 Pro Stainless Steel bell-shaped vacuum makes packaging as easy as possible.

The operator only needs to program parameters such as vacuum percentage and welding time on the electronic display, which are optimal for the product being packaged. Once the bag is placed on the solder bar and the lid is lowered, the cycle starts automatically.

The clamp sensor detects the closing of the bell and starts the vacuum process.

When packaging is complete, the hydraulic pistons automatically raise the lid, making it easy to use even during intensive work cycles.

A particularly useful feature is the possibility to use the machine as an external suction model for products that are too large for the vacuum chamber.

In this case, it is possible to pack outside the machine using embossed envelopes.

Simply place the bag outside the chamber, making sure the opening of the bag is inside and fits the solder bar perfectly.

By starting the vacuum cycle, packaging is performed as in an external suction machine.

The structure of the machine, entirely made of durable and hygienic materials, is designed to guarantee easy cleaning and a long service life.

In addition, the 90-degree opening crankcase facilitates maintenance operations, such as changing the vacuum pump oil, making servicing quick and easy.

All AgriEuro TopLine machines are equipped with an easily accessible on/off button and are tested and guaranteed made in Italy, to offer reliability and high performance over time.
