Energy EY-7MDE-SA AVR - Silent Diesel Generator with AVR - 5 Kw - Continuous 4.5 kW Single Phase + ATS

Add a question
ID: K610067

EAN: 8050246353110

MPN: EY01100369

Energy EY-7MDE-SA AVR - Silent Diesel Generator with AVR - 5 Kw - Continuous 4.5 kW Single Phase + ATS
Free gifts from AgriEuro
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Diesel
Electric Current
Single-phase
Single-phase rated power
4.5 kW
Max. power
5 kW
Automatic Transfer Switch (ATS)
Yes - outer
AVR technology
Yes
Alternator
Made in Italy
Alternator casing
copper
Electric start
Yes
Silenced
Yes
Motor brand
Yanmar
Motor Model
L100V
Cubic capacity
435 cm³
Nominal power
8.6 HP
Battery charger
Yes
Larger tank
Yes
Manufacturing country
Italy
Product Features
Model:
EY-7MDE-SA AVR
Type:
Versione a cabina silenziata
Power supply:
Diesel
Type:
Fixed
Electric Current:
Single-phase
Voltage stabiliser:
AVR
Alternator casing:
copper
Three-phase power supply 400 V:
Yes
Frequency:
50 Hz
Automatic Transfer Switch (ATS):
Yes - outer
AVR board:
Yes
Alternator brand:
LINZ
Single-phase rated power :
4.5 kW
Max. power:
5 kW
Tank capacity:
30 L
Larger tank:
Yes
Electric start:
Yes
Alternator:
Made in Italy
Manufacturing country:
Italy
Motor data
Motor brand:
Yanmar
Motor Model:
L100V
Cubic capacity:
435 cm³
No. of cylinders:
2
Nominal power:
8.6 HP
Silenced:
Yes
Fuel:
Diesel
Power supply:
Fuel injection
Engine lubrication system:
Oil bath
Tank capacity:
30 L
Manufacturing country:
Italy
Equipment
Automatic Transfer Switch (ATS):
Yes - outer
AVR technology:
Yes
Battery charger:
Yes
Battery for electric start:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes

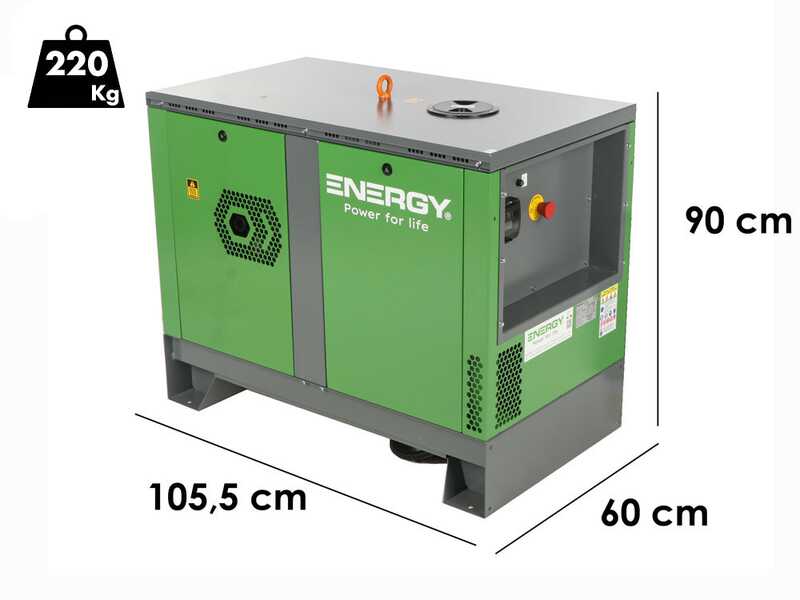

Dimensions and logistics
Product dimensions in cm (L x W x H):
105,5x60x90 cm
Net weight:
220 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x126 cm
Weight including packaging:
260 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 15/07/2025 - 17/07/2025
€ 4.942,84
Vat included
You're viewing:
Customers also viewed:
Description

Three-phase Energy EY-7MDE-SA AVR Generator

The single-phase generator EY-7MDE-SA AVR is a professional diesel power unit, designed to ensure maximum reliability and operational continuity even in intensive use contexts. It is equipped with an ATS panel with automatic network/generator switching, allowing the generator to start immediately in case of a blackout.

Manufactured by ENERGY Gruppi Elettrogeni, an Italian company specialized in producing high-quality generators, this model combines excellent components and an entirely made in Italy design. Inside, it features a Yanmar L100V engine, synonymous with power, durability, and reliability, with electric start. The LINZ alternator, entirely copper and produced by a leading company in the sector, ensures a maximum power of 5 kW and consistent performance over time.

The structure is enclosed in a soundproofed painted steel cabin, lined with fireproof sound-absorbing material, which guarantees a high noise reduction. The accessibility to the engine and alternator compartment is designed to facilitate maintenance operations. The generator is also equipped with a silencer muffler and a top lifting hook to ease transportation.

The equipment is completed by the AVR board (Automatic Voltage Regulator), which keeps the output voltage constant even in the presence of load variations, thus ensuring optimal performance and protection for connected equipment.

Thanks to the quality of its components and construction care, the EY-7MDE-SA generator represents a robust and professional solution, significantly superior to many equivalent products with anonymous components.

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for charging or maintaining batteries of these systems or other types of systems; such use can seriously damage the generator.

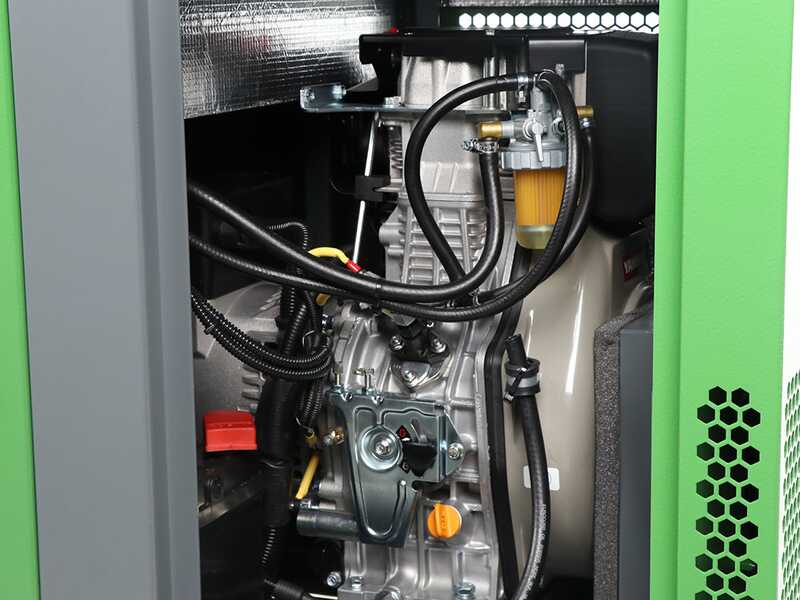

Yanmar L100V Diesel Engine

Features:

Engine type
Single-cylinder direct injection
Starting
Recoil
Cooling system
Air
Displacement
435 cm³
Max RPM
3000 rpm
Tank capacity
4.4 Lt
Oil capacity in sump
1.6 lt
Compression ratio
20:1

WARNING

Engine without oil.

Before starting, carefully read the instruction manual.

Nominal Power: 8.6 HP

* Also known as "Commercial" Power, this is the classic standard definition of power that was officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Effective Power: 7.7 HP

* Corresponds to the actual power expressed on the working organ during use. It is the one indicated as official in the engine manufacturer's manual or technical data.

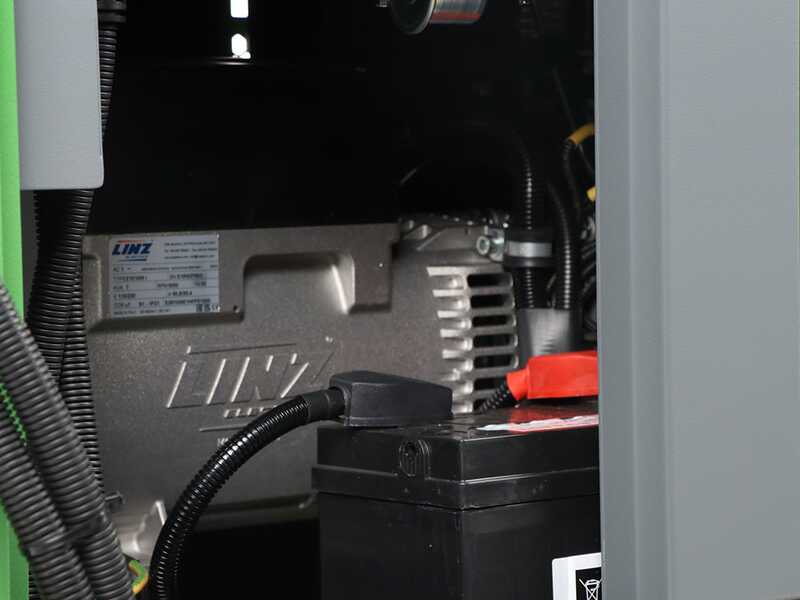

Alternator and Power Output

Alternator Linz E1E10M I

Many alternators of Energy generators contain an automatic voltage regulator, or AVR, designed to continuously control the voltage. The control is electronically commanded, allowing for better voltage and frequency stability. The AVR allows maintaining the output voltage more constant and less dependent on the load. This means fewer drops or peaks in current. AVR technology significantly improves the performance and operating life of reactive load devices.

LINZ Electric is a renowned Italian company that is part of the Pedrollo Group, a leader in the electric pump sector. The group's vast experience combined with LINZ's high degree of innovation guarantees high-quality and reliable Made in Italy alternators.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating frequency: 50Hz

Maximum single-phase power output: 5 KW

Nominal continuous service power (COP) single-phase: 4.5 KW

This is the data to be considered as the actual and constant data in the generator's output (it guarantees unlimited hours of duration).

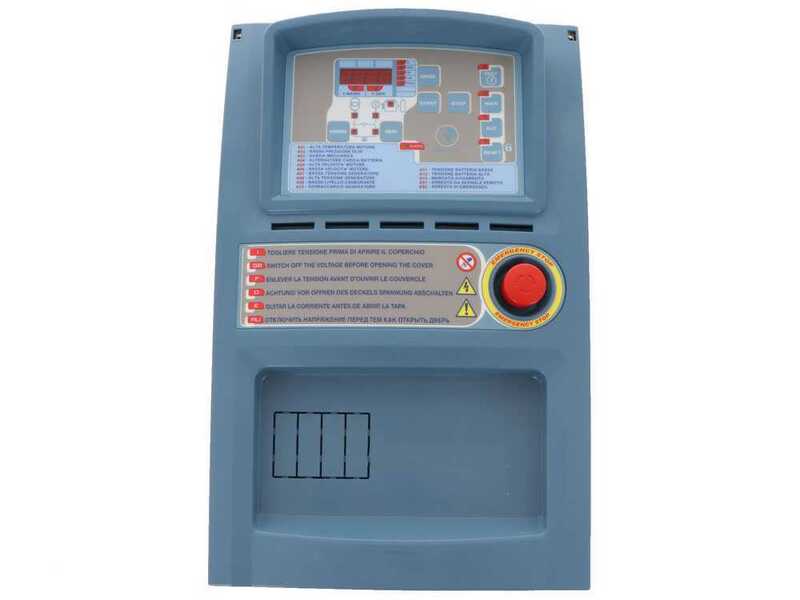

Main Features of the ATS Panel

The automatic intervention panel ATS must be connected to the electrical network and the generator.

This allows automatically compensating for power interruptions.

This is an essential application in cases where a blackout can cause economic, material damage, or serious inconvenience.

It is recommended to carry out the possible connection of the AUTOMATIC INTERVENTION PANEL to your domestic utility with the help of your trusted electrician.

The panel is equipped with a digital display that allows viewing some useful signals for managing the generator set.

The panel is equipped with various types of instrumentation:

  • RESET: blocks the panel and resets the alarm code
  • AUT: sets the panel to Automatic operation
  • MAN: sets the panel to Manual operation
  • TEST: activates and deactivates the Automatic Test
  • START: starts the generator in manual operation
  • STOP: stops the generator in manual operation
  • GEN: closes the group contactor in manual operation
  • MAINS: closes the network contactor in manual operation
  • MEAS - selects the measurement to display on the screen

The manual then indicates all the meanings of the related alarms and signal LEDs.

Additional Features

Among other features, we find:

  • Lifting hook
  • Sound-absorbing side panels

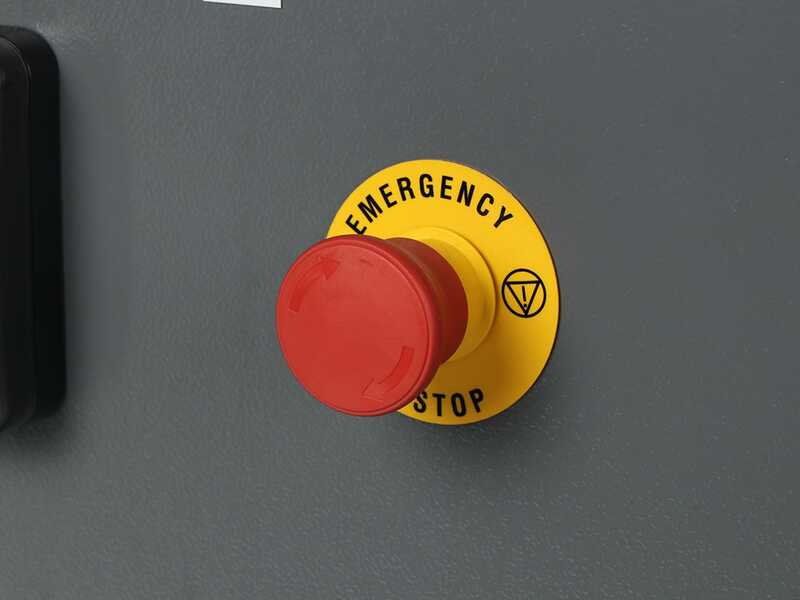

  • Emergency stop
  • Side panel opening system (with supplied key)
  • Tank cap
  • Main breaker

How to Choose the Right Power for a Generator?

Regarding the power needed for the use you will make of it, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and consequently perform a simple calculation, as explained below, to determine the necessary power that the generator must be able to deliver.

Required power = Object consumption X Starting coefficient

The starting coefficient is a fundamental characteristic of every tool that runs on electricity, indicating how much the object's consumption increases during startup and thus serves to concretely determine how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, orient yourself towards a generator that has a power in WATTS equal to or greater than the obtained result (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

WARNING: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power that a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

The generator is sold in its original packaging on pallet.

Included in the package are detailed instructions for use and maintenance and general guidelines for the correct operation of the product.
