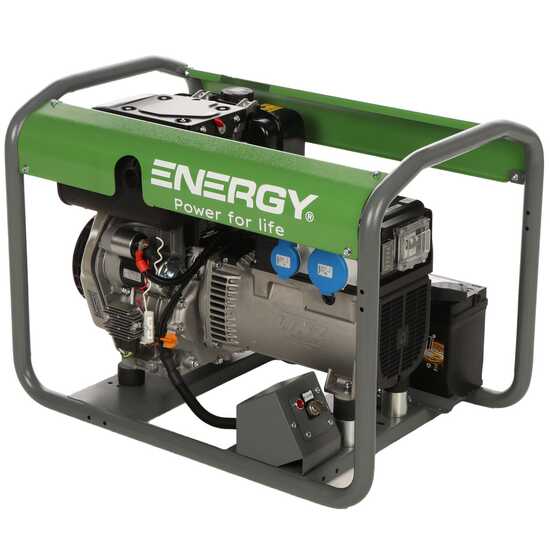

Energy EY-7MDE AVR - Diesel Power Generator with AVR 5 kW - Continuous 4.5 Single Phase

The single-phase diesel generator EY-7MDE AVR is a professional model with electric key start, manufactured by the renowned Italian company ENERGY Gruppi Elettrogeni. This generator is equipped with a high-quality engine, the Yanmar L100V, known for its reliability and high performance, accompanied by an equally prestigious alternator produced by LINZ, an Italian leader in the sector.

Designed to meet the needs of professionals, the generator stands out for its versatility, robustness, and compactness. It is ideal for various applications, including construction sites, agricultural sector, emergencies for the electrical grid in homes and businesses, mountain refuges, and service stations.

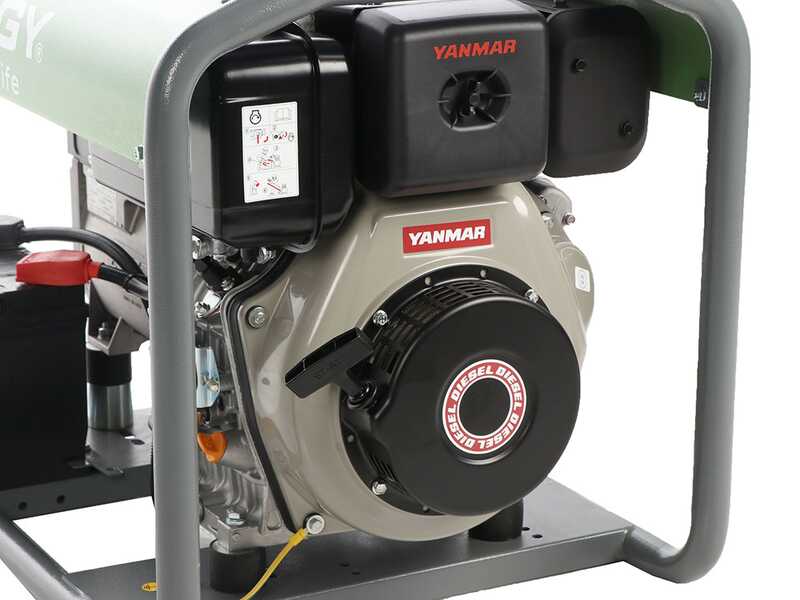

The 435cc diesel engine, capable of delivering a nominal power of 8.6 HP, and the alternator with copper winding offer a maximum power of 5 kW. This generator set is equipped with an AVR board, which automatically regulates the output voltage, keeping it stable even with load variations.

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for charging or maintaining batteries of these systems or other types of installations; such use can seriously damage the generator.

Features:

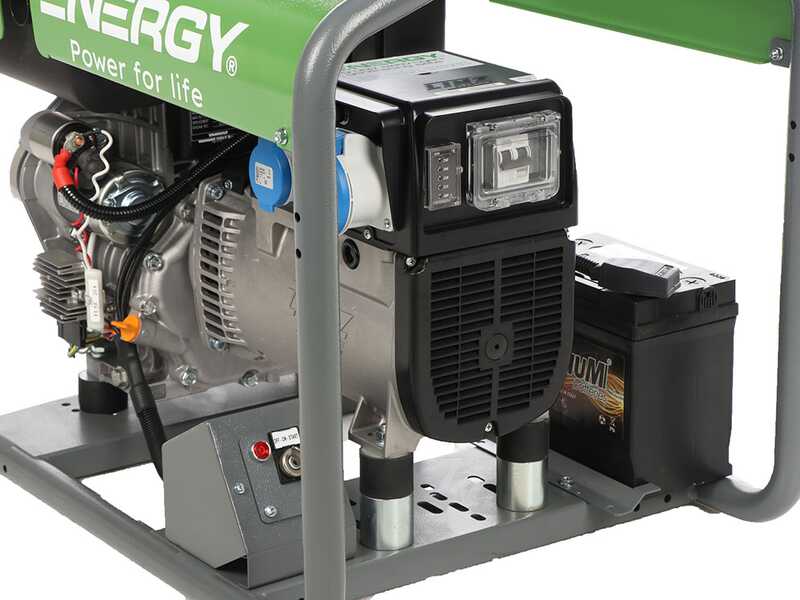

• Detail of electric start
• Detail of the muffler
• Detail of the diesel tank

WARNING

Engine without oil.

Before starting, carefully read the instruction manual.

Nominal Power: 8.6 HP

* Also known as "Commercial Power", this is the classic standard definition of power that was also officially used until a few years ago by all the most renowned engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Effective Power: 7.7 HP

* Corresponds to the actual power expressed on the working organ during use. It is the one indicated as official in the engine manufacturer's manual or technical data.

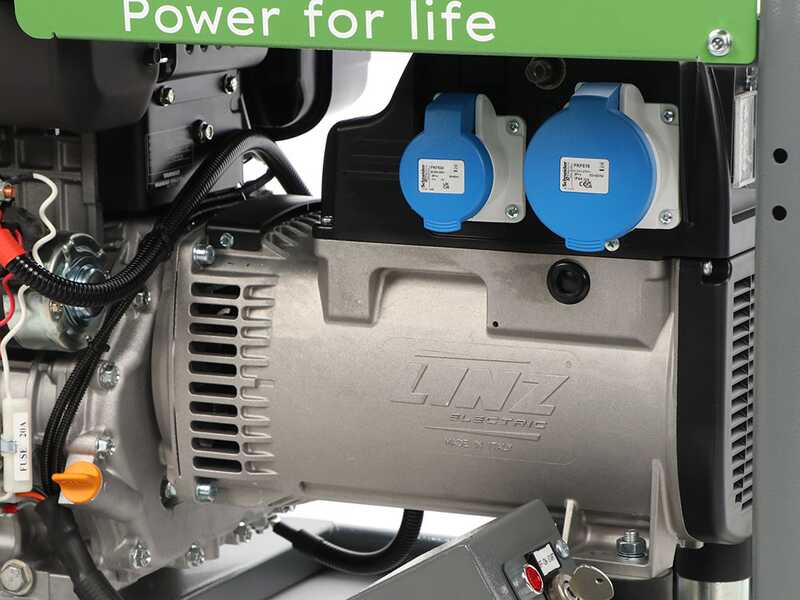

Alternator LINZ E1E10M I

LINZ Electric is a renowned Italian company that is part of the Pedrollo Group, a leader in the electric pump sector. The group's extensive experience combined with the high degree of innovation of the LINZ company guarantees Made in Italy alternators of great quality and reliability.

LINZ can now be considered the top company among alternator manufacturers in Italy.

The alternator of the generator set ENERGY EY-7MDE AVR features a copper winding.

Maximum nominal power* in emergency service LTP: 5 KW

* in emergencies, the generator can deliver this power

Nominal power* in variable continuous service PRP: 4.5 KW

* This is the data to be considered as the actual and constant data in the generator's output, (it guarantees unlimited hours of operation)

The power generator is equipped with an AVR board: an electronic device that performs automatic regulation of the output voltage, keeping it constant with load variations

Power Outlets:

Nr 1 16A CEE industrial power outlet 230 V single-phase 3 poles

Nr 1 32A CEE industrial power outlet 230 V single-phase 3 poles

Nr 1 Breaker to connect and disconnect the power

Nr 1 LED voltmeter

Reset Button

Regarding the power needed for your use, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and consequently perform a simple calculation, as explained below, to determine the necessary power that the generator must be able to deliver.

Required Power = Object Consumption X Starting Coefficient

The starting coefficient is a fundamental characteristic of every tool that operates on electricity, indicating how much the object's consumption increases during startup and thus helping to determine concretely how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, orient yourself towards a generator that has a power in WATTS equal to or greater than the result obtained (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

WARNING: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power that a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.
