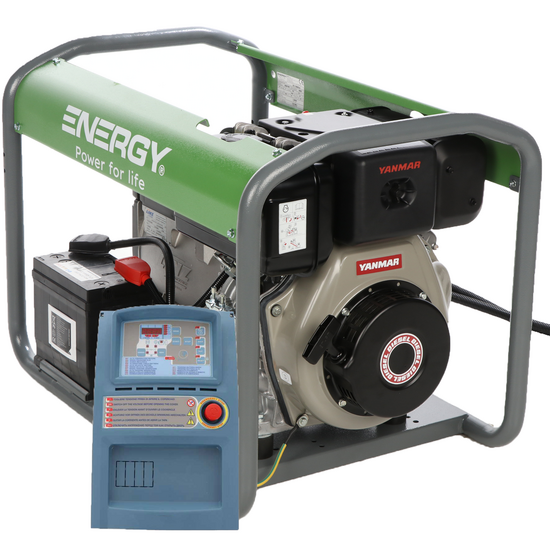

Energy EY-7MDE-A AVR - Diesel Power Generator with AVR 5 kW - Continuous 4.5 Single-phase + ATS

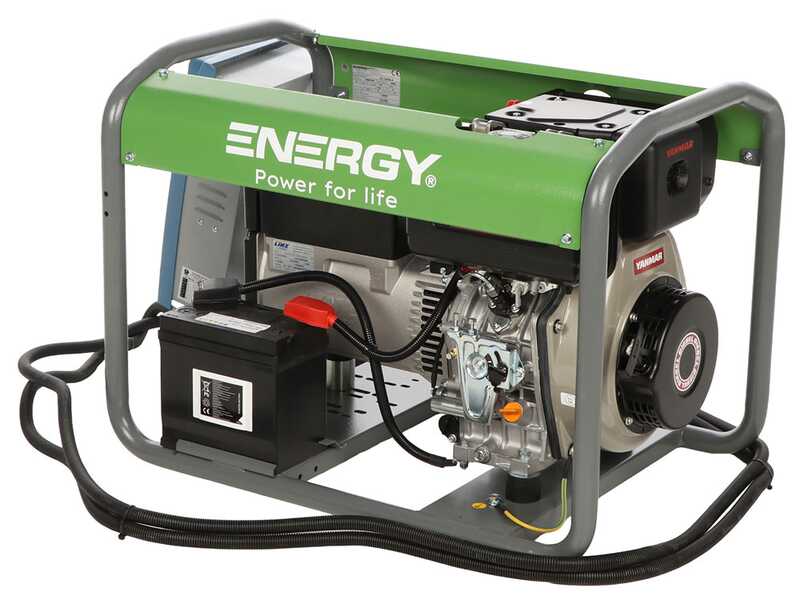

The single-phase diesel generator EY-7MDE-A AVR is a professional model designed by the renowned Italian company ENERGY Gruppi Elettrogeni, equipped with an automatic panel and a network/generator switching system (ATS). It is equipped with high-quality components: the Yanmar L100V engine, known for its reliability and high performance, and the LINZ alternator, a benchmark in the sector at a national level.

Designed to meet the needs of professionals, the generator combines versatility, robustness, and compactness, making it ideal for various contexts: construction sites, agricultural activities, emergency backup for homes and businesses, alpine shelters, and service stations.

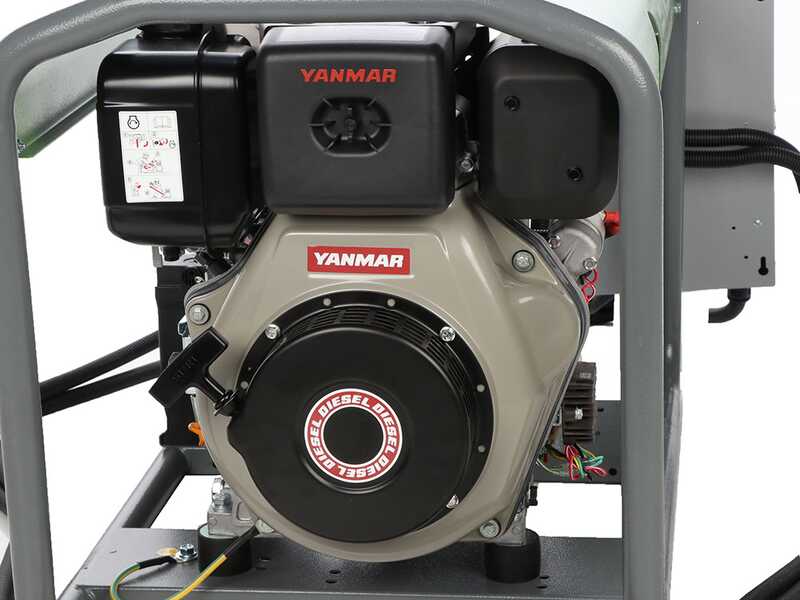

The powerful 435cc diesel engine, capable of delivering 8.6 HP, paired with an alternator with copper winding, ensures a maximum power of 5 kW. The presence of the AVR board guarantees a constant and safe output voltage, regardless of load variations.

Thanks to its solid and compact structure, the EY-7MDE-A AVR model is perfect for intensive and professional use. Additionally, the ATS system allows automatic start-up in case of a blackout, ensuring operational continuity and maximum reliability in any situation.

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for charging or maintaining batteries of these systems or other types of systems; this use can seriously damage the generator.

Features:

Detail of the muffler

Detail of the diesel tank

Also included is a practical magnet that allows, in case of a dead battery, to force the opening of the engine solenoid valve, thus enabling starting with the self-retracting mechanism.

WARNING

Engine without oil.

Before starting, carefully read the instruction manual.

Nominal Power: 8.6 HP

* Also known as "Commercial Power," this is the classic power definition standard that was officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widely used and advertised in major commercial sales channels.

Effective Power: 7.7 HP

* Corresponds to the actual power expressed on the working organ during use. It is the one indicated as official in the engine manufacturer's manual or technical data.

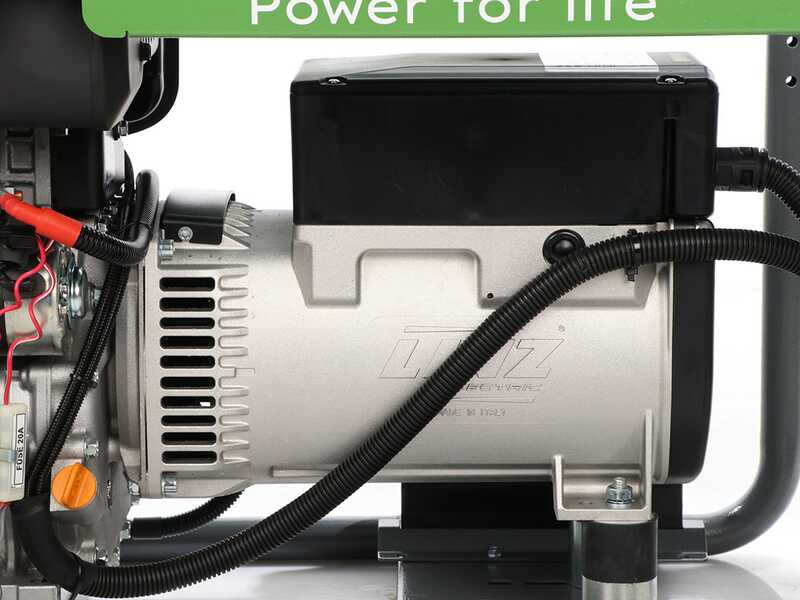

Alternator LINZ E1E10M I

LINZ Electric is a renowned Italian company that is part of the Pedrollo Group, a leader in the electric pump sector. The group's vast experience combined with LINZ's high level of innovation guarantees high-quality and reliable Made in Italy alternators.

LINZ can now be considered the top company among alternator manufacturers in Italy.

The alternator of the ENERGY EY-7MDE-A AVR generator set features a copper winding.

Maximum nominal power* in emergency service LTP: 5 KW

* in emergency cases, the generator can deliver this power

Nominal power* in variable continuous service PRP: 4.5 KW

* This is the data to be considered as the actual and constant data in the generator's output, (it guarantees unlimited hours of operation)

The power generator is equipped with an AVR board: an electronic device that performs automatic voltage regulation, making it constant with load variations

The automatic intervention panel ATS must be connected to the electrical network and the generator.

This allows automatic compensation for power interruptions.

This is an essential application in cases where a blackout can cause economic, material damage, or severe inconvenience.

It is recommended to carry out any connection of the AUTOMATIC INTERVENTION PANEL to your domestic utility with the help of your trusted electrician.

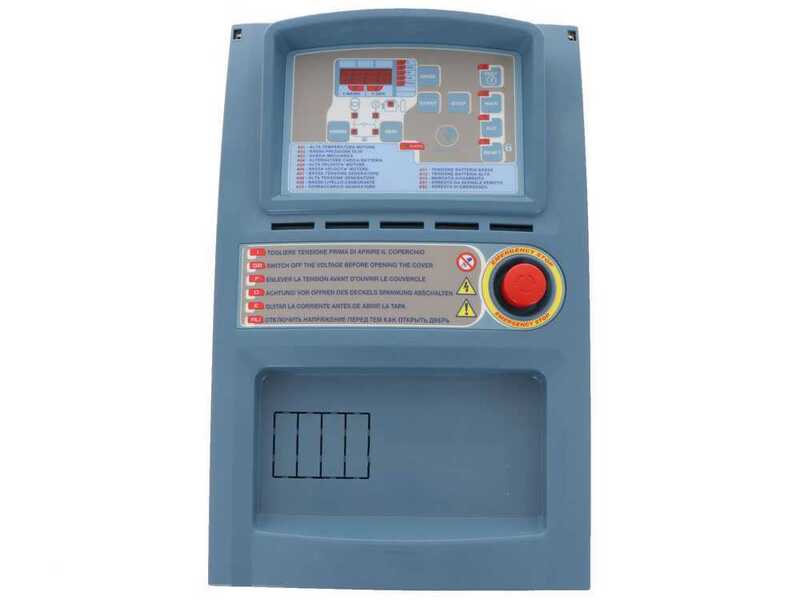

The panel is equipped with a digital display that allows you to view some useful signals for managing the generator set.

The panel is equipped with various types of instrumentation:

• RESET: blocks the panel and resets the alarm code
• AUT: sets the panel to Automatic operation
• MAN: sets the panel to Manual operation
• TEST: activates and deactivates the Automatic Test
• START: starts the generator in manual operation
• STOP: stops the generator in manual operation
• GEN: closes the group contactor in manual operation
• MAINS: closes the network contactor in manual operation
• MEAS - selects the measurement to be displayed on the screen

The manual then indicates all the meanings of the related alarms and signal LEDs.

Regarding the power needed for your use, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and then perform a simple calculation, as explained below, to determine the necessary power the generator must be able to deliver.

Necessary power = Consumption of the object X Starting coefficient

The starting coefficient is a fundamental characteristic of every electrically powered tool that indicates how much the object's consumption increases during startup and thus helps determine concretely how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, choose a generator with a power in WATTS equal to or greater than the result obtained (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

WARNING: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.
