Energy EY-5.5MBE-A - Petrol Power Generator - 4.4 kW - Continuous 3,9 kW Single-phase + ATS

Add a question
ID: K609943

EAN: 8050246353042

MPN: EY01000023

Energy EY-5.5MBE-A - Petrol Power Generator - 4.4 kW - Continuous 3,9 kW Single-phase + ATS
Free gifts from AgriEuro
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Petrol
Electric Current
Single-phase
Single-phase rated power
3.9 kW
Max. power
4.4 kW
Automatic Transfer Switch (ATS)
Yes - outer
Alternator
Made in Italy
Alternator casing
copper
Electric start
Yes
Motor brand
Honda
Motor Model
GX 270
Cubic capacity
270 cm³
Nominal power
8.4 HP
Manufacturing country
Italy
Product Features
Model:
EY-5,5MBE-A
Power supply:
Petrol
Type:
Fixed
Electric Current:
Single-phase
Alternator casing:
copper
Single-phase power supply 220 V:
Yes
Frequency:
50 Hz
Automatic Transfer Switch (ATS):
Yes - outer
AVR board:
No
Alternator brand:
LINZ
Single-phase rated power :
3.9 kW
Max. power:
4.4 kW
Tank capacity:
5.3 L
Electric start:
Yes
Alternator:
Made in Italy
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 270
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
8.4 HP
Silenced:
No
Fuel:
Petrol
Power supply:
Fuel injection
Engine lubrication system:
Oil bath
Tank capacity:
5.3 L
Noise level:
93 dB(A)
Manufacturing country:
Japan
Equipment
Automatic Transfer Switch (ATS):
Yes - outer
AVR technology:
No
Battery for electric start:
Yes
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Starting keys:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
83,5x56,5x61
Net weight:
90 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
90x60x97 cm
Weight including packaging:
112 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 13/06/2025 - 17/06/2025
€ 2.799,81
Vat included
You're viewing:
Customers also viewed:
Description

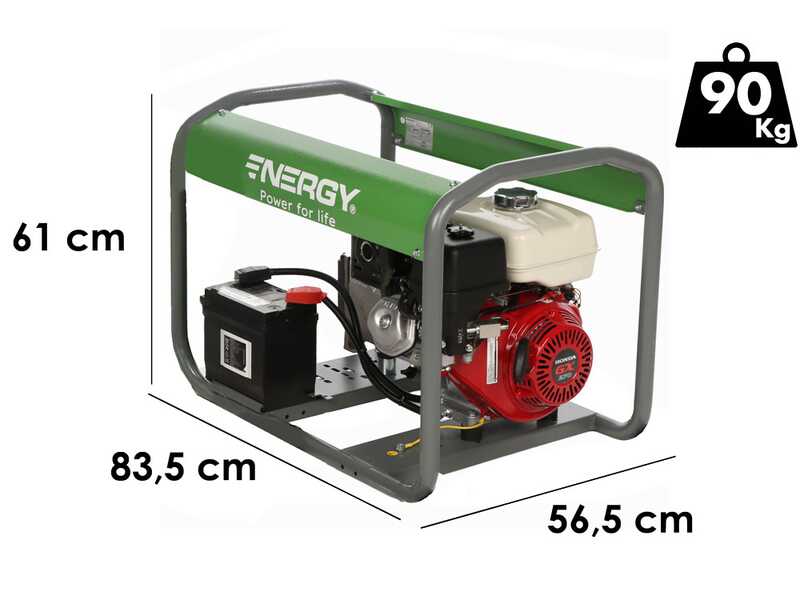

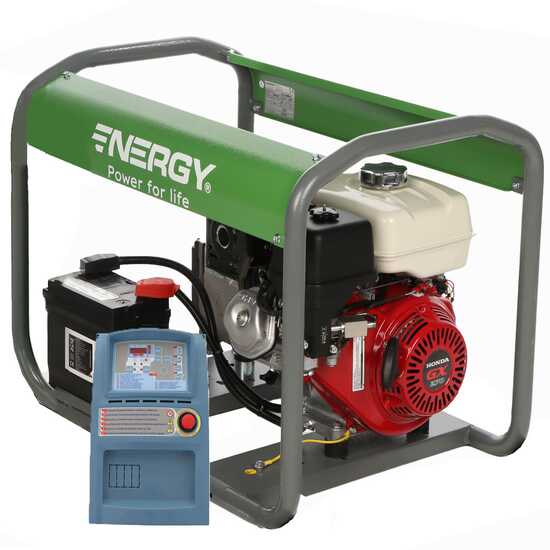

Single-phase ENERGY EY-5.5MBE-A Generator with ATS

The single-phase petrol generator ENERGY EY-5.5MBE-A is a high-quality professional solution, equipped with an automatic panel and a network/group switching system (ATS). Manufactured by the Italian company ENERGY Gruppi Elettrogeni, it offers a combination of high performance and reliability.

Equipped with a Honda GX 270 engine, one of the best in the world, and an excellent Italian LINZ alternator, this generator is designed to offer superior performance. The start-up is simplified thanks to the electric start, making its use even more practical and fast.

The generator is equipped with a powerful 270cc petrol engine and a copper-wound alternator that offers a maximum power of 4.4 kW, making it ideal for a wide range of professional applications.

This model stands out for its robustness, compactness, and safety, features that make it suitable for intensive professional use. The ATS system allows the generator to start automatically in case of a power outage, ensuring continuity and reliability.

The Honda GX 270 engine is known for its high reliability and performance, representing the top of the category for petrol engines intended for these devices. The LINZ alternator, a prestigious Italian brand, further contributes to ensuring efficiency and durability.

This combination of Honda engine and Made in Italy alternator places the ENERGY EY-5.5MBE-A among the high-end products, distinguishing itself from most generators on the market, which often mount lower quality Chinese engines and alternators.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

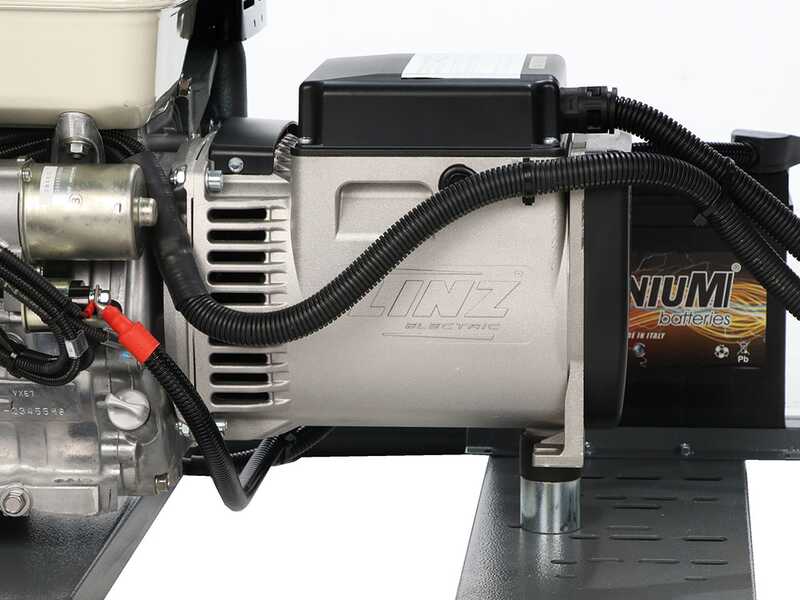

Alternator and Power Output

Alternator Linz E1C10S G

LINZ Electric is a renowned Italian company that is part of the Pedrollo Group, a leader in the electric pump sector. The group's vast experience combined with the high degree of innovation of LINZ ensures high-quality and reliable Made in Italy alternators.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating frequency: 50Hz

Maximum single-phase power output: 4.4 KW

Continuous operation nominal power (COP) single-phase: 3.9 KW

This is the data to be considered as the actual and constant data in the generator's output (it guarantees unlimited hours of operation).

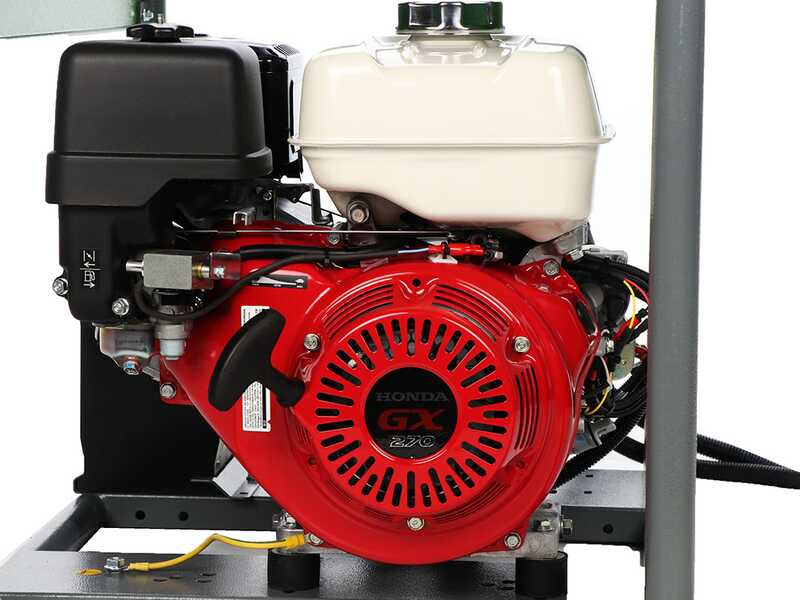

HONDA GX 270 Engine

The Honda GX 270 engine is professional and powerful with OHV overhead valve technology.


Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type
Aluminium
Displacement
270 cm³
Compression ratio
8.5 : 1
Max RPM
3600 rpm
Torque value
19.1 Nm / 1.94 kgfm / 2500 rpm
Tank capacity
5.3 Litres
Consumption
2.4 lt/h at 3600 rpm
Dry weight
25.8 kg

Nominal Power: 8.4 HP

* Also known as "Commercial Power", this is the classic power definition standard that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Effective Power: 6.2 HP

* Corresponds to the actual power expressed on the working organ during use. It is the one indicated as official in the engine manufacturer's manual or technical data.

Detail of the filter

Engine without oil.

Before starting it, carefully read the instruction manual.

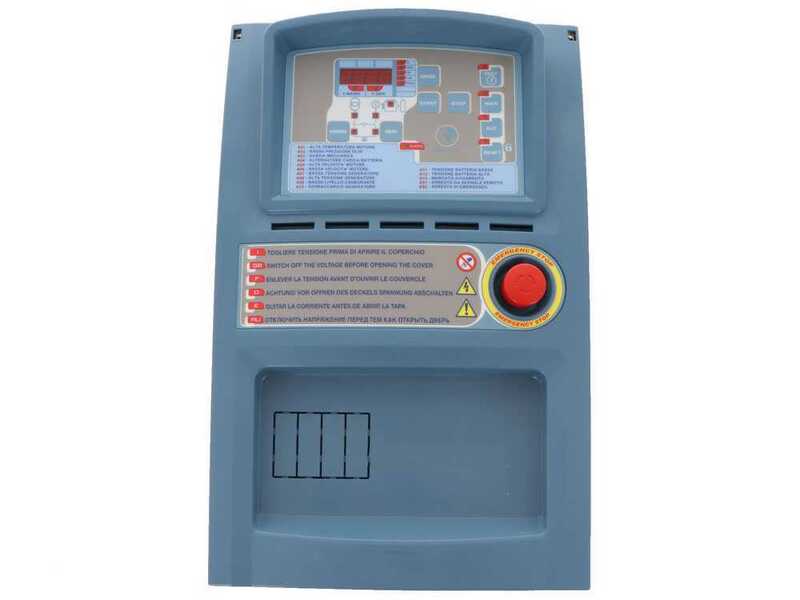

Main Features of ATS Panel

The automatic intervention panel ATS must be connected to the electrical network and the generator.

This allows for automatic compensation for energy interruptions.

This is an essential application in cases where a blackout can cause economic, material damage, or serious inconvenience.

It is recommended to carry out any connection of the AUTOMATIC INTERVENTION PANEL to your domestic utility with the help of your trusted electrician.

The panel is equipped with a digital display that allows viewing some useful signals for managing the generator set.

The panel is equipped with various types of instrumentation:

  • RESET: blocks the panel and resets the alarm code
  • AUT: sets the panel to Automatic operation
  • MAN: sets the panel to Manual operation
  • TEST: activates and deactivates the Automatic Test
  • START: starts the generator in manual operation
  • STOP: stops the generator in manual operation
  • GEN: closes the group contactor in manual operation
  • MAINS: closes the network contactor in manual operation
  • MEAS - selects the measurement to be displayed on the display

The manual then indicates all the meanings of the related alarms and signal LEDs.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard Equipment

The generator is sold in its original packaging, and shipped via pallet.

Included in the package are detailed instructions for use and maintenance and general rules for the correct operation of the product.
