Energy EY-5,5MB - Petrol Generator 4.4 kW - Continuous 3.9 Single-phase

The EY-5.5MB is a professional-grade single-phase petrol generator, manufactured by the Italian company Energy Gruppi Elettrogeni, a reference point in the sector. It is an extremely versatile machine, suitable for a wide range of uses, both professional and domestic.

Thanks to its compact and functional structure, this generator stands out for its ease of use and high reliability in various applications.

It is capable of delivering a maximum electrical power of up to 4.4 kW.

The heart of the generator consists of two fundamental components: engine and alternator, both selected to ensure maximum performance.

• The generator is equipped with the Honda GX 270 engine, one of the best choices on the market for this type of product. Powerful, reliable, and designed to last over time, it represents the top of the range among petrol engines.

• The alternator is made by LINZ, an Italian company of excellence known for producing highly efficient and high-performance alternators.

The integration of these two elements, the Honda engine and the Made in Italy alternator, makes the Energy EY-5.5MB a high-end generator, capable of offering superior performance and great reliability.

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for charging or maintaining batteries of these systems or other types of systems; such use can seriously damage the generator.

Features:

The Honda "GX" series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welders, etc., characterized by great durability and reliability.

The HONDA GX series engines are now configured as "THE BEST ENGINES ON THE MARKET".

WARNING

Engine without oil.

Before starting it, carefully read the instruction manual.

Nominal Power: 8.4 HP

* Also called "Commercial Power", we mean the classic standard definition of power that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Effective Power: 6.2 HP

* Corresponds to the actual power expressed on the working organ during use. It is the one indicated as official in the manual or in the technical data of the engine manufacturer.

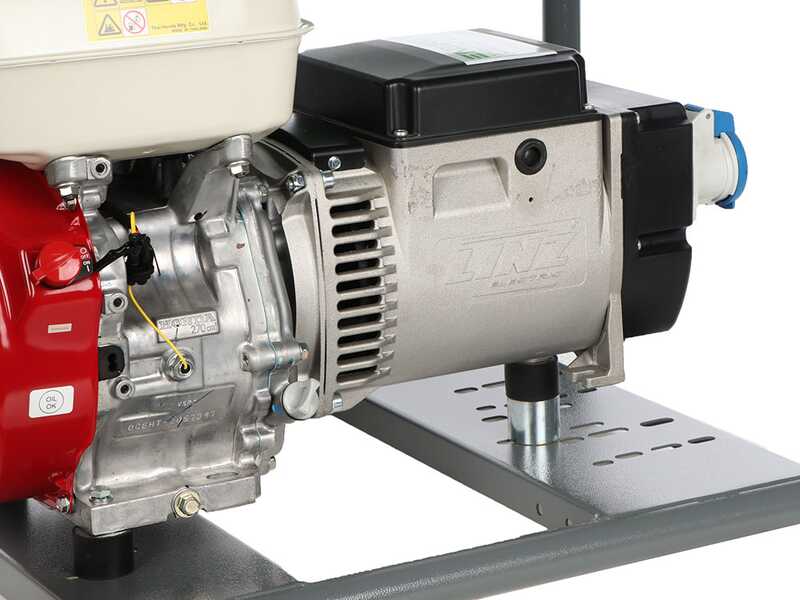

Alternator LINZ E1C10S G

LINZ Electric is a renowned Italian company that is part of the Pedrollo Group, a leader in the electric pump sector. The group's extensive experience combined with the high degree of innovation of the LINZ company guarantees Made in Italy alternators of great quality and reliability.

LINZ can now be considered the top company among alternator manufacturers in Italy.

High-quality and efficient alternator with copper winding.

Voltage: 230 V

Operating frequency: 50Hz

Maximum single-phase power output: 4.4 KW

Nominal continuous service power (COP) Single-phase: 3.9 KW

This last data should be considered as the actual and constant data in the generator's output (it guarantees unlimited hours of operation).

Voltage: 230 V

Operating frequency: 50 Hz

Nominal current: 21.3

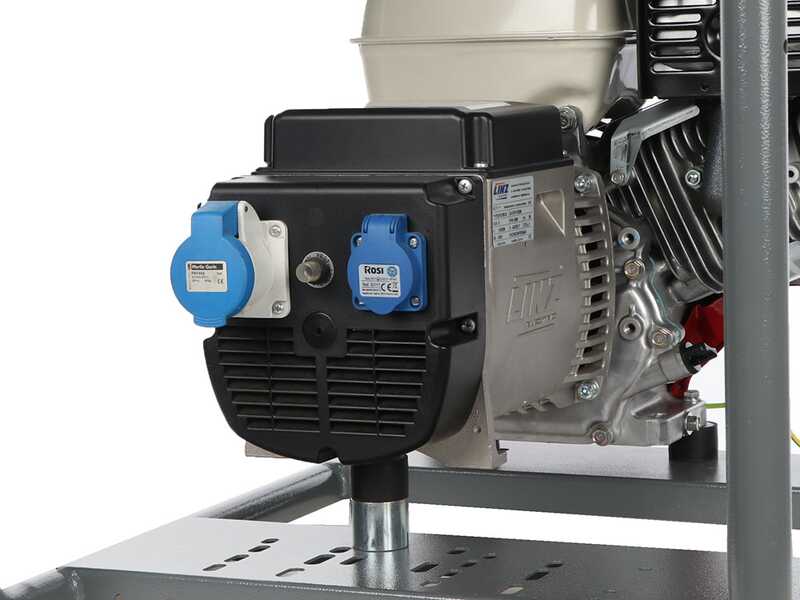

Electric control panel

Power outlets:

• Nr 1 CEE industrial socket 16A 230 V single-phase 3 poles and protection breaker
• Nr 1 Schuko socket 230 V single-phase and protection breaker
• Reset Button

Among other features we find:

Detail of the anti-vibration rubber pads

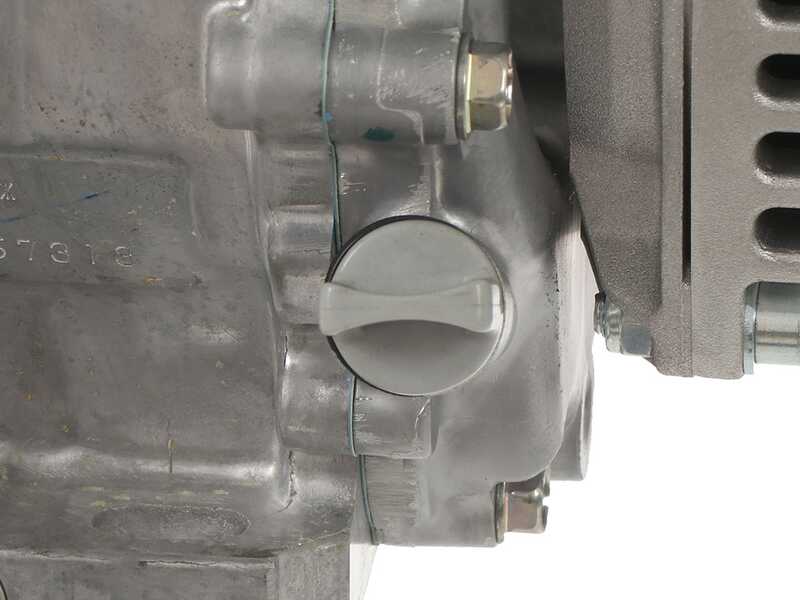

Detail of the oil tank cap

Detail of the ground discharge

Petrol tank capacity: 5.3 lt

Dimensions: 83.5x56.5x61 cm

Weight: 65 kg

Noise level: 96 dB

Regarding the power needed for the use you will make of it, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and consequently perform a simple calculation, as explained below, to determine the necessary power that the generator must be able to deliver.

Required power = Object consumption X Starting coefficient

The starting coefficient is a fundamental characteristic of every tool that operates on electricity, indicating how much the object's consumption increases during startup and thus helping to determine concretely how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, orient yourself towards a generator that has a power in WATTS equal to or greater than the result obtained (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

WARNING: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power that a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.
