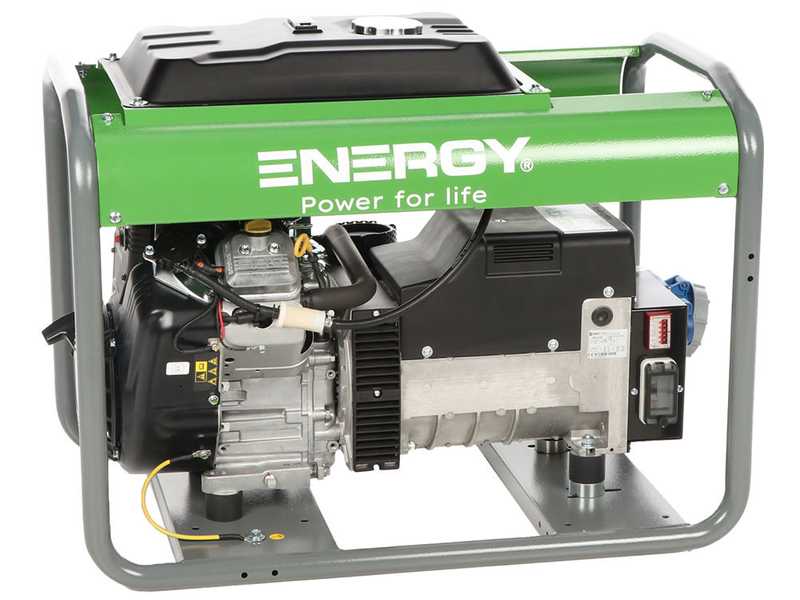

Energy EY-12MB AVR - Petrol Power Generator with AVR 9.5 kW - Continuous 8,5 Single Phase

The Energy EY-12MB AVR generator is a professional product that meets every need, offering high performance while maintaining simple and intuitive management. Made in Italy by the brand Energy Gruppi Elettrogeni, it represents a reliable choice for those seeking a quality generator.

The quality of a generator mainly depends on the engine and alternator that compose it, and the Energy EY-12MB AVR boasts the best components available on the market.

The Briggs & Stratton Vanguard 18 HP engine is known for its high power and compactness. It is an extremely reliable engine, suitable for any type of use, from the lightest to the most professional.

The alternator NSM CR112 SC, entirely designed and manufactured in Italy, guarantees superior efficiency and quality.

Thanks to the Briggs & Stratton Vanguard 18 HP engine, the Energy EY-12MB generator ranks among the best in its category, standing out from models that mount generic and unbranded engines and alternators.

Additionally, the generator is equipped with an AVR system, which ensures constant and precise voltage management for optimal performance at all times.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum Power Output Single Phase: 9.5 KW

Nominal Power in Continuous Service (COP) Single Phase: 8.5 KW

This is the data to be considered as the actual and constant output of the generator (ensuring unlimited hours of operation).

Voltage: 230 V

Operating Frequency: 50 Hz

Nominal Amperage: 52.1

Petrol Tank Capacity: 15 lt

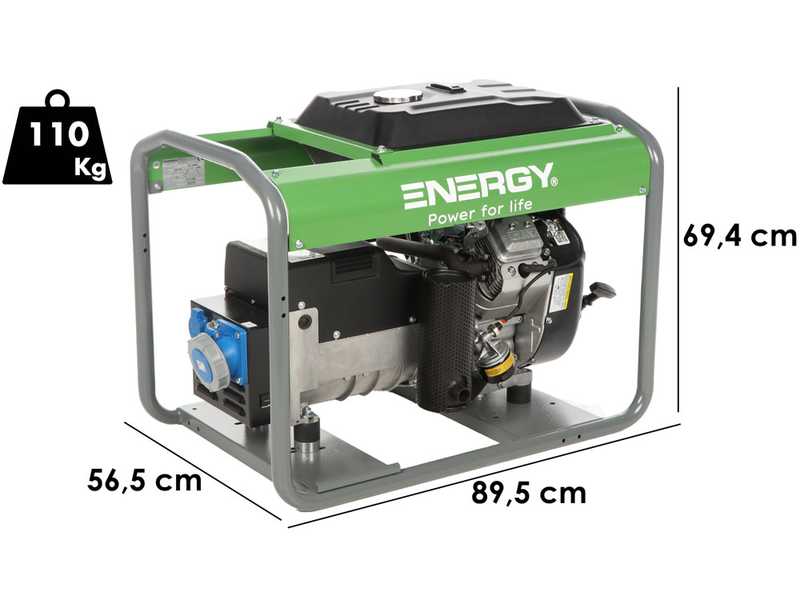

Dimensions: 88.5x56x64.5

Weight: 110 kg

The Vanguard series is positioned as the professional series of Briggs & Stratton engines.

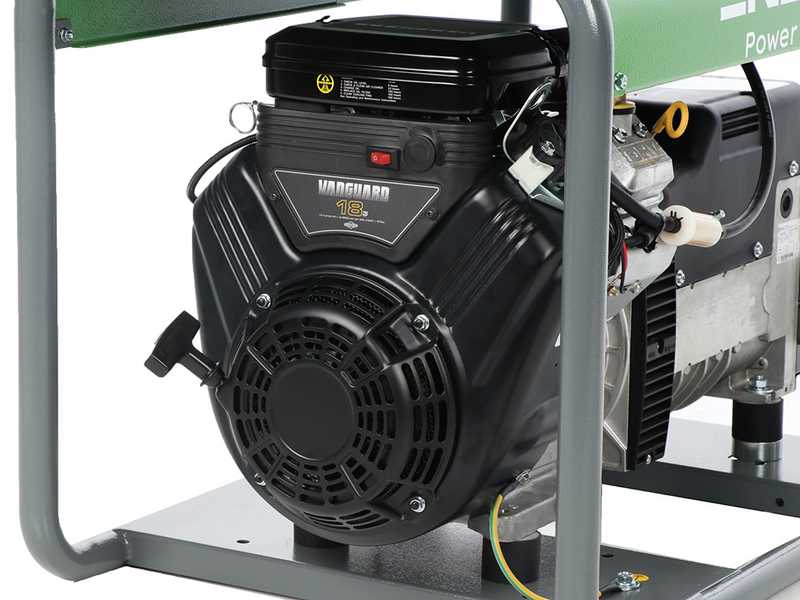

The Briggs & Stratton Vanguard 18 HP engine is a reliable, twin-cylinder engine, powerful and professional, with a modern design. We are talking about an engine with extremely high performance and equipped with the latest generation technology.

Features:

The Briggs & Stratton Vanguard series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welders, etc., characterized by great durability, reliability, and high performance.

Special Starting Rope
The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

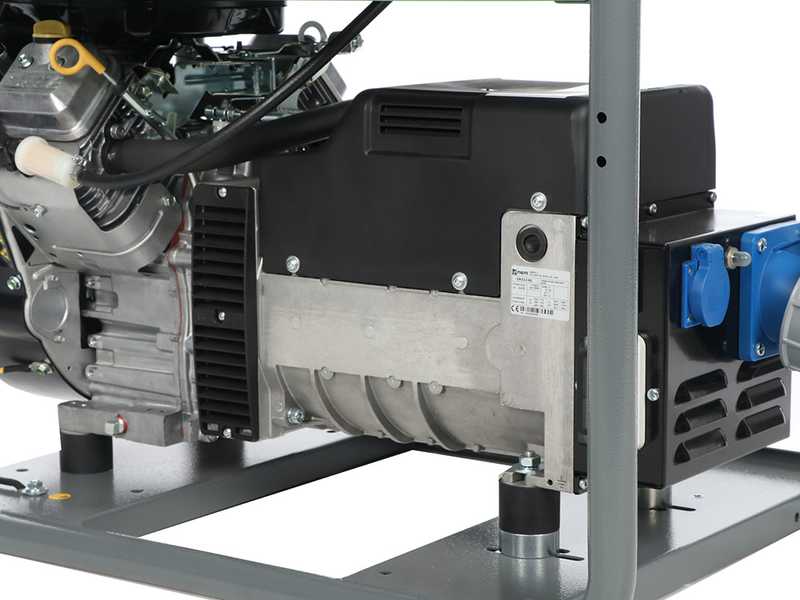

Alternator NSM CR112 SC

Many alternators or Energy generators contain an automatic voltage regulator, or AVR, designed to continuously control the voltage. The control is electronically commanded, allowing for better voltage and frequency stability. The AVR allows maintaining the output voltage more constant and less dependent on the load. This means fewer drops or peaks in current. The AVR technology significantly improves the performance and operating life of reactive load appliances.

NSM is one of the most important Italian companies producing alternators. The great experience of the group combined with the high degree of innovation of the NSM company guarantees Made in Italy alternators of great quality and reliability. NSM alternators represent today the top of the category in the market.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating Frequency: 50Hz

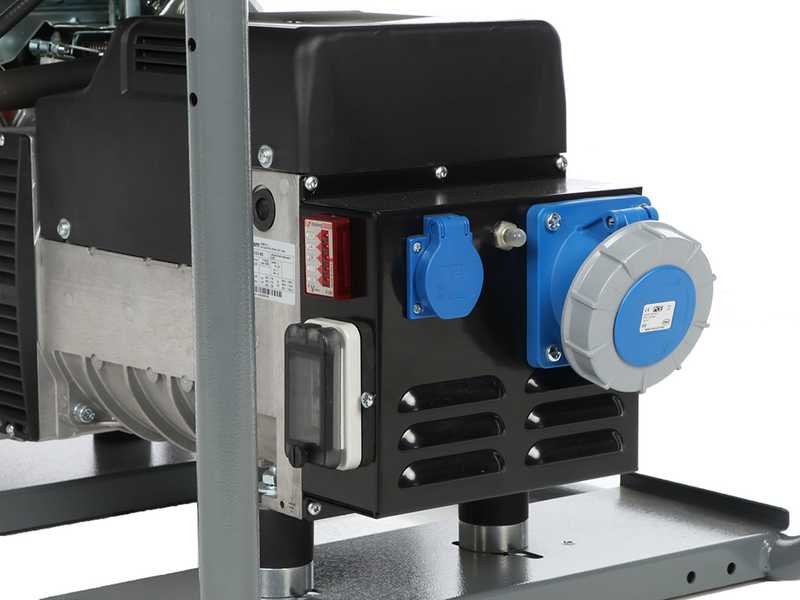

Electric Control Panel

Power Sockets:

Nr 1 SCHUKO industrial socket 230 V single phase and protection breaker

Nr 1 industrial CEE socket 230 V single phase 4 poles 63A and protection breaker

Nr 1 Switch for switching the power on and off

Voltmeter

Additionally, among other features, we find:

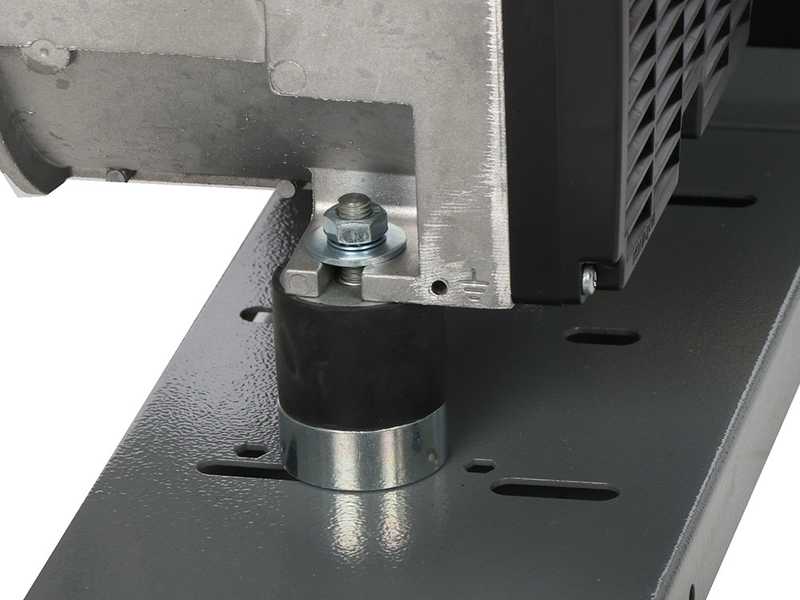

Anti-vibration Rubber Pads

Petrol Tank

Ground Discharge

Fuel Passage Lever

Regarding the power needed concerning the use you will make of it, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and consequently perform a simple calculation, as explained below, to determine the necessary power that the generator must be able to deliver.

Required Power = Object Consumption X Starting Coefficient

The starting coefficient is a fundamental characteristic of every tool that operates on electric current, indicating how much the object's consumption increases during the start-up phase and thus serves to concretely determine how many WATTS are necessary for its start-up.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, orient yourself towards a generator that has a power in WATTS equal to or greater than the obtained result (*)

Check the consumption of your object in the user and maintenance manual or on the label applied to it

WARNING: the table is purely indicative. Through the aforementioned formula, you can easily calculate the power that a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs: And remember that to operate electronic equipment (computers, televisions, and all equipment equipped with an electronic board) it is necessary to purchase a generator equipped with an “inverter” (which stabilizes the delivered current).
