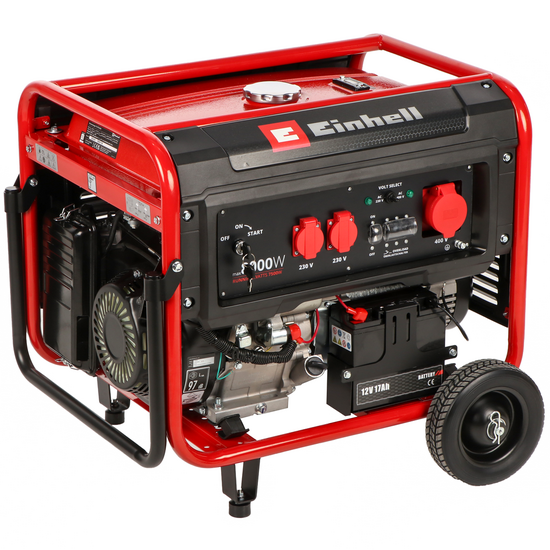

Einhell TC-PG 8000 - Petrol power generator - AVR - 8.0 kW - Continuous 7.5 kW Three-phase

The Einhell TC-PG 8000 power generator is a powerful and versatile solution for those who need a reliable power source in environments where access to the power grid is limited or non-existent.

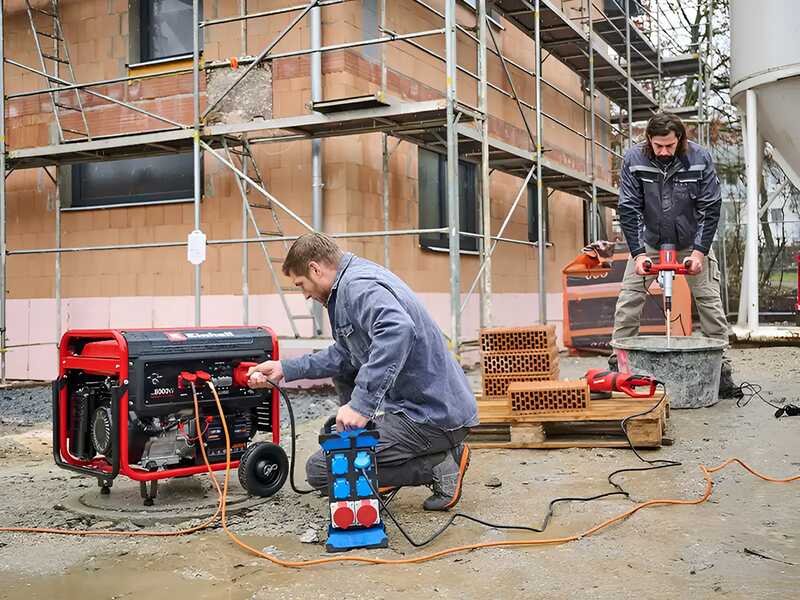

Equipped with an air-cooled 4-stroke engine, this generator is designed for high performance with a continuous output of 7500 watts and a maximum output of 8000 watts. With its ability to power devices via two 230 V and one 400 V socket, it is particularly useful for applications on construction sites, during camping, or in situations where a mobile power source is needed.

The 4-stroke engine is one of the distinguishing features of the TC-PG 8000: powerful and low-emission, it offers easy starting thanks to the included starter battery. Automatic Voltage Regulation (AVR) technology ensures a stable current supply, protecting connected devices from voltage fluctuations. Another strong point of this generator is its 25-litre tank, which allows for extended autonomy, while the level indicator makes it easy to monitor the amount of fuel remaining.

Mobility is not a problem thanks to the large wheels and folding handle, which make transporting the generator easy and convenient.

In addition, safety is ensured by the overload switch and the automatic shut-off device in the event of low oil level, ensuring that the generator operates safely and durably.

Main features:

• Air-cooled 4-stroke engine for high performance and low emissions
• Electric start with battery included for easy starting
• AVR technology for stable and safe power output
• Large 25-litre tank for long autonomy
• Two 230 V sockets and one 400 V socket for connecting a variety of devices
• Large wheels and folding handle for easy transportation
• Guaranteed safety thanks to overload switch and automatic shutdown for low oil quantity

The Einhell TC-PG 8000 generators is an excellent choice for anyone looking for a robust, safe and versatile device to meet their energy needs on the move or in workplaces.

The generator is not designed to be inserted into a photovoltaic or solar panel system for power generation, nor is it intended for charging or servicing batteries in these systems or other types of systems of another nature; such use can seriously damage the generator.

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

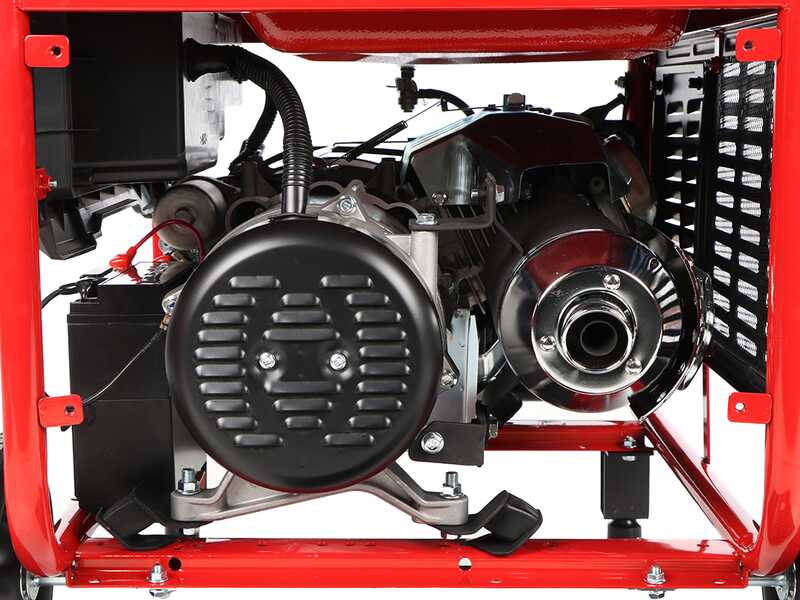

The generator set alternator is constructed with copper windings.

Maximum power rating* in LTP emergency service: 8.0 Kw

Maximum single-phase power* in LTP emergency service: 3.68 Kw

* in case of emergency, the generator can deliver this power

Effective three-phase power* in continuous variable duty PRP: 7.5 Kw

Single-phase* effective power in continuous variable duty PRP: 3.3 Kw

* This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

The Einhell power generator is equipped with an AVR card: electronic device that automatically adjusts the output voltage, making it constant when the load changes

Electric start with battery.

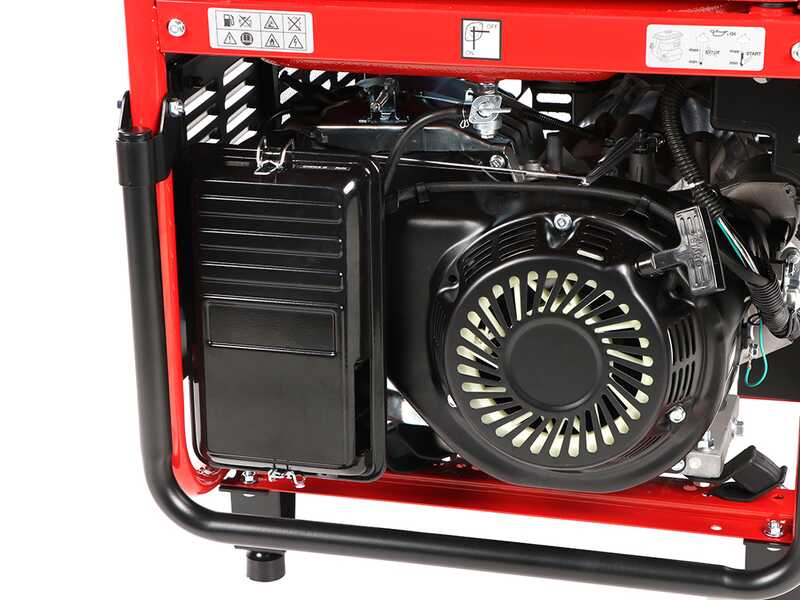

Engine type: 4-stroke, single-cylinder, air-cooled, OHV

Cylinder capacity: 459 cc

Engine revolutions: 3000 rpm

Fuel: Petrol / E10

Rated power: 12.2 hp (9 kW)

Fuel tank capacity: 25 litres

Type of cooling: air-cooled

Type of starting: recoil start with self-recovery

Noise 75.6 dB

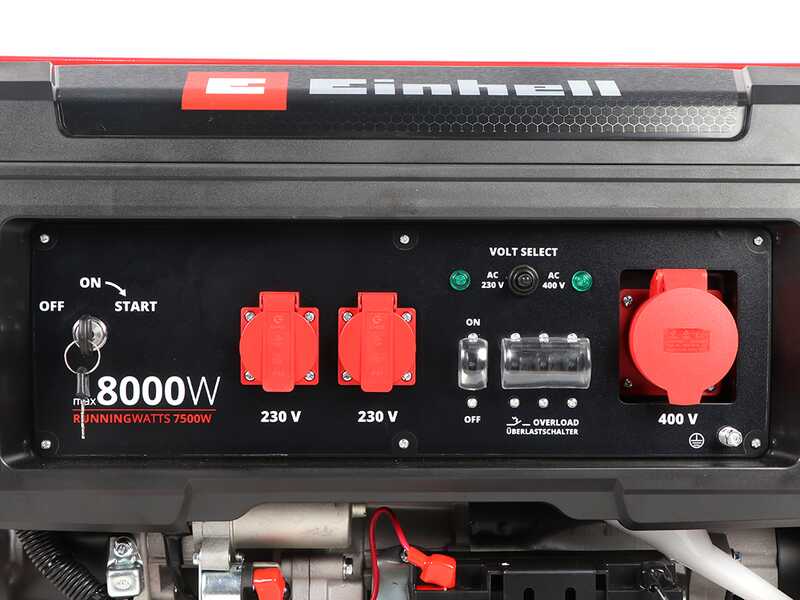

The current generator control panel is complete and rich in functions.

• Waterproof power switch and overload safety device
• 2 Schuko CE single-phase sockets with 230 volt supply - 13.9 A
• 1 three-phase socket outlet with 400 volt supply - 10.8 A
• Single/three-phase switches
• Electric start with key

Other generator features:

Wheels

Support rubbers

Carrying handles

Vibration dampers

Tank cap

Fuel quantity indicator

Oil tank cap

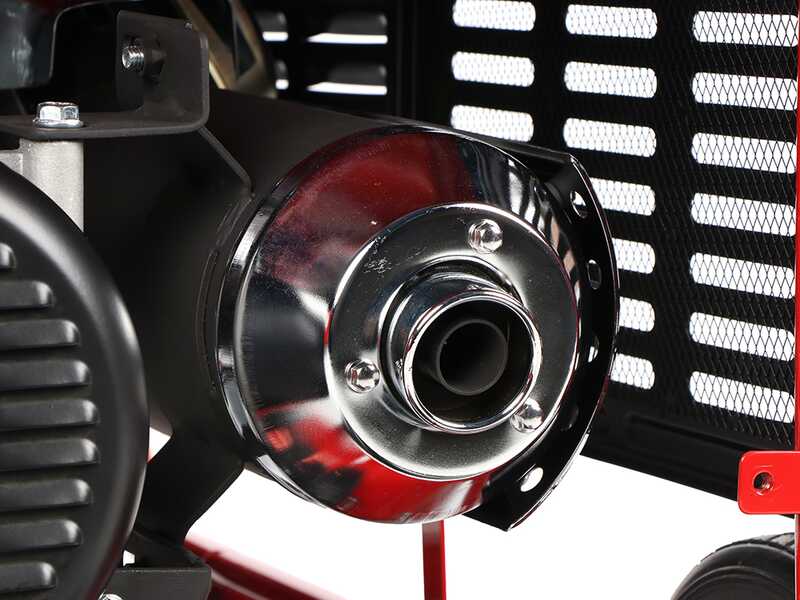

Muffler detail

As far as the needed power is concerned, we now provide you with a handy chart to help you navigate among consumption, starting coefficients and watt.

The best criterion is to pinpoint first which are the instruments we need to power with the generator and, consequently, perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start-up operations.

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above, you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

• The generator must only be used to power individual pieces of electrical equipment (within the limits of its power output in KW, in relation to the in-rush absorption of this equipment, which must be less than the power output of the generator);

• The generator can be used to supply power to domestic systems in the event of emergency (lack of power supply service from one's own electricity supplier in the household), only in versions specifically equipped with the ATS automatic start-up device (specially made for this purpose and equipped with the systems for connection to the domestic meter)

• The generator was NOT designed for PROFESSIONAL use, and is therefore only suitable for occasional (non-frequent) use. Operating sessions must not exceed 3-4 continuous hours (which would lead to overheating or wear of the alternator, particularly its stator and rotor components). If a generator is needed for frequent use (e.g. one use per week), the user will have to look for another type of generator, specifically designed for frequent use, and more precisely a PROFESSIONAL or even better an INDUSTRIAL level generator (equipped not with a standard 3000 RPM alternator like this one, but with a professional alternator at low rpm: 1500 rpm - equipped with both liquid-cooled engine and alternator - having a very different level of specifications and price);

The generator is not designed to be installed in photovoltaic or solar panel systems for energy production, nor for recharging or maintenance of batteries of these specific or other electric systems. This use can seriously damage the generator on its internal components (alternator, engine and electrical component). All photovoltaic systems require a generator for INDUSTRIAL use (and not for domestic use like the present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
