HOME Workshop and Do-It-Yourself Electric Air Compressors Coaxial Air Compressors for hobby use (25 - 50 L) 50 L Air Compressors 50 L V-type Twin Cylinder Air Compressors Einhell TC-AC 420/50/10 V

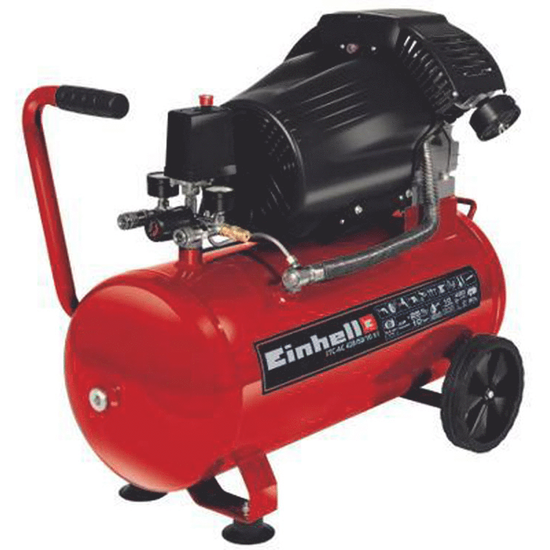

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

Hobby
Questions & Answers (2)
ID: K603980

EAN: 4006825638264

MPN: 4010495

39Pictures
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
420 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
3 HP
Operating mode
Single-phase 230 V
Product Features
Model:
TC-AC 420/50/10 V
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
97 dB(A)
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
3 HP
Pump data
Pump brand:
Einhell
Air intake flow:
420 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2850 RPM
Equipment
No. of outlet couplings:
2
Lifting handle:
Yes
Free gifts/extra features
Oil bottle:
Yes
Instructions manual:
Yes

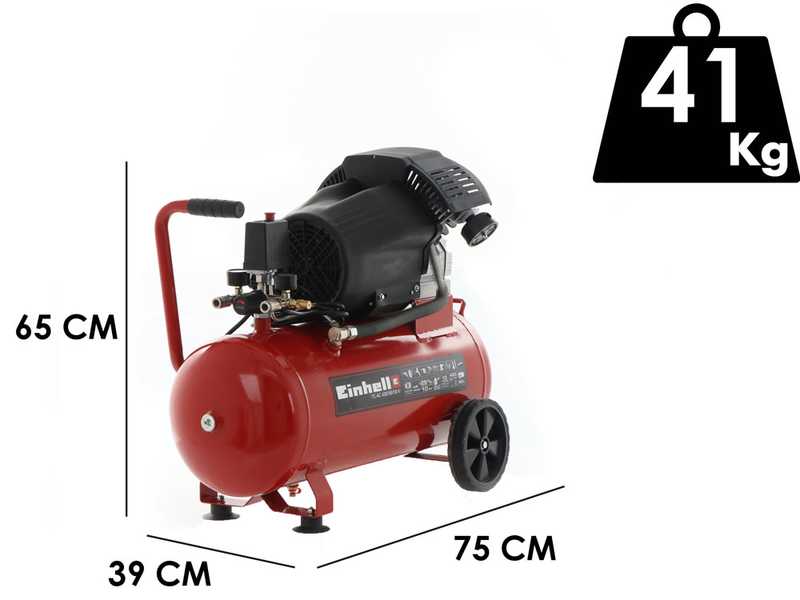

Dimensions and logistics
Product dimensions in cm (L x W x H):
75 x 39 x 65 cm
Net weight:
41 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80 x 35 x 67 cm
Gross weight (packaging included) :
45 Kg
Assembly time:
5 minutes
Prompt Delivery
18 items in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
Free returns (up to 30 days after receipt) *
€ 403,41
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

Einhell TC-AC 420/50/10 V Electric Air Compressor

he Einhell TC-AC 420/50/10 V air compressor is a reliable, lightweight and powerful machine.

Equipped with oil lubrication to ensure long service life to the compressor, the oil level is easily visible through the inspection porthole.

Powered by a 2200 W electric motor, this air compressor has a compressed air suction capacity of 420 L/min. Thanks to the double cylinder, it is capable of reaching a maximum pressure of 10 bar. The pressure is easily adjustable using the pressure reducer.

It has a large-sized compressed air storage tank of 50 liters.

The condensate purge valve allows easy maintenance.

It weighs 41 kg and it can be transported easily thanks to its two large wheels and the upper carrying handle, and the two anti-vibration feet guarantee stability.

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

Technical specifications

Suction capacity: 420 L/min

Power output at 0 bar: 245 L/min

Power output at 4 bar: 200 L/min

Power output at 7 bar: 150 L/min

Tank : 50 L

Max operating pressure: 10 bar

Electric motor power: 3 HP

Number of motor revolutions: 2850 min

Weight: 41 kg

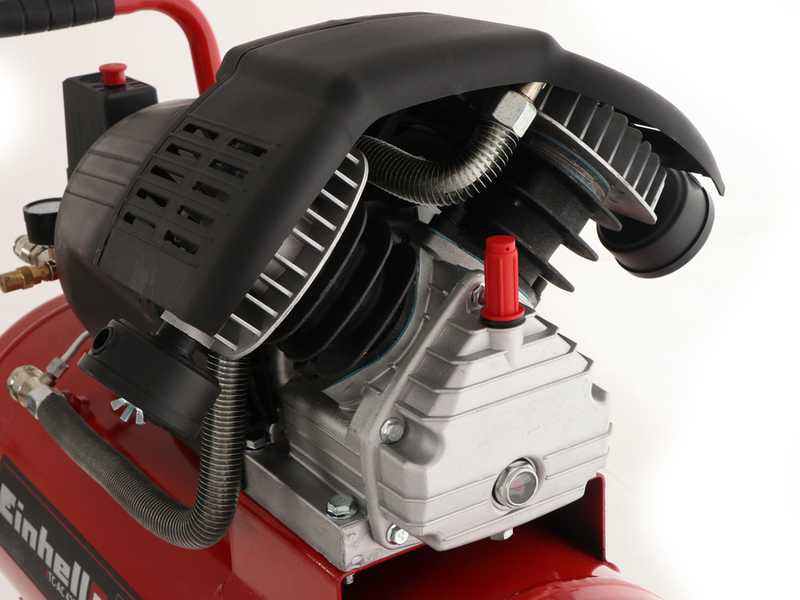

Oil level indicator porthole

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

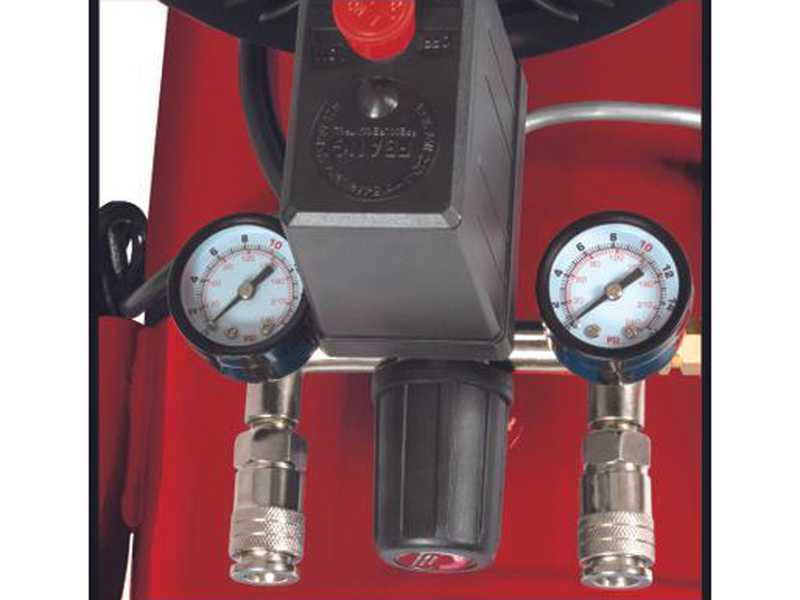

Controls

The Einhell TC-AC 420/50/10 V air compressor features easy and user-friendly controls, which are divided into:

Main power switch

Output air pressure gauge

Tank air pressure gauge

Female outlet fitting

Pressure adjusting knob

Reset button

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

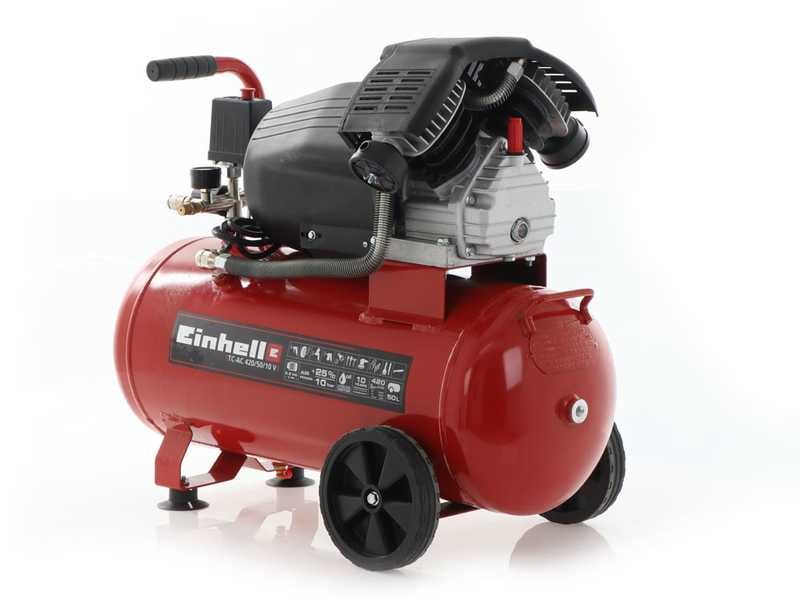

Additional features

The Einhell TC-AC 420/50/10 V compressor is powered by means of a Schuko plug

Ergonomic lifting and carrying handle

Large sturdy plastic wheels

Anti-vibration rubber pads

Condensate drain valve



Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Free items & Standard equipment

GeoTech accessories kit for air compressor - 5 tools

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blowing gun

- Air brushing gun

- Coiled air hose

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air

Standard equipment

The air compressor is shipped in its original packaging

Instruction manual is included in the packaging.

Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
Einhell TC-AC 420/50/10 - Wheeled electric air compressor - 3 Hp Motor - 50 L compressed air
