Description

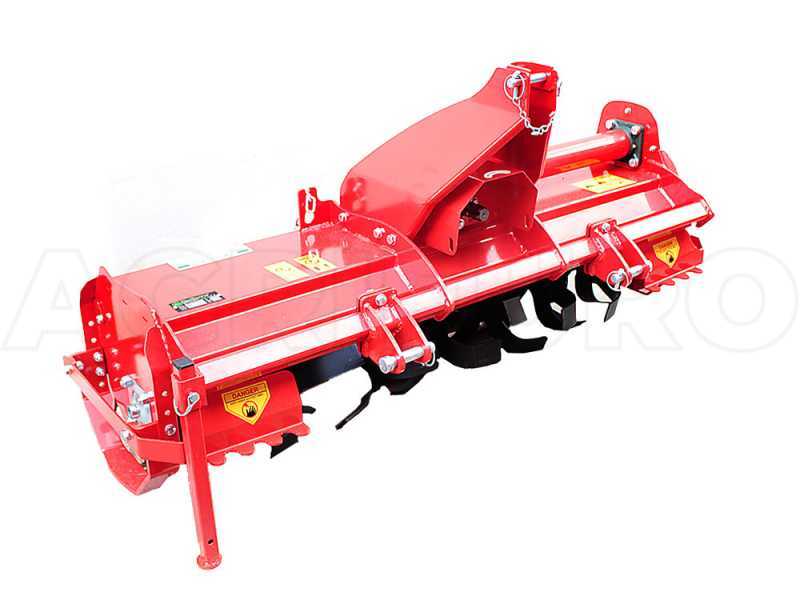

AgriEuro EA 165 Tractor Rotary Tiller

The AgriEuro EA 165 tractor rotary tiller is the ideal machinery designedfor working the soil, preparing it for sowing and to remove weeds.

It consists of a box frame, cast iron gear reducer with ASA 80 chain transmission in oil bath at 540 rev/min.

The new italian rotary tiller is a medium heaviness product (232 Kg), sturdy and semi-professional, studied for the medium and small tractors 30 to 35hp. It is well structured, light and versatile. Suitable for hobby or semiprofessional use on small/medium-sized soils.

*Sometimes the Made in China rotary tillers are of unmarked origin on web. We suggest you to check the product origin before the purchase.

Warning: the machine is shipped with oil in the transmission. Please carefully assemble all the components and check bolts and screws.

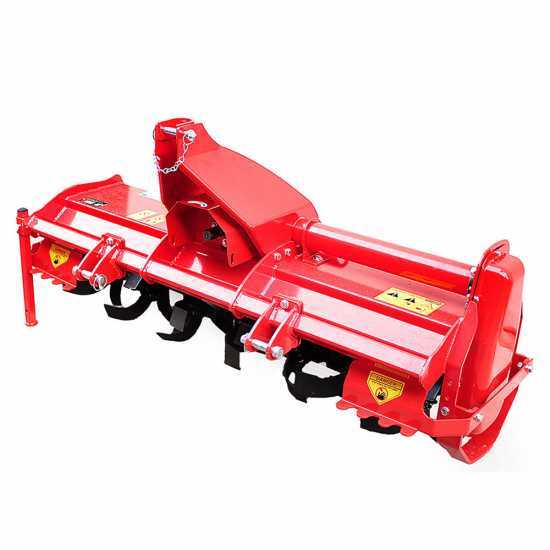

AgriEuro EA 165 Medium size Tractor Rotary Tiller model - fixed linkage

Transmission and technical features

TECHNICAL DATA:

Outer width: 180 cm
Useful working width: 165 cm
Weight: 232 kg
Required power: 30 - 35HP
Working depth: 16 cm
Hoes for flange: 6
Number of hoes: 48
Hoes supports: 8
Movable three-point linkage
Cast iron reducer 540 rev/min
ASA 80 Chain transmission in oil bath

Focus on the side support with professional knife rotor internal fixing bearing.

Focus on the side support from the outside.

Height adjustable side skids.

Movable rear body, adjustable in different positions thanks to the proper chain featuring ground leveling function.

Sturdy and large-sized chain transmission in oil bath (ASA 80).

Focus on the cast iron gear reducer in oil bath.

Standard universal PTO linkage ( 1 3/8" Z6 ).

Universal pins (with double linkage diamter suitable for all tractors on the market).

Focus on the front protection.

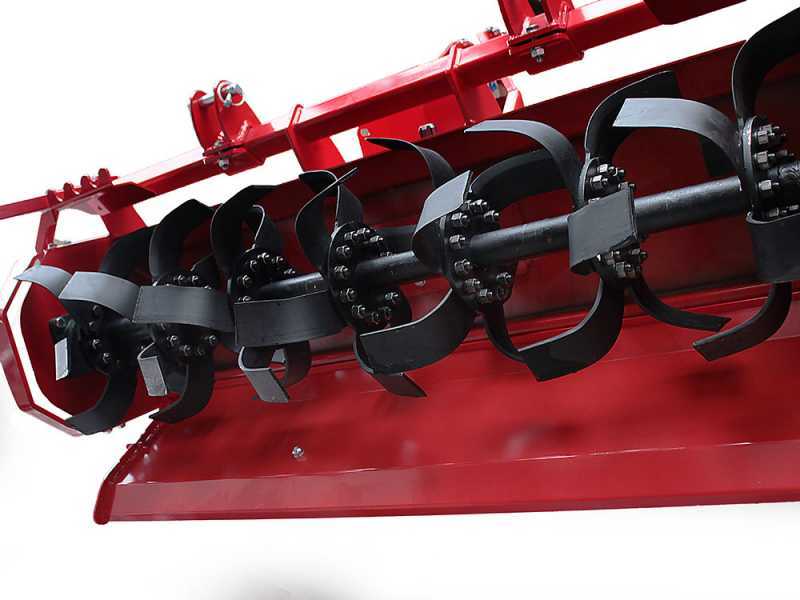

Hoes

Steel hoes: 8 blade attachments with 6 hoes each (48 hoes in total)
Each flange is equipped with 6 hoes (the other rotary tillers on the market are provided with 4 hoes each flange).

Advantages:
They are on the fine crunching of the soil quite higher ability compared to the traditional 4 hoes flange, ensuring a more regular and clean work. The power absorption remains the same of the other models.

Useful working width: 165 cm

Useful working depth: 16 cm

Possibility to adjust the side skids in order to set the working depth.

Movable rear frame so as to have a ground levelling action.

ATTENTION:

All rotary tillers have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

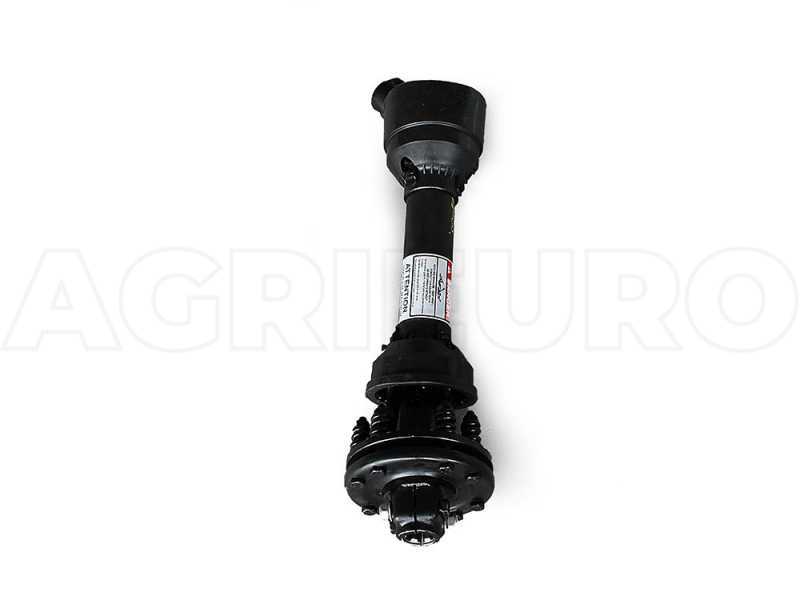

Cardan shaft included

The rotary tiller comes complete with professional self-propelled cardan shaft provided on standard equipment.

It allows to get a longer durability of the machine, protecting it from possible impacts.

Indeed, in case of foreign objects on the ground, once reached certain effort, the clutch will be operated, mostly avoiding that the tiller mechanics may undergo kickbacks or damage.

Focus on the professional clutch device.

NOTE: almost none of the dealers includes the cardan shaft with the rotary tiller as free items (even because of the cardan shaft high price).

Free items & Standard equipment

The tractor rotary tiller is shipped on a pallet. You have just to complete the last assembly operation by simply assemble the tractor three-point hitch and other few little components.

Self-propelled cardan shaft and Instructions Manual included in the package and provided on standard equipment.
