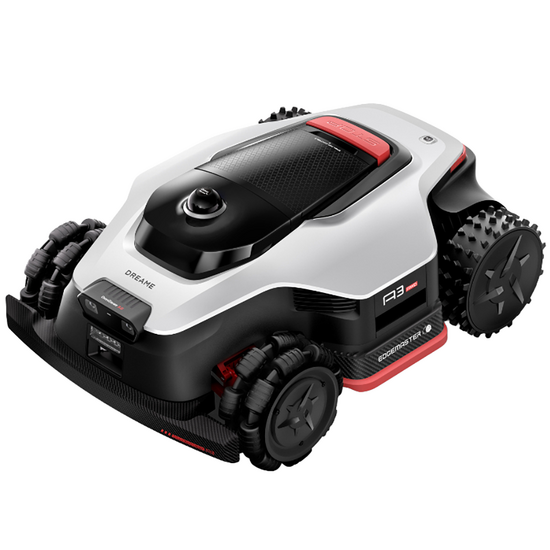

Dreame A3 AWD 1000 - Robot Lawn Mower - Without Installation

The Dreame A3 AWD 1000 robot lawn mower is an automatic machine designed to mow the lawn without direct intervention. It operates autonomously on residential lawn surfaces, keeping the grass at a consistent height through frequent, scheduled passes.

It is ideal for private gardens with obstacles, gentle slopes or complex layouts, where manual mowing would require more time and effort.

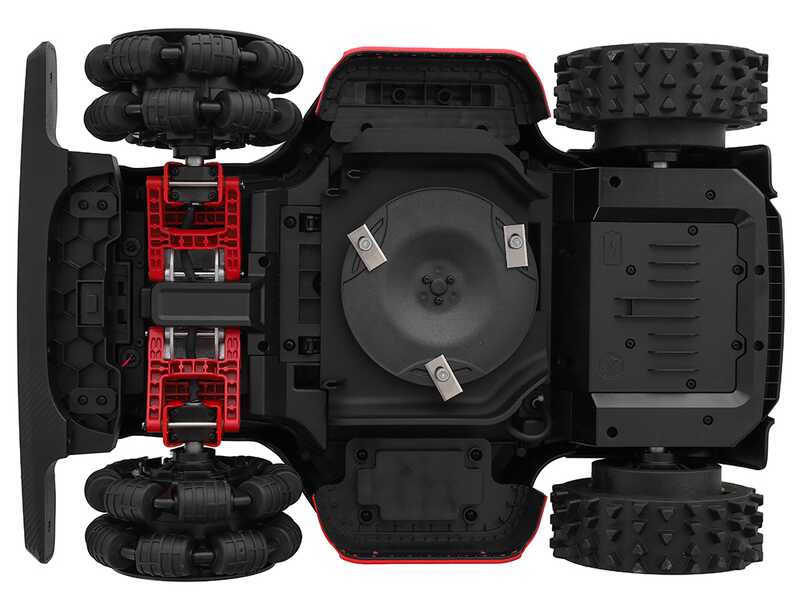

The operation of this Dreame A3 AWD 1000 robot lawn mower is based on a rotary cutting system located at the bottom. The blades, mounted on a disc, rotate at high speed, cutting the grass by impact. The cut material is left on the lawn as fine clippings, promoting natural decomposition. The AWD (All-Wheel Drive) system, visible in the four treaded wheels, allows the robot to move forward even on surfaces with poor grip. Each wheel contributes to the drive, improving traction. The integrated front sensors detect obstacles and changes in the terrain, adjusting the trajectory during operation.

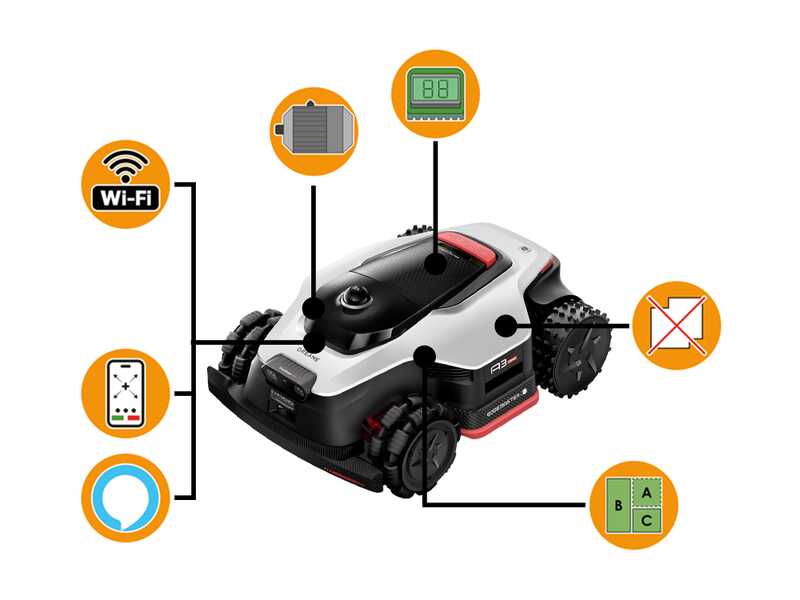

The main technical features of the Dreame A3 AWD 1000 robot lawn mower are:

• Four-wheel AWD drive: each wheel is motorised, improving stability on uneven surfaces and on moderate slopes.
• Cutting system with disc and floating blades: ensures a uniform cut. Contact with small obstacles reduces the risk of blade damage.
• Integrated front sensors: detect obstacles as it moves forward. The robot automatically changes direction to avoid direct collisions.
• Compact structure with protective housing: protects internal components from impacts and external factors, facilitating movement in confined spaces.
• Large-diameter treaded wheels: increase traction, improving continuity of movement on ground not perfectly level.

*Dreame extended warranty : to benefit from the extended warranty, register the appliance on the manufacturer’s website.

Warning: the warranty is provided directly by the manufacturer, Dreame, and is subject to compliance with the manufacturer’s standard terms and conditions. You should always refer to the official Dreame information pages for a full overview of requirements, limitations and exclusions.

The Dreamehome app is one of the standout features of the Dreame robot lawn mower, offering full, customised control directly from iOS and Android smartphones.
The connection enables remote management of the robot lawn mower, allowing you to control it with a joystick, programme, monitor and adjust its operation in real time in a simple and intuitive way.

Through the app, you can view, edit and configure mowing areas and no-go zones.

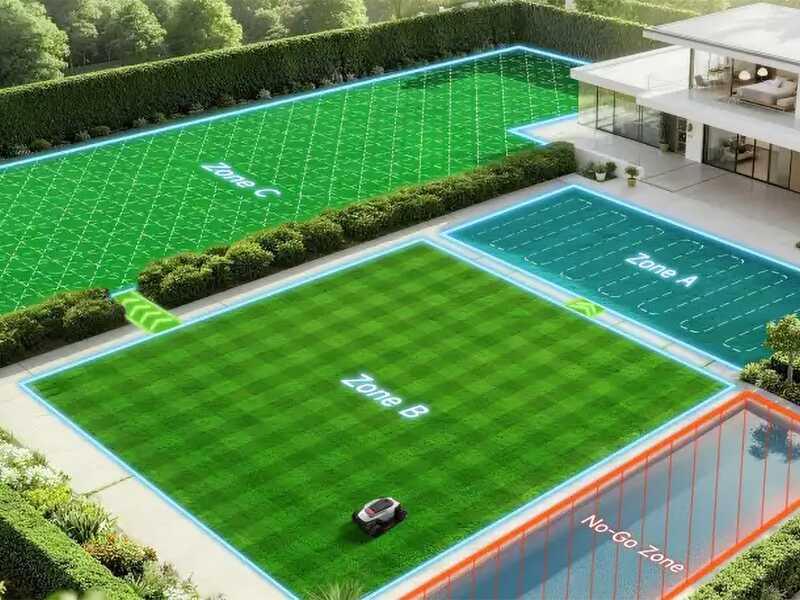

The multi-zone management system supports an unlimited number of zones, allowing you to divide the garden into independent areas. Each zone can have specific parameters such as direction, cutting height and frequency, thereby optimising efficiency across separate surfaces. Furthermore, the dual map function allows you to manage two separate lawns with different maps, for even more precise and customised control.

The app allows you to choose and customise different cutting styles.

This Dreame robot features the “Garden Guardian” system, which uses a camera and artificial intelligence to monitor the area and send real-time notifications in the event of suspicious activity or movement.

The interface is simple and user-friendly, suitable for both experienced users and those new to robot lawn mowers, offering an advanced management experience without complexity.

The Dreamehome app is compatible with Alexa and Google Home voice assistants, allowing you to control the robot lawn mower via voice commands. This integration further simplifies management and offers an extra level of convenience and innovation in day-to-day use.

Dual Map Management allows you to use a single robot lawn mower for two completely separate areas, such as front and back gardens or spaces located on different properties. The robot allows you to create and manage two independent maps, each with customised mowing schedules and settings, optimising time and organisation and eliminating the need for a second lawn mower. This feature is also ideal for those who own multiple properties.

To use dual mapping, a second charging station is required, which can be purchased separately and must be installed in the second area.

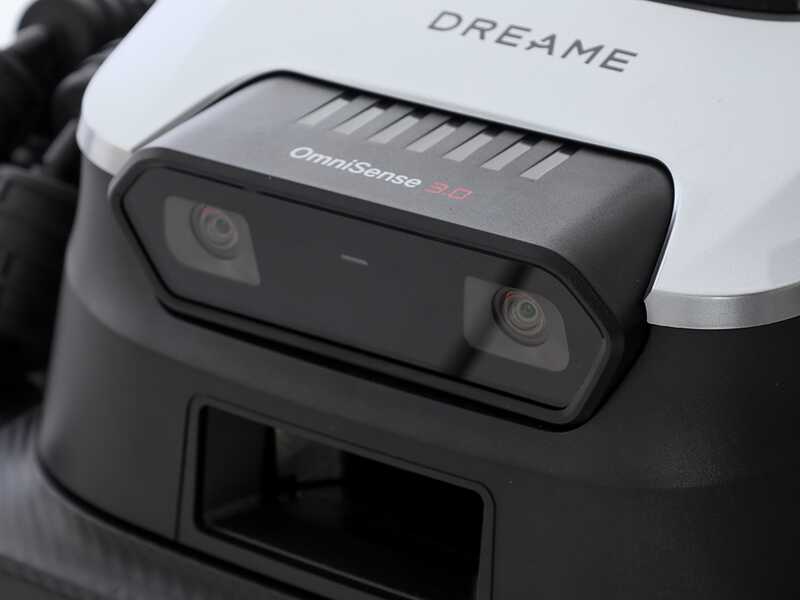

The OmniSense 3.0 system serves as the control centre for navigation and environmental recognition. It integrates advanced sensors and processing algorithms to build a precise map of the surface and constantly update working routes.

During operation, the data collected is processed in real time, which allows the robot to adapt its trajectories and speed according to obstacles and the terrain.

• Multi-sensor environmental detection: combines 3D LiDAR and binocular vision, improving spatial accuracy even in the presence of complex obstacles.
• Dynamic surface mapping: continuously creates and updates the lawn map, enabling optimised routes without the need for a perimeter wire.

The system analyses the position of objects on the lawn and recalculates routes whenever it detects changes. This approach reduces uncut areas and limits repeated passes.

• Automatic route adaptation: adjusts direction and cutting pattern, maintaining continuity even on complex surfaces.

The installation does not require the laying of perimeter wire or the configuration of RTK antennas. It involves only configuration via the LCD display and the app, as well as mapping.

Mapping can be carried out via the app either manually (by moving the robot via the app) or automatically ( using 3D Lidar and a camera).

Once configured, operation is fully automatic:

• Start-up and scheduling of mowing sessions
• Autonomous recognition of optimal routes

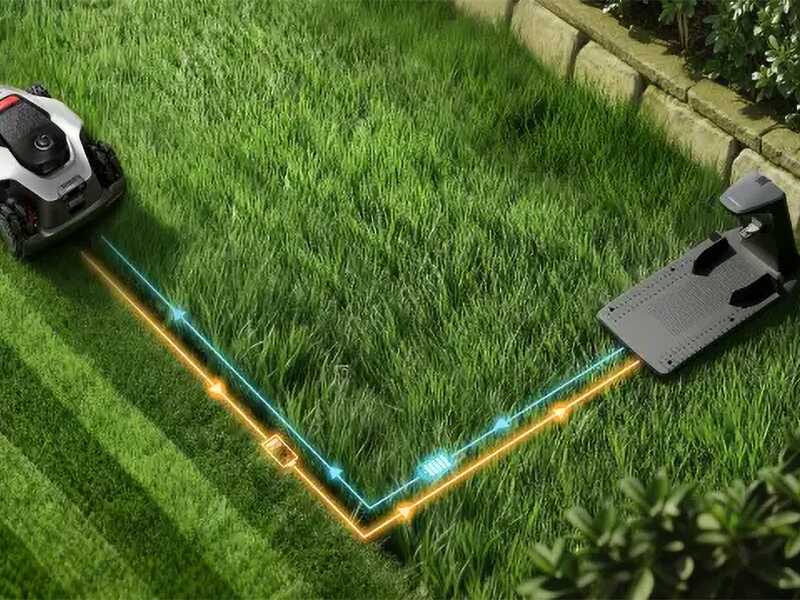

• Automatic return to the charging station
• Resuming work from where it left off

The robot is protected by a PIN, which can be set during configuration.

Configuration and mapping are fully guided within the application.

The system operates autonomously on a daily basis, minimising manual intervention and ensuring operational continuity over time.

The charging station can be positioned outside the mowing area. We recommend keeping at least 1 metre of free space on each side around the station to ensure proper access and facilitate the robot’s manoeuvres.

It is essential for the robot’s operation to have an internet connection covering the charging station area or to have the module (included in the package, free connection for 1 year).

The robot operates smoothly and safely both day and night.

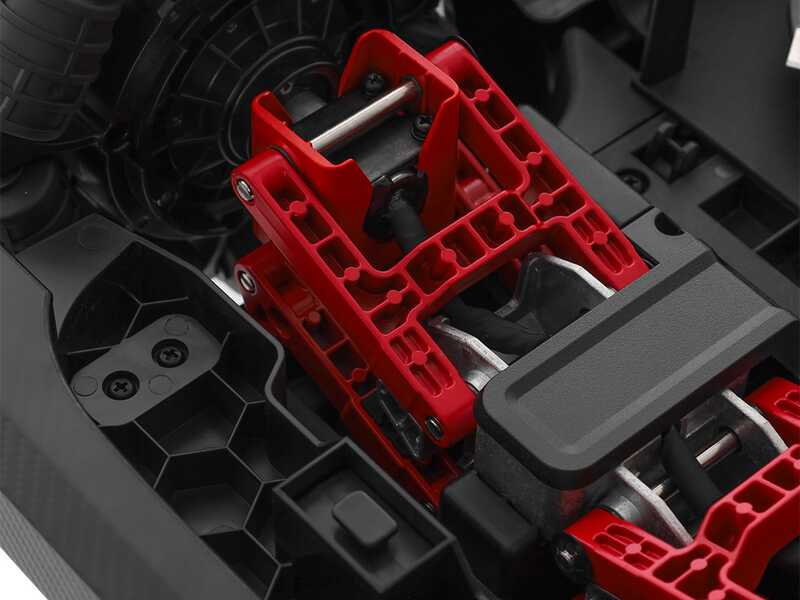

The all-wheel drive system with high-grip off-road wheels ensures stability and control on challenging surfaces.

• Slopes up to 80%
• It can climb obstacles up to 5.5 cm
• AWD with 4 in-hub motors
• Dual mapping
• Integrated anti-theft system (Tracking, out-of-map alarm, notifications, AirTag compatibility)

U-shaped navigation optimises area coverage by reducing overlaps.

The system navigates through corridors and narrow passages up to 60 cm wide, maintaining a stable trajectory and precise control.

The dual weather sensor detects rain and snow. In the event of precipitation, the robot automatically returns to the base and resumes operation when conditions improve, without manual intervention.

With a noise level below 65 dB, it ensures quiet operation even during relaxation time or at the weekend.

The IPX6 certification allows the housing and underside to be washed directly under running water.

The Dreame A3 features a U-shaped movement pattern, designed to ensure even coverage, neat lines and reduced overlap. The linear movement improves operational efficiency and maintains a visually consistent result across the entire surface.

The cutting height is electronically adjustable via the app within a range of 3 to 7 cm. The adjustment is precise and gradual, allowing for seasonal adaptation and differentiated management of different areas of the lawn.

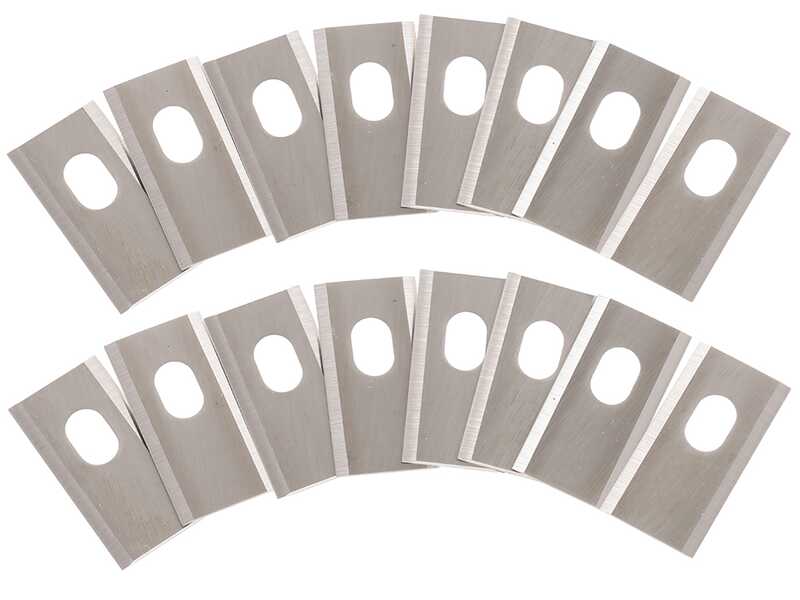

The product is equipped with a single 3-blade disc. The cutting diameter is 40 cm.

The EdgeMaster™ 1.0 function allows for precise trimming along edges.
The cutting system cuts within 5 cm of walls, hedges and raised edges, significantly reducing uncut areas.

Mowing modes: All-area/Zone/Edge/Spot/Manual.

• Greater coverage of perimeter edges
• Reduced need for manual finishing

The floating cutting deck automatically adapts to uneven ground, maintaining a consistent grass height even on slightly undulating or uneven surfaces.
