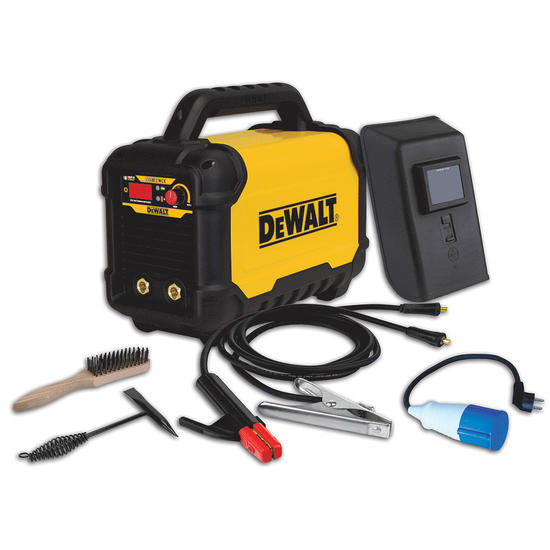

Name: DeWalt DXWDMMA 160E - Inverter Welding Machine (MMA) - Direct Current (DC) + KIT
Brand: DeWalt
SKU: K609090
Price: 405.25 EUR
Availability: InStock

Description

DeWalt DXWDMMA160E - Inverter Electrode Welding Machine - DC

The DeWalt DXWDMMA 160E inverter welder is a device designed to offer high performance in professional and semi-professional welding jobs.

With an input voltage of 230V and a power consumption of 6.5 KVA, this welder is capable of generating a welding current adjustable between 10 and 160A.

Thanks to these features, it is suitable for a wide range of applications involving metals of various thicknesses.

Equipped with advanced inverter technology, the DeWalt DXWDMMA 160E is more energy efficient than conventional models, reducing consumption and optimising use in environments where electricity is limited.

The device can also be used in combination with a generator, making it ideal for operating in remote areas or construction sited without direct electrical connections.

The service factor is another strong point: with a duty cycle of 90% at 160a, it allows continuos operation without interruptions due to overheating.

Compatibility with electrodes of variable diameters, from 1.6 to 4 mm, offers great versatility, allowing welding jobs on different materials to be tackled with professional results.

Main features:

Welding current: 10 to 160A, adjustable for various types of metals and thicknesses.
Electrode compatibility: 1.6 to 4 mm, for different applications.
Service factor: 90% at 160A, guarantees continuous productivity.
Generator operation: ideal for locations without mains power.

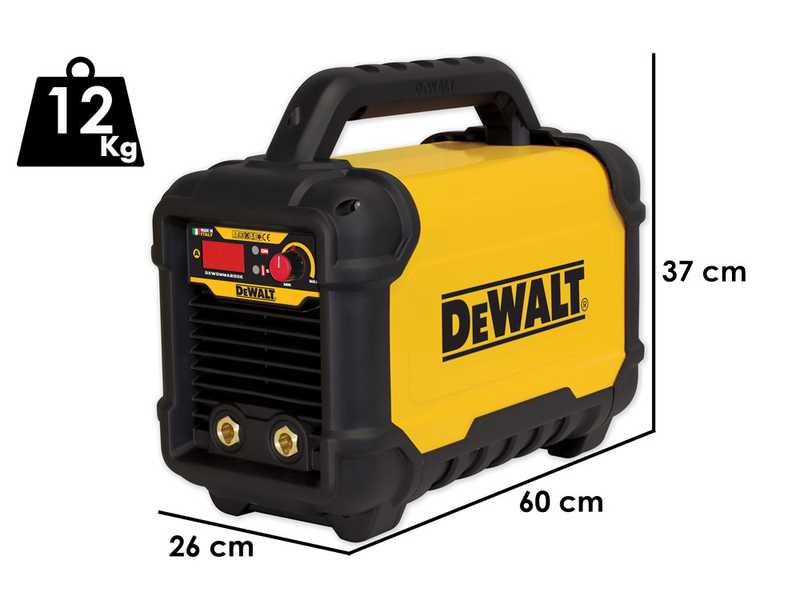

Small weight and dimensions: easy to transport to construction sites

DeWalt DXWDMMA 160E - Inverter Welding Machine (MMA) - Direct Current (DC) + KIT

Technical Features

The DeWalt DXWDMMA 160E inverter welder is designed for high technical performance, making it ideal for both professional and hobby applications.

One of the main features is the single-phase 230V input voltage, which allows easy and versatile use in domestic and industrial environments.

The power input values are 6.5 KVA, with an effective power of 5 KW, which ensures optimum energy efficiency.

The welder has a no-load voltage of 65V, which enables a quick and safe start of the welding operation.

The adjustable welding current, ranging from 10 to 160A, allows working on a wide range of materials and thicknesses, always guaranteeing professional-quality results.

The device also features a 90% service factor at 160A, ensuring uninterrupted work continuity, even in the most demanding applications.

The DeWalt DXDMMA160E is compatible with MMA electrodes of variable diameter, from 1.6 to 4 mm, making it particularly versatile for different types of welding.

However, it does not support cellulosic electrodes, ensuring a longer product life and less need for maintenance.

In addition, this welder is compatible with current generators, an essential option for those working in environments without access to the power grid.

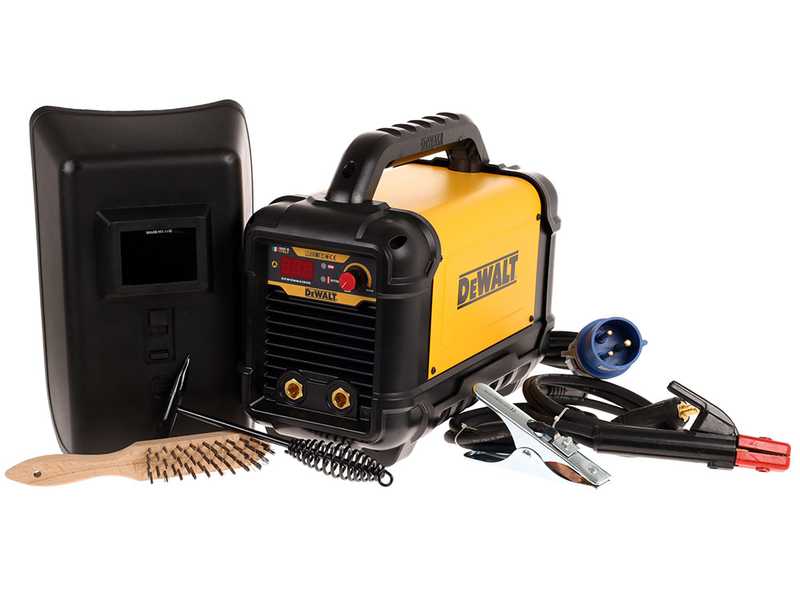

The inclusion of accessories such as the electrode holder clamp and ground cable makes it immediately operational, without the need for additional purchases.

Technical details:

Input voltage: 230V - single-phase
Power consumption: 6,5 KVA - 5 KW
No-load voltage: 65V
Welding current: 10 to 160A
Service factor: 90% to 160A
Supported electrodes: 1,6 to 4 mm
Generator compatibility: ideal for work in areas without mains power

Free items & Standard equipment

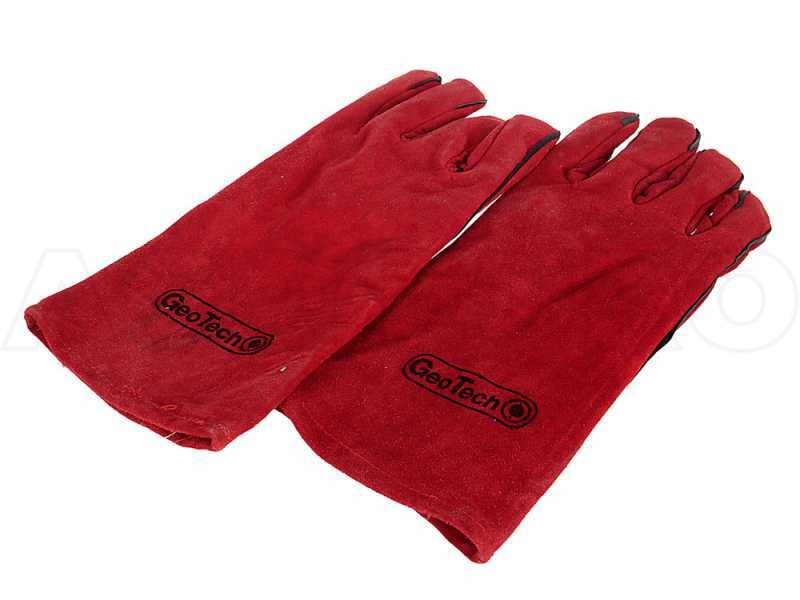

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

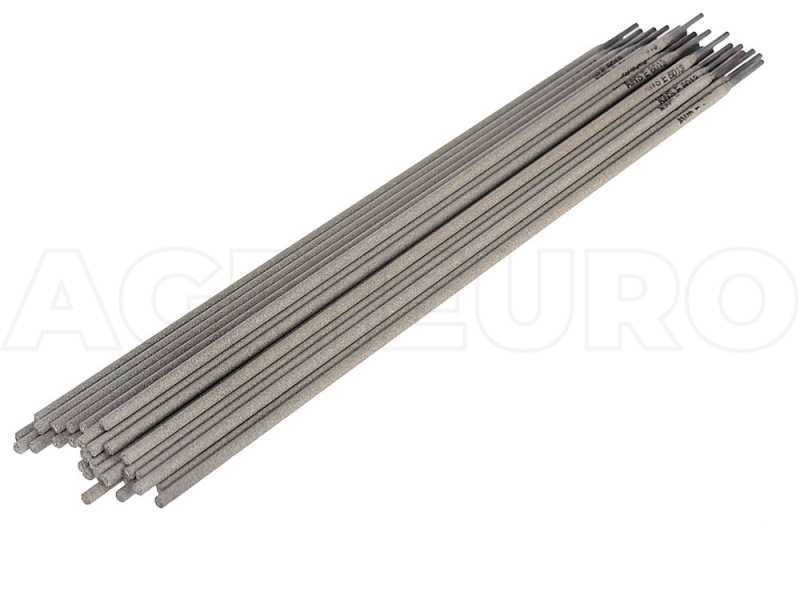

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.

FOR FREE: 140 AWS 2.5 mm electrodes

FOR FREE: Pack of 140 2.5 mm AWS electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
