DeWalt DXCMB4T270HE - Three-phase electric air compressor with belt - 4 HP Motor – 270 lt

Add a question
ID: K610275

EAN: 8016738831771

MPN: 36NC601DWT049

8,0/10
After-sales assistance & Spare parts

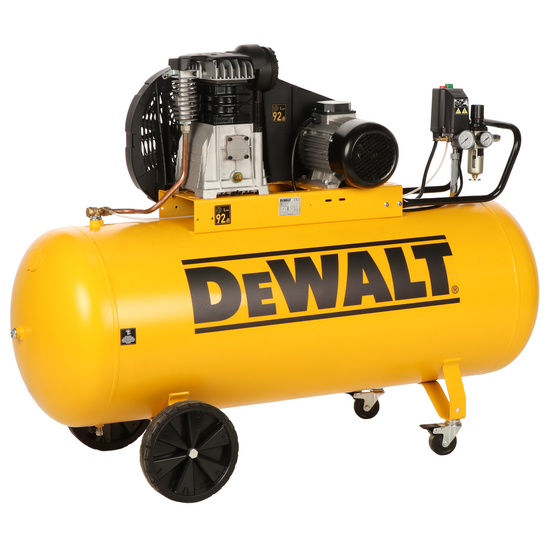

DeWalt DXCMB4T270HE - Three-phase electric air compressor with belt - 4 HP Motor – 270 lt
Free gifts from AgriEuro
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Extension hoseExtension hose
Universal adaptors kitUniversal adaptors kit
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 16/04/2026 - 20/04/2026
€ 1.173,14
Vat included
Technical data
Air compressor tank
270 L
Max. operating pressure
10 bar
Air intake flow
480 L/min
Cylinder head rpm
1400 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Motor type
Induction
Nominal power
4 HP
Operating mode
Three-phase 400 V
Transmission type
Belt
Pump unit mounting
Welded
Pressure adjuster
Yes
Manufacturing country
Italy
Product Features
Model
DXCMB4T270HE
Air compressor type 2
Belt-driven
Air compressor type
Horizontal
Operating mode
Three-phase 400 V
Max. operating pressure
10 bar
Number of tanks
1
Air compressor tank
270 L
Noise level
92 dB(A)
Manufacturing country
Italy
Pump unit mounting
Welded
Motor data
Motor type
Induction
Nominal power
4 HP
Silenced
No
Air compressors engine speed
2850
Power supply
400 V electric
Pump data
Model
B3800B
Air intake flow
480 L/min
Pump type
Single-stage
Lubrication
Oil
No. of cylinders
2
Cooling manifold
Yes
Cylinders material
Cast iron
Manufacturing country
Italy
Transmission data
Belt-driven
yes
Transmission type
Belt
Cylinder head rpm
1400 RPM
Transmission protective cover
Protection shield conveying air on the pump unit
Equipment
No. of outlet couplings
2
Pressure adjuster
Yes
Free gifts/extra features
Instructions manual
Yes

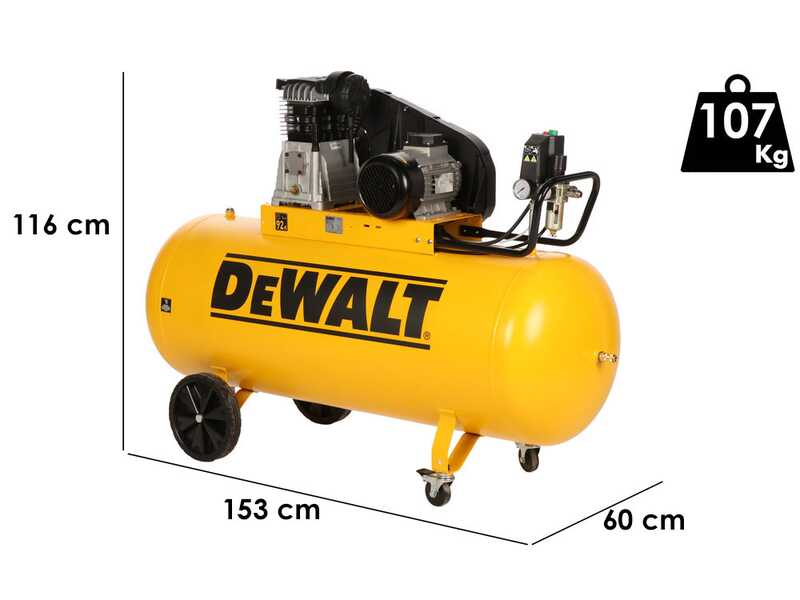

Dimensions and logistics
Product dimensions in cm (L x W x H)
153x60x116 cm
Net weight
107 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
164x56x119 cm
Weight including packaging
134 Kg
Assembly time
5 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Three-phase belt-driven compressor DeWalt DXCMB4T270HE

The DeWalt DXCMB4T270HE compressor is a professional device designed to ensure high performance and reliability in industrial settings.

The maximum pressure reaches 10 bar, allowing it to easily power a wide range of pneumatic tools. Inside, it features a 4 HP three-phase induction motor, designed to offer constant power and long life. Powered at 400V, the motor utilizes a belt drive that optimizes its energy efficiency.

Equipped with a 270-litre tank, it ensures a significant air reserve, ideal for prolonged use without interruptions.

The single-stage head operates at 1400 revolutions per minute, with an air intake capacity of 480 litres per minute, making it perfect even for the most demanding applications.

The oil lubrication helps to extend the life of the compressor and reduce maintenance interventions. Additionally, the integrated cooling system helps to maintain low operating temperatures, thereby improving the overall performance of the device.

Distinctive features:

  • 270-litre tank: Large capacity to ensure sufficient air reserve.
  • Maximum pressure of 10 bar: Suitable for multiple pneumatic applications.
  • Air intake of 480 l/min: High suction capacity for professional use.
  • 4 HP three-phase induction motor: Powerful and durable, with 400V power supply.
  • Belt drive: Improves motor efficiency and longevity.
  • Oil lubrication: Reduces wear and the need for frequent maintenance.
  • Cooling manifold: Maintains optimal operating temperatures.
  • Italian production: Guarantee of quality and reliability.

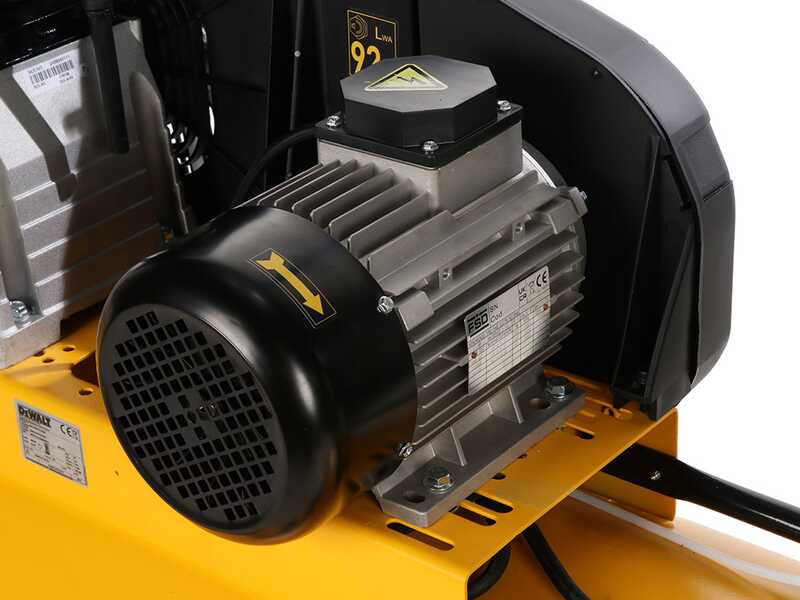

Three-phase induction electric motor 4 hp

The induction motor is characterized by its extremely long life (it is almost eternal) and its minimal maintenance requirement.

This motor is indeed brushless, the main component subject to wear in electric motors. The absence of this component gives the motor its proverbial longevity.

It is considered the top for reliability, quietness, durability, energy efficiency, and maintenance.

Power supply: 400V

Power: 4 HP

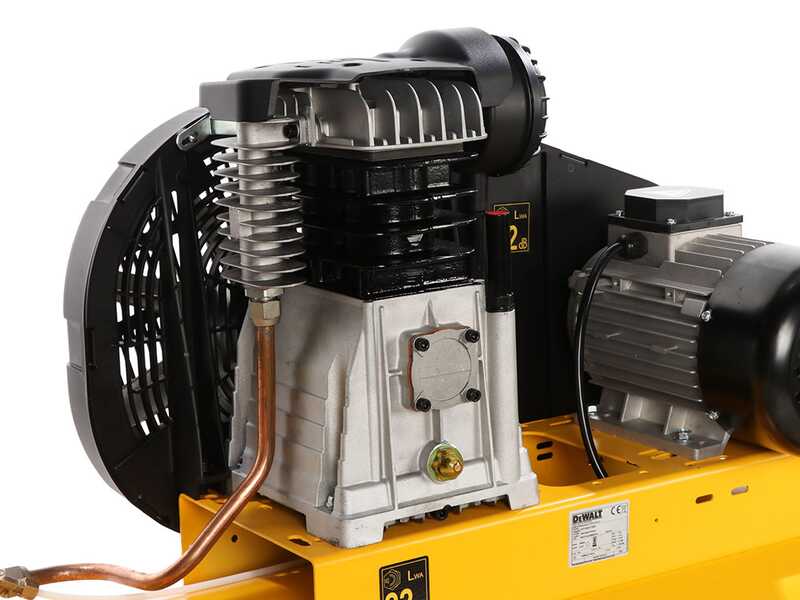

Head B3800B

Air intake production: 480 lt/min
Head type: twin-cylinder with cast iron cylinders
Intake type: single-stage
Lubrication: oil
Number of revolutions: 1400 rpm


The level of professionalism and more generally the longevity of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the number of revolutions, the longer the compressor will last in the long term. The reduction in the number of revolutions is achieved through pulleys of different diameters applied respectively to the motor and the head.

Side cooling manifold, keeps the temperature of the compressed air low at the outlet.

Detail of the oil control rod.

Detail of the inspection window for oil control.

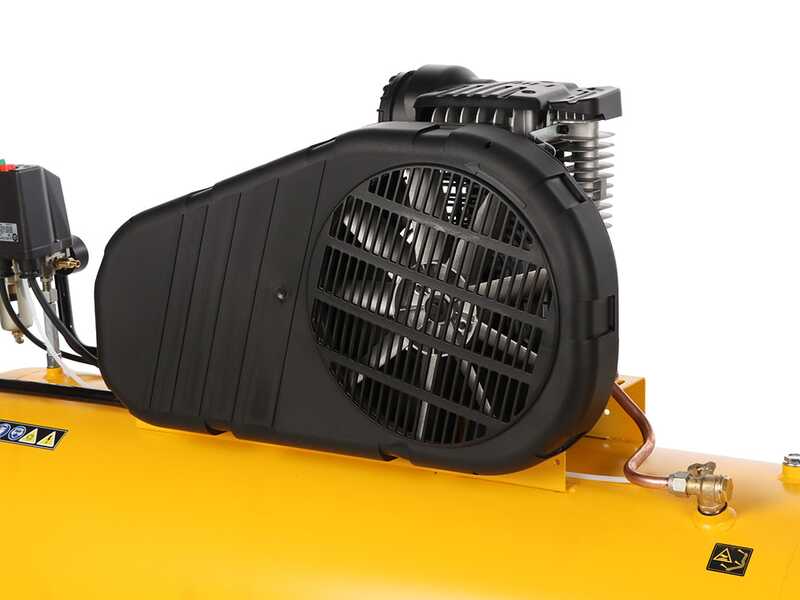

Belt drive

The belt drive is a feature that characterizes these compressors.

The use of the belt, combined with an induction motor, contributes to the longevity of this compressor, drastically reducing the number of revolutions of the head, increasing its lifespan and reducing its wear.

The protection serves to preserve the belt and transmission from any external objects that, hitting it, could damage it during operation. It also allows you to always keep the condition of the belt under control.

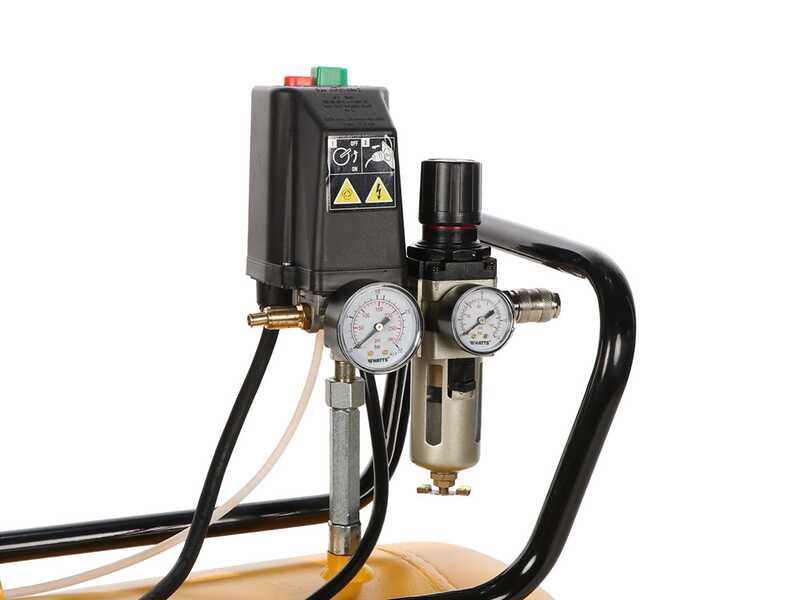

Controls

The controls of the compressor are really simple and intuitive, they are distinguished in:

Main switch

Internal tank pressure gauge and output pressure gauge.

2 female compressor output fittings.

Cup filter for cleaning the compressed air output

The compressor is equipped with a pressure adjustment knob for the output pressure, verifiable via a pressure gauge located just below it, connected to the output.

Other features

Among other features we find:

Ergonomic handle

Large wheels in sturdy plastic

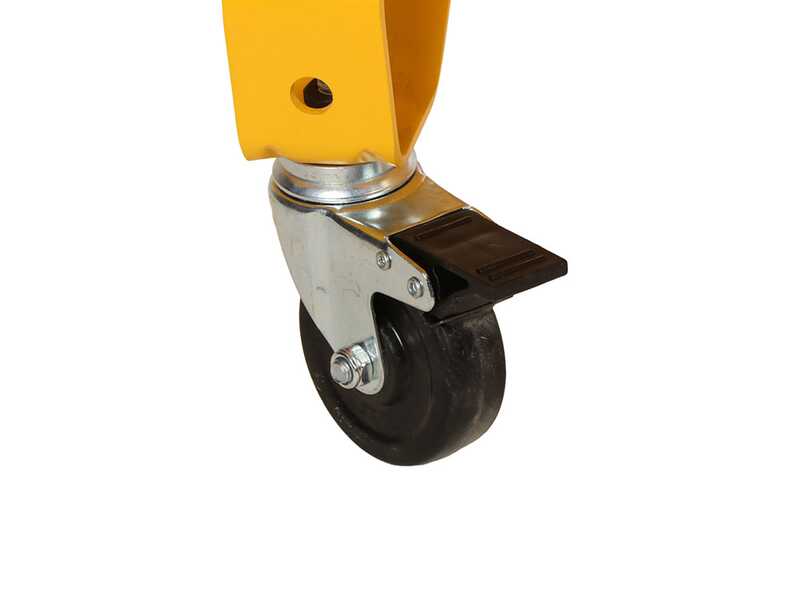

Front pivoting wheels with brake

Direct tank connection

Three-phase connection

Free items & Standard equipment

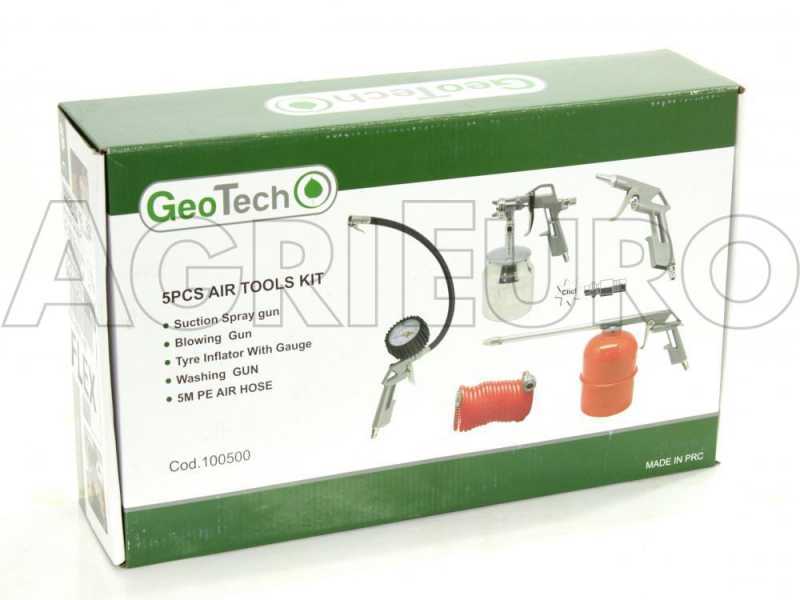

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

Free items included

The compressor is supplied in its original packaging.

Instruction manual included in the package.
