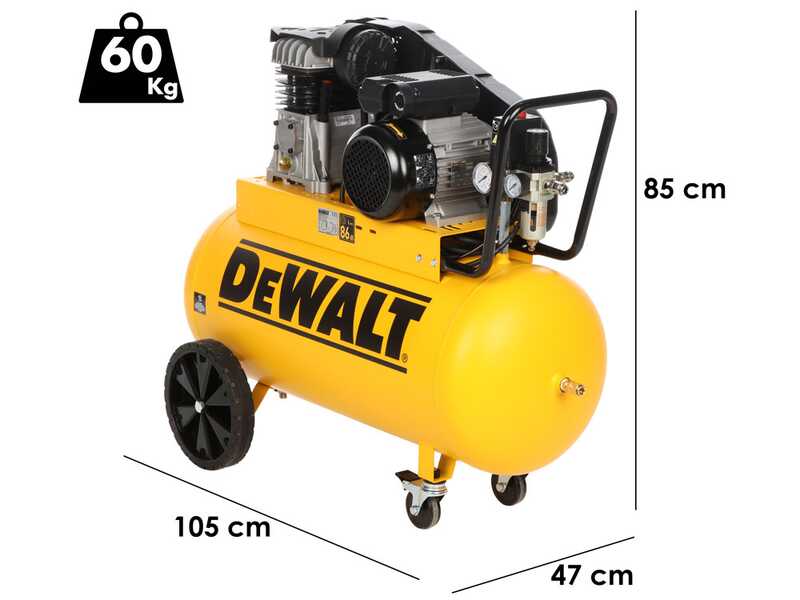

Name: DeWalt DXCMB3M100HE - Single-phase electric belt-driven air compressor - 3 HP Motor – 100 lt
Brand: DeWalt
SKU: K610411
Price: 723.65 EUR
Availability: InStock

Description

DeWalt DXCMB3M100HE Single-phase Belt-driven Compressor

The DeWalt DXCMB3M100HE compressor is a professional device designed to offer high performance and reliability in industrial environments.

With a maximum pressure of 10 bar, it can easily power a wide range of pneumatic tools. The 3 HP single-phase induction motor ensures stable power and long life, while the belt drive optimizes its energy efficiency. Powered at 230V, this motor is built to last, minimizing energy consumption.

The 100-litre tank provides a generous air reserve, ideal for continuous work without the need for breaks. The single-stage head, operating at 1570 rpm, guarantees an air intake of 330 litres per minute, making the compressor perfect even for more demanding operations.

Oil lubrication helps maintain the compressor's efficiency over the long term, reducing maintenance interventions. Additionally, the integrated cooling system keeps operating temperatures optimal, enhancing overall performance.

Main Features:

100-litre tank: High capacity for extended autonomy.
Maximum pressure of 10 bar: Perfect for various pneumatic applications.
Air intake of 330 l/min: High capacity for professional use.
3 HP single-phase motor: Reliable power and long life, powered at 230V.
Belt drive: Optimizes efficiency and durability.
Oil lubrication: Reduces wear and maintenance costs.
Cooling manifold: Keeps the compressor at optimal temperatures.
Italian production: Ensures quality and reliability.

DeWalt DXCMB3M100HE - Single-phase electric belt-driven air compressor - 3 HP Motor – 100 lt

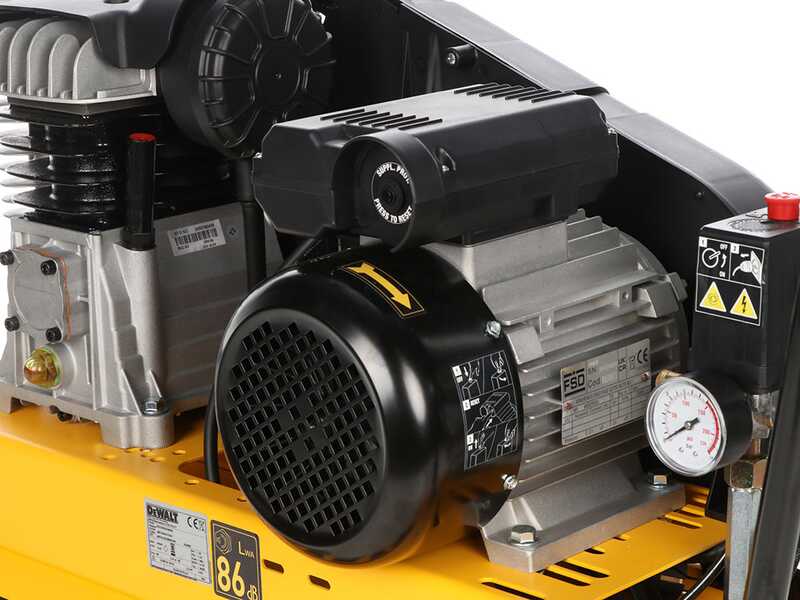

3 HP Single-phase Induction Electric Motor

The induction motor is characterized by its extremely long life (it is almost eternal) and its minimal maintenance requirement.

This motor is indeed brushless, the main component subject to wear in electric motors. The absence of this component gives the motor its proverbial longevity.

It is considered top for reliability, quietness, durability, energy efficiency, and maintenance.

Power supply: 230V

Power: 3 HP

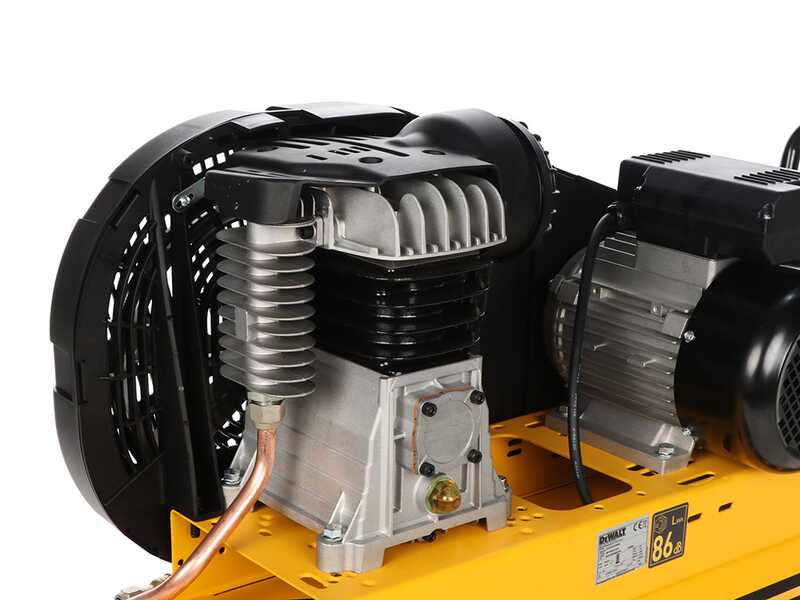

B2800B Head

Air intake production: 330 lt/min
Head type: twin-cylinder with cast iron cylinders
Intake type: single-stage
Lubrication: oil-based
Number of revolutions: 1570 rpm

The level of professionalism and, more generally, the durability of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the number of revolutions, the longer the compressor will last in the long term. The reduction in the number of revolutions is achieved through pulleys of different diameters applied respectively to the motor and the head.

Side manifold for cooling, keeps the temperature of the compressed air output low.

Detail of the oil control rod.

Detail of the inspection window for oil control.

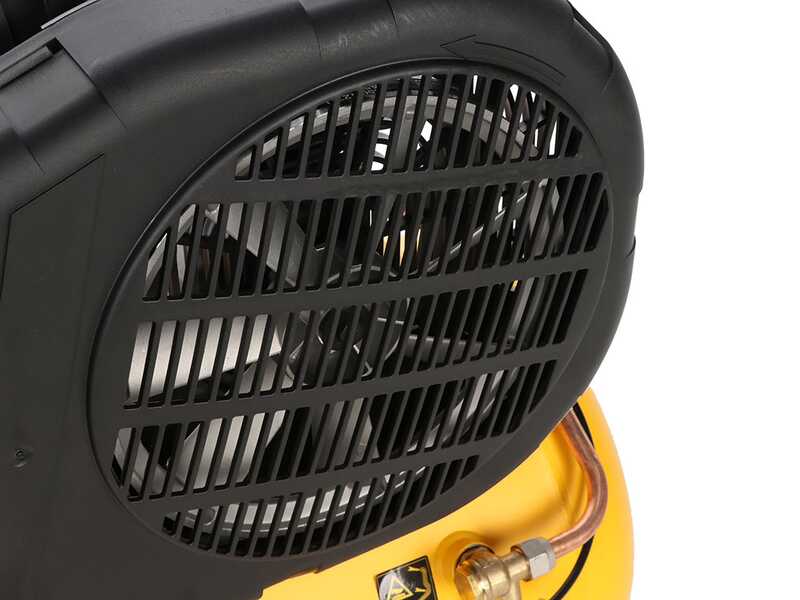

Belt drive

The belt drive is a feature that characterizes these compressors.

The use of the belt, combined with an induction motor, contributes to the longevity of this compressor, drastically reducing the number of revolutions of the head, increasing its lifespan and reducing its wear.

The protection serves to preserve the belt and transmission from any external objects that, by hitting it, could damage it during operation. It also allows you to always keep the condition of the belt under control.

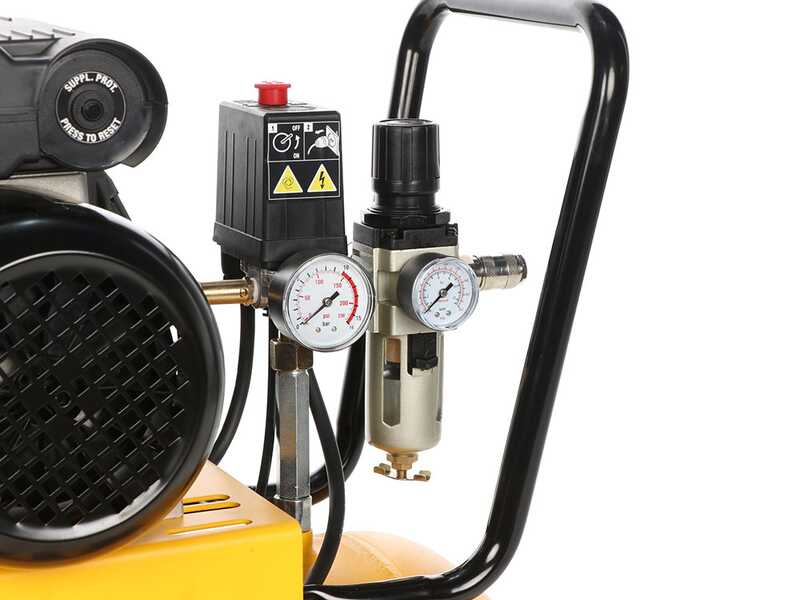

Controls

The compressor controls are really simple and intuitive, they are distinguished into:

Main switch

Internal tank pressure gauge and output pressure gauge.

2 female output connectors of the compressor.

Cup filter for cleaning the compressed air output

The compressor is equipped with a pressure regulation knob for the output pressure, verifiable via the pressure gauge located immediately below it, connected to the output.
