Ceccato Tritone Super Monster P.T.O. - Professional Tractor-mounted garden shredder

Questions & Answers (4)
ID: 102642

EAN: 9999237534475

MPN: TRISMONC

8,5/10
After-sales assistance & Spare parts
Ceccato Tritone Super Monster P.T.O. - Professional Tractor-mounted garden shredder
+20 sold
Operating mode
Tractor-driven PTO
Tractor power
From 40 to 100 HP
Cutting Rotor Type
Knives + hammers
No. of blades
4
No. of hammers
24
Interchangeable sieves
Yes
Max. Branch Diameter
130 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Safety Lever
Yes
Upper discharge system
Discharge chute rotation
Manual
No. of rollers
One
Reverse
Transmission type
Belt
Roller drive type
Hydraulic
Manufacturing country
Italy
Product Features
Model:
Tritone Super Monster P.T.O.
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
Yes
Self-feeding roller system:
Hydraulic
Anti-jam system:
Yes
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
58 cm
Hopper opening size (width):
95 cm
Chip size reducing sieve:
Yes
Interchangeable sieves:
Yes
Wood chips min. size with sieve:
1.0 cm
Electric start:
No
Foldable:
Yes
Min. power:
40 Hp
Max. power:
100 HP
Tractor power:
From 40 to 100 HP
No. of rollers:
One
Reverse:
Safety Lever:
Yes
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Roller drive type:
Hydraulic
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
130 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
4
No. of hammers:
24
Blade movement:
Rotating
N° of chopper blades:
24
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Manual
Rear wheels size:
15 x 6.00 - 6
Free gifts/extra features
Cardan shaft:
Optional
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
280x110x193 cm
Net weight:
460 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
168x110x193 cm
Gross weight (packaging included) :
500 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
Suggested price:
€ 9.230,41
€ 8.953,50
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

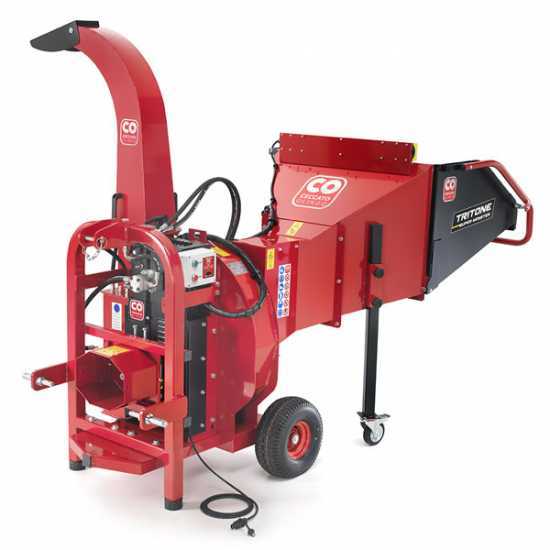

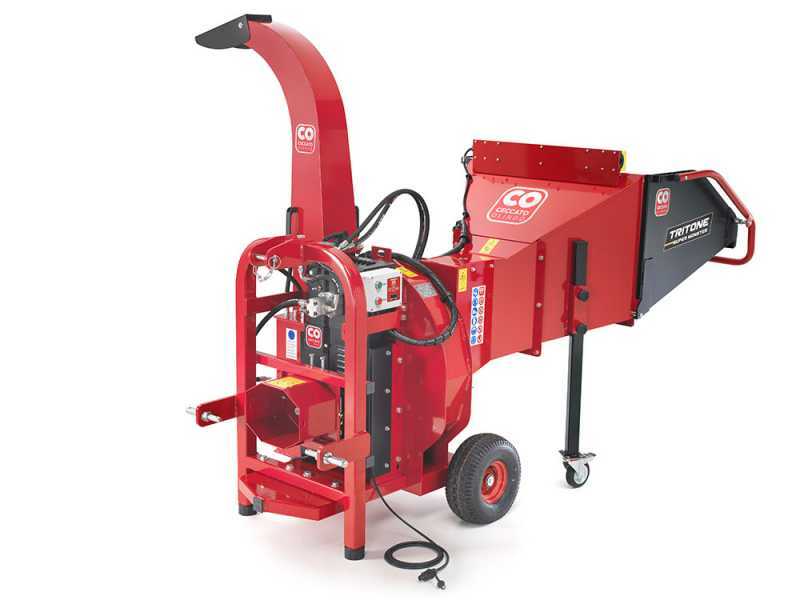

Tritone Super Monster P.T.O. tractor-mounted garden shredder

The Ceccato Tritone Super Monster P.T.O. is a heavy-duty tractor-mounted garden shredder, specifically intended for shredding large quantities of vegetable waste. This wood chipper is a top-of-the-range model and it is equipped with self-feeding roller, operated by an hydraulic pump, for dragging the branches and vegetable waste into the large hopper that guarantees a high ease of use.

The machine can shred branches of up 120 mm diameter.

The hopper can rotate 180° and it is 2 m high.

The cutting rotor features 600 mm diameter. The central unit is equipped with 1 central double-edged blade, 2 other reversible blades and other 24 reversible shredding hammers inside.

The garden shredder is provided with a 2-belt drive system that transfer motion from the multiplier to the cutting rotor. Furthermore, it is equipped with 2 counter-blades for high shredding performance. The machine is fitted with a round-shaped sieve that sieves the wood chips This Tritone Super Monster PTO garden shredder is equipped with 2 large pneumatic wheels and it is compliant with the safety CE standards.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

Self-feeding roller

The Tritone Super Monster is a heavy-duty garden shredder provided with self-feeding roller, operated by a hydraulic pump, for automatically dragging branches and vegetable waste into the hopper.

Self-feeding rollers speed adjustment: simply adjust the rotation speed by turning the knob on the engine hydraulic variator to adjust the operating speed according to the thickness of the branches and vegetable waste to be shredded.

Wood anti-clogging system: in case the rotor gets over-stressed or stops while processing the wood, the Operator has to move the lever on the hopper (red round lever). Indeed, this lever acts on the motor hydraulic valves and reverses the rotor rotation direction unlocking it.

Hopper lever operating positions: the red round lever around the hopper operates like a 3-position switch. Pushing it down operates the self-feeding roller in its standard forward rotary motion, allowing branches to be dragged into the hopper. Pulling it back reverses the direction of rotation allowing you to operate the anti-clogging system. The rotor in central position doesn’t rotate as this is its rest position.

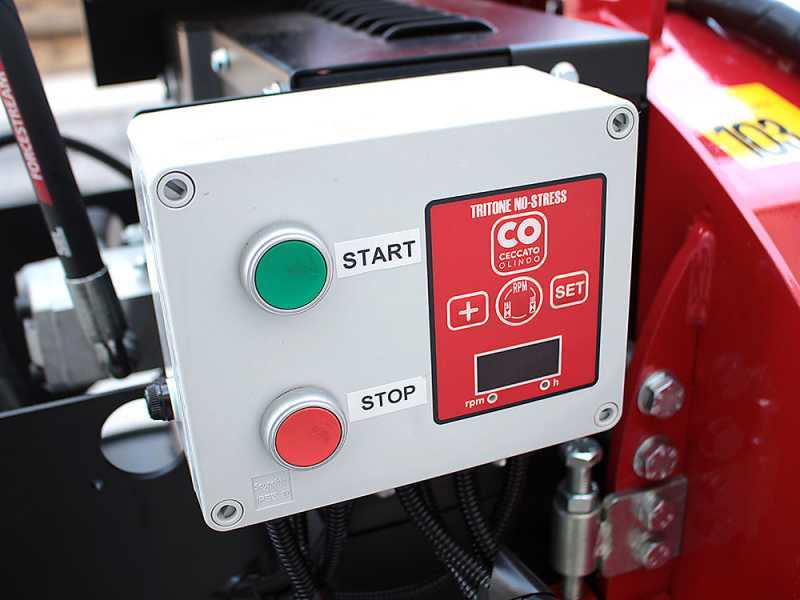

Electronic NO-STRESS system: the NO-STRESS control unit controls the machine self-feeding rollers both for starting the unit and in case of emergency. It will be possible to start the multiplier only after having pressed the START button.

Here below the main features of this wood chipper:

- Self-feeding rollers engagement for shredding
- (Safety) immediate stop system
- Reverse function for removing blocks.

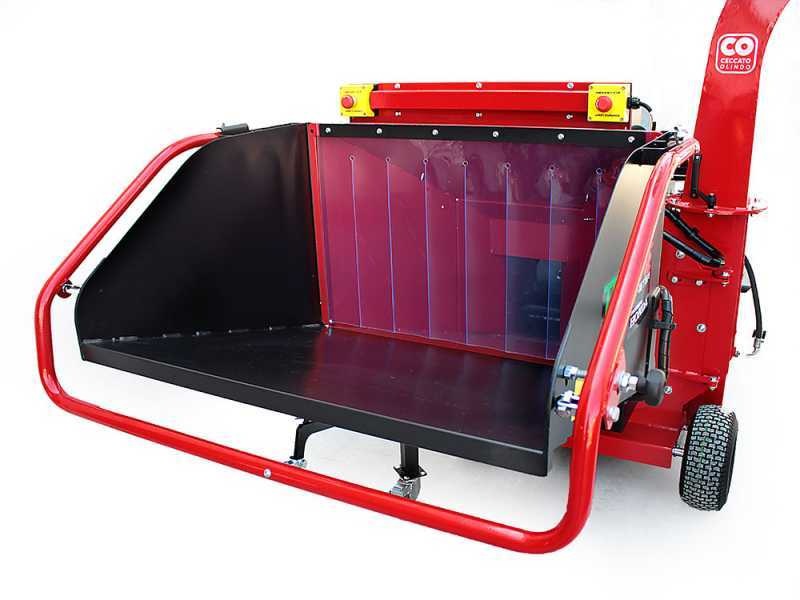

Unified hopper

The machine is equipped with a large steel hopper, 95 cm wide and 58 cm high, able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering large volumes of material at a time.

The hopper can be folded for transport or storage so as to take up little space.

Focus on the transparent rubber bulkheads placed on hopper opening.

Brand-new E-STOP system. In an emergency, press the 2 red alarm buttons above the hopper; this will immediately stop the rotor and the self-feeding rollers, regardless the position of the control bar.

Cutting rotor

The rotor is composed of highly-thick 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance, with 600 mm diameter.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

The large door of the rotor unit is equipped with 2 sturdy interchangeable counter-blades. These act as counter-blades to the 2 main blades and perform a scissor effect at the first cut of the branch entered into the hopper, thus ensuring high cutting performance.

The blade thickness is 12 mm.

The centre of the rotor is provided with other 2 blades for optimising shredding results.

Equipped with 24 hardened steel shredding hammers (or blades) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

For better wood chip quality and make the 24 hammers more effective, the machine is equipped with a round-shaped sieve placed around the main rotor (that can be purchased separately).

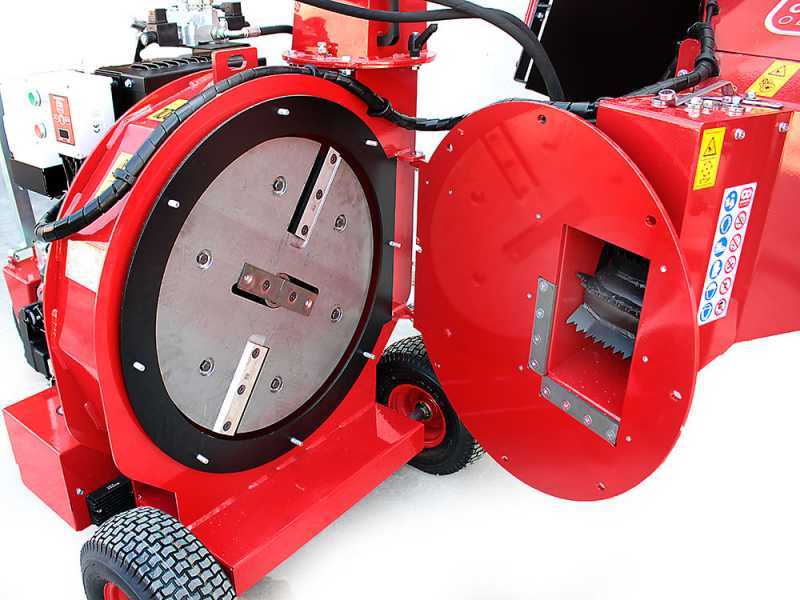

Shredding chamber

The outer shredding chamber (the largest and sturdiest in its category) is proportionate to the rotor it includes. It is wide and features a round-shape, ensuring excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

The high steel thickness of the shredding chamber proves the high quality and sturdiness of the machine.

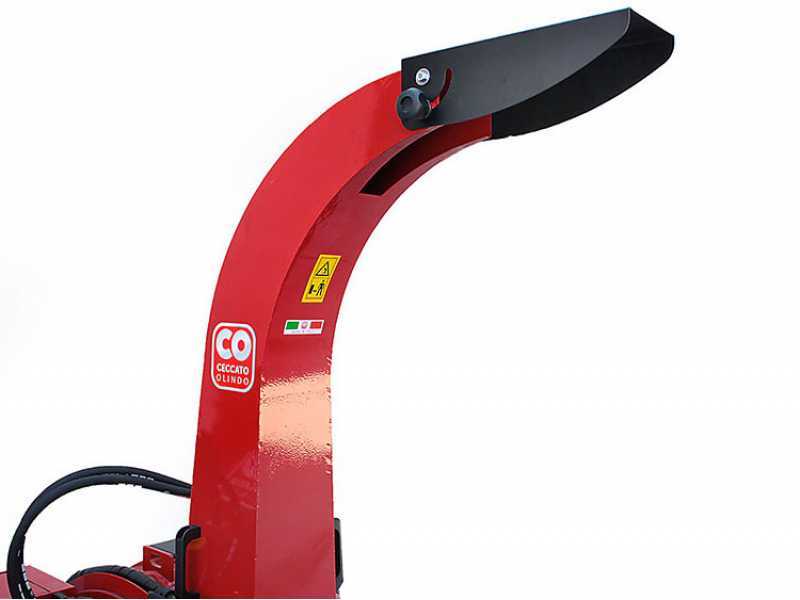

360° rotating discharge chute

Provided with 180° rotating discharge chute.

Simply rotate the lever and then the chute by means the 2 handles placed in the lower part of the chute.

As the discharge chute is 2 m high, this allows it to discharge the wood chips directly into the tractor or lorry trailer.

The inclination of the discharge chute is also adjustable in order to control the distance of the discharged shredded material.

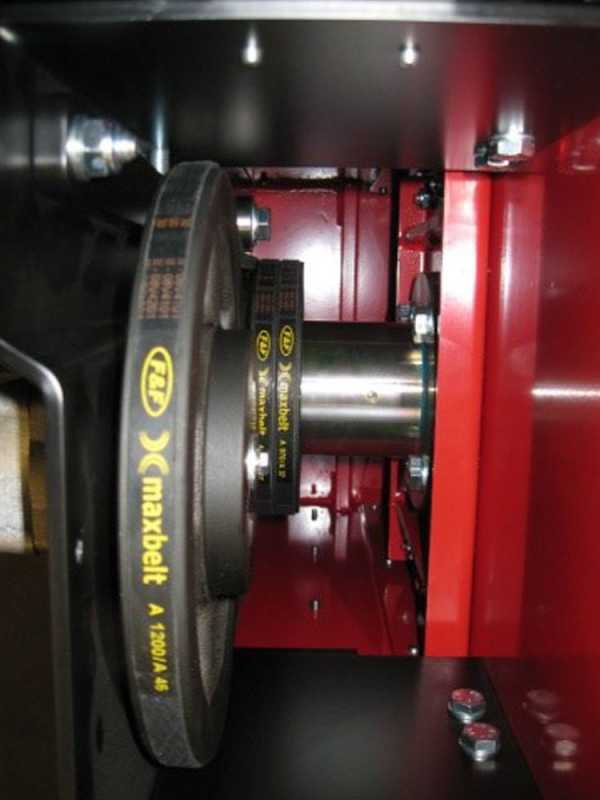

2-belt drive with reinforced belt

This double belt drive with reinforced belt gives the machine an extraordinary sturdiness, protecting both the multiplier and the internal shredding rotor from any kind of internal shock or kickback.

Much longer service life than the traditional systems still used by all manufacturers with the motor directly connected to the shredding unit.

The hydraulic pump drive is belt-driven too.

Focus on the connection between tractor PTO and garden shredder.

Warning: the cardan joint to connect the machine to the tractor PTO is not included.

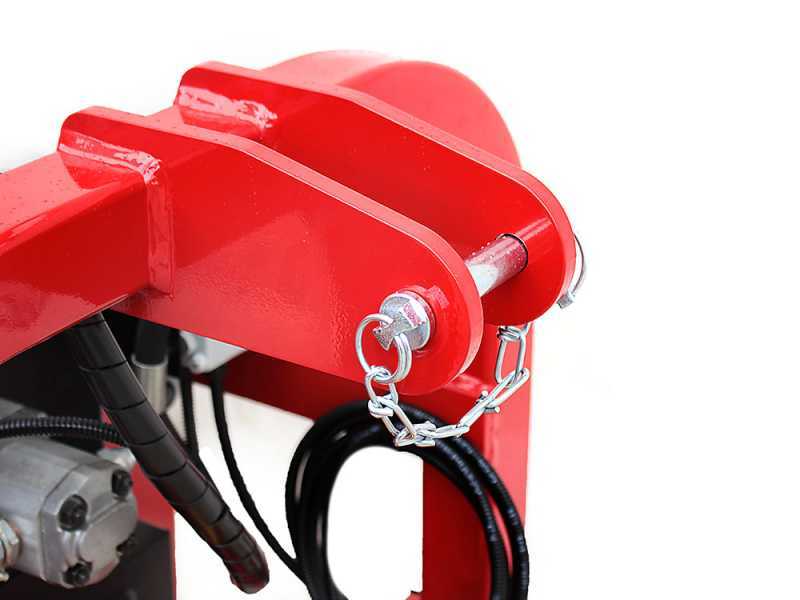

3-point hitch and other features

The frame of the garden shredder is made of high-strength enamelled steel. It is equipped with a fixed 3-point hitch for connecting it to the tractor. The connections to the lifter are fitted with pins

The wood chipper can be folded for easy transport or storage. The machine is also equipped with 2 large rear pneumatic wheels for easy transport.

Their dimensions is 15x6.00 - 6.

Furthermore, the hopper is equipped with a removable stabilising wheel placed on the side to ensure greater stability both during use and maintenance operations that require the shredding chamber to be opened.

The wood chipper is equipped with a hook to be moved using forklifts or hoists.

Electric start; it operates the electronic controller.

The instructions manual is always at hand thanks to the storage tube on the hopper.

Free items & Standard equipment

Free items included

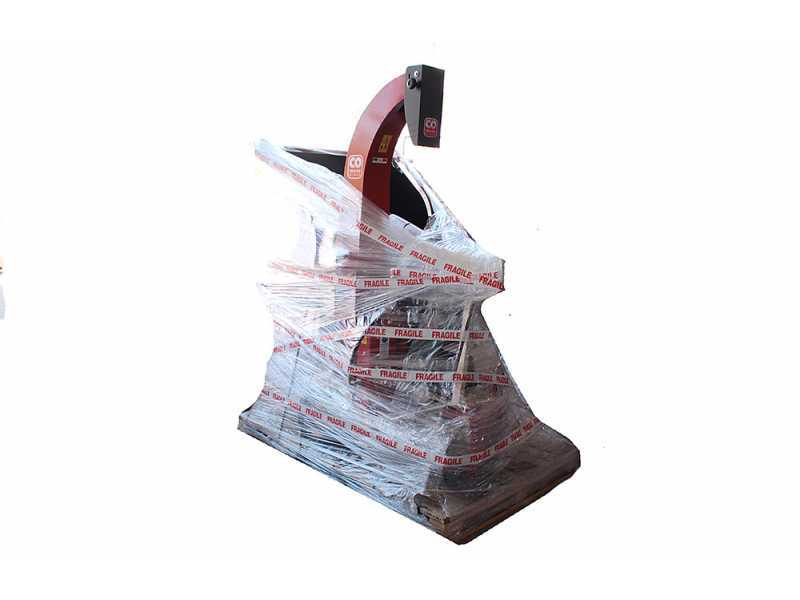

The garden shredder is shipped on pallet.

Instructions manual and wrench for tightening the bolts are included in the package.
