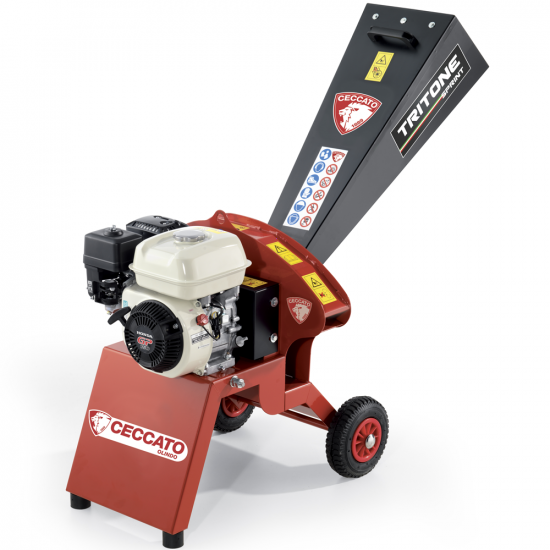

Ceccato Tritone Sprint - Professional petrol garden shredder - Honda GP 160 engine

Questions & Answers (11)
ID: K501743

EAN: 9993089181269

MPN: TRISPRINTGP

Ceccato Tritone Sprint - Professional petrol garden shredder - Honda GP 160 engine
+300 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Replacement air filterReplacement air filter
Motor type
4-stroke
Motor brand
Honda
Motor Model
GP 160
Cubic capacity
163 cm³
Nominal power
6.0 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
6
Max. Branch Diameter
40 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
Tritone Sprint GP 160
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Low
N° of hoppers :
1
Hopper opening size (height):
29 cm
Hopper opening size (width):
29 cm
Hopper opening size:
(Ø) 19cm
Chip size reducing sieve:
Yes
Electric start:
No
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GP 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
6.0 HP
Rated power (HP):
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
40 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
6
Blade movement:
Rotating
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Recoil start system (with rope):
Yes
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
58 x 130 x 115 cm
Net weight:
70 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60 x 65 x 100 cm
Gross weight (packaging included) :
75 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 1.335,55
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Petrol garden shredder

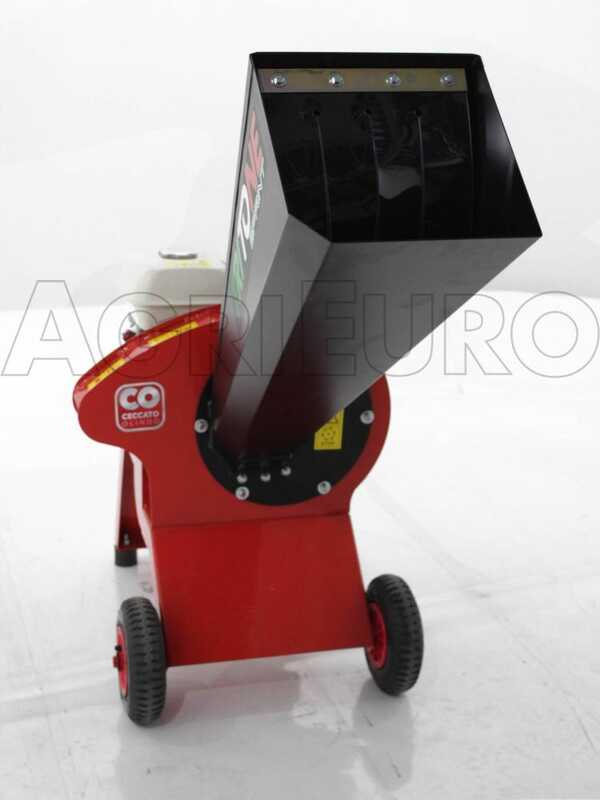

The Ceccato Tritone Sprint GP 160 is a heavy-duty petrol garden shredder, specifically intended for shredding large quantities of vegetable waste; it is entirely Made in Italy and equipped with a large hopper that allows the Operator to easily enter branches and vegetable waste. It can shred branches up to 40 mm diameter.

The hopper can be folded for transport or storage. However, it is required to close the hopper with the proper self-locking nuts.

Hopper opening: 29 x 29. Machine size: 134 cm length, 83 mm width, 106 cm high. It is equipped with a Honda GP160 4-stroke petrol engine and a 290 mm cutting unit.

The Tritone Sprint GP160 is in compliance with the safety CE standards.


Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

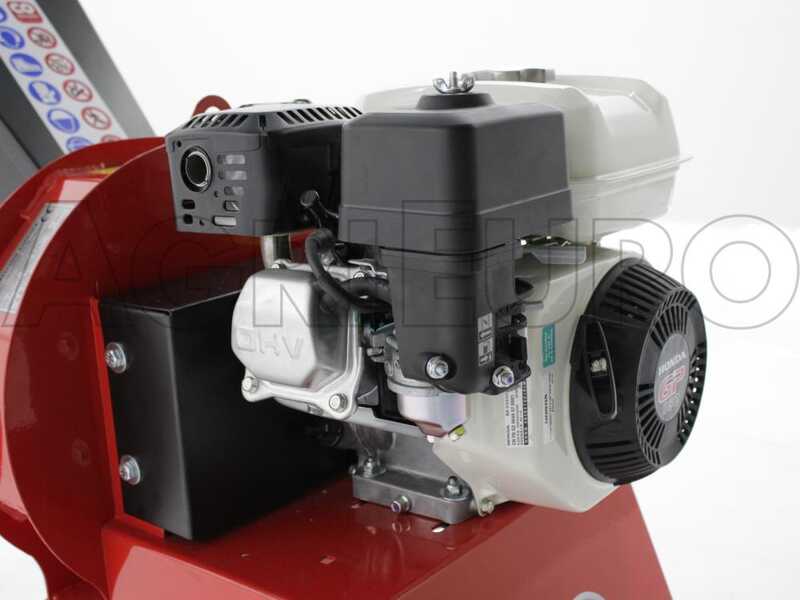

Honda GP 160 engine

The 163 cc Honda GP 160 engine is light and high performing, suitable for operations requiring great power.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: cast Iron
Cubic capacity: 163 cm³
Compression ratio: 8.5: 1
Max. rpm: 3600 rpm
Fuel tank capacity: 3.1 L
Consumption: 1.4 L/h 3600 rpm
Net weight: 15.1 Kg

Latest generation 4-stroke petrol engine with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25° tilted cylinder forced air cooling system, cast iron cylinder.

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

Nominal power: 6 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

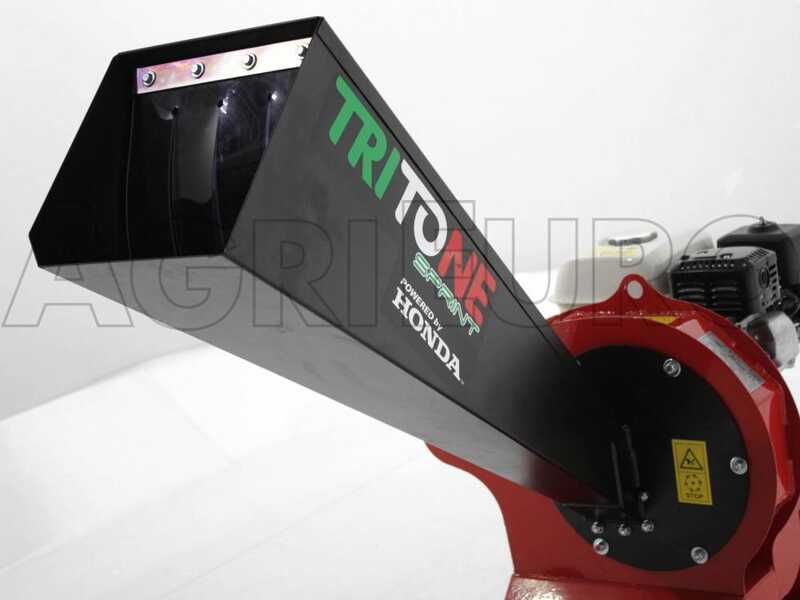

Unified hopper

The machine is equipped with a large steel hopper, 29 x 29 cm, able to process even very bulky branches and leaves, without having to pre-shred them. Furthermore, it is possible to enter a large amount of material at a time.

UNIFIED HOPPER: greatly simplifies and speeds up work.
It avoids the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

SELF-FEEDING: Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously. thanks to the hopper vertical design.

Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the transparent rubber bulkheads placed on hopper opening.

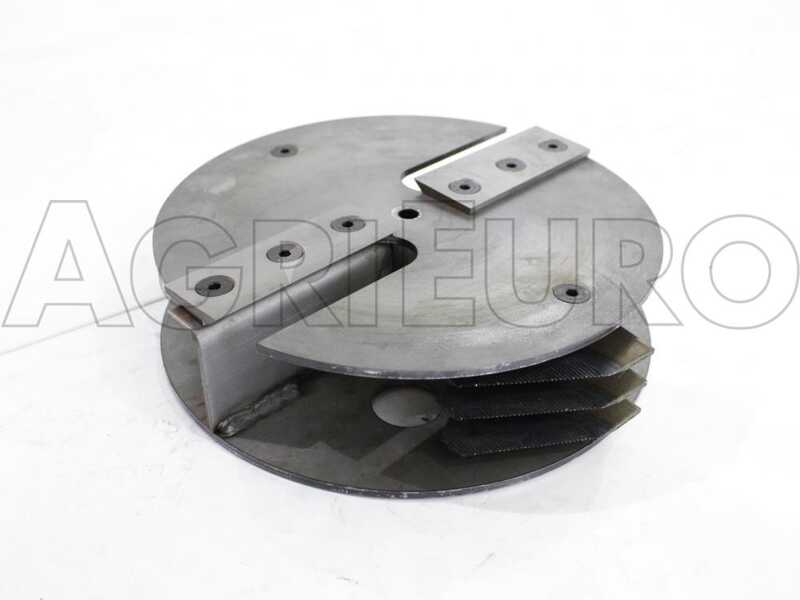

Central rotor

The central rotor is composed of highly-thick 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance, with 30 cm diameter.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

2 counter-blades, interchangeable and highly sturdy, are mounted into the inner part of the hopper. These act as counter-blades to the 2 main blades and perform a scissor effect at the first cut of the branch entered into the hopper, thus ensuring high cutting performance.

Equipped with 6 hardened steel shredding hammers (or blades) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

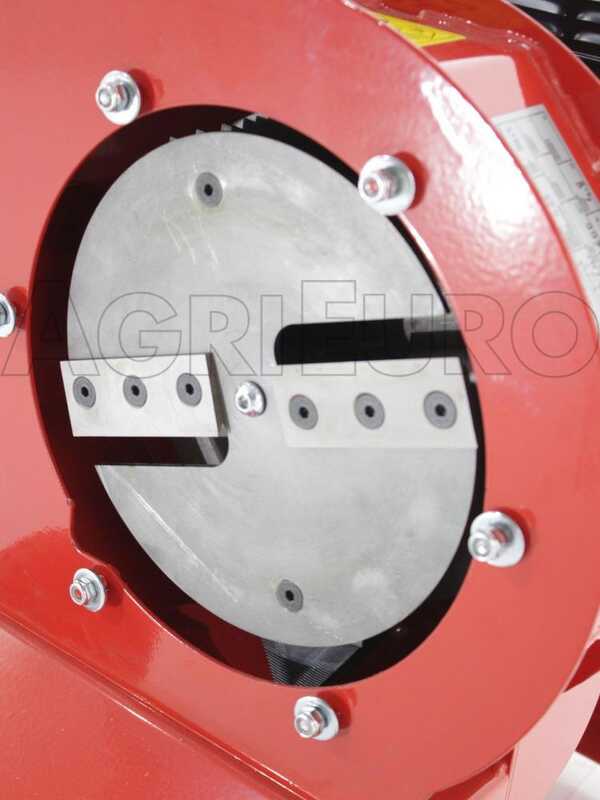

Shredding chamber

The outer shredding chamber is proportionate to the rotor it includes. It is wide and features a round-shape. It guarantees excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

The high steel thickness of the shredding chamber proves the high quality and sturdiness of the machine.

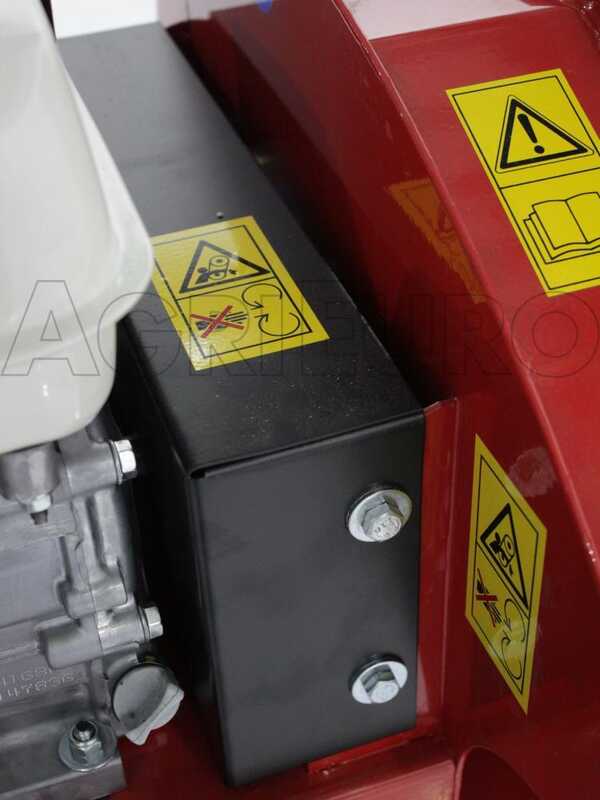

Belt drive

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their the engine powered models where the engine is directly connected to the shredding unit.

General features

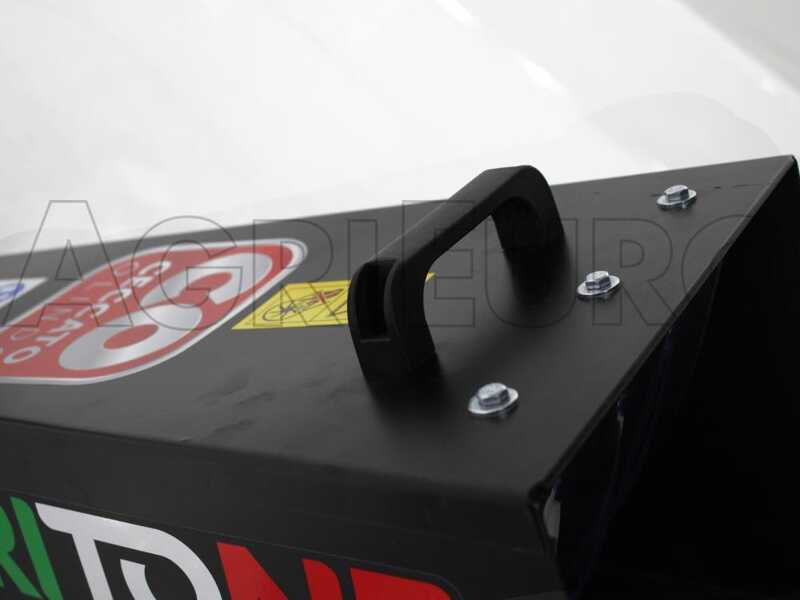

Lifting handle. It is placed in the upper part of the hopper and allows the Operator to move the shredder without any effort as it is perfectly balanced.

Rubber-coated transport wheels, useful for moving the wood chipper even on uneven grounds.

Anti-vibration rubber pads that absorb the vibrations of the engine and the machine ensuring great comfort during use.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free items included

The garden shredder is shipped on pallet.

Instructions manual and wrench for tightening the bolts are included in the package.

Engine maintenance and instructions manual included.
