Ceccato Tritone Monster - Professional petrol garden shredder - Honda GX 390

Questions & Answers (19)
ID: K501742

EAN: 9993081522015

MPN: TRI-MON

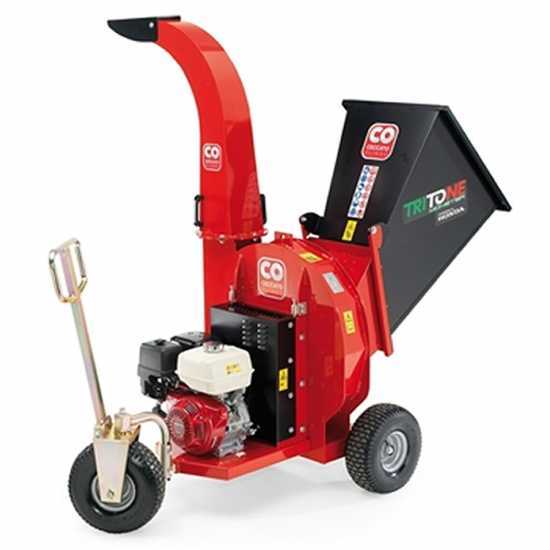

Ceccato Tritone Monster - Professional petrol garden shredder - Honda GX 390
+200 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX 390
Cubic capacity
389 cm³
Nominal power
13 HP
Cutting Rotor Type
Knives + hammers
No. of blades
4
No. of hammers
24
Interchangeable sieves
Yes
Max. Branch Diameter
100 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Upper discharge system
Discharge chute rotation
Manual
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
Tritone Monster GX 390
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
52 cm
Hopper opening size (width):
62 cm
Hopper opening size:
(Ø) 19cm
Chip size reducing sieve:
Yes
Interchangeable sieves:
Yes
Wood chips min. size with sieve:
1.0 cm
Electric start:
No
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 390
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Rated power (HP):
11.7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6.1 L
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
100 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
4
No. of hammers:
24
Blade movement:
Rotating
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Manual
Recoil start system (with rope):
Yes
Rear wheels size:
15 x 6.00 - 6"
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
150 x 220 x 197 cm
Net weight:
340 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120 x 150 x 150 cm
Gross weight (packaging included) :
350 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
Suggested price:
€ 5.424,42
€ 4.990,47
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

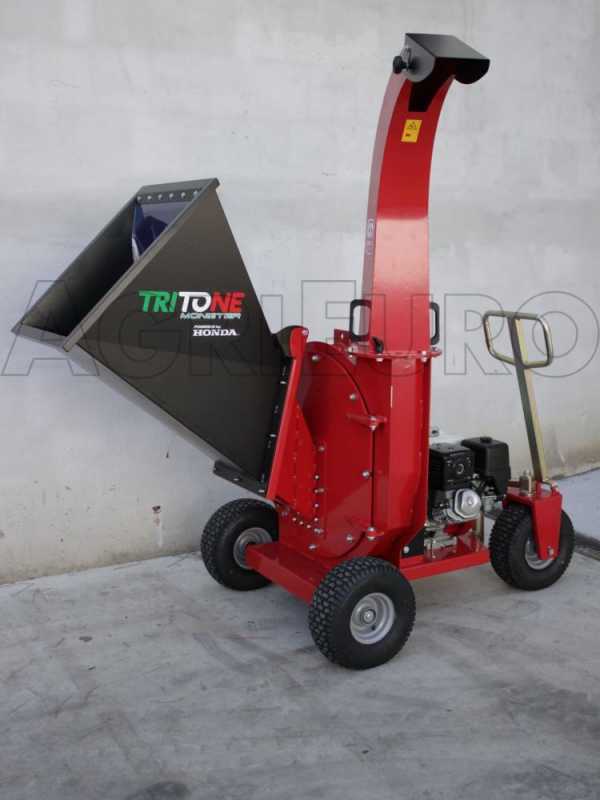

Petrol garden shredder

The Ceccato Tritone Monster HONDA GX 390 is a heavy-duty petrol garden shredder, specifically intended for shredding large quantities of vegetable waste; it is entirely Made in Italy and equipped with a large hopper that allows the Operator to easily enter branches and vegetable waste. It can shred branches up to 100 mm diameter.

The hopper can be folded for transport or storage. However, it is required to close the hopper with the proper self-locking nuts.

Hopper opening: 62 x 52 cm Machine size: 150 cm length, 220 mm width, 197 cm high. The hopper can rotate 360° and it is 2 m high. It is equipped with a Honda GX390 4-stroke petrol engine and a 600 mm diameter cutting unit. The central unit is equipped with 1 central double-edged blade, 2 other reversible blades and other 24 reversible shredding hammers inside.

The garden shredder is provided with a 2-belt drive system including a pulley with clutch that transfer motion from the engine to the shredding unit. Furthermore, it is equipped with 2 counter-blades for high shredding performance. The machine is fitted with a round-shaped sieve that sieves the wood chips. It is fitted with 3 large pneumatic wheels. One wheel is swivelling and can be adjusted by means a drawbar to facilitate manual movement.

The Tritone Monster with Honda GX390 engine complies with CE safety standards.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

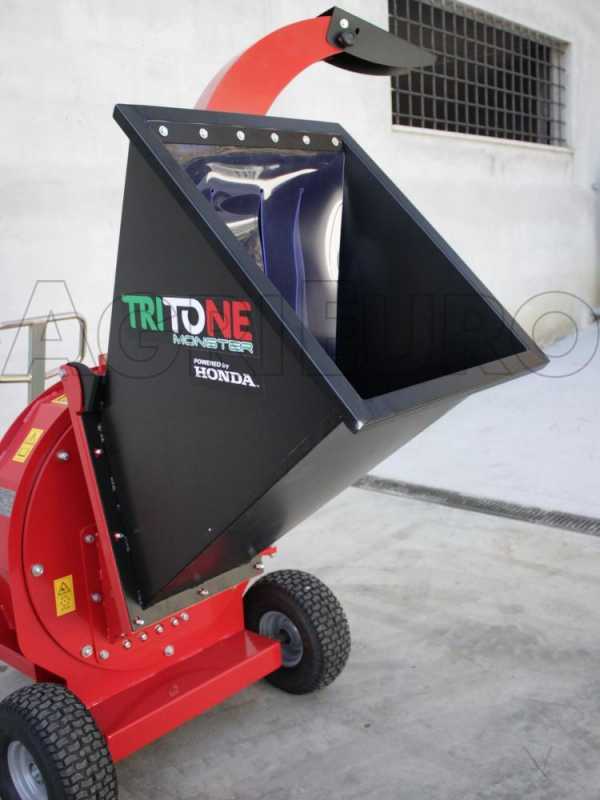

Unified hopper

The machine is equipped with a large steel hopper, 62 x 52 cm, able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.


The hopper can be folded for transport or storage, however, it is required to close the hopper with the proper self-locking nuts before starting the unit.

Focus on the transparent rubber bulkheads placed on hopper opening.

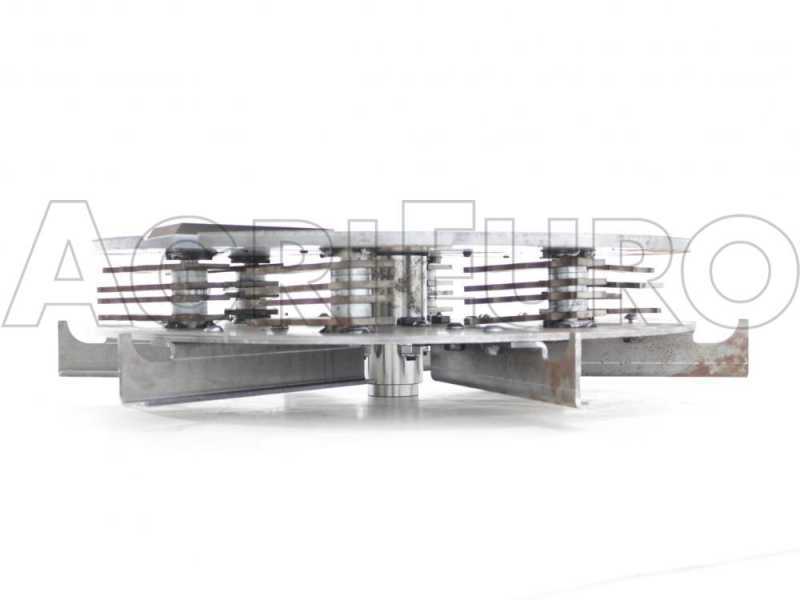

Central rotor

The central rotor is composed of highly-thick 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance, with 69 cm diameter.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

The large door of the rotor unit is equipped with 2 sturdy interchangeable counter-blades. These act as counter-blades to the 2 main blades and perform a scissor effect at the first cut of the branch entered into the hopper, thus ensuring high cutting performance.

The centre of the rotor is provided with other 2 blades for optimising shredding results.

Equipped with 24 hardened steel shredding hammers (or blades) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

Around the rotor there is a round-shaped sieve with many counter-blades to improve the quality of the wood chips and the effectiveness of the 24 rotating hammers.
Differently from the first counter-blades, these ones are properly tilted to shred the branches entered into the hopper.

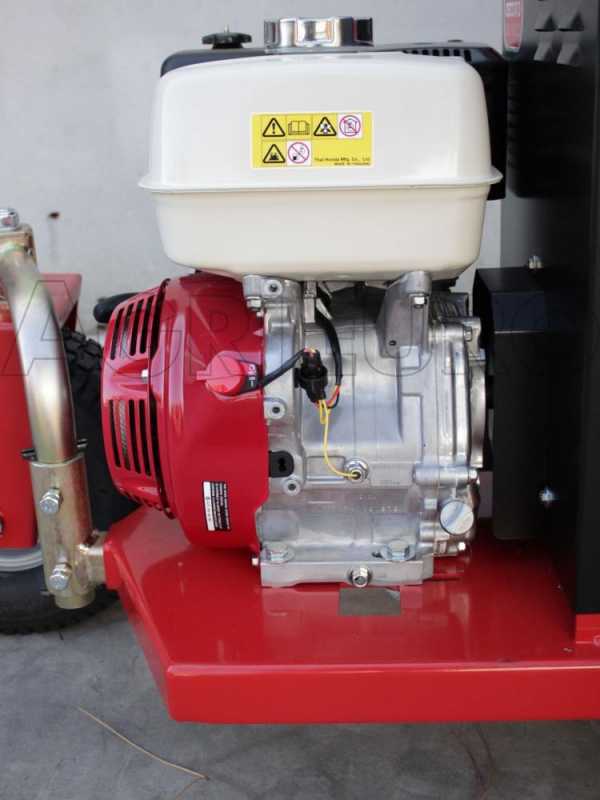

Honda GX 390 engine

The Honda GX 390 engine is powerful and heavy-duty, with the latest generation technology in OHV valve head.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cubic capacity: 389 cm³
Compression ratio: 9.0 : 1
Max. rpm: 3600 rpm
Torque value: 26.5 Nm / 2.7 kgfm / 2500 rpm
Fuel tank capacity: 6.1 L

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.


Many other machines on the market, on the other hand, are fitted with Honda “GC” series, which was developed for domestic and more limited operations and features a lower quality to the former and is cheaper.


The HONDA engines belonging to the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

Nominal power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.




The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Shredding chamber

The outer shredding chamber (the largest and sturdiest in its category) is proportionate to the rotor it includes. It is wide and features a round-shape. It guarantees excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

The high steel thickness of the shredding chamber proves the high quality and sturdiness of the machine.

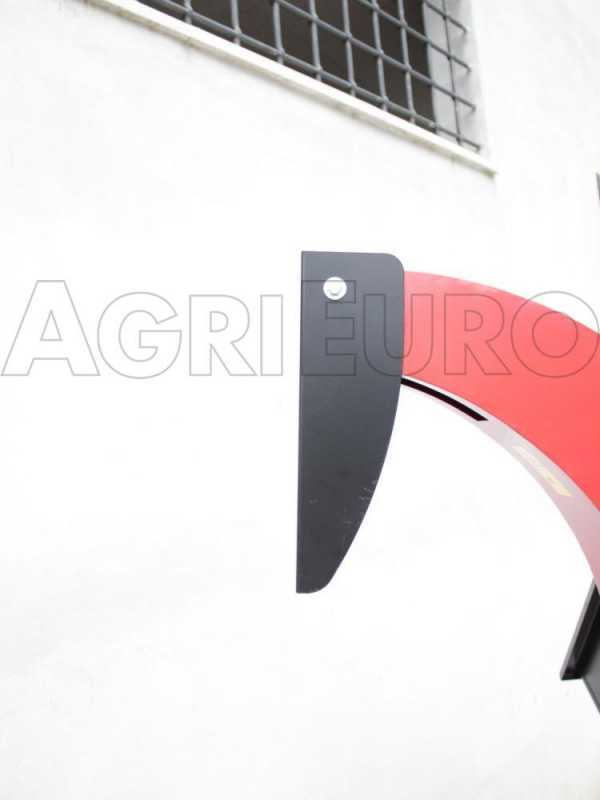

360° rotating discharge chute

Provided with 360° rotating discharge chute.

Simply rotate the lever and then the chute by means the 2 handles placed in the lower part of the chute.

As the discharge chute is 2 m high, this allows it to discharge the wood chips directly into the tractor or lorry trailer.

The inclination of the discharge chute is also adjustable in order to control the distance of the discharged shredded material.

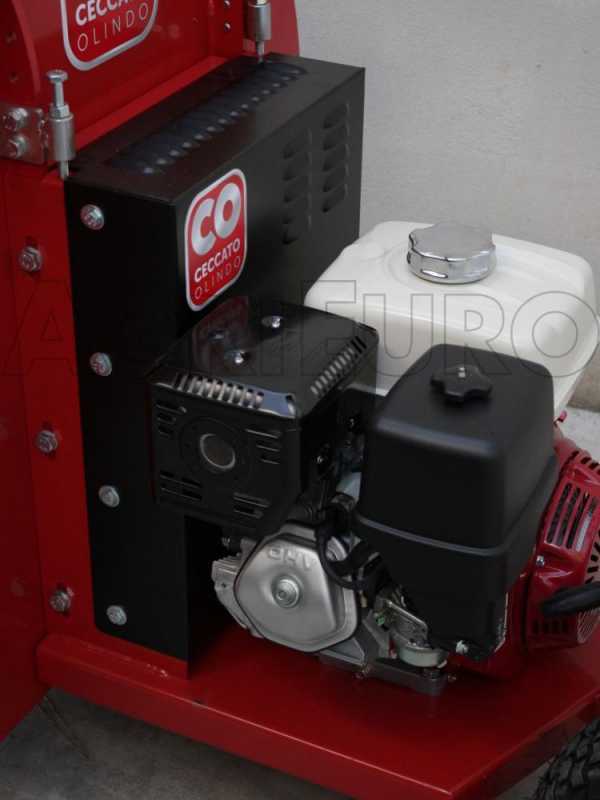

2-belt drive with reinforced belts

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their the engine powered models where the engine is directly connected to the shredding unit.

Ease of transport

The wood chipper can be folded for easy transport or storage.

It is recommended to tighten the self-locking bolts supplied with the hopper before starting the machine.

Two built-in rear pneumatic wheels of large-sized facilitate the transport.

Furthermore, a third wheel with steering handlebar is placed in the front part of the shredder to ensure the Operator high manoeuvrability.

Wheels size: 15x6.00 - 6.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

The garden shredder is shipped on pallet.

Instructions manual and wrench for tightening the bolts are included in the package.

Engine maintenance and instructions manual included.
