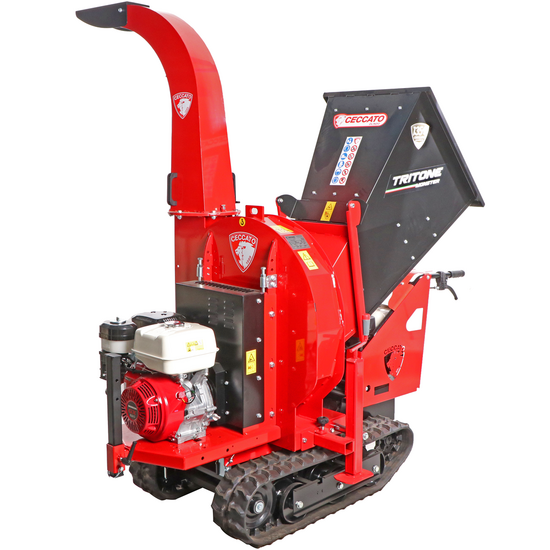

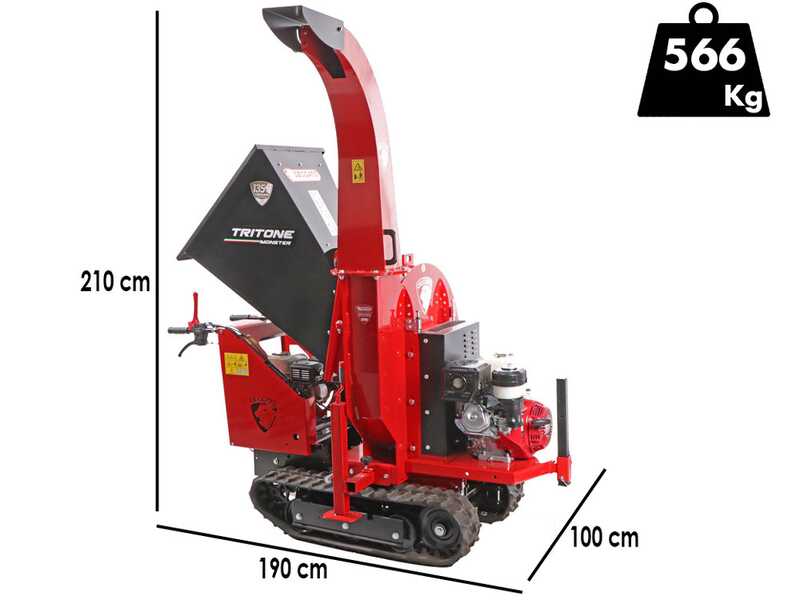

Ceccato Tritone Monster Cingo - Self-propelled tracked shredder - Honda GX390 engine

The Ceccato Tritone Monster CINGO shredder is a professional machine designed for volumetric reduction of plant residues. It is equipped with a high-performance shredding system that allows branches up to 100 mm in diameter to be processed. The robust steel structure guarantees strength and durability, while the track system ensures optimal mobility on uneven terrain.

The 11.7 HP Honda GX390 engine powers the shredding mechanism with high efficiency. The cutting system includes 4 blades, 2 counter-blades and 24 shredding knives, ensuring a fine and even shredding of the material. The large 620 x 520 mm inlet facilitates the insertion of branches and plant residues, increasing productivity.

The transmission system is mechanical with independent releases and integrated brake, ensuring safe and precise movements. The shredder is mounted on a crawler with 4 speeds (3 forward + 1 reverse), allowing it to operate on rough terrain with stability and ease of manoeuvre.

Main features:

• Honda GX390 11.7 HP petrol engine for high performance and reliability.
• Cutting system with 4 blades, 2 counter blades and 24 mulcher knives for efficient shredding.
• Wide opening (620 x 520 mm) to facilitate material insertion.
• Crawler tracked with 4 speeds (3 forward + 1 reverse) for stability and mobility on any terrain.
• Robust steel construction for strength and long service life.

Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and other vegetation that may be attached to the branches)

Garden shredders intended use:
- The wood chipper must grind only green branches, recently cut from the tree and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The declared cutting diameter is the maximum, so in use, it is the exception and not the rule. In this case, it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the consistency of the wood (e.g: oak, olive, plum and peach are hard woods and can reduce the cutting capacity of the wood shredder);

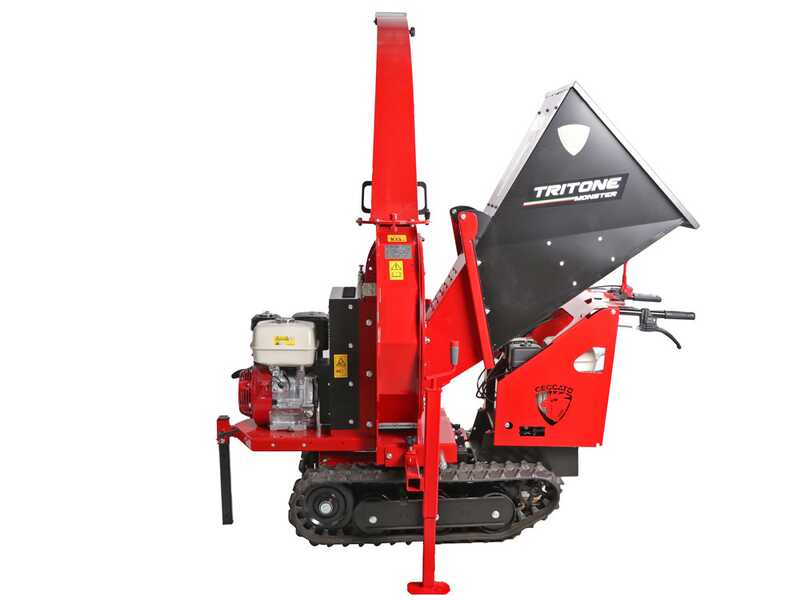

The Tritone Monster shredder features adjustable stabilisers that can be easily lowered to firmly anchor the machine during the shredding operation and for complete detachment from the crawler base.

This stabilisation system is crucial when working with hard or bulky materials, ensuring that the shredder remains firm and stable, and for faster and easier detachment from the crawler base.

In addition, this increased stability allows working with greater speed and precision, optimising working time and increasing overall productivity.

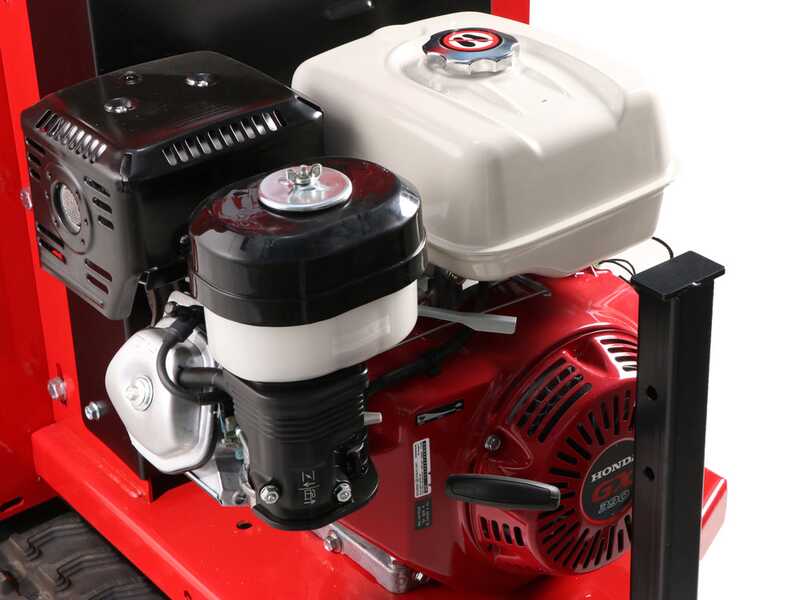

The Honda GX390 engine is powerful and professional as standard, with OHV overhead valve technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty woks in the building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

Detail of the spark plug.

Details of the filter.

This shredder, like all petrol-powered shredders with a roller rotor, must be strictly used at maximum engine speed; the shredding rotor is highly large and must reach the maximum engine speed to ensure effective results, thus using the centrifugal force generated.
ATTENTION: using it at maximum engine speed, further not grinding branches efficiently and not being able to grind branches with large diameter, can lead to a whole series of issues:

Nominal Power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

ATTENTION

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

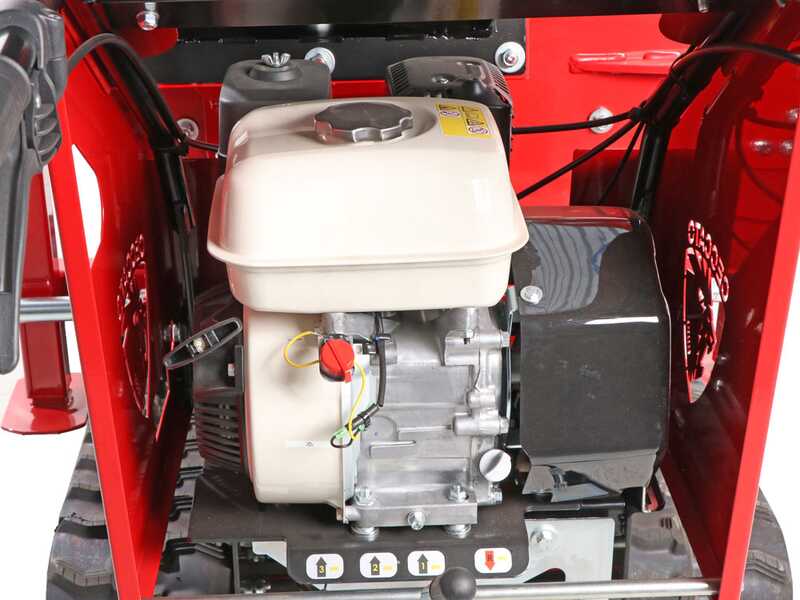

Features:

Nominal Power: 4.8 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.9 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

WARNING

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Controls: easy to operate and ergonomic, offering precision and controllability in work.

Large red motion activation lever.

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows smooth moving. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

Gearbox: large, reliable and accurate.

Speed:3 forward gears + 1 reverse gear

Parking brakes:
attached to the gearbox, for greater stability and safety.
These are activated automatically when the controls are released (leaving the machine in neutral, even on a steep incline, the machine remains perfectly locked).

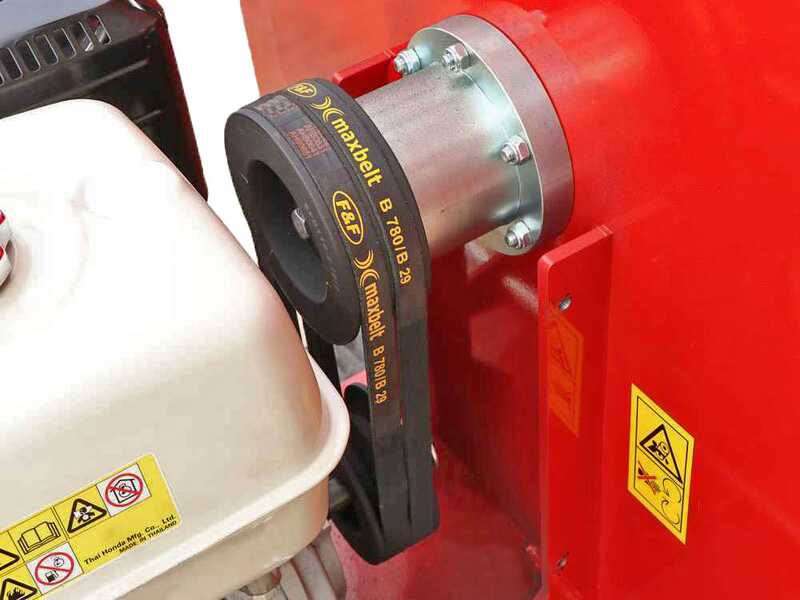

Mechanical transmission:
Robust and durable, it allows steering to be controlled by acting on the individual track and deactivating its rotation.

This belt drive gives the machine an extraordinary sturdiness, protecting both the engine and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. There is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will break down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models, where the engine is directly connected to the shredding unit.

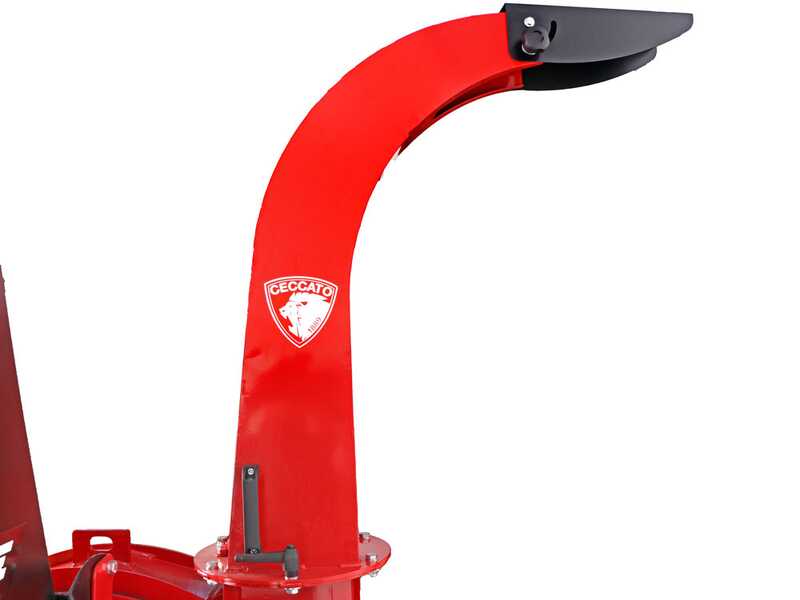

The exhaust chute, with which this shredder is equipped, can be rotated through 180°.

Simply turn the lever and, thanks to the two handles at the bottom, rotate it to the preferred position.

Being about two metres high, this chimney allows the wood chips to be unloaded directly into a tractor trailer or lorry.

The unloading angle can also be adjusted to control the distance at which the wood chips are ejected, thanks to the screw at the side.

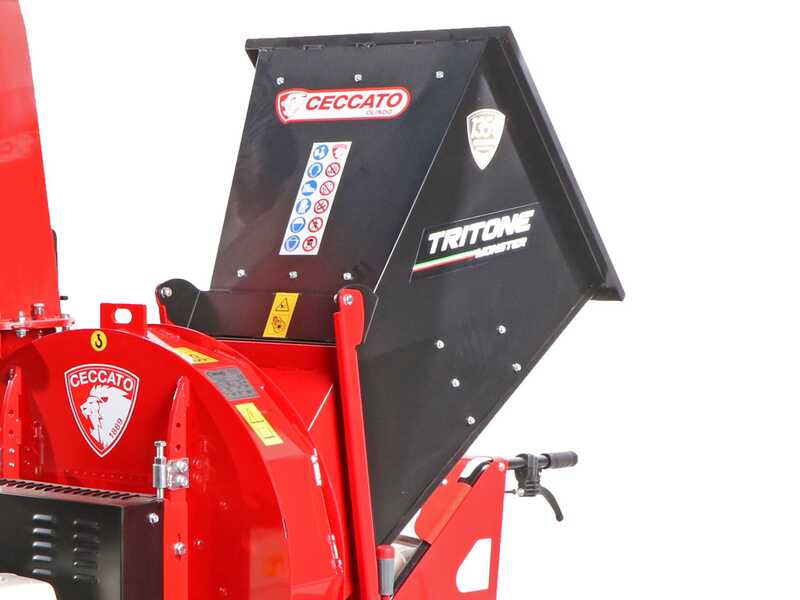

Steel hopper capable of receiving even very bulky branches and twigs without pre-processing

• UNIFIED HOPPER:

It considerably simplifies and speeds up the work.
It relieves the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

• SELF-FEEDING:

Once the branches are inserted into the hopper, the shredder pulls them inside the shredding unit autonomously This is possible thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Protective rubber bulkheads at the hopper inlet.

Details of the shredder opening.

Hopper dimension: 62 x 52 cm

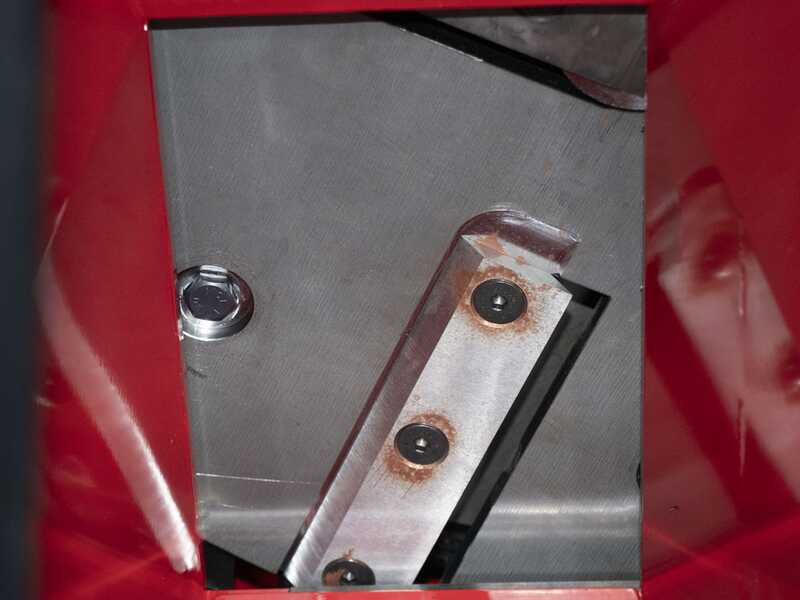

The central rotor consists of no less than two steel discs, firmly coupled together.

These then form an extremely robust cell (the heart of the shredder) of truly superior size, robustness and performance.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 4 large blades. They carry out pre-processing, dissecting the material in the hopper into coarser fragments.

Equipped with 24 hardened steel blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they reduce the material in small wood chips.

Provided with 2 counter-blades for high quality shredding results.

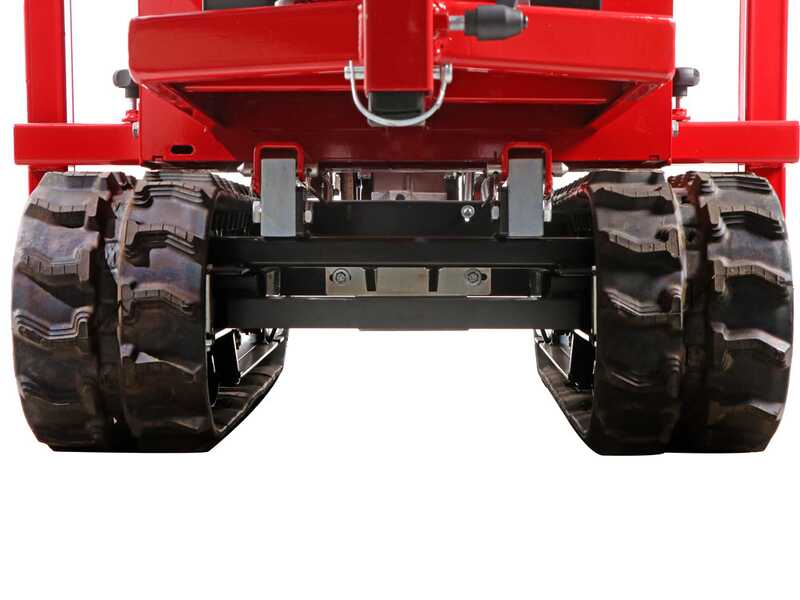

The shredder is equipped with tracks made of special reinforced rubber with high grip and are able to cope with all types of surfaces and steps.

Thanks to their tread width and profile they guarantee perfect grip and stability on all types of terrain.

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

Tracks size: 180 x 60 x 38 mm
