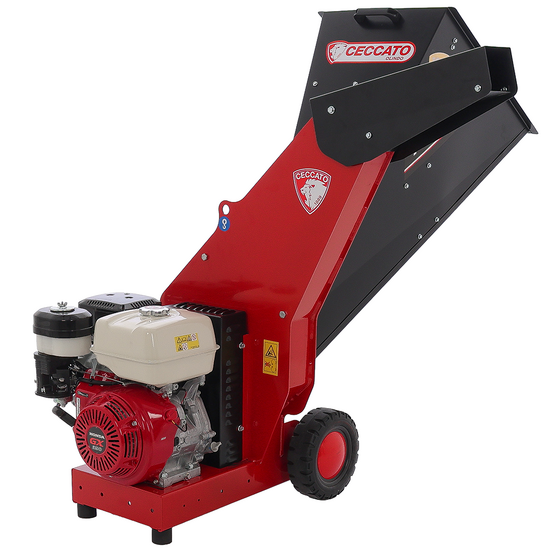

Ceccato Tritone Maxi - Petrol garden Shredder - Honda GX 390 engine

Questions & Answers (35)
ID: K501741

EAN: 9900000000455

MPN: TRI-HMAXY

Ceccato Tritone Maxi - Petrol garden Shredder - Honda GX 390 engine
+1000 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX 390
Cubic capacity
389 cm³
Nominal power
13 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
8
Interchangeable sieves
Yes
Max. Branch Diameter
70 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
Tritone Maxi - GX 390
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Medium
N° of hoppers :
1
Hopper opening size (height):
42 cm
Hopper opening size (width):
65 cm
Hopper opening size:
(Ø) 19cm
Chip size reducing sieve:
Yes (removable)
Interchangeable sieves:
Yes
Wood chips min. size with sieve:
1.0 cm
Electric start:
No
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 390
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Rated power (HP):
11.7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
70 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
8
Blade movement:
Rotating
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Recoil start system (with rope):
Yes
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

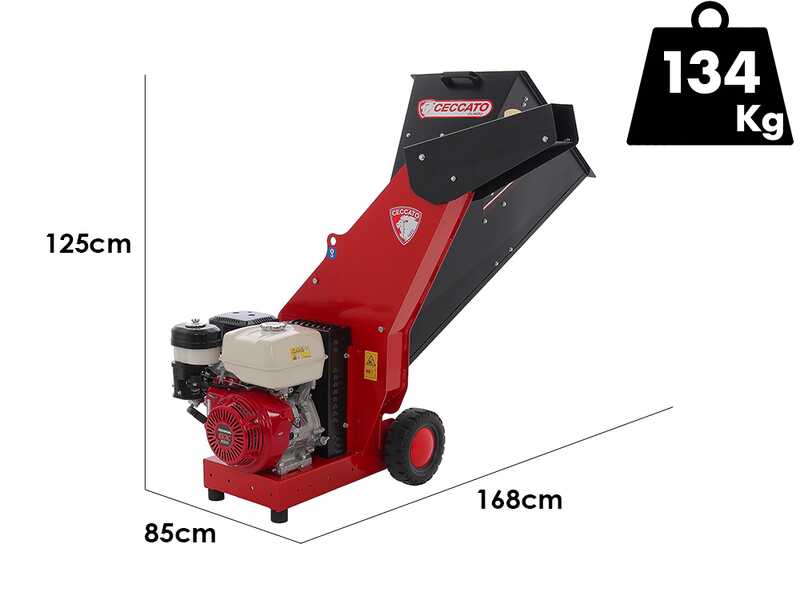

Product dimensions in cm (L x W x H):
85 x 168 x 125 cm
Net weight:
134 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80 x 82 x 143 cm
Gross weight (packaging included) :
145 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
37 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 2.450,98
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

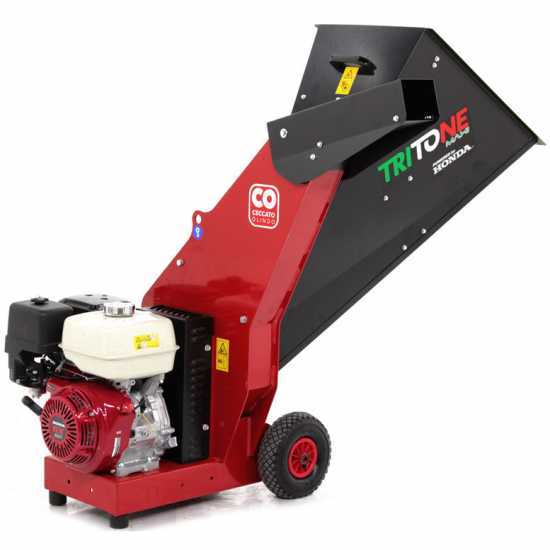

Ceccato Tritone Maxi garden shredder - Honda GX 390 - wood chipper

The Ceccato Tritone Maxi is a heavy-duty petrol garden shredder intended for professional use.

The wood chipper shreds brushwood and twigs making them suitable for composting. Shredding operations also allow reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Maximum cutting diameter: 70 mm

This petrol wood chipper is MADE IN ITALY, featuring the quality of large-sized shredders, thus ensuring maximum results in terms of cutting, speed and reliability.

The machine is compliant with the CE standards.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

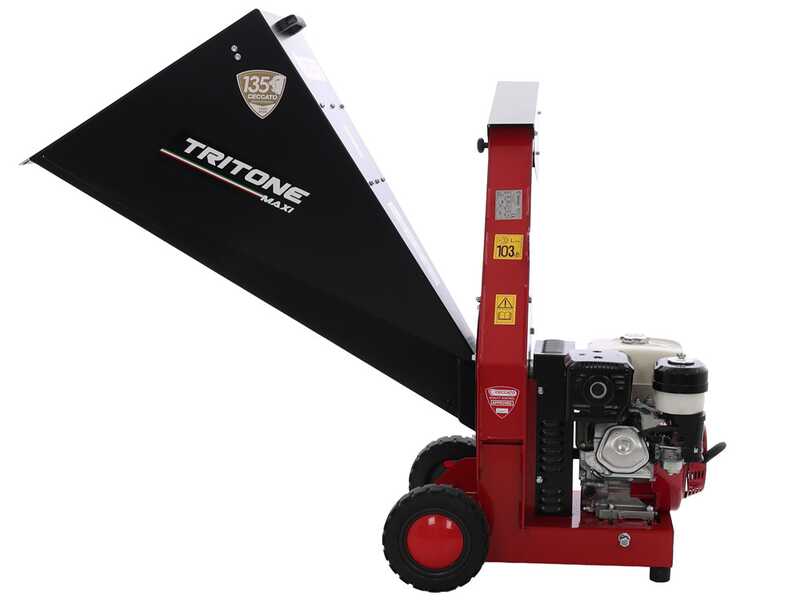

Unified hopper

The machine of large-sized is able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing the material (before shredding) between the large, woody sections and the smaller, green sections, each of them must be placed in their own hopper (an operation required by all standard shredders equipped with 2 hoppers).

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously , thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded. WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

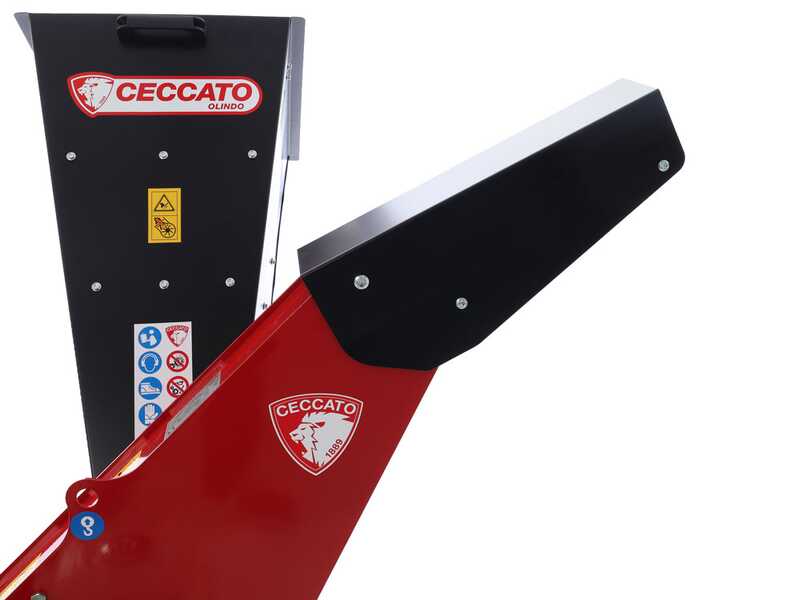

Focus on the transparent rubber bulkheads placed on hopper opening.

The machine is equipped with the largest steel hopper in its category, able to process even very bulky branches and leaves, without having to pre-shred them.

Hopper size: 65 x 42 cm

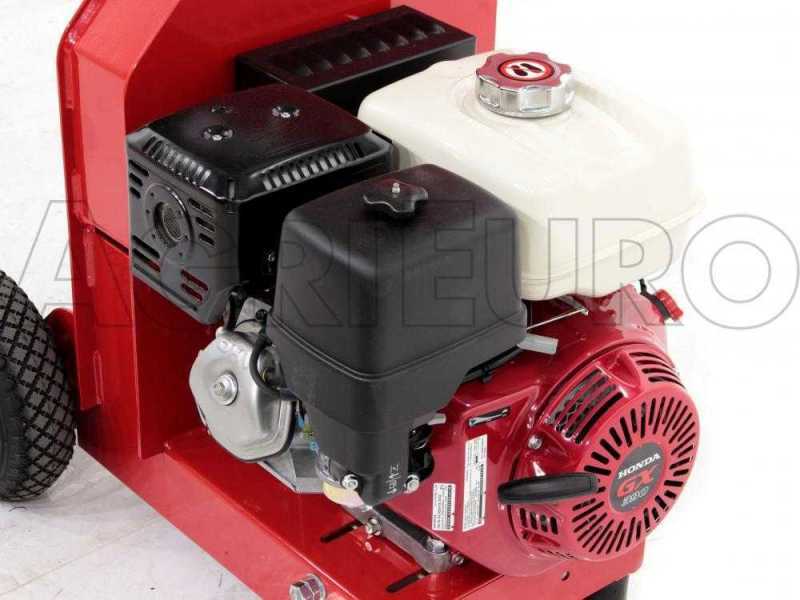

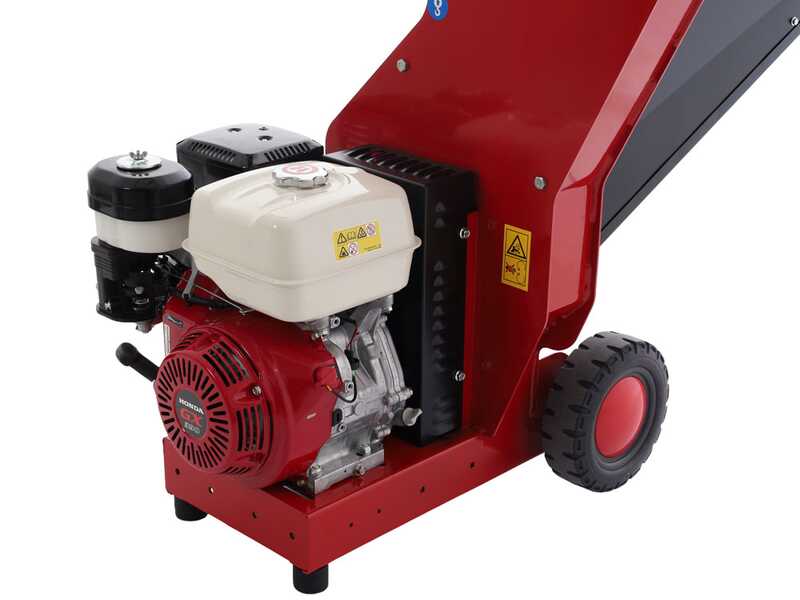

Honda GX 390 engine

The Honda GX 390 engine is powerful and heavy-duty, with the latest generation technology in OHV valve head.

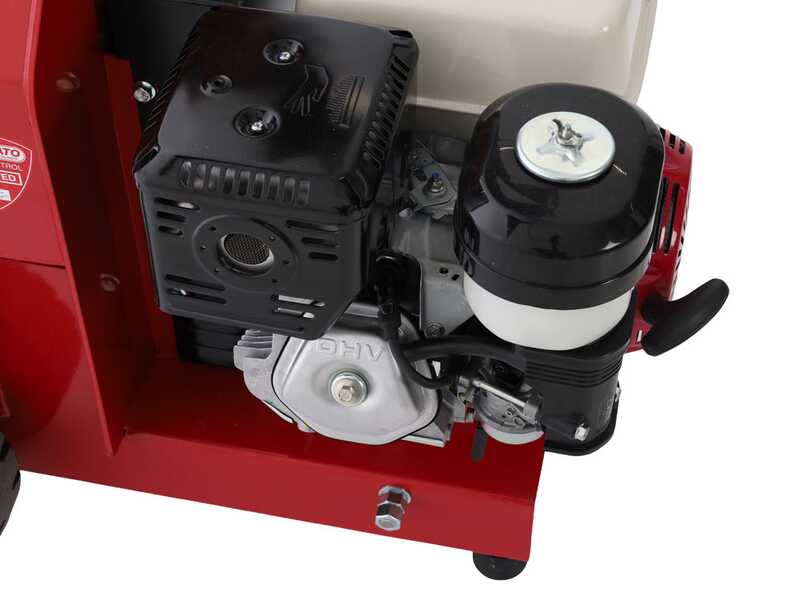

The engine is fitted with a washable steel filter which don’t have to be replaced.

Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cubic capacity: 389 cm³
Steel filter featuring sub-filter with white tank
Filter type: Compression ratio: 9.0 : 1
Max. rpm: 3600 rpm
Torque value: 26.5 Nm / 2.7 kgfm / 2500 rpm
Fuel tank capacity: 6.1 L

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Nominal power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL. Please carefully check the oil level as indicated in the instructions manual before starting the unit.

It is recommended to use the oil provided for free for the first oil replacement and not for the first starting.

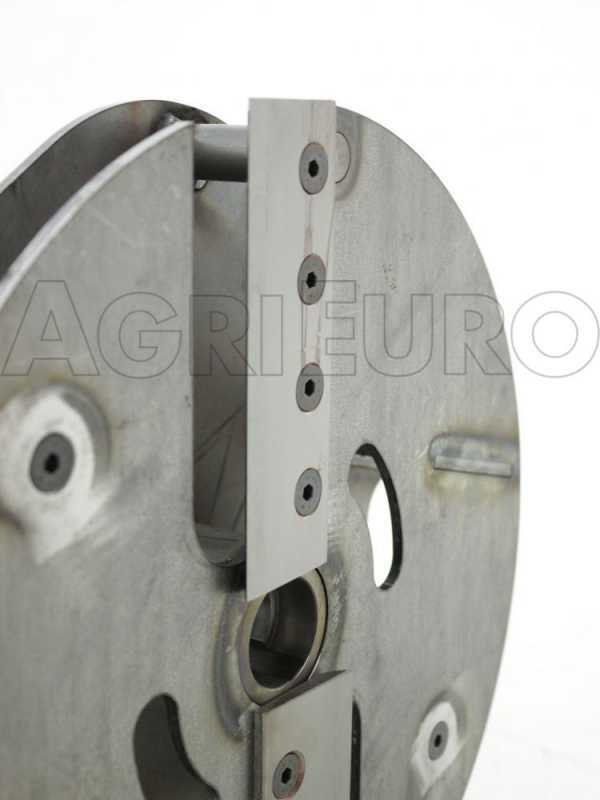

Central rotor

The central rotor is composed of 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

Equipped with 8 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they reduce the material in small wood chips.

Provided with 2 counter-blades for high quality shredding results.

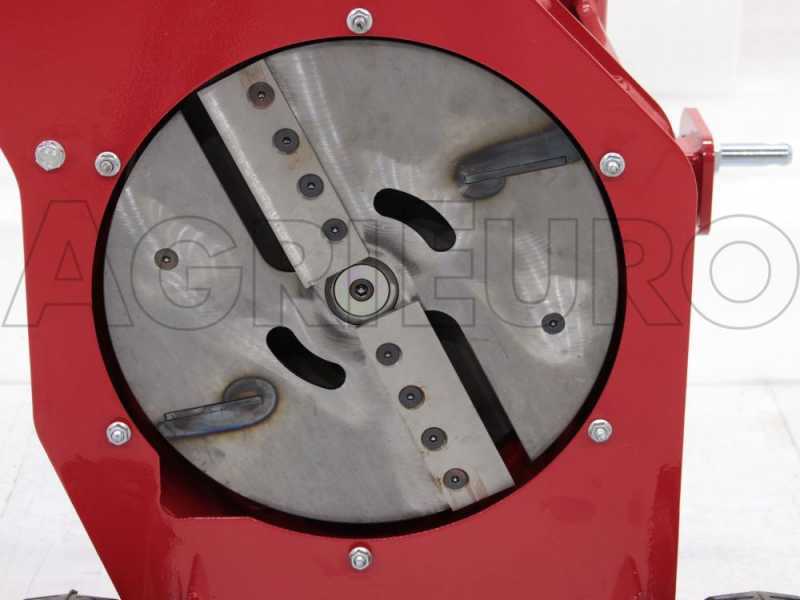

Shredding chamber

The outer shredding chamber (the largest and sturdiest in its category) is proportionate to the rotor it includes. It is wide and features a round-shape. It guarantees excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

Brand-new reinforced highly sturdy shredding blades: 2 large shredding blades. These blades pre-shred the material into the hopper creating a coarse wood chip (the blades are highly thick and fixed with 4 stainless steel bolts).

Focus on the hammer: 8 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

Focus on the counter-blades: They are the main feature of this wood chipper, making it the top-of-the-range in its category, ensuring high and professional performance. Once assembled the hopper, they’ll be placed near the 2 rotating cutting blades fixed on the rotor. Thus, the "Blade + Counter-blade" system makes shredding operations easier and more efficient, reducing motor effort at the same time.

Focus on the sieve: This model of garden shredder is almost the only machinery equipped with the removable SELF-CLEANING SIEVE, which allows the wood chips to be discharged exclusively once perfectly shredded by the 8 hammers. The sieve is equipped with 2 support bolt that allows it to be assembled or disassembled from the discharge chute opening. By removing the sieve, the garden shredder will produce coarser wood chips, maximising the hourly output. By assembling the sieve, on the other hand, will maximise the shredding capacity of the machine, producing smaller wood chips.

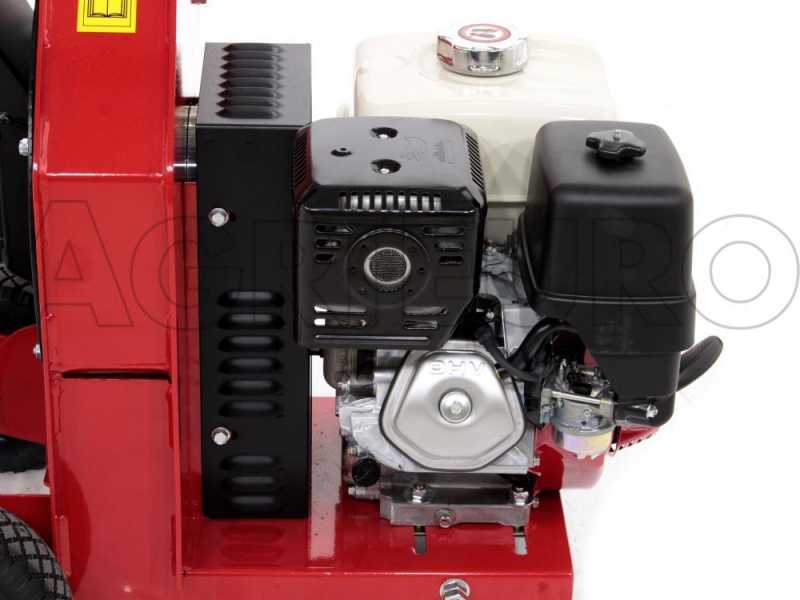

Reinforced 2-belt drive

INTERMEDIATE BELT DRIVE WITH 2 REINFORCED BELTS.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models where the engine is directly connected to the shredding unit.

Equipped with anti-vibration rubbers and pneumatic wheels for easy transport.

Adjustable discharge chute, 1 m high from the ground, equipped with adjustable-tilting deflector.

It allows discharging the wood chips directly into a box.

The overall weight of the unit is 134 Kg.

Hourly output: 5-6 cubic-metres/h.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

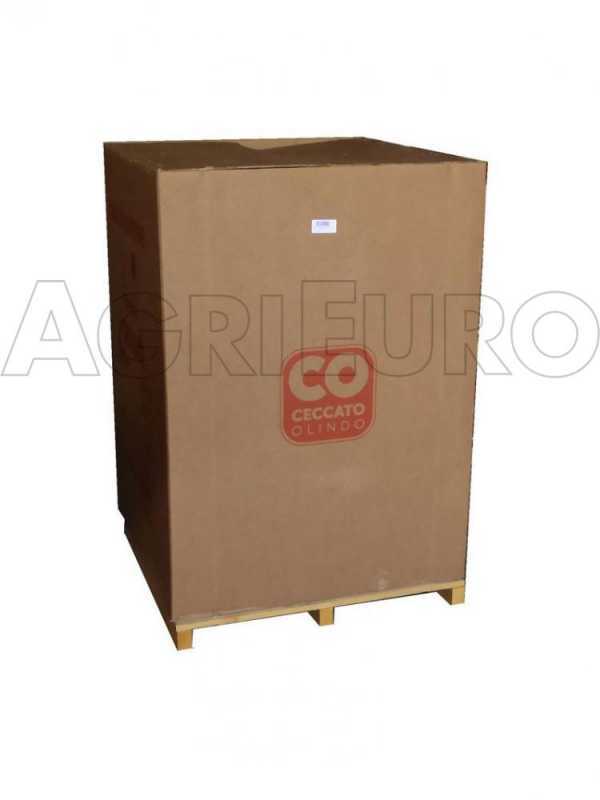

• The garden shredder is shipped on pallet.

The instructions and maintenance manual is included in the package.
