Ceccato Triton One - Electric garden Shredder - Three-phase Engine

Questions & Answers (20)
ID: 2075

EAN: 9900000001735

MPN: TRI-380

8,5/10
After-sales assistance & Spare parts
Ceccato Triton One - Electric garden Shredder - Three-phase Engine
+500 sold
Operating mode
Three-phase 400 V
Nominal power
4 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
8
Interchangeable sieves
Yes
Max. Branch Diameter
50 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Transmission type
Belt
Nominal power (W)
3000 W
Weight
85 Kg
Manufacturing country
Italy
Product Features
Model:
Tritone 400 V
Operating mode:
Three-phase 400 V
Hydraulic self-dragging:
No
Discharge chute:
Low
N° of hoppers :
1
Hopper opening size (height):
34 cm
Hopper opening size (width):
35 cm
Chip size reducing sieve:
Yes (removable)
Interchangeable sieves:
Yes
Electric start:
No
Manufacturing country:
Italy
Motor data
Motor brand:
LU.C.M.E
Motor type:
Electric three-phase
Nominal power:
4 HP
Nominal power (W):
3000 W
Power supply:
400 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Hardened steel
Max. Branch Diameter:
50 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
8
Blade movement:
Rotating
N° of chopper blades:
8
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Front handle:
Yes
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
83x134x106 cm
Net weight:
85 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x65x100 cm
Gross weight (packaging included) :
92 Kg
Assembly time:
15 minutes
Prompt Delivery
19 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
€ 1.680,28
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

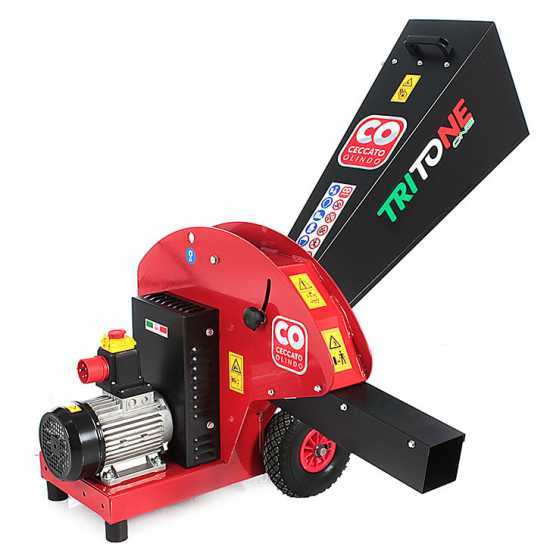

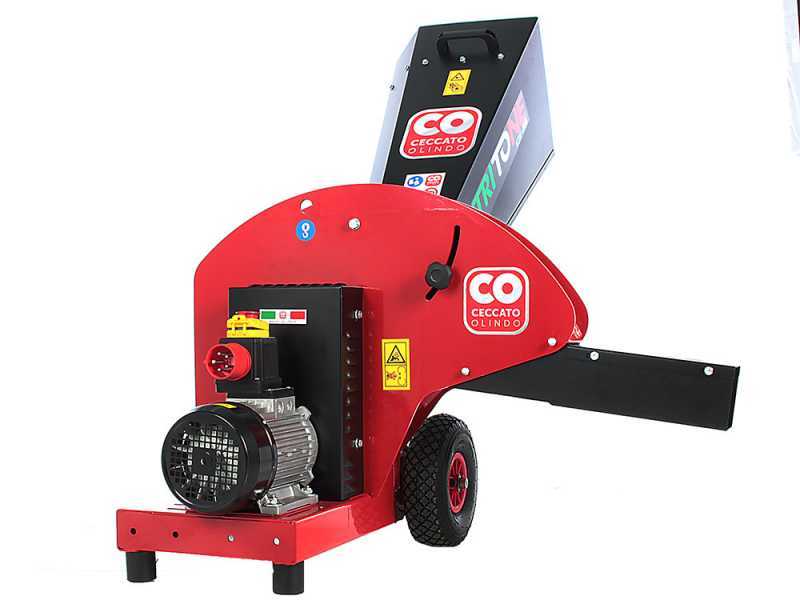

Tritone ONE garden shredder with electric motor

The lightweight Ceccato Tritone ONE is a heavy-duty 4 Hp tractor-mounted garden shredder intended for professional use.

The wood chipper shreds brushwood and twigs making them suitable for composting. Shredding operations also allow reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without pre-shredding them. Thus, it also features a higher capacity that allows entering large volumes of material at a time.

Cutting diameter: 50/60 mm

This wood chipper is MADE IN ITALY, featuring the quality of large-sized shredders, thus ensuring maximum results in terms of cutting, speed and reliability.

The machine is compliant with the CE standards.

The overall weight of the unit is 87 Kg.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

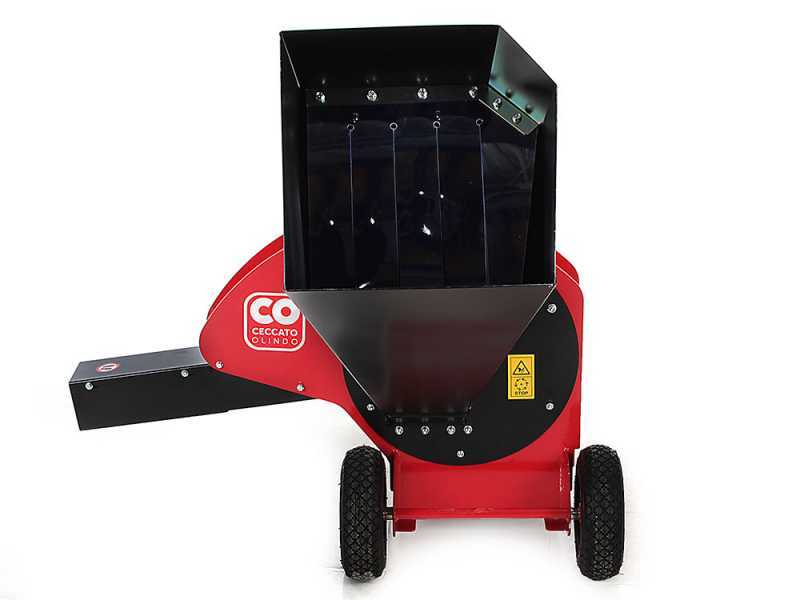

Unified hopper

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing the material (before shredding) between the large, woody sections and the smaller, green sections, each of them must be placed in their own hopper (an operation required by all standard shredders equipped with 2 hoppers).

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the transparent rubber bulkheads placed on hopper opening.

Hopper size: (Width x Height ) 35 x 35 cm

Focus on the wood chipper handle for easy transport.

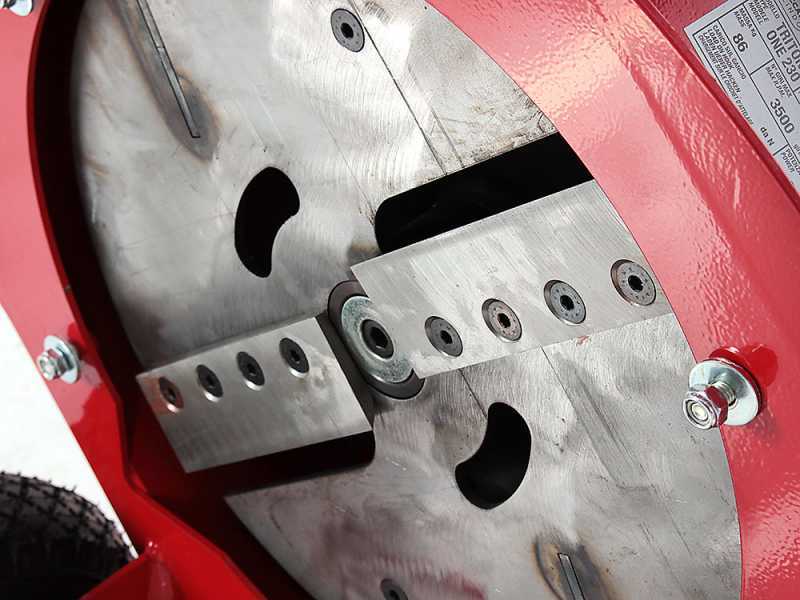

Shredding unit and central rotor

The outer shredding chamber is proportionate to the rotor it includes. It guarantees excellent productivity, as well as the durability of the system. The machine structure is 100% made of steel. No plastic has been used.

The central rotor is composed of 2 steel flywheels firmly assembled together. These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance.

Reinforced shredding blades: 2 large shredding blades. These blades pre-shred the material into the hopper creating a coarse wood chip (the blades are highly thick and fixed with 4 stainless steel bolts).

Focus on the hammer: 8 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

Focus on the counter-blades: Once assembled the hopper, they’ll be placed near the 2 rotating cutting blades fixed on the rotor. Thus, the "Blade + Counter-blade" system makes shredding operations easier and more efficient, reducing motor effort at the same time.

Focus on the sieve: this model of garden shredder is almost the only machinery equipped with a discharge chute featuring an openable and closable sieve, which allows the wood chips to be discharged exclusively once perfectly shredded by the 8 hammers. The sieve is equipped with a pivoting pin and a knob that allows it to be engaged to or disengaged from the chute. Lifting the grid will produce coarser fragments, maximising the hourly output of the shredder. By lowering the sieve, on the other hand, will maximise the shredding capacity of the machine, producing smaller wood chips.

Focus on the outer sieve adjustment knob.

Focus on the chips dimensions available

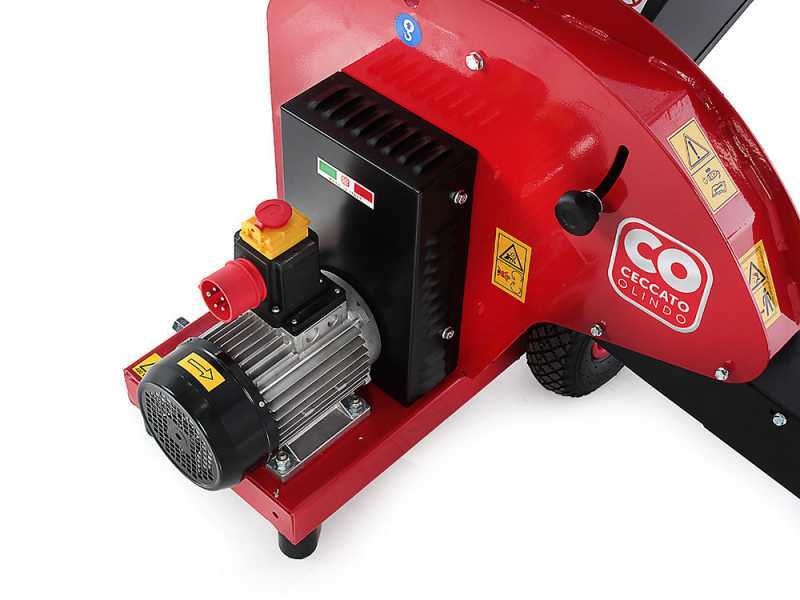

Intermediate reinforced belt drive

INTERMEDIATE REINFORCED BELT DRIVE.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

High-quality single-phase electric motor with 4 Hp of power that guarantees perfect shredding results.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

Focus on the on/off buttons.

Focus on the three-phase connection

Equipped with anti-vibration rubbers and pneumatic wheels for easy transport.

Free items & Standard equipment

Free items included

The garden shredder is shipped on pallet.

The instructions manual is included in the package.

Discharge chute included.
