Ceccato Olindo Tritone BIG CINGO - Self-propelled track-mounted garden shredder on wheelbarrow - Honda GX390 engine

Questions & Answers (3)
ID: K603173

EAN: 8054141545205

MPN: BIGCINGO

8,5/10
After-sales assistance & Spare parts
Ceccato Olindo Tritone BIG CINGO - Self-propelled track-mounted garden shredder on wheelbarrow - Honda GX390 engine
Special offer
+50 sold
Free gifts from AgriEuro
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX390
Cubic capacity
389 cm³
Nominal power
13 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
10
Max. Branch Ø
80 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Upper discharge system
Discharge chute rotation
Manual
Self-propelling
Transmission type
Belt
Type
Tracked
Load capacity
350 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Gear shifting system
Mechanical gearbox
Gears
3+1
Max. slope
20 %
Assisted steering
Yes
Box
Metal
Weight
350 Kg
Manufacturing country
Italy
Body dimensions
90x73x32
Product Features
Model:
Tritone Monster BIG CINGO
Type :
Tracked
Operating mode:
Spark ignition
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High
N° of hoppers :
1
Hopper opening size (height):
42 cm
Hopper opening size (width):
65 cm
Self-propelling:
Load capacity:
350 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Body tipping:
Manual
Body dimensions:
90x73x32
Electric start:
No
Box:
Metal
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX390
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Rated power (HP):
11.7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Belt
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Cutting data
Body material:
Hardened steel
Max. Branch Ø:
80 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
10
Blade movement:
Rotating
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Box:
With extendable side panels
Assisted steering:
Yes
Total rollers no.:
2
Discharge chute rotation:
Manual
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
170x80x115/150x80x190 cm
Net weight:
350 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
147x130x160 cm
Weight including packaging:
380 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Prompt Delivery
14 items in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
Lowest price:
€ 6.631,21
-13 %
€ 5.769,30
Vat included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

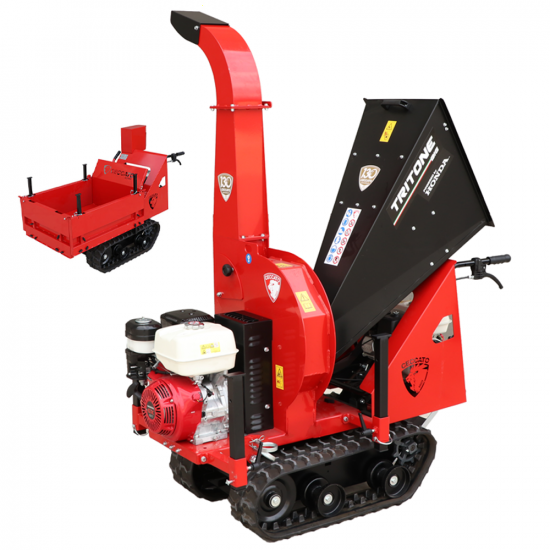

Ceccato Tritone BIG CINGO self-propelled garden shredder on tracked power barrow

The Ceccato Tritone BIG CINGO self-propelled shredder is a professional petrol engine shredder, suitable for shredding large quantities of vegetable waste with a maximum diameter of 8 cm.

Its Honda GX390 engine and high quality blades allows the machine to easily perform the cutting operations. The wood chipper is mounted on a tracked engine unit, also compatible with the power barrow unit supplied. In this way it is possible to transform the movable shredder in a practical wheelbarrow with dumpers, to carry the newly shredded material.

Cutting system consists of 2 blades + 10 hammers + 2 counter-blades.

The tracked unit is equipped with a Honda GP160 engine, which allows the wheelbarrow to carry 350 Kg up to a maximum 20% slopes. It also features a three forward gears and one reverse gear, while the dumper body can be tilted manually.

Its self-propelled system on tracks allows the shredder the maximum grip on more uneven terrain.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

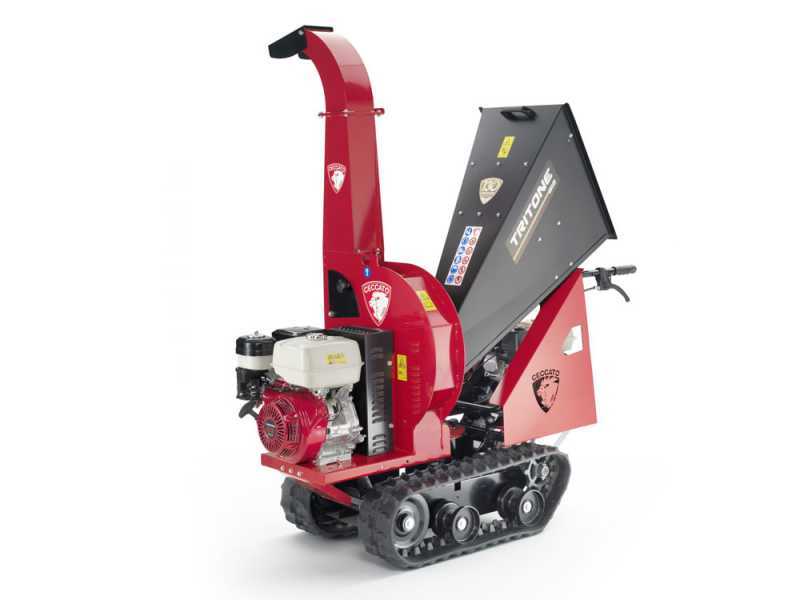

Garden shredder

Major strengths of this machine:

  • Sturdiness thanks to the system with steel rotor.
  • Cutting diameter (up to 80 mm on green wood).
  • Exceptional working capacity, it can carry out intense and demanding operations even when constantly grinding large diameter wood.
  • High hourly productivity, far superior to standard petrol shredders.

The chipper is mounted on a tracked power barrow that moves completely autonomously. The barrow is equipped with a Honda GP160 4.8 Hp, it can manage loads up to 350 Kg, and it can work on maximum slopes of 20%. Equipped with 4 speed gears: 3 forward + 1 reverse gears, mechanical transmission with release system and built-in brake. Track size: 90 x 19 x 29 cm.

It can also be used for grinding palm trees.

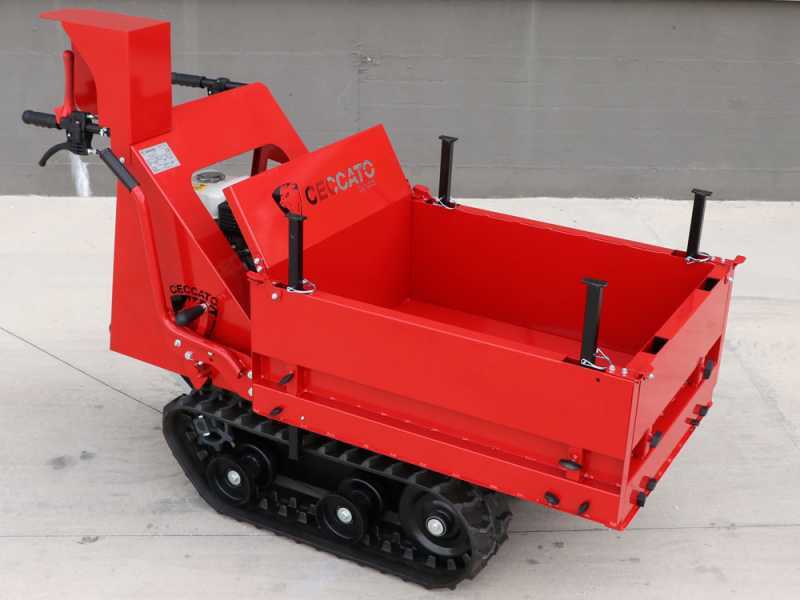

Power barrow

The barrow is made of high-resistance steel, reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

The barrow can be placed on the ground and lifted with special supports so that it can be used as a container for wood chips.

Brand-new barrow of the latest technology as it is both extendable and tilting. Both the operations can be performed in an absolutely easy way for the user.

Manual tipping: manually engaged by means of the special release lever equipped with spring, and facilitated by the lifting lever on the side (in case of heavy loads).

E.g. It can be used for transporting and loading wood.


Extended barrow dimensions: 90 x 73 x 32 cm

Extended barrow dimensions: 105 x 100 x 30 cm

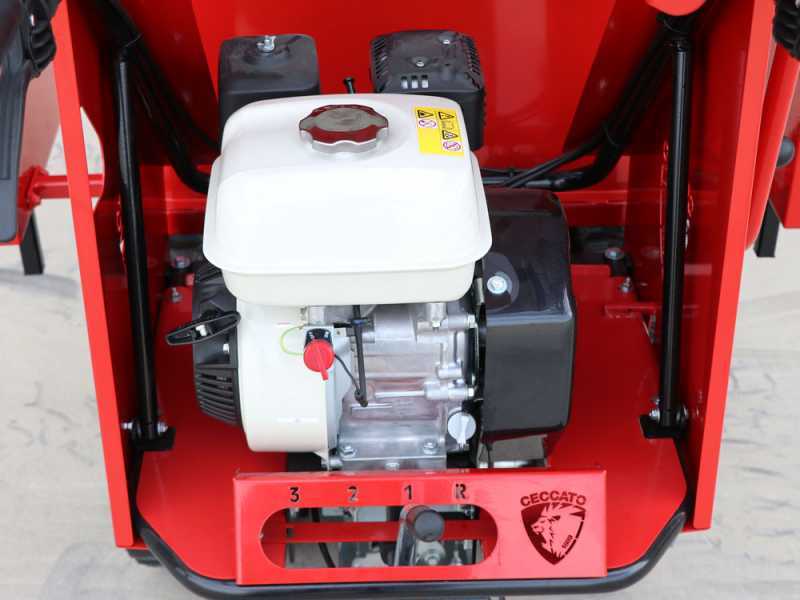

Honda GP160 power barrow engine

Features:

Engine model and brand:
Honda GP160
Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: cast Iron
Cubic capacity: 163 cm³
Power: 4.8 Hp

Nominal power: 4.8 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.9 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.


WARNING

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Controls

User-friendly and ergonomic controls offering high control and precision during use.

Large red lever for motion engagement.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial.

The safety brake allows immediately stop the machine.

Throttle lever and power supply switch.

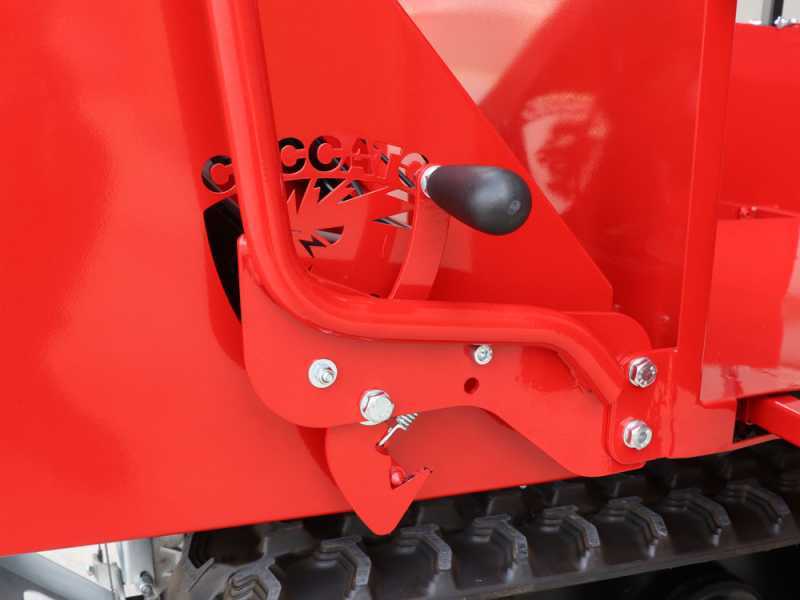

Lever for tipping the body

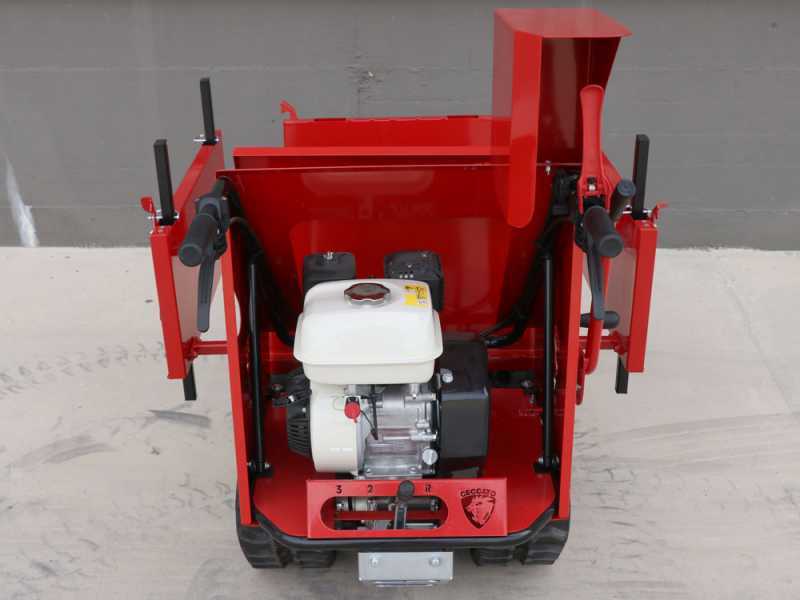

Gearbox, parking brake and transmission

Gearbox: large, reliable and precise.

Speed:
3 forward gears
1 reverse gear


Parking brakes:
connected to the gearbox, for greater stability and safety.
These are automatically engaged when the controls are released (leaving the machine in neutral position, even on a steep slope, the machine doesn’t move).


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

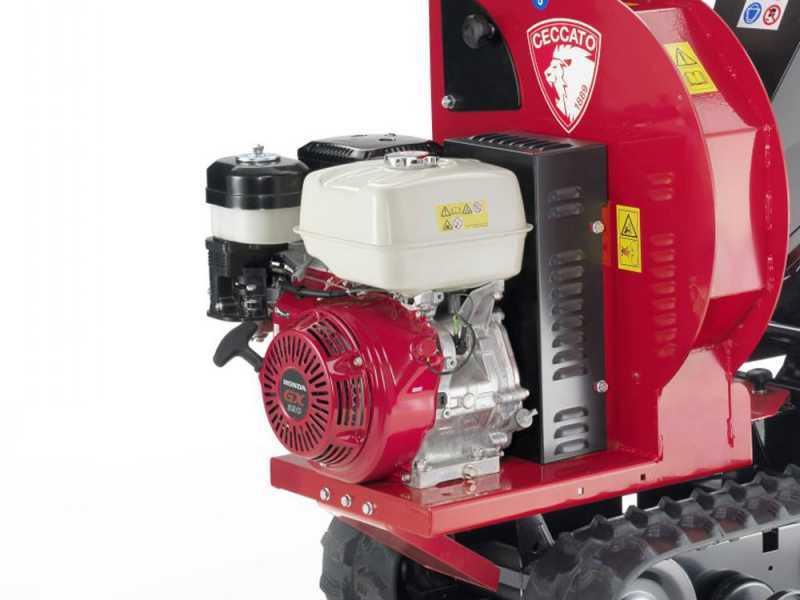

Honda GX390 garden shredder engine

The Honda GX390 engine
is renowned as professional, powerful and with the latest generation technology with OHV overhead valve.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: cast Iron
Cubic capacity: 389 cm³
Compression ratio: 8.2 : 1
Max. rpm: 2500 rpm
Torque value: 26.5 Nm / 2.7 kgfm / 2500 rpm
Fuel tank capacity: 6.1 L

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

This shredder, like all petrol-powered shredders with a roller rotor, must be strictly used at maximum engine speed; the shredding rotor is highly large and must reach the maximum engine speed to ensure effective results, thus using the centrifugal force generated.
ATTENTION: using it at maximum engine speed, further not grinding branches efficiently and not being able to grind branches with large diameter, can lead to a whole series of issues:

Nominal power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.


WARNING

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

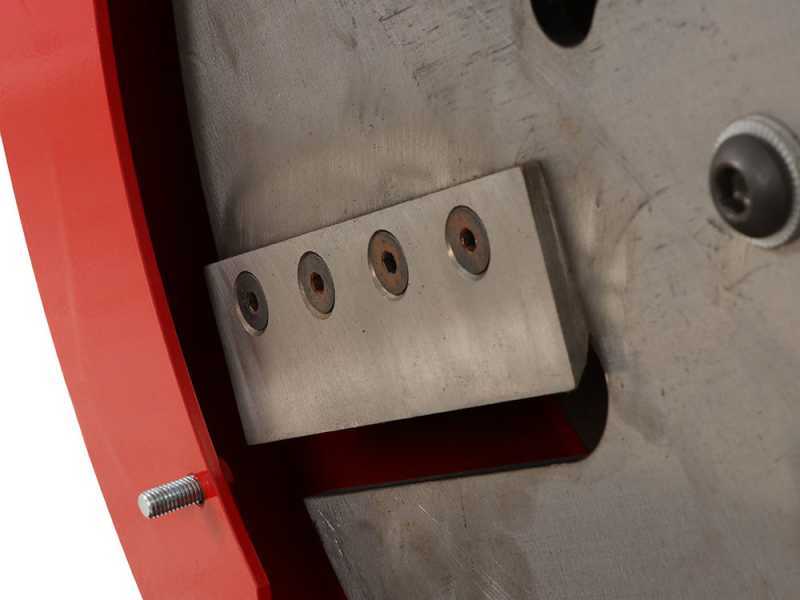

Central rotor

The central rotor is composed of 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

Equipped with 10 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they reduce the material in small wood chips.

Provided with 2 counter-blades for high quality shredding results.

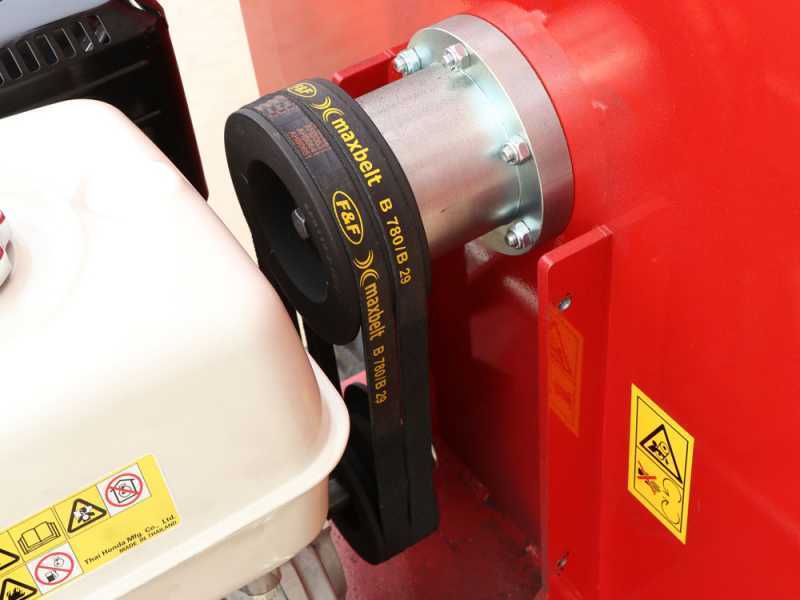

2-belt drive with reinforced belt

This belt drive gives the machine an extraordinary sturdiness, protecting both the engine and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models where the engine is directly connected to the shredding unit.

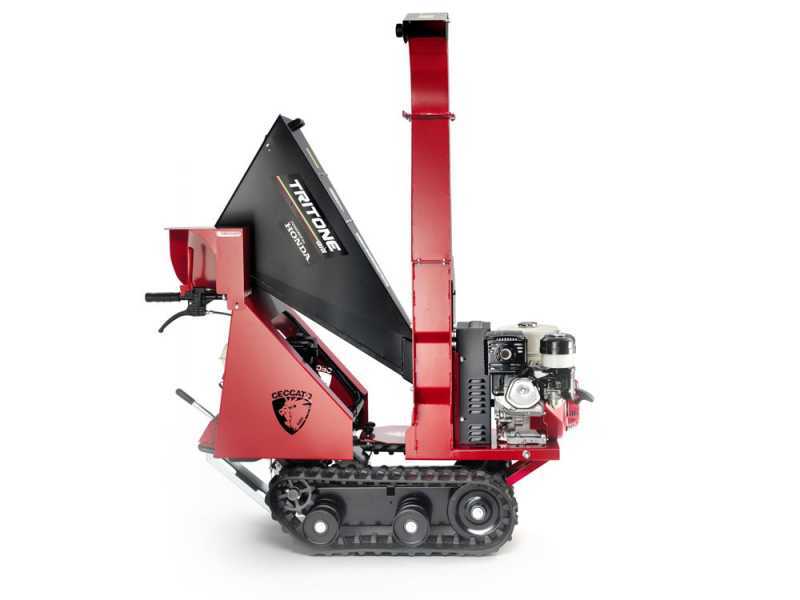

Tracks with tank shape

The width and profile of the tread guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

Focus on the rear part of the track with "tank-shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Other features

High adjustable discharge chute with deflector with adjustable tilt and wood processing adjustment.

Interchangeable sieve as needed to reduce the size of the wood chips.

It allows discharging the wood chips directly into a box.

Focus on the shredder hopper.

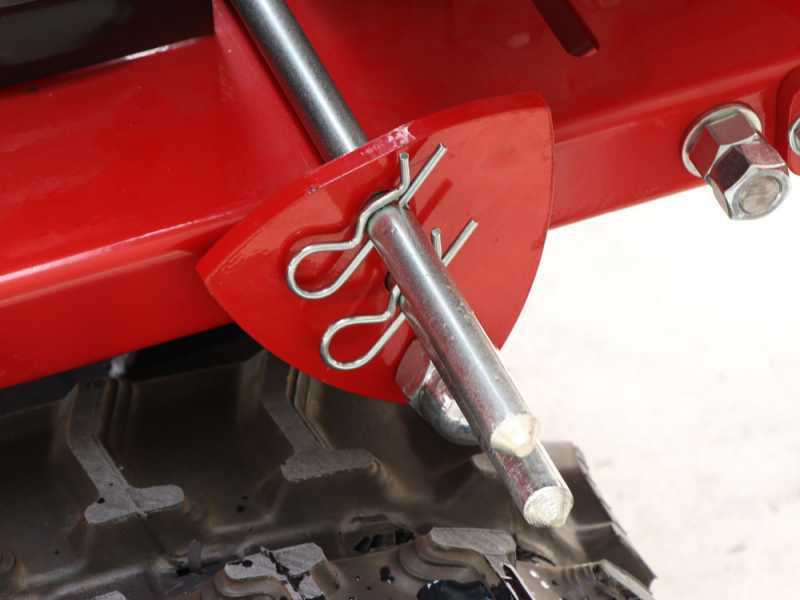

Focus on the locking device.

Focus on the knobs that tighten the support legs of the shredder.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

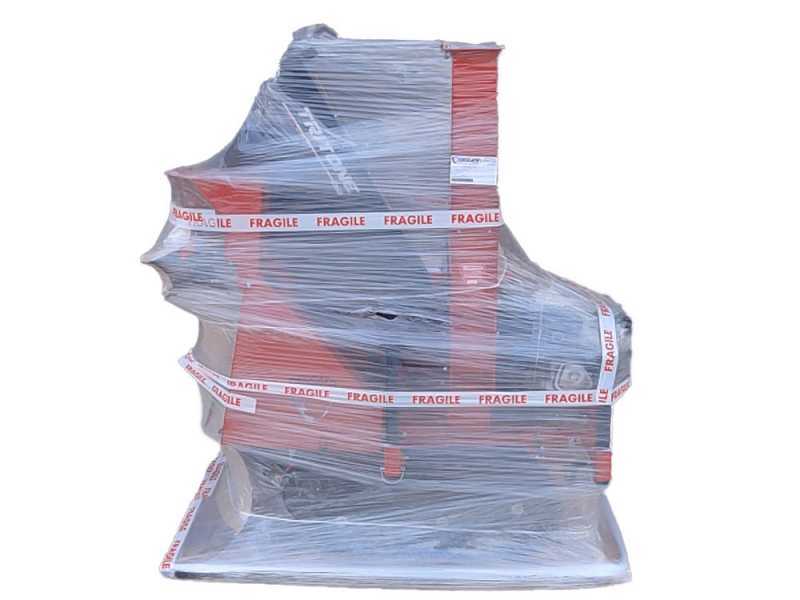

The shredder with power barrow on tracks is shipped in its original packaging on a pallet.

It consists of three main parts:
Shredder unit
Barrow unit
Tracked engine unit

Operation and maintenance instructions manual
