CastelGarden XS 55 S Self-propelled Petrol Lawn Mower - 4 in 1- 53 cm Cutting Width

Add a question
ID: K604411

EAN: 8008984851504

MPN: 294556848/C22

8,0/10
After-sales assistance & Spare parts
CastelGarden XS 55 S Self-propelled Petrol Lawn Mower - 4 in 1- 53 cm Cutting Width
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Engine first maintenance kitEngine first maintenance kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Galvanised Steel
Motor brand
Producer-manufactured
Motor Model
ST 200 OHV Autochoke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Max. recommended area
1900 m²
Cutting width
53 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 button
High rear wheels
Yes
Product Features
Model:
XS 55 S
Body material:
Galvanised Steel
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
53 cm
Grass collection system:
Standard equipment
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Collection bag capacity:
70 L
Max. recommended area :
1900 m²
Recoil start:
Yes
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Slovakia
Motor data
Motor brand:
Castelgarden
Motor Model:
ST 200 OHV Autochoke
Motor type:
4-stroke
Cubic capacity:
196 cm³
Nominal power:
6.5 HP
Rated power (HP):
4.2 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
1 L
Oil tank capacity:
0.55 L
Noise level:
98 dB(A)
Sound pressure perceived by the User:
86 dB(A)
Motor/blade drive:
Direct
Manufacturing country:
China
Transmission data
Gear shifting system:
Single speed
Gearbox:
Steel gears
No. of forward speeds:
1
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Galvanised steel
Cutting width:
53 cm
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 button
Without centralised cutting:
Yes
Max. cutting height:
85 mm
Min. cutting height:
25 mm
No. of cutting positions:
6
Washing joint:
Yes
Cutting width:
53 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Primer pump :
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
280 mm
Front wheels size:
200 mm
High rear wheels:
Yes
Wheels mounted on ball bearings:
Yes
Wheel Type:
Rubber tyre tread
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine maintenance kit:
For free
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

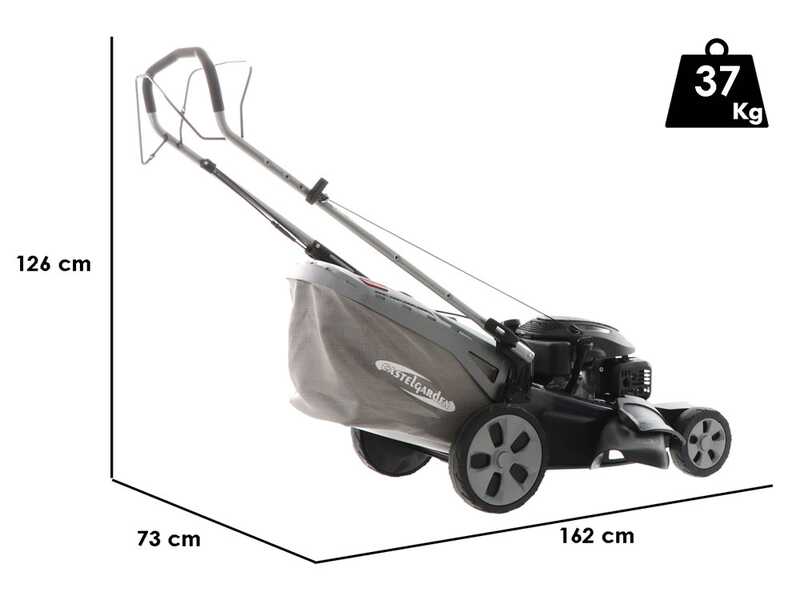

Product dimensions in cm (L x W x H):
162x73x126 cm
Net weight:
37 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
117.5x58.8x51.5 cm
Gross weight (packaging included) :
41.2 Kg
Assembly time:
15 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 24/06/2024 - 26/06/2024
€ 619,72
VAT Included

You're viewing:
Customers also viewed:
Description

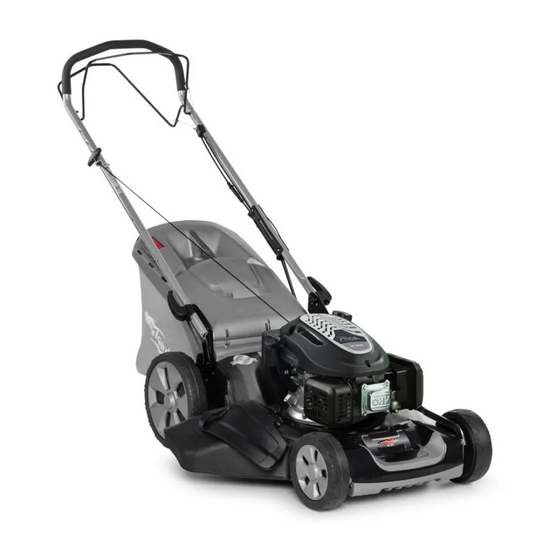

CastelGarden XS 55 S self-propelled lawn mower

The XS 55 S lawn mower is designed for the most demanding customers as it is powerful, reliable and versatile, ideal for medium-sized gardens.

The galvanising process protects the steel housing from corrosion and rust for a longer service life.

The CastelGarden XS 55 S lawn mower is made of galvanised and bush-hammered steel, equipped with a 53 cm cutting width and powered by a 4-stroke petrol engine.

The 70 L hybrid grass collector is provided with full-level indicator.

This Castelgarden XC 55 S lawn mower is powered by a reliable 196 cc STIGA engine.

This lawn mower is equipped with 4 in 1 cutting systems and centralised cutting height adjustment system in 6 different positions from 25 mm to 85 mm.

The wheels, with a diameter of 200 -280 mm and threaded tyres, are mounted on ball bearings and they are perfect for medium-sized uneven areas.

Cutting Systems:

  • Grass collection system
  • Mulching
  • Rear discharge
  • Side discharge

It is recommended for surfaces of up to 1700 s.q. m.

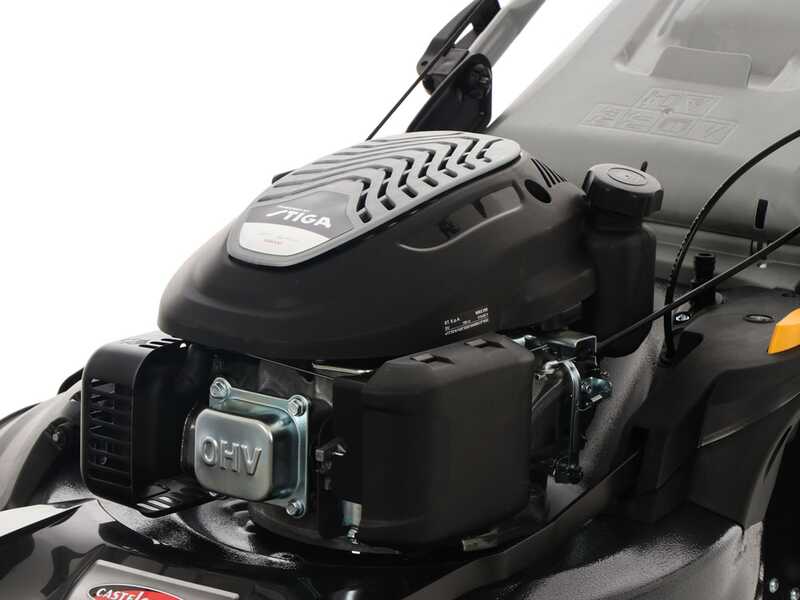

ST 200 OHV engine

The CastelGarden ST 200 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 196 cc, 6.5 Hp, 3.2 kW, up to 2900 rpm.

It is equipped with a 1 L fuel tank and 0.55 L engine oil tank.

Recoil start.


Features:

Engine type: 4-Stroke, single cylinder
Cylinder type: aluminium
Cubic Capacity: 196 cc
Fuel: petrol
Activation: manual
Max. cutting area: 1900 s.q. m.

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.2 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

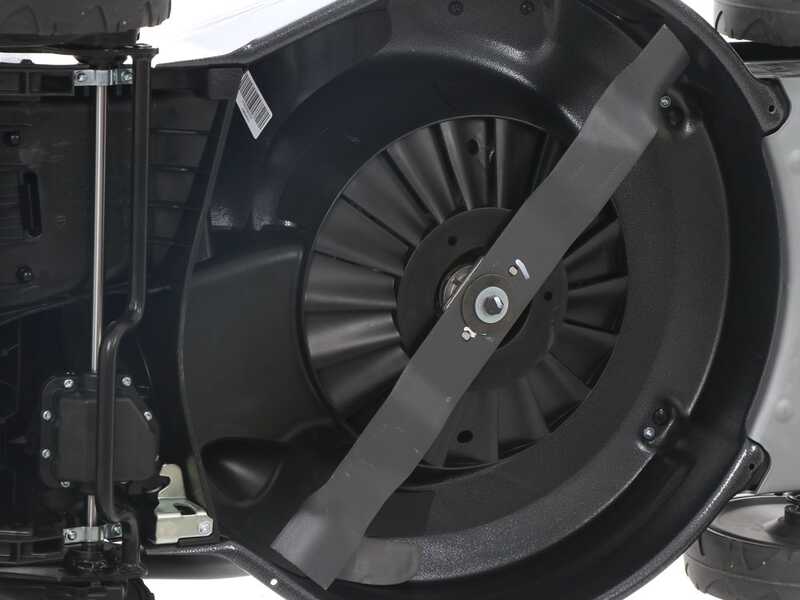

Steel housing and blade

Real blade cutting width: 53 cm

Universal hardened steel blade, which is suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

The galvanised housing gives to this machine a high sturdiness, combined with an excellent lightness.

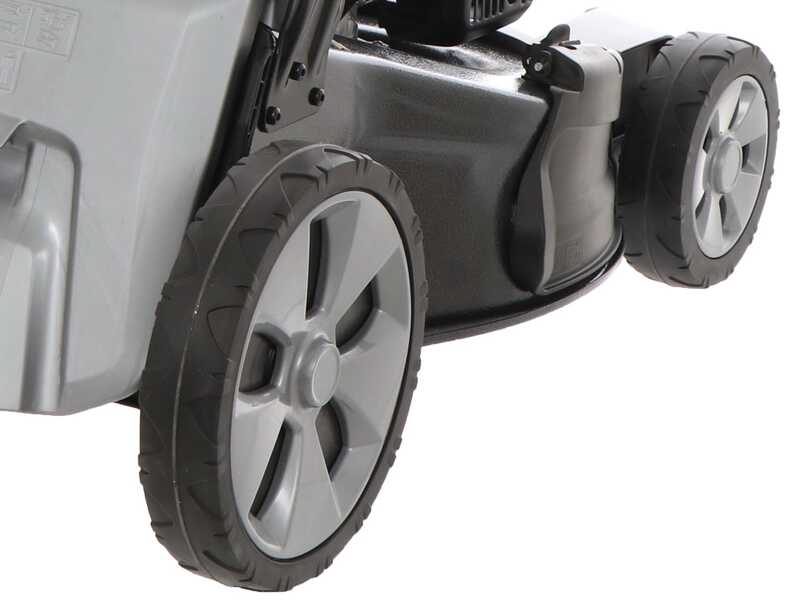

Rear-wheel drive and high-wheel system

Rear-wheel drive (Self-propelled).

It allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

The Vibrations Control System allows you to mow in total comfort without tiring your harms.

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rear wheels diameter: 280mm

Front wheels diameter: 200mm

The CastelGarden lawn mower is provided with cutting height adjustments, thanks to a centralised lever on the wheels that makes extremely easy to adjust the cutting height according to the grass conditions.

They caries from 25 mm to 85 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Just push the proper button and lift the machine up to the desired height.

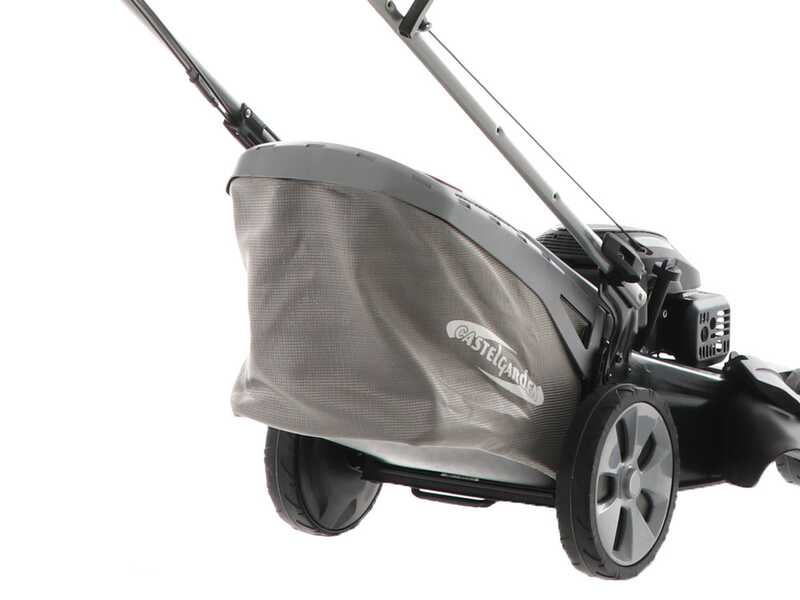

Cutting systems: grass collection

GRASS COLLECTION SYSTEM

The lawn mower is equipped with a 70 L sturdy and hybrid grass collector, very easy to remove and empty.

The lower part is made of plastic and canvas which gives strength and sturdiness.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

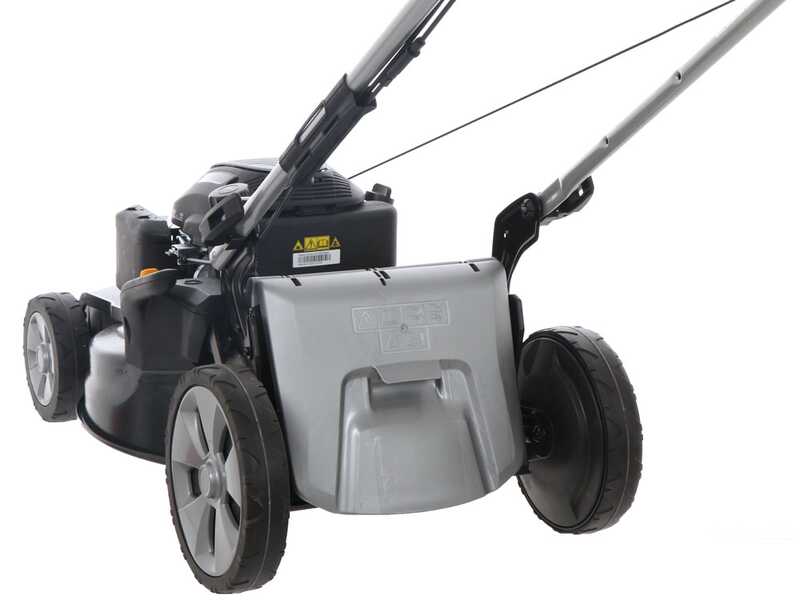

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

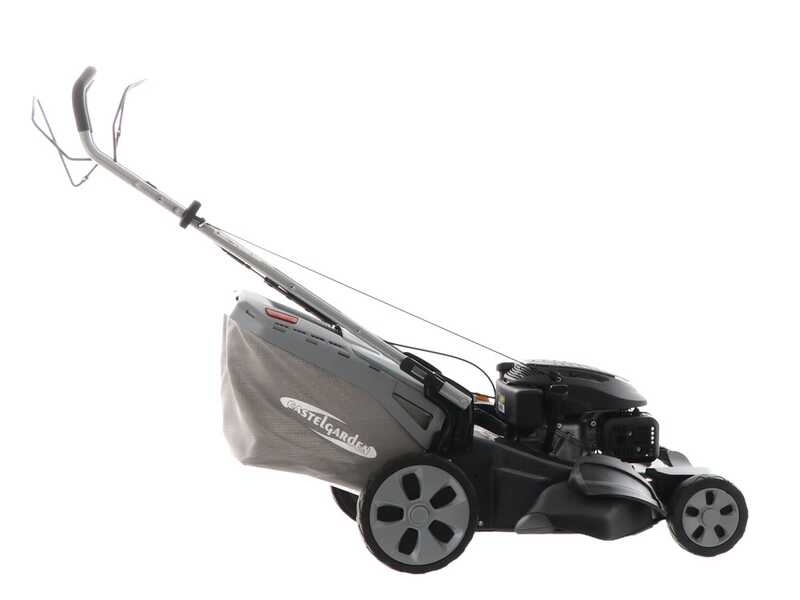

Cutting systems: side discharge

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

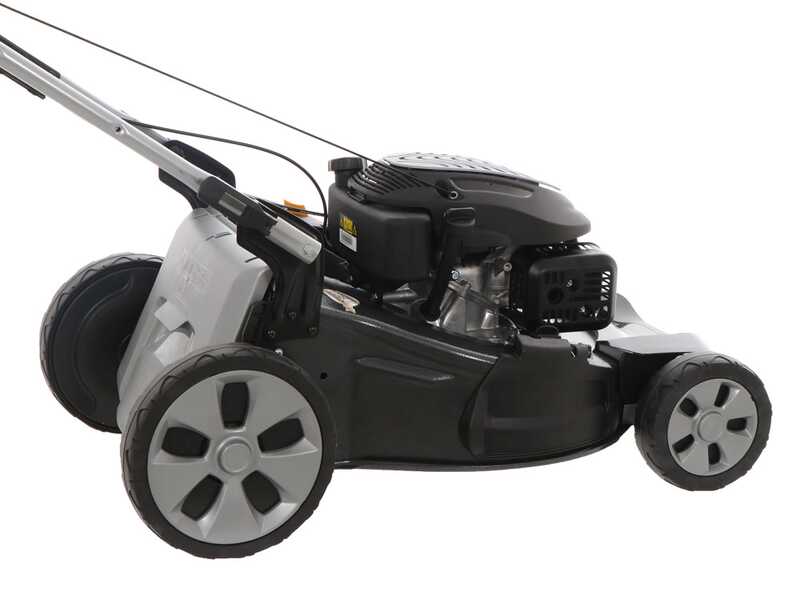

Cutting systems: mulching

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

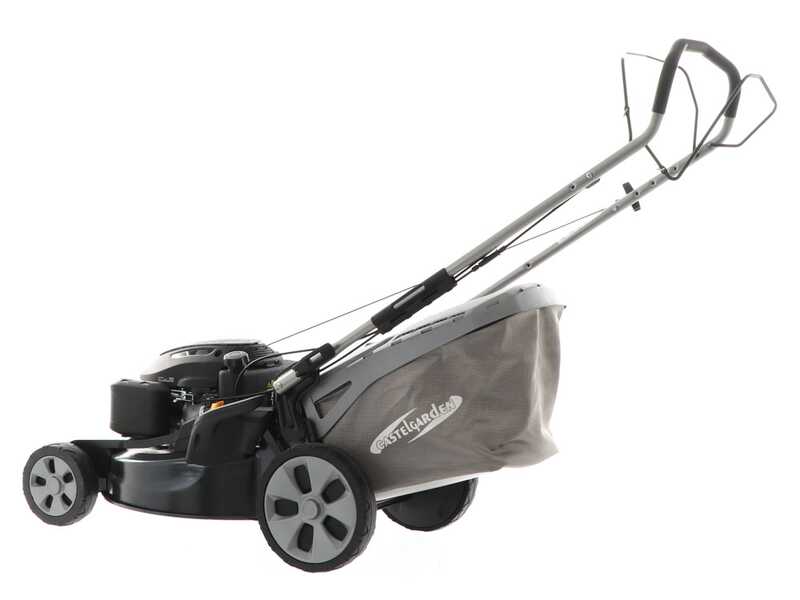

Controls and adjustments

Easy and user-friendly controls placed on the handlebar.

Detachable handlebar for easy storing.

Engine brake lever: this is the lever that starts and stops the engine and simultaneously engages/disengages the cutting device.

Traction engagement lever: this is the lever that engages traction to the wheels and allows the machine to move forward.

Free items & Standard equipment

1° GIFT: MAINTENANCE KIT

The maintenance kit includes:

  • Professional spark plug for engines.
  • Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Engine air filter.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.

2° GIFT: Safety kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 600 ml oil bottles

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

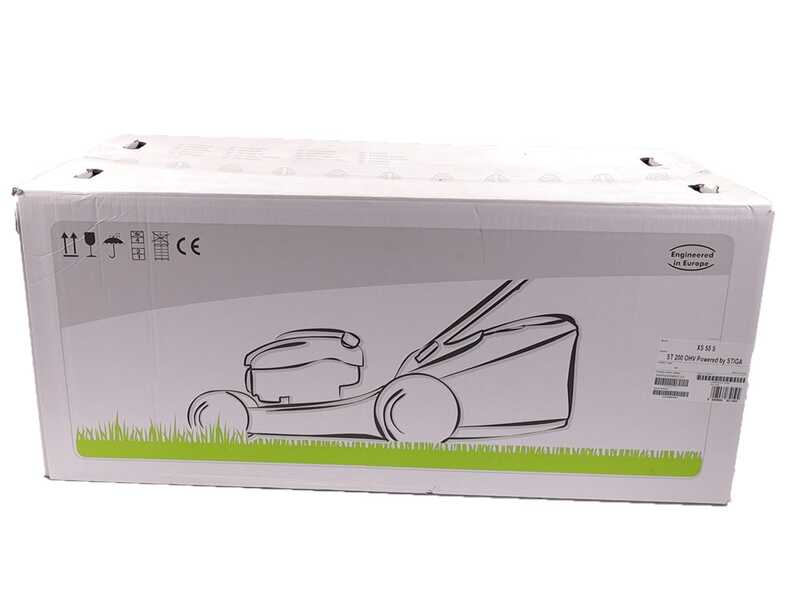

Free items included

The lawn mower is shipped in its original packaging.

70 L rear grass collector

Mulching plug

Side discharge deflector

Instructions manual included in the package


Warning

The engine is supplied without oil. Read the instructions manual before using the machine.
