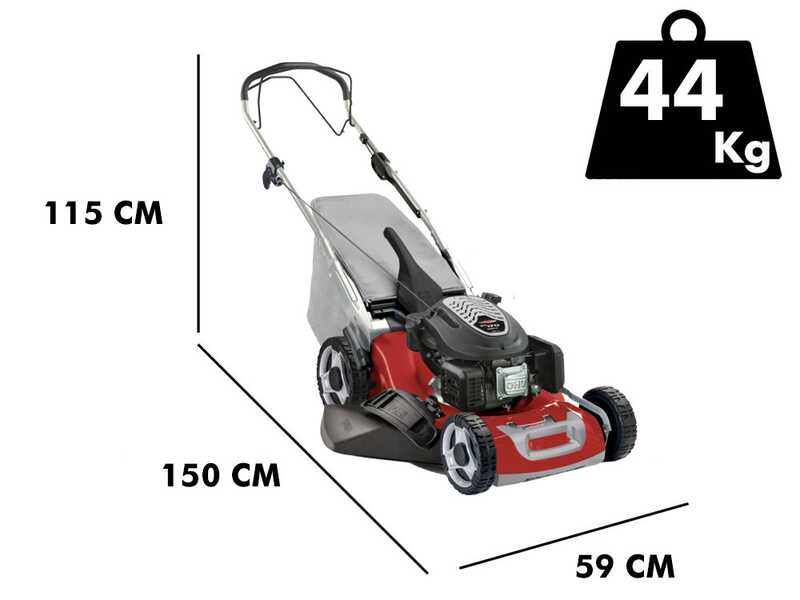

CastelGarden XM 55 S Self-propelled Lawn Mower with ST 170 Petrol Engine - 53 cm Cutting Width

The XM 55 S is designed for the most demanding customers as it is powerful, reliable and versatile, ideal for medium-sized gardens.

The galvanising process protects the steel housing from corrosion and rust for a longer service life.

CastelGarden XM 55 S galvanised and bush-hammered steel lawn mower with 53 cm cutting width and powered by a 4-stroke petrol engine.

Sturdy and large 70 L grass collector made of plastic and canvas for optimal grass collection.

This lawn mower is equipped with 4 in 1 cutting systems and centralised cutting height adjustment system in 7 different positions from 25 mm to 77 mm.

The wheels, with a diameter of 210 -240 mm and threaded tyres, are mounted on ball bearings and they are perfect for medium-sized uneven areas.

25 mm ergonomic handlebar adjustable by means of a button and featuring soft grip.

Cutting Systems:

• Grass collection system
• Mulching
• Rear discharge
• Side discharge

It is recommended for surfaces of up to 1700 s.q. m.

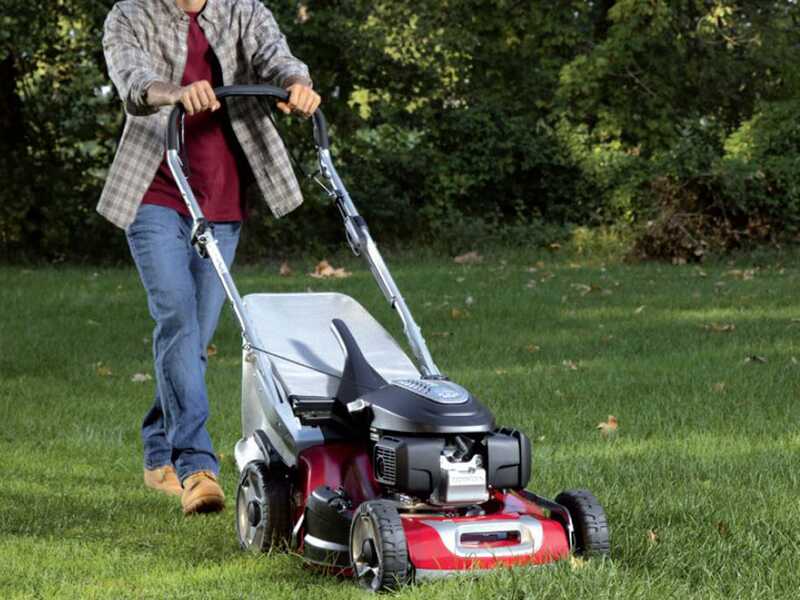

The CastelGarden ST 170 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 166 cc, 5.5 Hp, 2,6 kW, up to 2900 rpm.

It is equipped with a 1 L fuel tank and 0.55 L engine oil tank.

Recoil start.

Features:

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.48 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Real blade cutting width: 53 cm

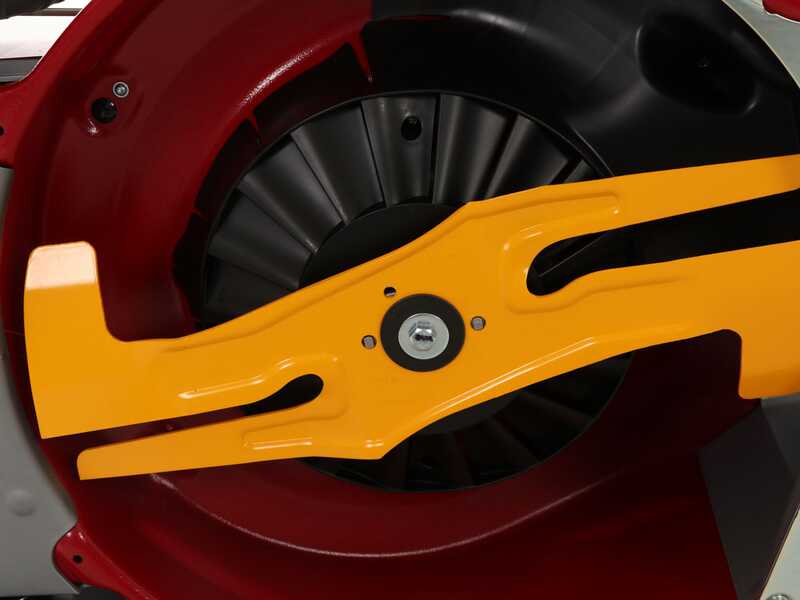

Universal hardened steel blade, which is suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

The galvanised housing gives to this machine a high sturdiness, combined with an excellent lightness.

Rear-wheel drive (Self-propelled).

It allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

The Vibrations Control System allows you to mow in total comfort without tiring your harms.

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rear wheels diameter: 240mm

Front wheels diameter: 210mm

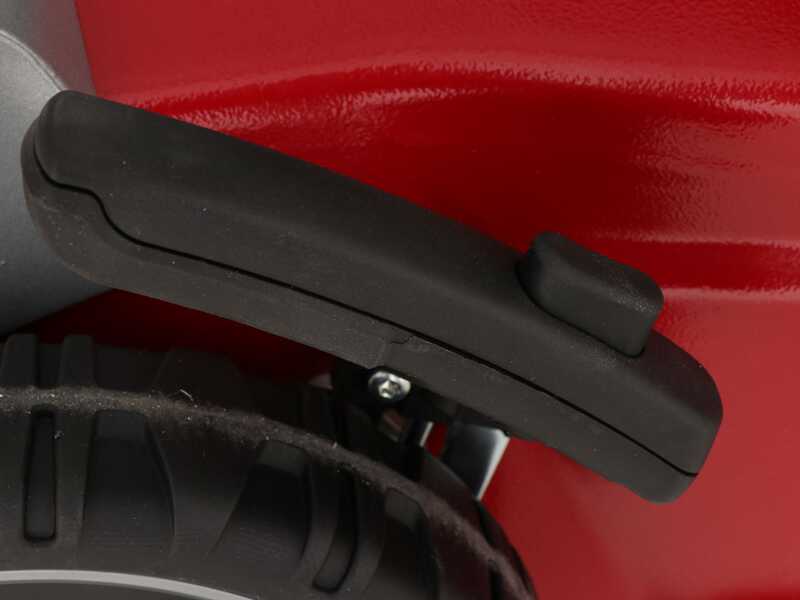

Thus CastelGarden lawn mower is provided with 7 cutting height adjustments, thanks to a centralised lever on the wheels that makes extremely easy to adjust the cutting height according to the grass conditions.

They caries from 27 mm to 77 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Just turn the proper handle and lift the machine up to the desired height.

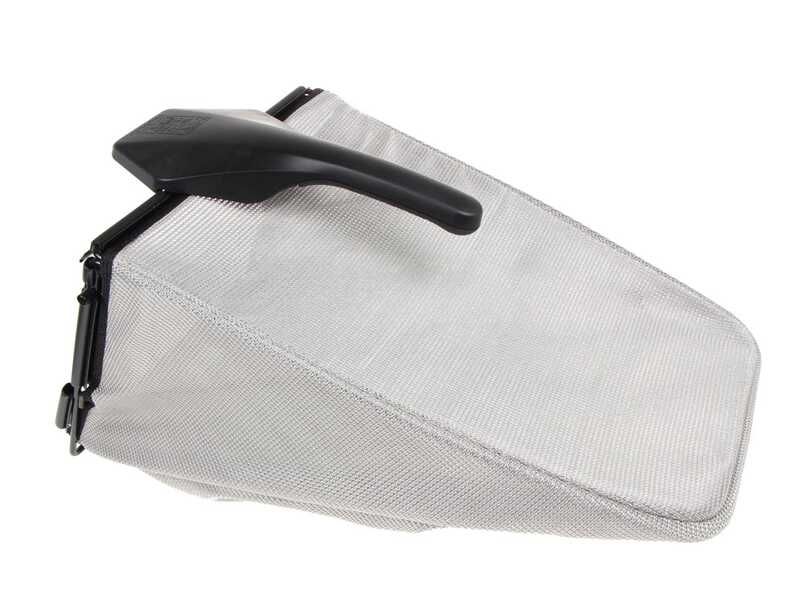

GRASS COLLECTION SYSTEM

The lawn mower is equipped with a 70 L sturdy and hybrid grass collector, very easy to remove and empty.

The lower part is made of plastic and canvas which gives strength and sturdiness.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

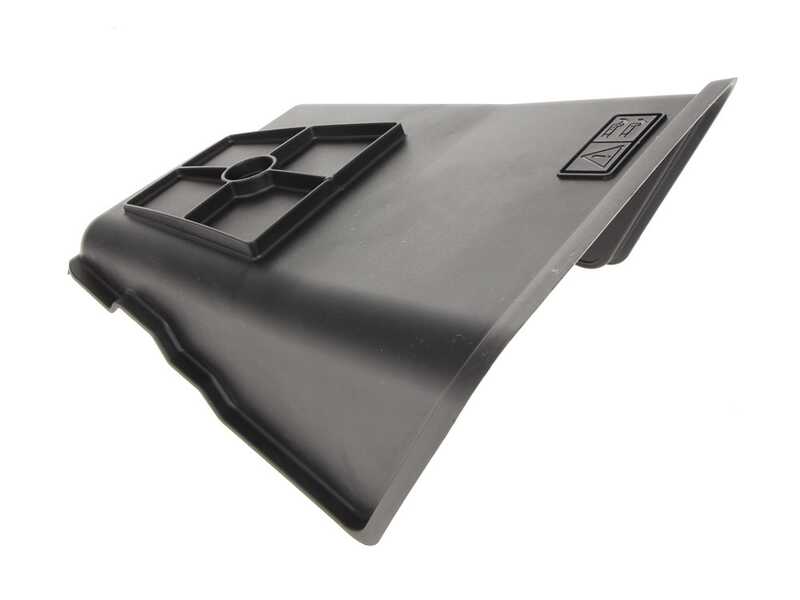

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

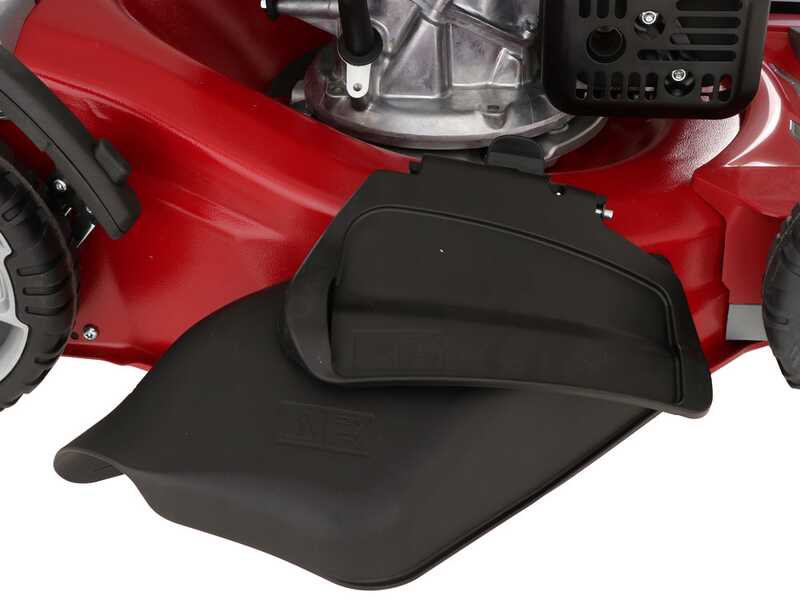

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

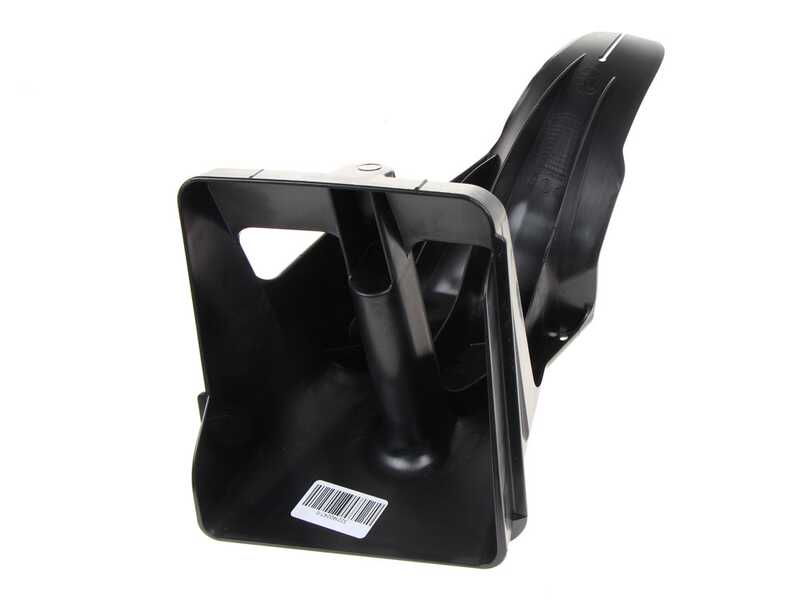

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

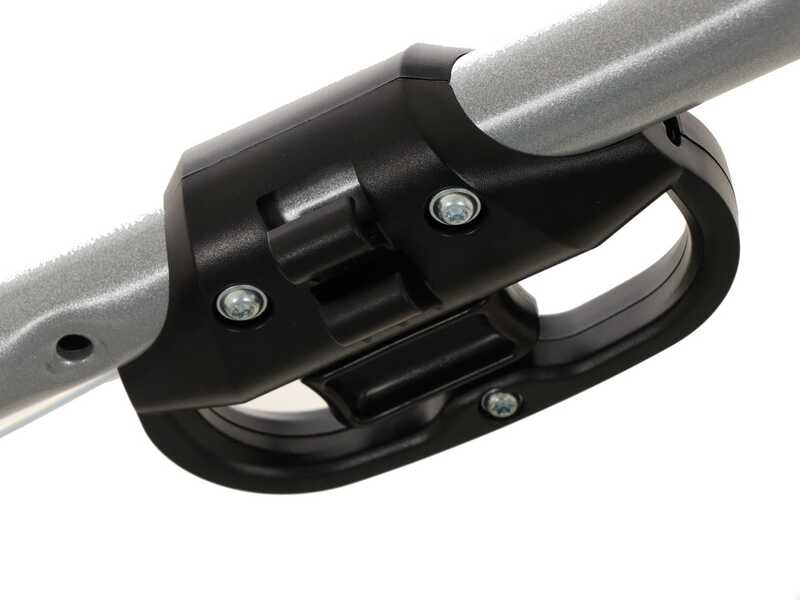

Easy and user-friendly controls placed on the handlebar.

Detachable handlebar for easy storing.

Engine brake lever: this is the lever that starts and stops the engine and simultaneously engages/disengages the cutting device.

Traction engagement lever: this is the lever that engages traction to the wheels and allows the machine to move forward.
