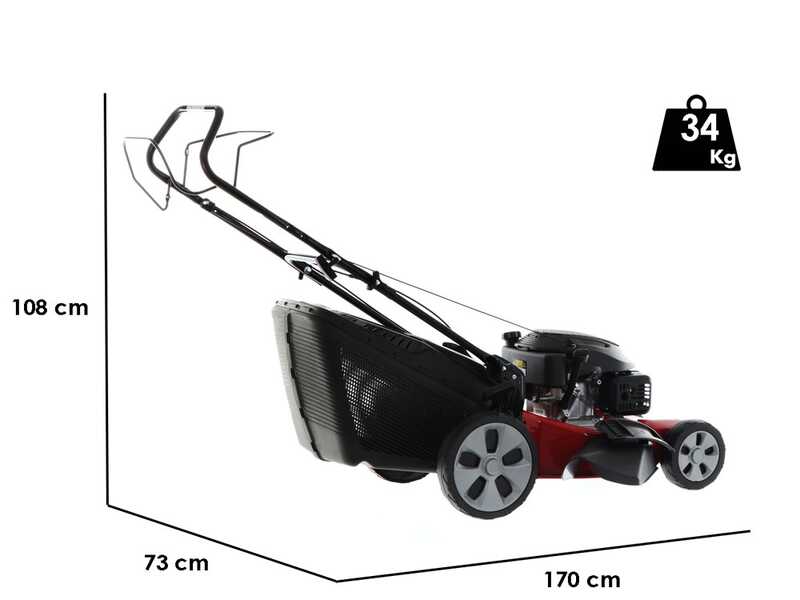

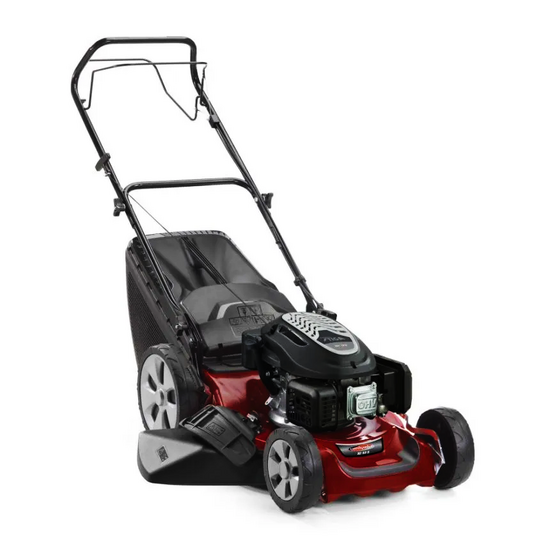

CastelGarden XC 53 S C Self-propelled Lawn Mower 4 in 1 - 166 cc Engine

The CastelGarden is a self-propelled lawn mower, ideal for taking care of your lawn and very easy to use.

The CastelGarden XC 53 S C is a steel self-propelled lawn mower, featuring a 51 cm cutting width and powered by the Castelgarden ST 170 OHV 4-stroke petrol engine, designed for the most demanding customers: powerful, reliable and versatile lawn mower.

This cutting tool is ideal for taking care of your green area with extreme practicality and efficiency. Thanks to its features, it can operate with 4 cutting systems: grass collection with large 60 L grass collector, side discharge, rear discharge or mulching cutting system.

The large 60 L grass collector allows long operations without having to empty the grass collector too often.

The housing is made of treated steel, which prevents corrosion and rust. It is equipped with a 51 cm cutting width and powered by a 4-stroke engine.

The lawn mower is also provided with a centralised cutting height adjustment in 6 different positions, from 22 mm to 80 mm. The cutting height can be easily adjusted by means a single lever for better results.

This lawn mower is equipped with a high-wheel system. The wheels, with a diameter of 200 -280 mm, are mounted on ball bearings and they are perfect for medium-sized uneven areas.

Cutting Systems:

• Grass collection system
• Mulching
• Rear discharge
• Side discharge

This lawn mower is suitable for surfaces up to 1500 s.q. m.

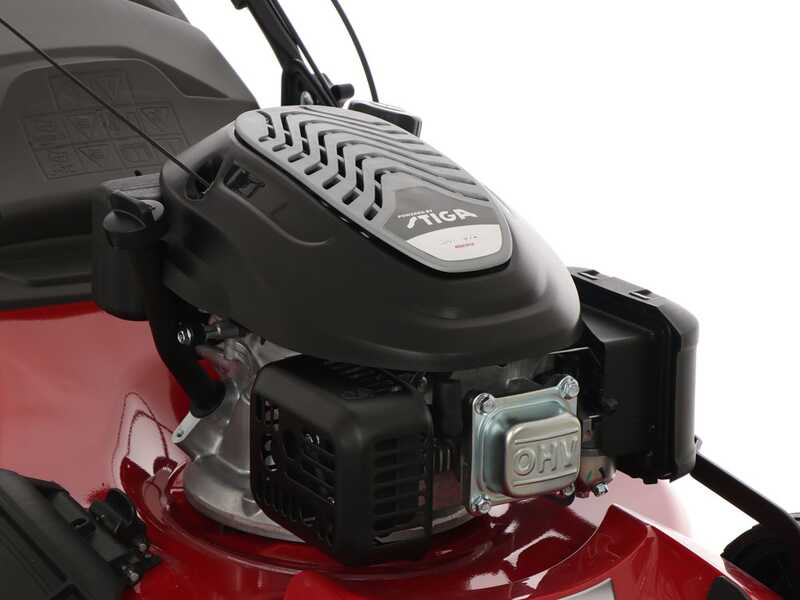

The ST 170 OHV engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 166 cc

Features:

WARNING
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Nominal power: 5.5 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.48 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Real blade cutting width: 51 cm

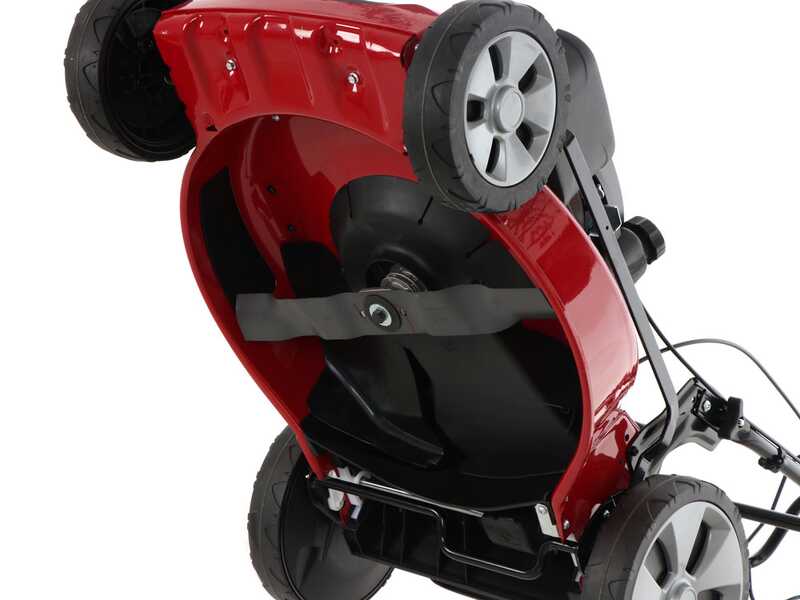

Universal hardened steel blade suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

The steel housing gives to this machine a high sturdiness, combined with an excellent lightness.

Rear-wheel drive (Self-propelled).

Equipped with a sturdy gear transmission which allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

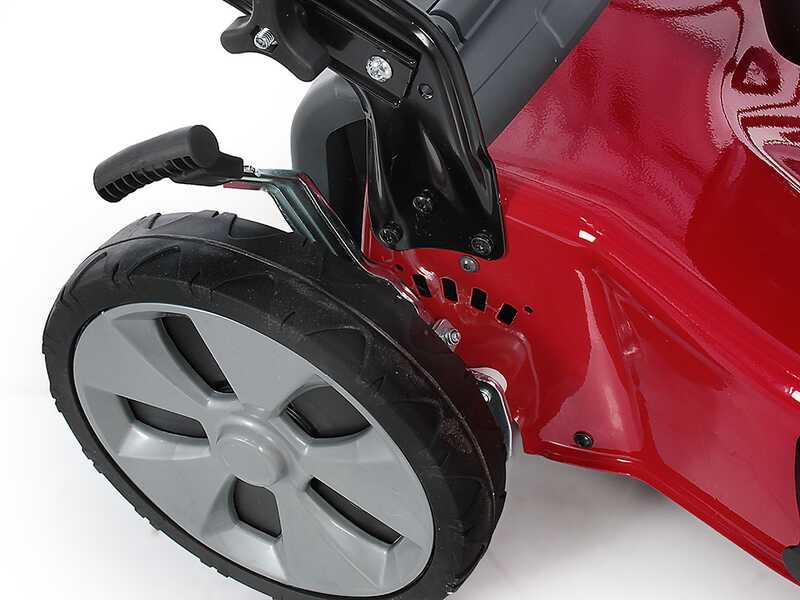

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rear wheels diameter: 280mm

Front wheels diameter: 200mm

The lawn mower is equipped with 6 cutting height adjustments, from 22 mm to 80 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Just turn the proper lever and lift the machine up to the desired height.

GRASS COLLECTION SYSTEM

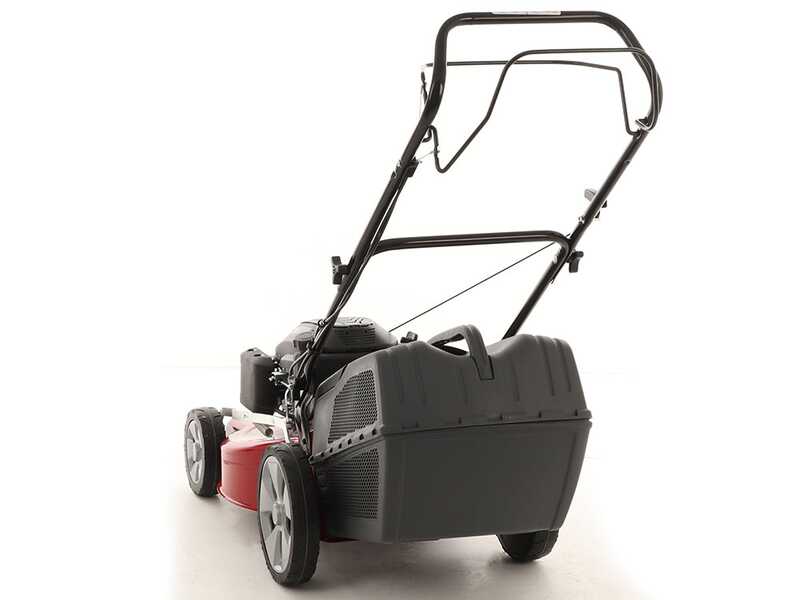

The lawn mower is equipped with a 60 L hybrid grass collector, very easy to remove and empty.

The lower part is made of plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

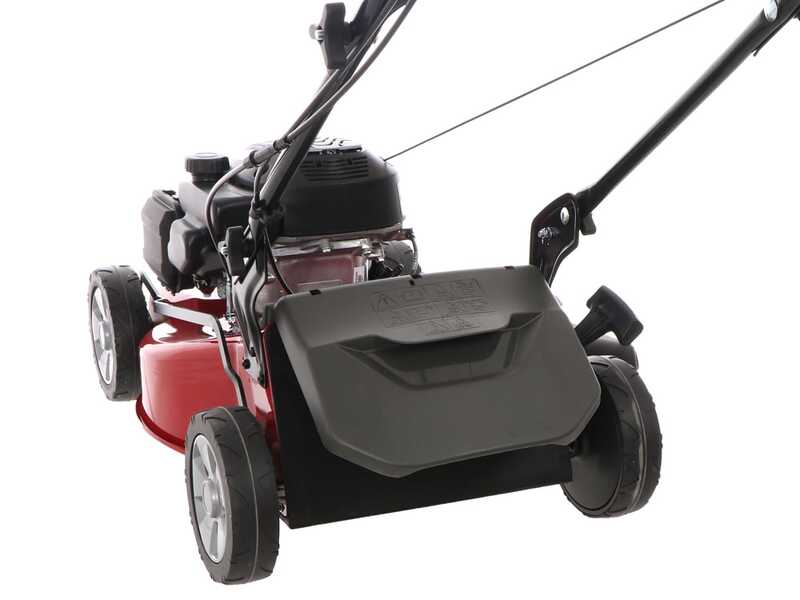

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

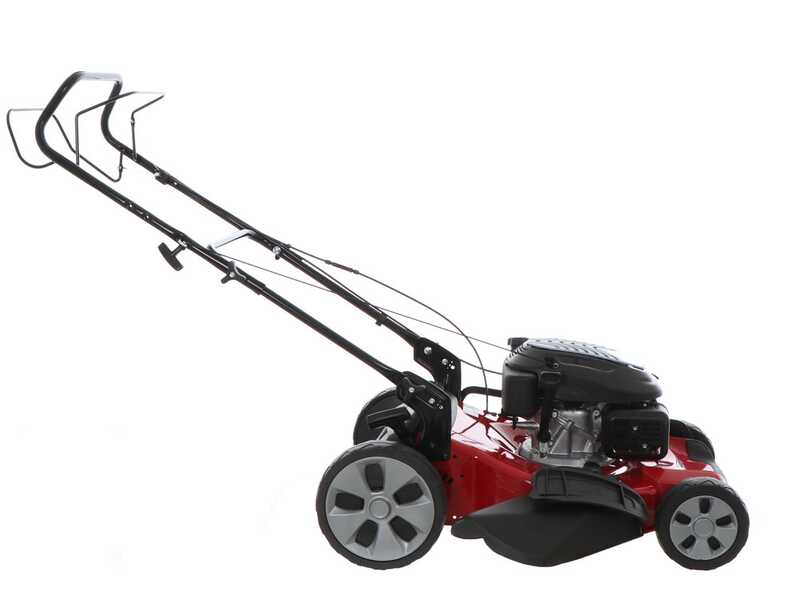

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

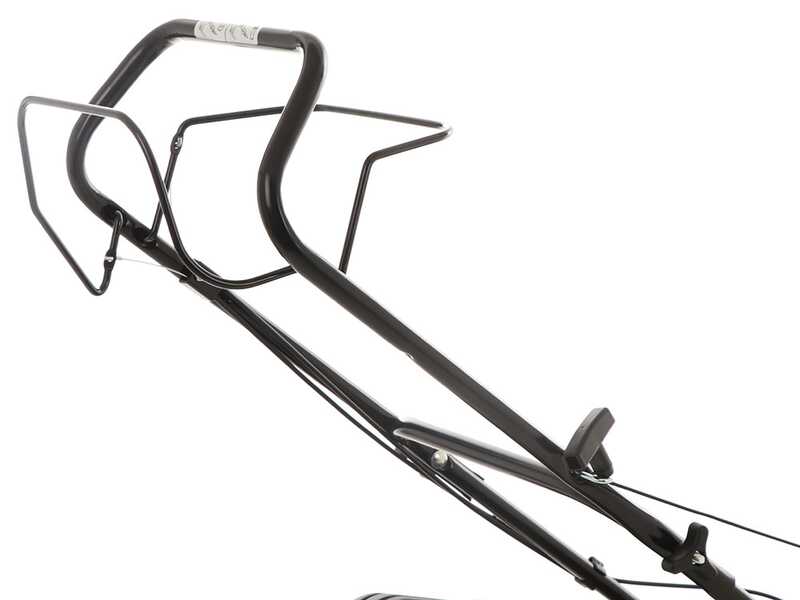

Easy and user-friendly controls placed on the handlebar.

Blade and self-propelled engagement lever.

Detachable handlebar for easy storing.
