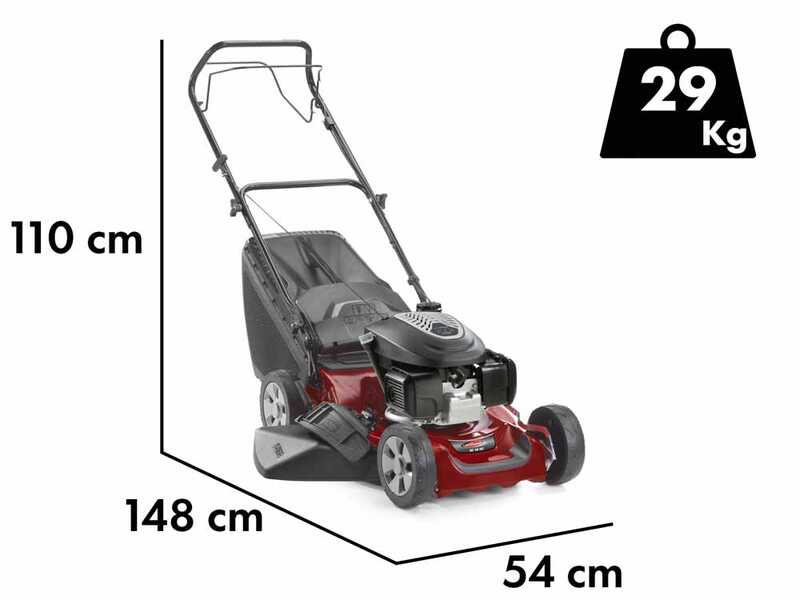

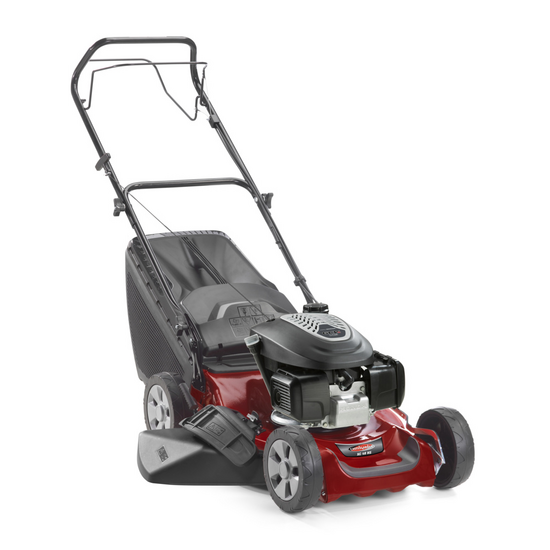

Castelgarden XC 48 HS - Trailed petrol mower - 4 in 1 - Honda GCVx 145 engine

The Castelgarden XC 48 HS self-propelled petrol lawnmower is the ideal choice for garden enthusiasts who demand quality and durability.

This mower is distinguished by its high-quality steel body, treated to resist corrosion and rust.

Equipped with a powerful Honda GCVx145 OHV engine, this petrol mower guarantees outstanding performance and unrivalled reliability. Designed for the most demanding, it offers versatility and power with ease of use.

With a cutting width of 46 cm, it is suitable for large areas up to 1200 m², making work fast and efficient. The centralised height-of-cut adjustment varies over 6 positions, from 22 to 65 mm, to perfectly suit several requirements.

The 4-in-1 functionality includes:

• 60 litre collection basket
• Side discharge
• Rear discharge
• Mulching system

The sturdy 200 mm wheels, mounted on ball bearings, ensure smooth movement on any terrain.

The Castelgarden XC 48 HS lawnmower is a practical, robust tool designed to facilitate every gardening session.

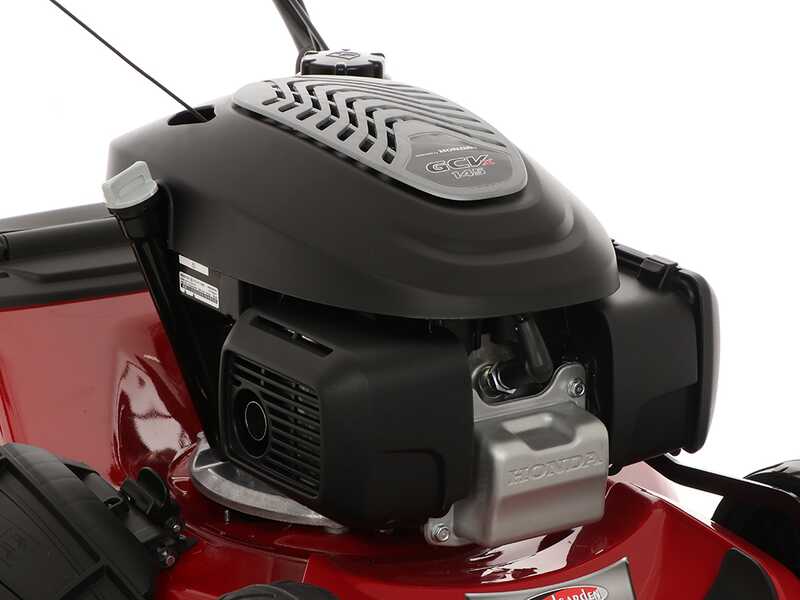

The Honda GCVx145 OHV Autochoke is a lightweight and high-performing engine, suitable for work where high power is required, achieved thanks to its 145 cc displacement, which puts it at the top of the Honda GCVx Series range.

Easy recoil start thanks to the automatic priming fuel system.

WARNING:

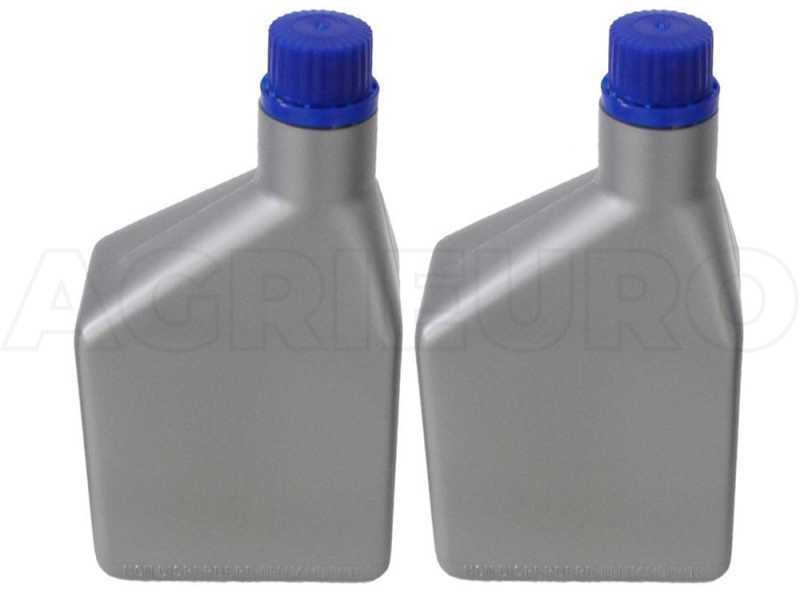

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.
Nominal power: 4.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.
Rated power: 3.5 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual. * This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

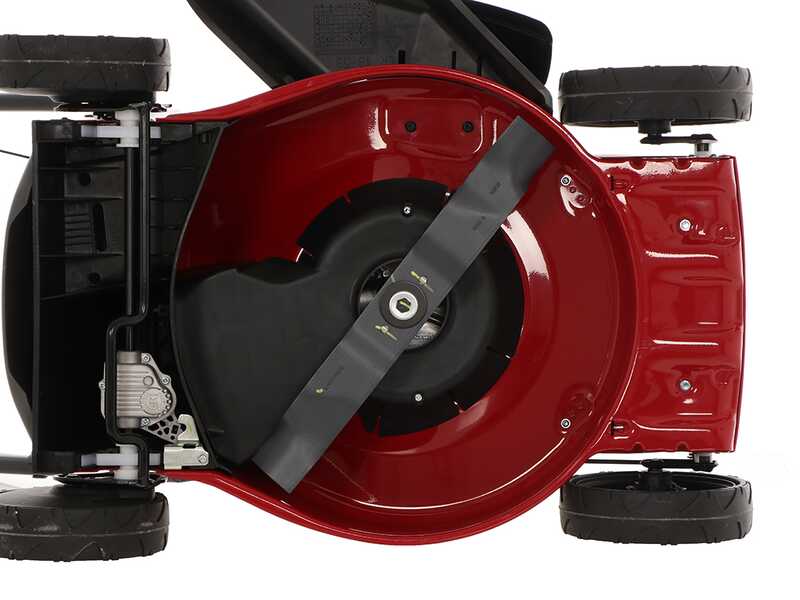

The anti-corrosion and anti-rust steel housing gives this machine a high strength combined with a great lightness.

Useful blade cutting width: 46 cm

The mounted blade is made of hardened steel of universal type, which is suitable for all cutting functions of this petrol mower.

Recommended cutting surface: 1200 s.q. m.

The centralised cutting height adjustment is incredibly fast and intuitive.

Cutting height adjustable via central lever, up to 6 different positions.

Cutting heights: 22 to 65 mm

By simply pressing the appropriate lever, the machine is automatically raised to the desired height thanks A a spring system inside.

To lower the machine, move the lever downwards. When reached the desired height, release the lever so as to fix the lawn mower at that height.

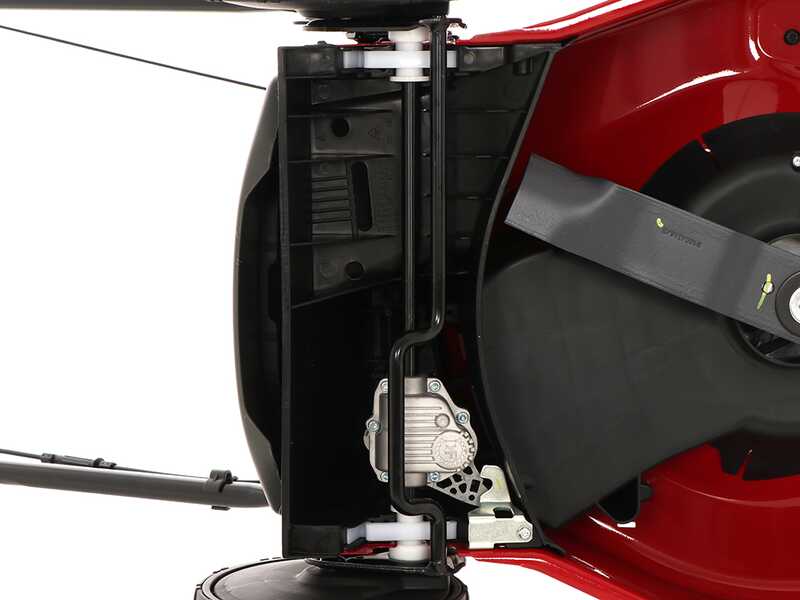

Rear-wheel drive (Self-propelled).

It allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

Driving speed: 3.7 Km/h

The soft-tread wheels are mounted on ball bearings that incredibly prolong their life.

Rear wheels diameter: 200 mm

Front wheels diameter: 200 mm

GRASS COLLECTION SYSTEM

The mower is equipped with a capacious 60 litre plastic bag, which is very easy to remove and empty.
The basket is made of plastic in its lower part, which gives it robustness and solidity.

Practical handle at the top of the basket for easy removal and emptying of the basket when full.

Full basket indicator: lets the operator know at a glance when it is time to empty when full.

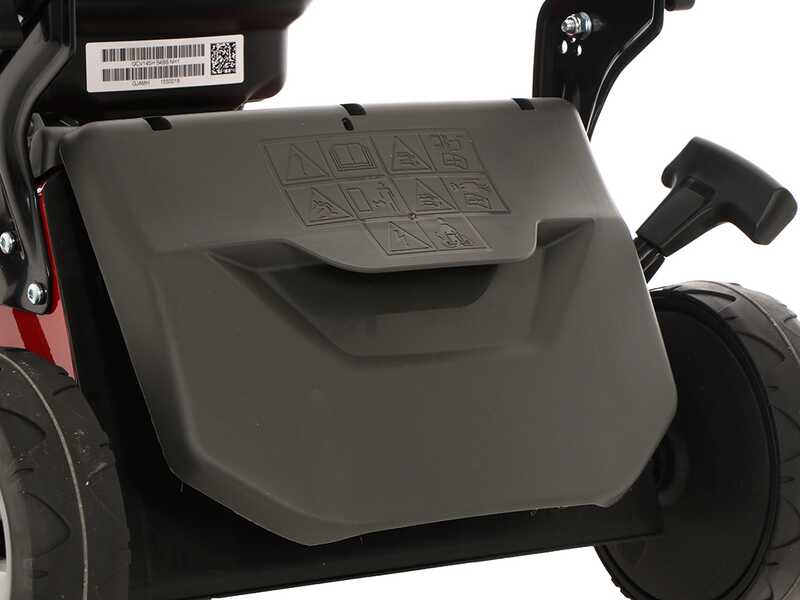

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

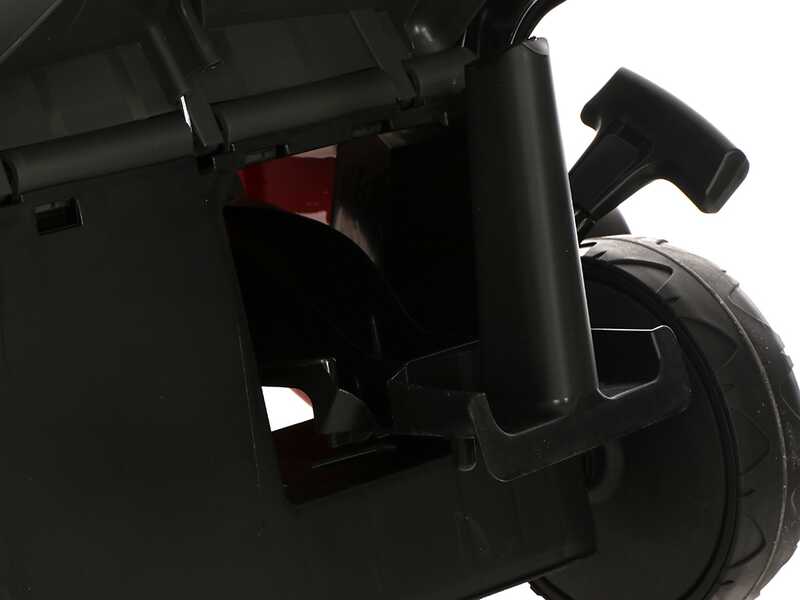

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion:

• Remove the grass collector
• Enter the mulching plug supplied
• Lower the rear deflector to enable the mulching system.

WHAT IS MULCHING::
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

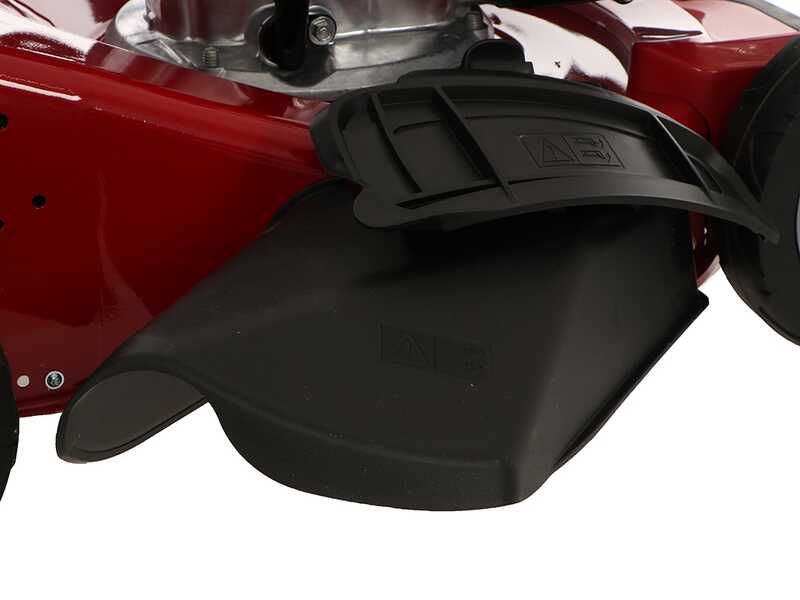

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching cap in place, so that it occludes the grass discharge at the rear, simply lift the black cover at the side of the body and insert the supplied side deflector with a simple movement.

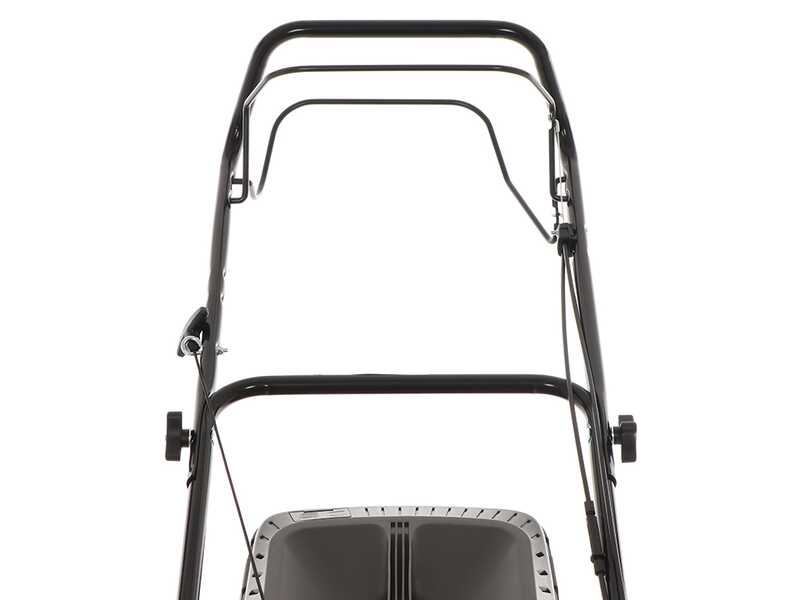

Professional heavy-duty quick-release aluminium handlebar.

Easy and user-friendly controls placed on the handlebar.

Blade activation lever (lever in front of handlebar)

Self-propulsion activation lever (lever behind the handlebar)

Handlebar tilt adjustment

Detachable handlebar for easy storing.

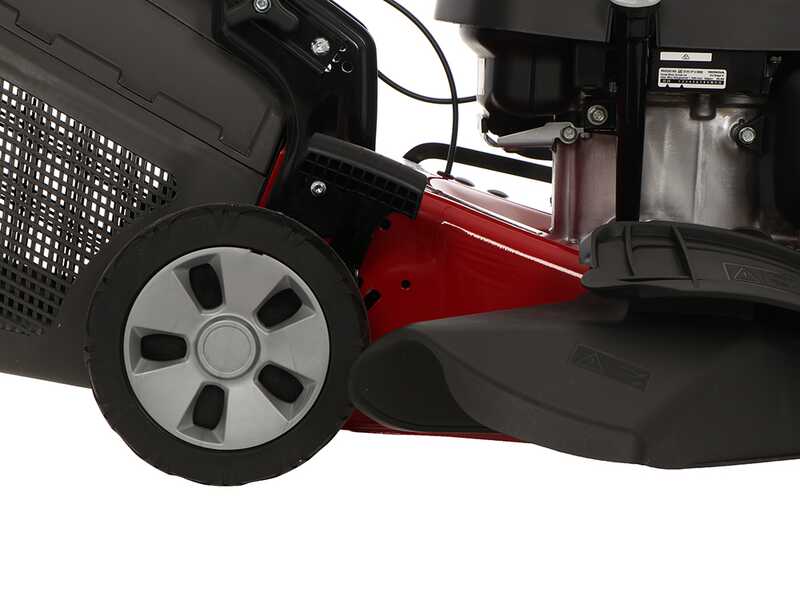

Detail of the cutting height adjustment lever

The lawn mower is designed and intended exclusively for cutting grass in garden areas (and not on other types of terrain). The surface must be level, free from irregularities, stones, or other solid objects, and covered with maintained lawn grass (therefore, not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most lawn mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Brush Cutters.

Furthermore, grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, which reduces cutting efficiency, increases the risk of clogging inside the deck, and subjects the engine to excessive strain.
