HOME Olive harvesting Air Compressors for Olive Harvesting and Pruning Treatments Tractor compressors Campagnola PTO driven Air Compressors Campagnola PTO ECOPLUS 950

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

Professional
Add a question
ID: 108851

EAN: 8054141545540

MPN: ecop.5460

Campagnola
Catalogue Campagnola
9,1/10
After-sales assistance & Spare parts
50Pictures
1Videos
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Technical data
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Fiac
Air intake flow
820 L/min
Pump type
Two-stage
Tractor power
20 to 25 HP
Operable harvester
Up to 4
Manufacturing country
Italy
Product Features
Model
PTO ECOPLUS 950
Tractor power
20 to 25 HP
Operating mode
Tractor-driven PTO
Max. operating pressure
11 bar
Number of tanks
1
Air compressor tank
25 L
Operable harvester
Up to 4
Quantity of powered shears
Up to 7
Quantity of powered chainsaws
1
Manufacturing country
Italy
Pump data
Pump brand
Fini
Cylinder head brand
Fiac
Model
BK119
Air intake flow
820 L/min
Pump type
Two-stage
No. of cylinder heads
1
No. of cylinders
2
Cooling manifold
Yes (2 manifolds)
Cylinders material
Cast iron
Manufacturing country
Italy
Transmission data
Transmission type
Belt
Transmission protective cover
Metal grid
Pulleys material
Cast iron
Equipment
No. of outlet couplings
6
Hose reel support/s
Yes, double
Pressure regulator with condensate filter
Yes
Lubricator
Yes
Pilot check valve
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
65x56x88 cm
Net weight
102 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
67x67x102 cm
Weight including packaging
127 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 30/09/2025 - 02/10/2025
Free returns (up to 30 days after receipt) *
€ 2.101,00
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

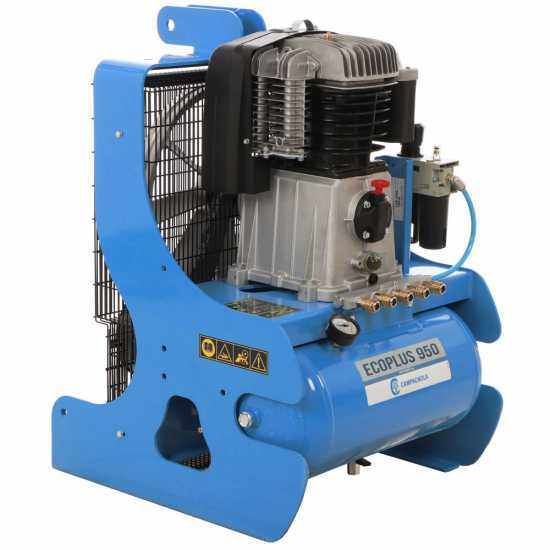

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor

The Campagnola PTO ECOPLUS 950 PTO driven air compressor is a professional product intended for use in combination with a tractor equipped with a power take-off, to simultaneously power different compressed air equipment. Among the peculiarities of this product, there is the double hose reel support.

The large FINI BK119 heavy-duty twin cylinder head allows you to have an air output capacity of 820 L/min at 11 bar, this allows you to operate up to:

7 Pruning shears

4 Olive harvesters

1 Pruner

Characterised by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel

Minimum tractor power 20HP

MADE IN ITALY product

Low-rpm operation for greater fuel economy

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

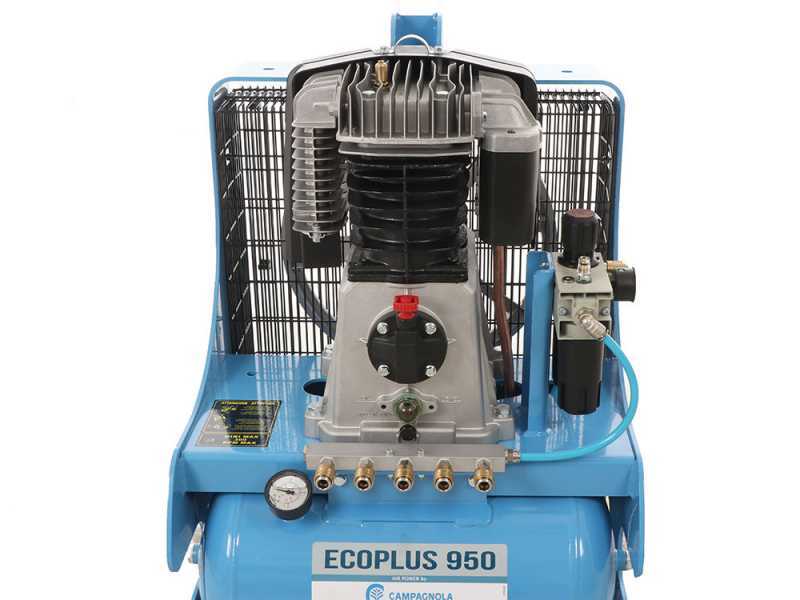

Heavy-duty twin cylinder head

The large 820 L/min FINI BK119 twin-cylinder head with cast iron cylinder guarantees a long service life. Large air output capacity: 820 L/min, enough to operate 4 olive harvesters, more than 7 pruning shears, 1 pruning saw.

Focus on the porthole for oil level control

Focus on the cooling manifold

Attention: do not exceed 300 rpm of the PTO.

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

Main features

AIR OUTLET SYSTEM:

a) heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) heavy-duty aluminium lubricator MADE IN ITALY

c) first outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet)

d) air shut-off valve for maintenance operations (such as topping up oil into the lubricator)

e) NO. 05 quick output joints

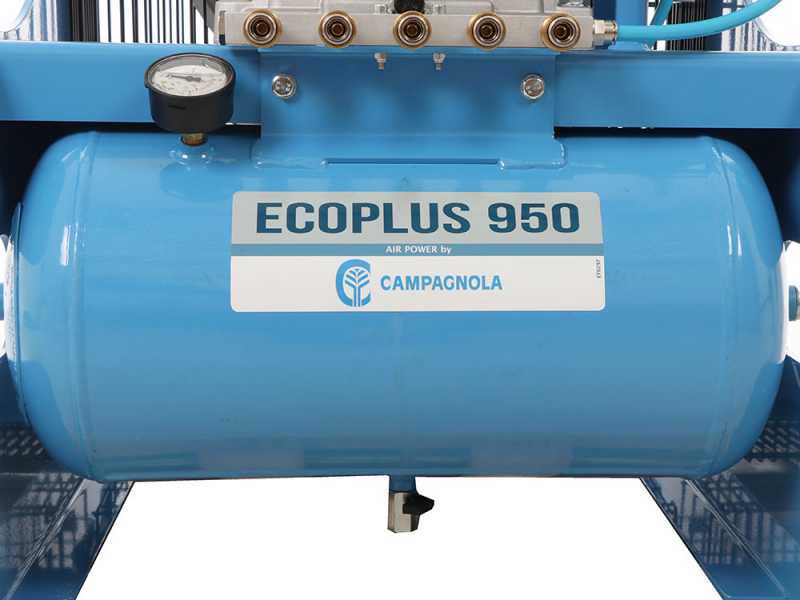

25 L tank

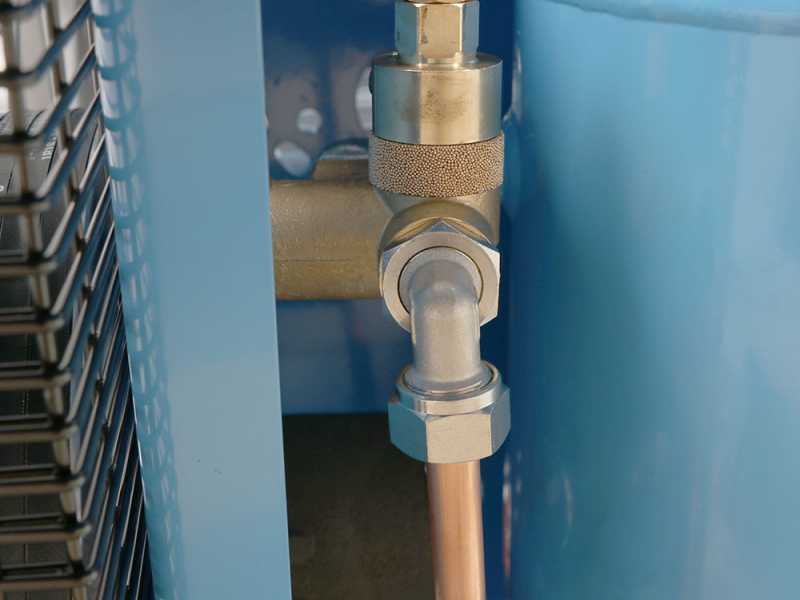

No load operating system and maximum pressure control by means of a professional pilot check valve

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

Other features

PTO pulley and large-sized cooling fan made of alloy.

Support for hose reel as standard second hole for setting up a second hose reel.

Tractor three-point-hitch

Focus on the air filter.

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Free items & Standard equipment

Free items included

The PTO driven air compressor is shipped in its original packaging on pallet

Instructions manual included

Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 950 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
