Campagnola PTO 1700 Tandem Tractor-mounted Air Compressor

Add a question
ID: 108854

EAN: 8054141545571

MPN: ECOP.5855

9,1/10
After-sales assistance & Spare parts
Campagnola PTO 1700 Tandem Tractor-mounted Air Compressor
Max. operating pressure
11 bar
Air compressor tank
40 L
Cylinder head brand
Fiac
Air intake flow
1640 L/min
Pump type
Two-stage
Tractor power
40 to 45 HP
Operable harvester
Up to 10
Manufacturing country
Italy
Product Features
Model:
PTO 1700 Tandem
Tractor power:
40 to 45 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
40 L
Operable harvester:
Up to 10
Quantity of powered shears:
Up to 15
Quantity of powered chainsaws:
Up to 3
Manufacturing country:
Italy
Pump data
Pump brand:
Fini
Cylinder head brand:
Fiac
Model:
BK119
Air intake flow:
1640 L/min
Pump type:
Two-stage
No. of cylinder heads:
2
No. of cylinders:
4
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
10
Hose reel support/s:
Yes, double
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

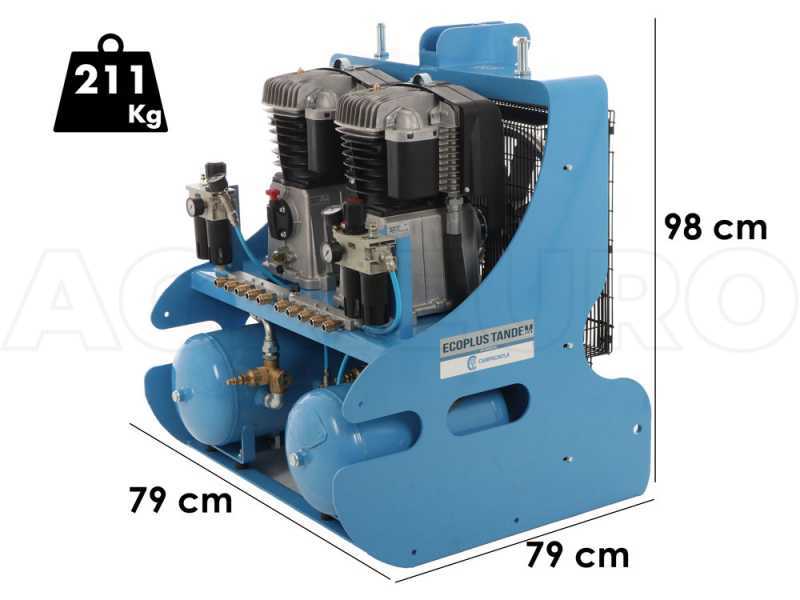

Product dimensions in cm (L x W x H):
79x79x98 cm
Net weight:
211 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
93x86x114 cm
Gross weight (packaging included) :
230 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/11/2024 - 27/11/2024
€ 4.566,65
VAT Included
You're viewing:
Customers also viewed:
Description

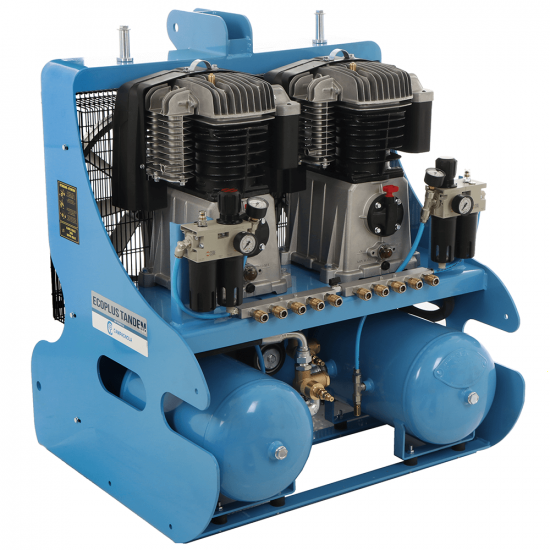

Campagnola PTO 1700 Tandem air compressor

The Campagnola PRO 1700 Tandem tractor-mounted air compressor is a heavy-duty product suitable for those who need to use many attachments at the same time.

The main feature is the presence of no less than two Fini BK119 cylinder heads, both two-stage twin-cylinder.

The heads are capable of producing up to 1640 L per minute of suction air.

It is equipped with a power take-off, to simultaneously power different compressed air equipment, such as olive harvesters, pruners and pruning shears. It is also equipped with a 10 way air divider, which consists of 2 groups of 5 each with an independent control unit.

Minimum tractor power recommended: 40 Hp

This model, with a maximum pressure of 11 bar, allows the simultaneous use of up to:

15 Pruning shears

8 olive harvesters or 10 if Tuono - Diablo 1800 - Colibrì 1800 models

3 Pruners

Characterized by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel.

At the top, it features two practical hooks for attaching the hose reels.

Low-rpm operation for greater fuel economy

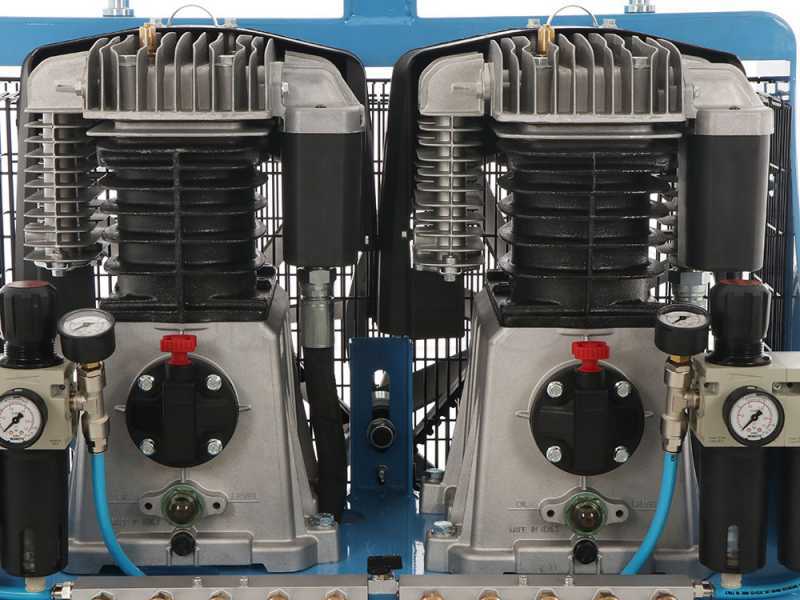

Heavy-duty twin-cylinder head

The air compressor is equipped with two large Fini BK 119 twin-cylinder heads with 1640 L per minute at 1215 rpm with cast iron cylinders and guarantees the operation of 8 harvesters, 15 scissors and 3 saws.

Focus on the porthole for oil level control

Focus on the cap for checking the head oil level.

Attention: do not exceed 300 rpm of the PTO.

Main features

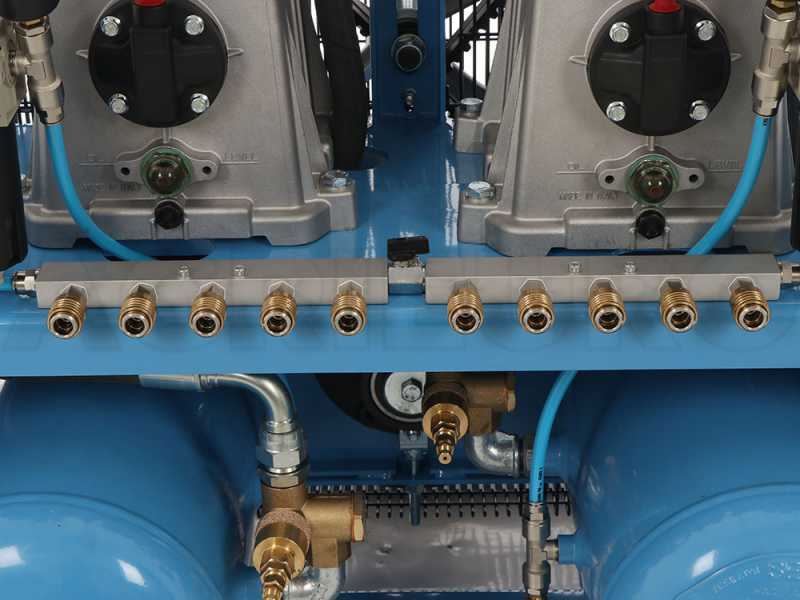

AIR OUTLET SYSTEM:

a) Heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) Heavy-duty aluminium lubricator MADE IN ITALY

d) Air shut-off valve for maintenance operations (such as introducing oil into the lubricator)

e) Double air divider with 5 outlets each, with independent control units

F) 2x20 L double air tank

g) No load operating system and maximum pressure control by means of professional pilot check valve.

Other features

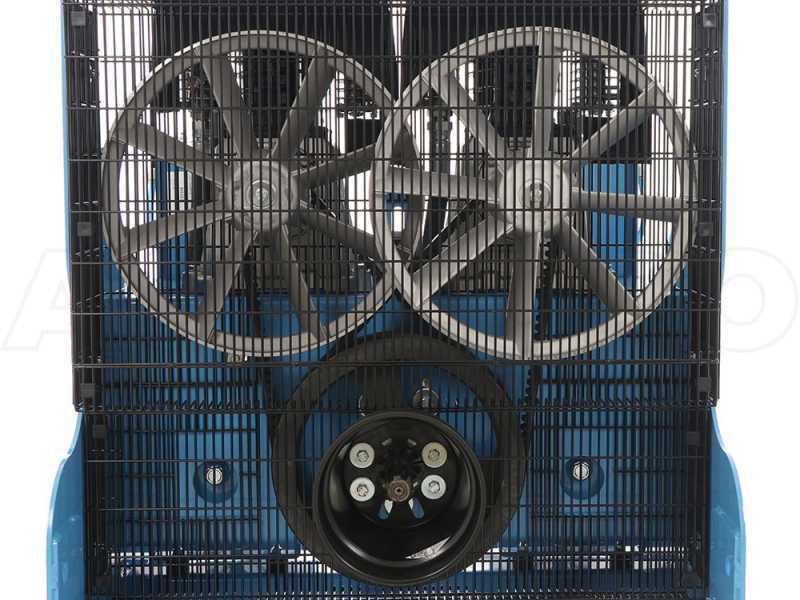

PTO pulley and large-sized cooling fan made of alloy.

Support for hose reel as standard second hole for setting up a second hose reel.

Three-point hitch for agricultural tractors

Focus on the battery connection

Free items & Standard equipment

Free items included

The PTO-driven air compressor is shipped in its original packaging on pallet with:

Campagnola gilet

The Instructions manual is included in the package.
