Name: Campagnola MC 950 Self-propelled Petrol Engine-driven Air Compressor with Honda GX270 Engine
Brand: Campagnola
SKU: K601322
Price: 3674 EUR
Availability: OutOfStock

Description

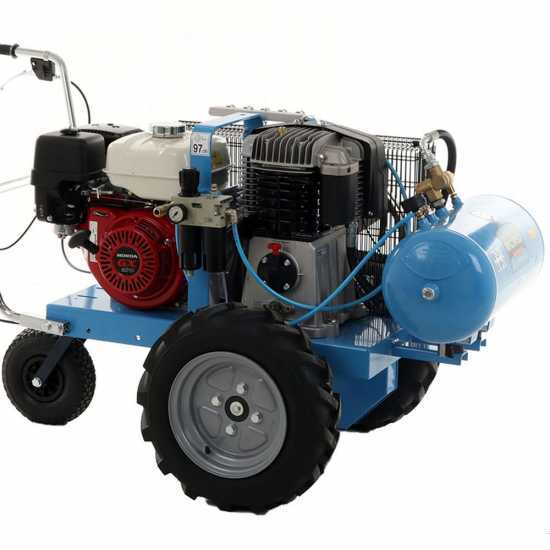

Campagnola MC 950 Self-propelled Petrol Engine-driven Air Compressor

The Campagnola MC 950 self-propelled petrol engine-driven air compressor is the most powerful in Campagnola's self-propelled range. Powered by an HondaGX 270 series engine, it guarantees constant compressed air supply for four people at once.

This petrol engine-driven air compressor allows you to use your pneumatic tools directly in the working area, such as in fields, without the need for a power source and easily move it around thanks to its self-propelled traction.

The Fiac pumping unit it is one of the best on the market and guarantees performance and durability. Its air suction capacity of 820 L/min allows to operate:

- up to 4 olive harvesters

- up to 7 shears

- up to 1 pruning saw

Thanks to the large tractor-type wheels and the easy-to-use traction, it can be easily carried even on the most difficult terrain. The disc brake guarantees excellent control of the air compressor during braking.

This petrol engine-driven air compressor is equipped with an automatic throttle, a particular device that adjusts the motor revolutions according to the load required by the pumping group.

WARNING: The packaging includes the machine only, without pneumatic equipment (olive harvesters, pruning shears, hoses or other).

Campagnola MC 950 Self-propelled Petrol Engine-driven Air Compressor with Honda GX270 Engine

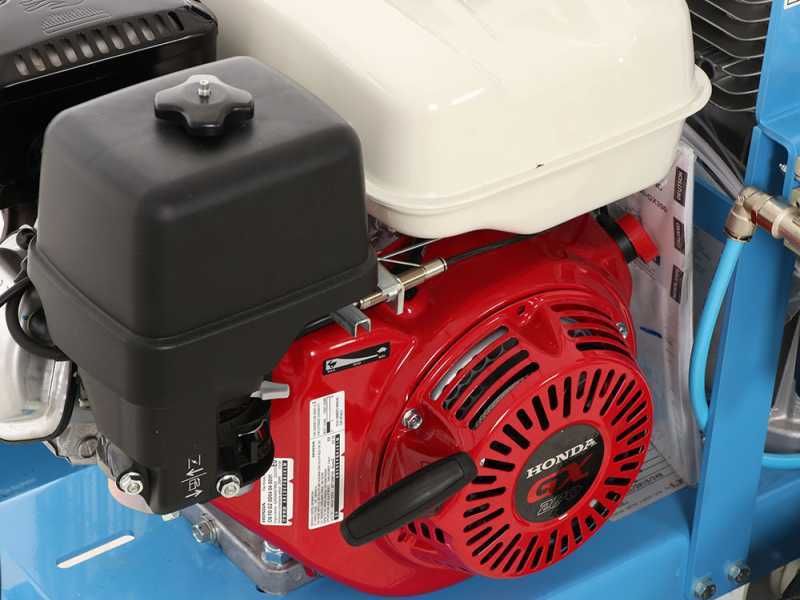

Honda GX 270 engine

The Honda GX 270 is a professional and powerful engine of the latest generation equipped with OHV technology.

Features:

Engine type:

Single cylinder 4-Stroke - OHV

Cylinder type:

Aluminium

Cubic capacity:

270 cm³

Compression ratio:

8.5: 1

Max. rpm:

3600 rpm

Torque value:

19.1 Nm / 1.94 kgfm / 2500 rpm

Fuel tank capacity:

3.1 L

Consumption:

2.4 L/h 3600 rpm

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

This petrol engine-driven air compressor is equipped with an automatic throttle, a particular device that adjusts the motor revolutions according to the load required by the pumping group.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

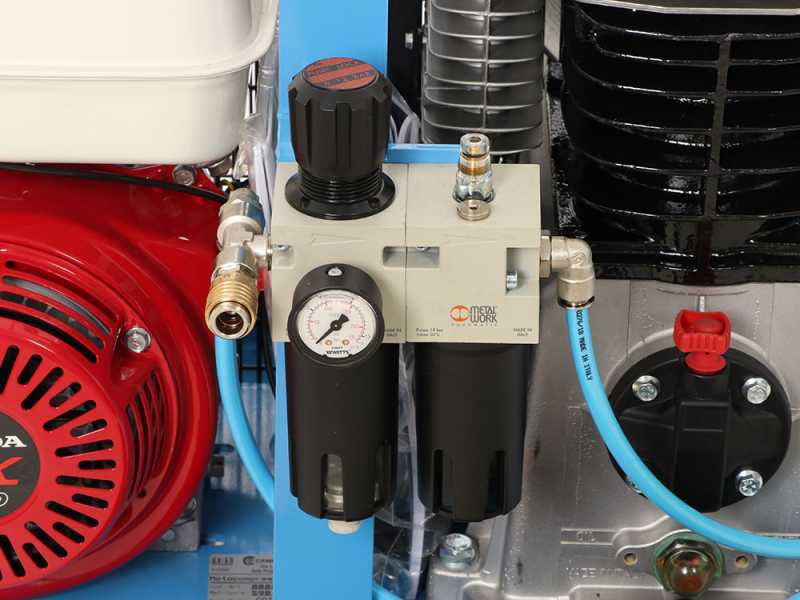

Tank and control panel

The control panel is very user-friendly and features:

Quick coupling

Pressure regulator

Output air pressure gauge

Aluminium lubricator and condensate separator filter

25 L tank. It includes a gauge for air pressure control. Tank condensate drain valve

No load operation system and maximum pressure control by means of professional pilot check valve

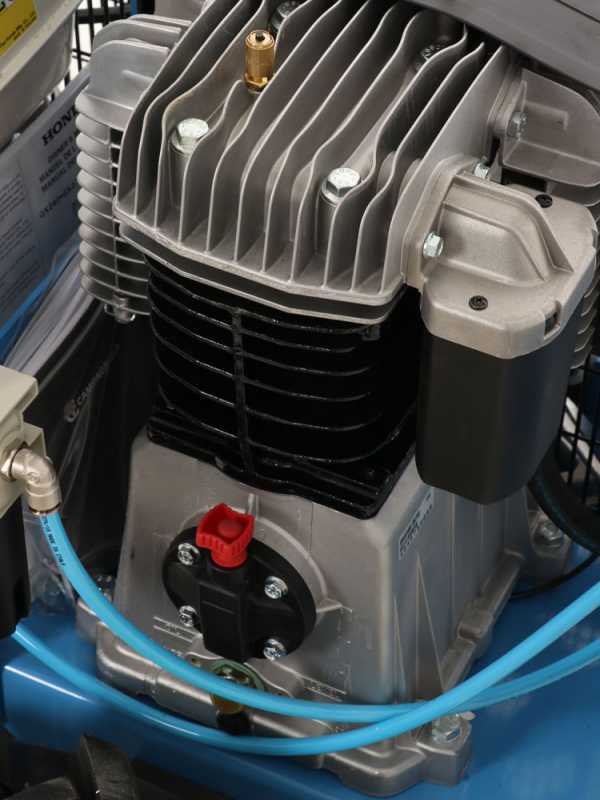

Fiac cylinder head

The professional top quality head unit is intended for heavy-duty continuous work.

Twin-stage head which guarantees a much better efficiency than the single-stage ones.

Equipped with two cast iron cylinders, a very sturdy and durable material.

Two-stage head unit.

The very low number of the pumping unit rpm increases its efficiency.

Its 554 L/min of air intake flow allows to simultaneously operate:

7 pruning shears
up to 4 olive harvesters
a pruning saw

Its two-stage head is equipped with two cylinders connected in series where the air is compressed gradually until it reaches the final pressure.

Between the stages, the compressed air is cooled. This improves efficiency, providing higher pressures than those achieved with a single-stage compressor,

Detail of the porthole for oil control
