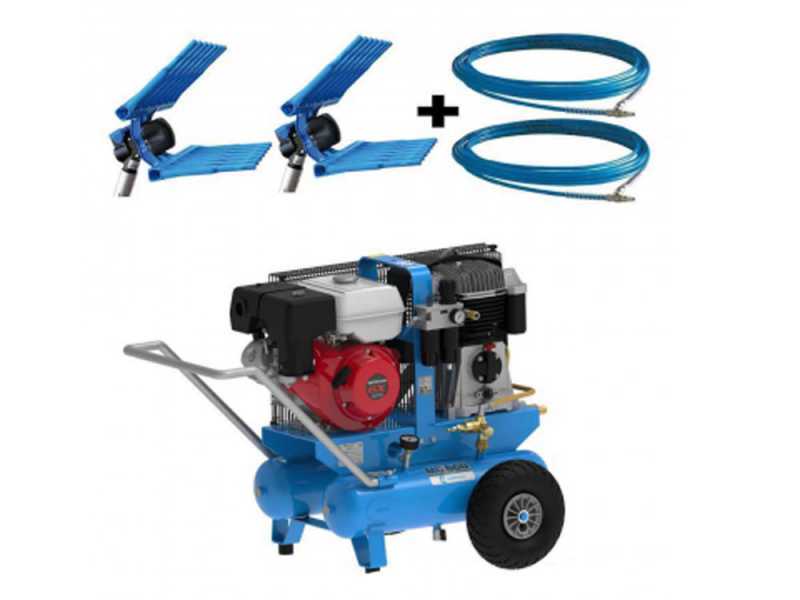

Campagnola MC 660 Petrol Engine-driven Air Compressor with Honda GX270 Petrol Engine + 2 Olive Harvesters

The Campagnola MC 550 air compressor mounts a powerful Honda GX270 270 cc petrol engine capable of delivering up to 8.4 HP of nominal power.

This petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector. The machine is equipped with a Fini BK114 two-stage cylinder head with 2 cylinders.

The Campagnola MC 550 air compressor features a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached. This device allows a considerable saving on fuel, a reductionin the wear of the mechanical parts and also a decrease in exhaust emissions.

The air compressor is mounted on a balanced frame with double tank to reduce the condensate effect. This model is equipped with a pair of tanks of 11 L each.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during working phases.

This air compressor can be used with:

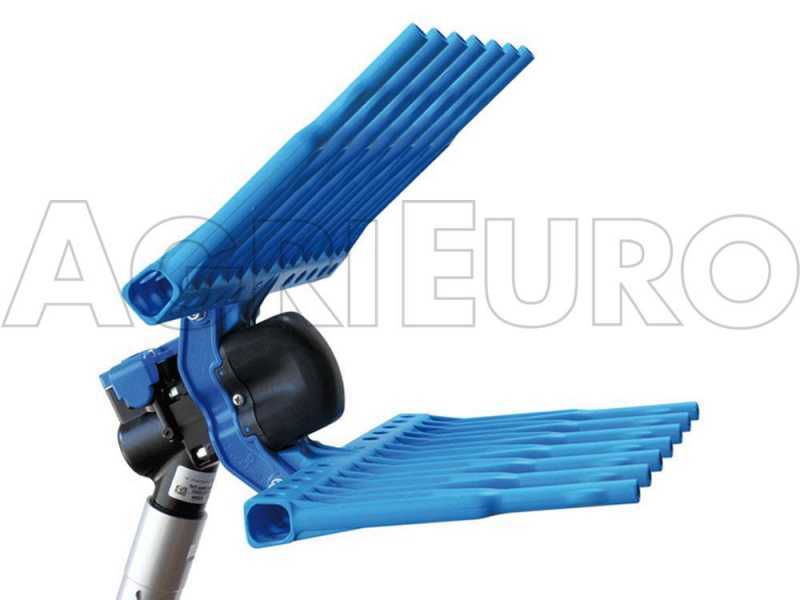

up to 4 olive harvesters

up to 6 pneumatic shears

up to 1 pneumatic chainsaw

Air intake flow: 582 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1370 rpm

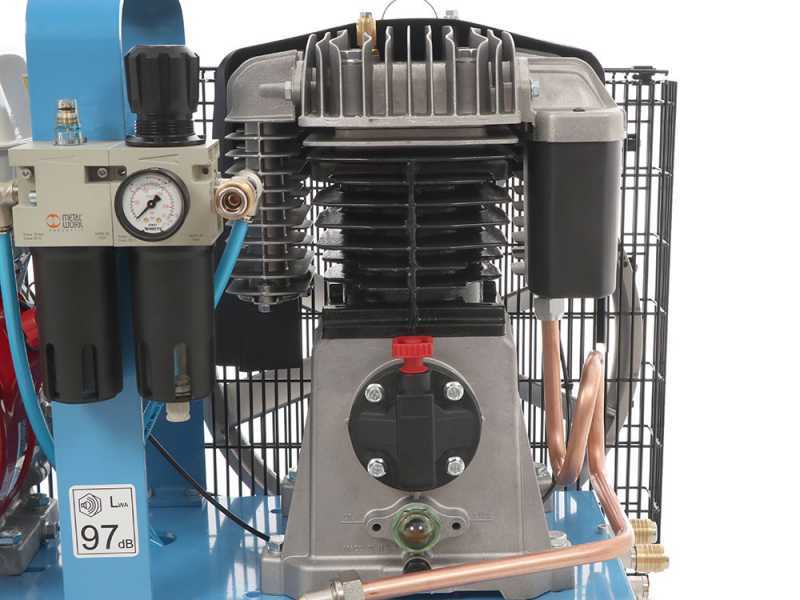

The pumping unit mounted on this Campagnola MC 660 is made by Fini and is the result of high technology and years of experience in the field. This petrol engine-driven air compressor belongs to a professional line and stands out for its exceptional durability and reliability, thanks to the use of components made with top-quality materials:

- shafts and cylinders entirely made in cast iron

- die-cast aluminium cylinder heads

- stainless steel reed valves

oil level indicator in the pumping unit

Fini provides MADE IN ITALY high quality materials: the pumping unit is entirely manufactured in Italy

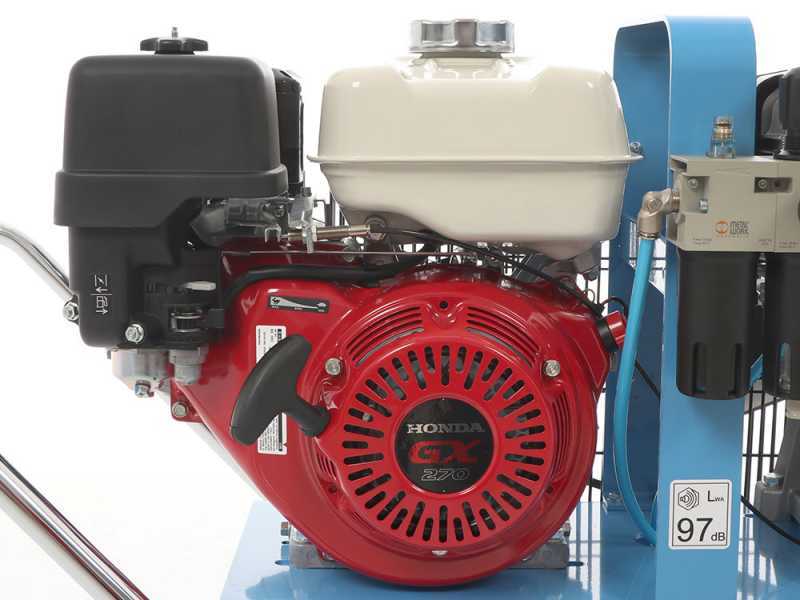

The latest-generation Honda GX 270 engine is of super-professional and SUPER-POWERFUL rank with overhead valve OHV technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING!

Warning: these machines are tested by the manufacturer before being shipped. Therefore, the engine is already filled with oil at level and there is a minimum amount of fuel in the tank. Gearbox oil already at level. Always check the oil levels in accordance with the instruction manual before starting up the machine.

Nominal Power: 8.4 HP (3600 rpm)

* The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Rated power: 6.8 HP (3600 rpm)

* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

The Campagnola MC 660 petrol engine-driven air compressor features a belt drive.

The use of the transmission belt guarantees a very high level of safety and makes this machine the top of its range. Combined with Honda petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

The petrol engine-driven air compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

Maximum pressure: 11 bar

Equipped with pressure gauge directly connected to the 2 tanks that controls the tank air pressure

4-outlet air divider that allows you to use 3 pneumatic harvesters at the same time

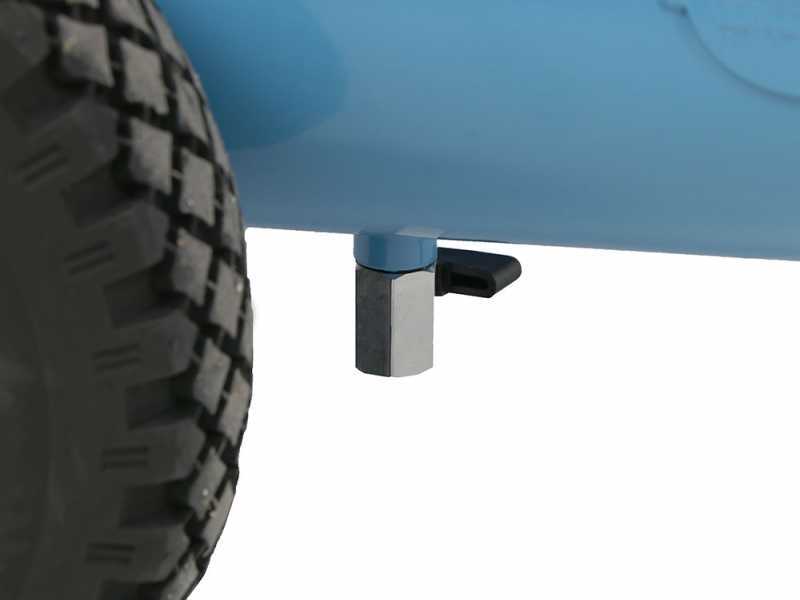

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

Dimensions (L x W x H): 121 x 70 x 85 cm

Weight: 103 kg

Equipped with removable front handle for easy grip and practical storage.

Focus on the handle removal system

Large rear tractor wheels

Sturdy front supports directly connected to the tanks.

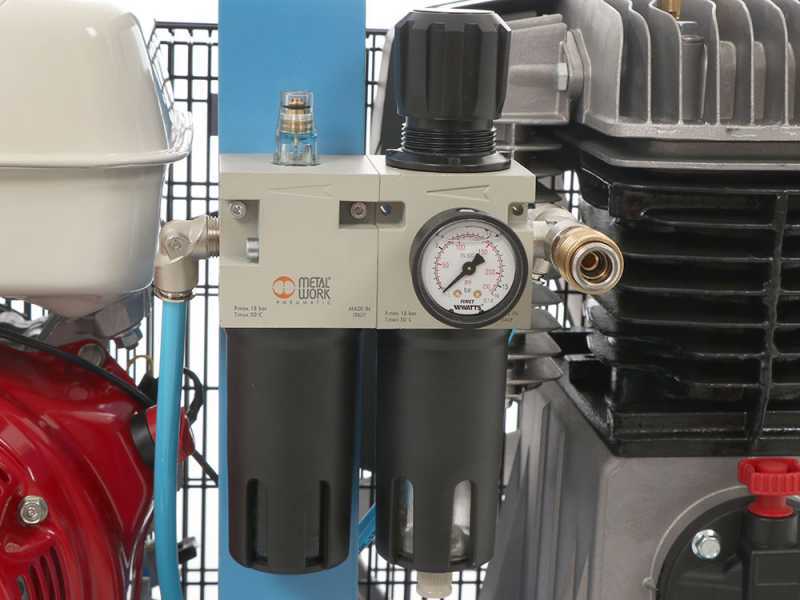

The Campagnola MC 660 petrol engine-driven air compressor is also equipped with a filter/regulator/lubricator unit

Focus on the hose reel holder supplied
