Campagnola MC 658 7Hp Petrol Engine-driven Air Compressor KIT + 2 Tuono Evo Pneumatic Olive Harvesters

Questions & Answers (1)
ID: K605150

EAN: 9993089184642

MPN: KITS.0179

9,1/10
After-sales assistance & Spare parts
Campagnola MC 658 7Hp Petrol Engine-driven Air Compressor KIT + 2 Tuono Evo Pneumatic Olive Harvesters
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
22 L
Motor brand
Producer-manufactured
Motor Model
R210
Motor type
4-stroke
Cubic capacity
212 cm³
Nominal power
7 HP
Cylinder head brand
Fiac
Air intake flow
582 L/min
Pump type
Two-stage
Cylinder head rpm
1250 RPM
Automatic throttle
Yes
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
MC 658
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 5
Quantity of powered chainsaws:
1 not for intensive use
Manufacturing country:
Italy
Motor data
Motor brand:
Rato
Motor Model:
R210
Motor type:
4-stroke
Cubic capacity:
212 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
7 HP
Rated power (HP):
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Noise level:
97 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Fiac
Air intake flow:
582 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1250 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
4
Hose reel support/s:
Yes
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
mm 290x105
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(La x Lu x Alt) 85 x 72 x 80 cm
Net weight:
93 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
(La x Lu x Alt) 95.5 x 76 x 104 cm
Gross weight (packaging included) :
90 Kg
Assembly time:
5 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 18/11/2024 - 20/11/2024
€ 3.234,72
VAT Included
You're viewing:
Customers also viewed:
Description

Campagnola MC 658 petrol engine-driven air compressor

The Campagnola MC658 engine-driven air compressor is intended for professional use only, and offers you the best performance for its size.

The pumping unit is driven by a Campagnola 7 Hp petrol engine, a powerful 4-stroke single-cylinder engine that is capable of reaching 3600 rpm.

The air compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model is equipped with a pair of tanks of 11 L each, for a total capacity of 22 L.

On the Campagnola MC 658 engine-driven air compressor is installed an automatic throttle device which, based on the air intake of the equipment used, automatically adjusts the engine acceleration level.

This operation allows a considerable saving on fuel, reducing the wear of the mechanical parts and also decreasing exhaust emissions.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during work sessions.

This motor compressor supports the use of 3 olive harvesters simultaneously, up to 5 pneumatic shears and a pneumatic chain pruner.

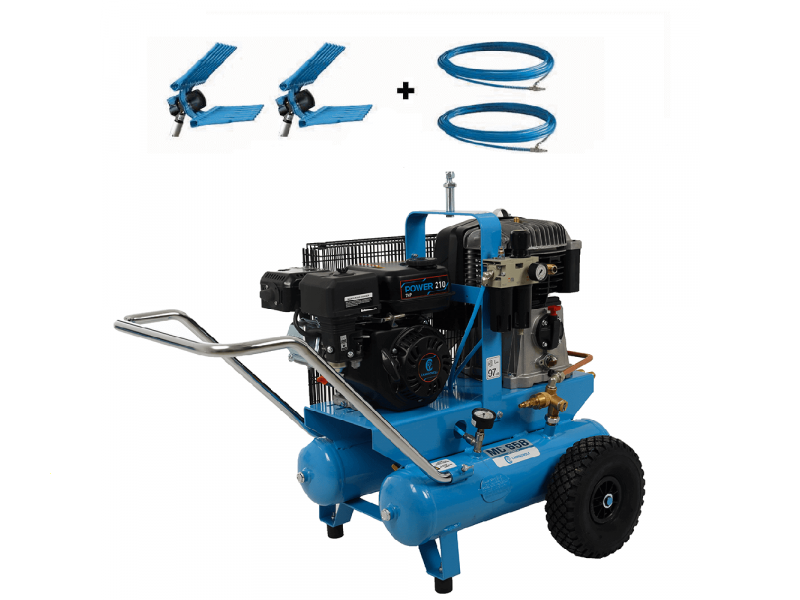

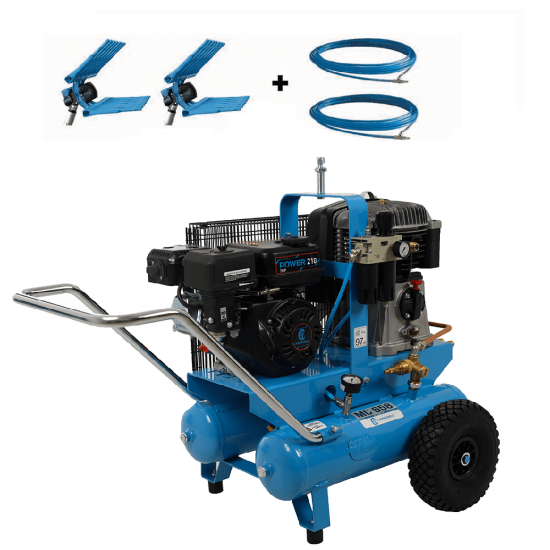

The KIT includes:

  • MC 658 7 Hp petrol engine-driven air compressor
  • 2 Tuono Evo pneumatic olive harvesters
  • 2 hoses (20 m)
  • 2 oil bottles

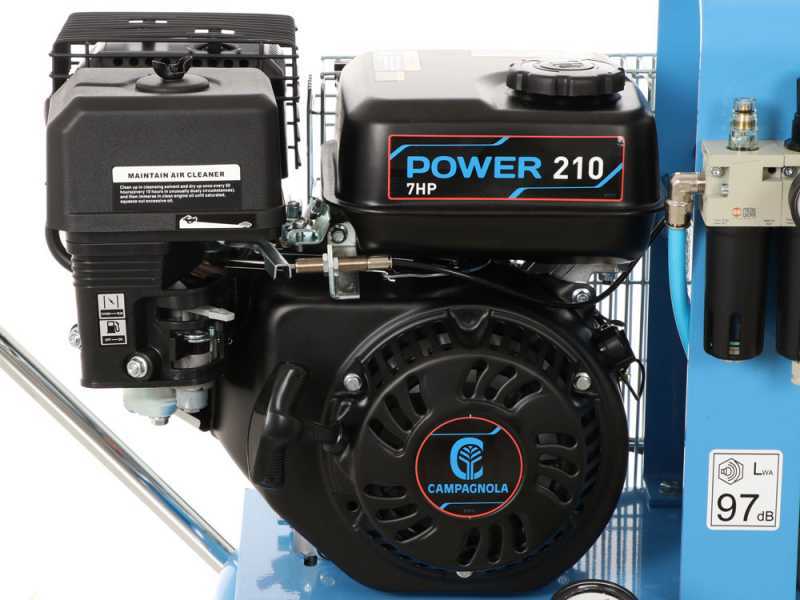

7 Hp Producer-manufactured engine

The 4-stroke petrol engine develops 5.5 Hp of rated power and its function is to operate the pumping unit. This high performance engine is suitable for works where great power is required and that is easily reached thanks to the 212 cc.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Power: 5.5 Hp
Engine cooling system: air-cooled
Cylinder type: aluminium
Cubic capacity: 212 cc
Max. rpm: 3600 rpm

4-Stroke petrol engine belonging to the latest technology with overhead valve system "OHV”

Recoil start

Dry air filter

Easily replaceable spark plug


Nowadays, the great majority of agricultural and gardening equipment available on the market mounts unbranded (or unknown brand) engines made in China.


Warning:

The engine comes without oil. Read the instructions before starting the machine

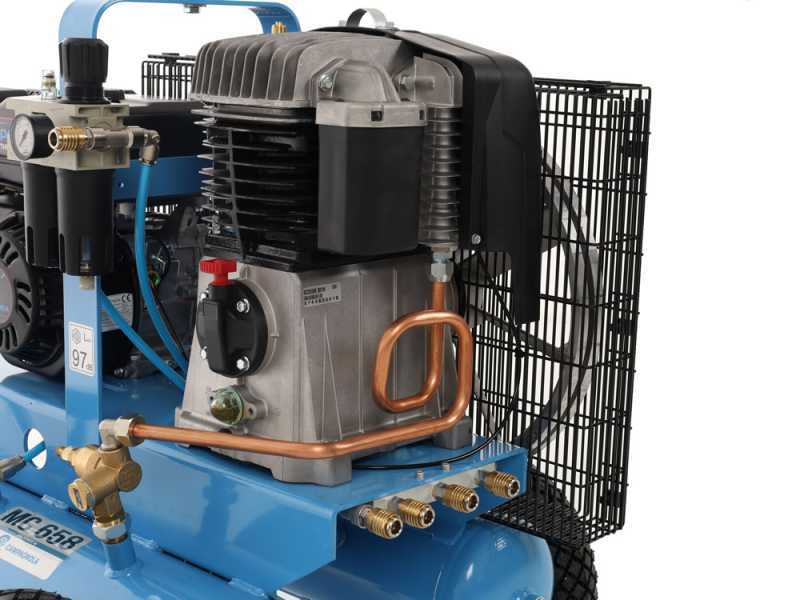

Cylinder head

Air displacement: 582 L/min
Head type: twin-cylinder with cast iron cylinders
Suction type: two-stage
Lubrication: oil
No. of revolutions: 1250 rpm


The pumping unit mounted on this Campagnola MC 658 is made by Fiac and is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- Shafts and cylinders entirely made in cast iron

- Die-cast aluminium heads

- Stainless steel reed valves

- Oil level indicator in the pumping unit

The Fiac brand offers MADE IN ITALY high-quality materials: the pumping unit is entirely manufactured in Italy

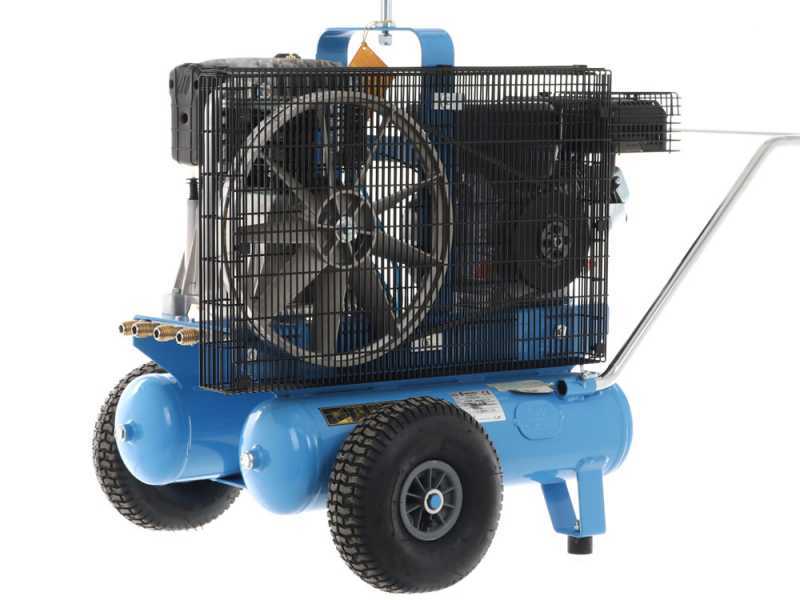

Belt drive

The belt drive characterises this Campagnola MC 658 engine-driven air compressor.

The use of the transmission belt guarantees a very high level of safety and makes this machine the top of the range. Combined with the petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is metallic, very sturdy and solid, it allows excellent cooling.

Focus on the driving pulley

Focus on the drive belt

Double tank and controls

The compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

Max. pressure: 11 bar

Equipped with pressure gauge directly connected to the 2 tanks that controls the tank air pressure.

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

4-outlet air divider that allows you to use 3 pneumatic harvesters at the same time

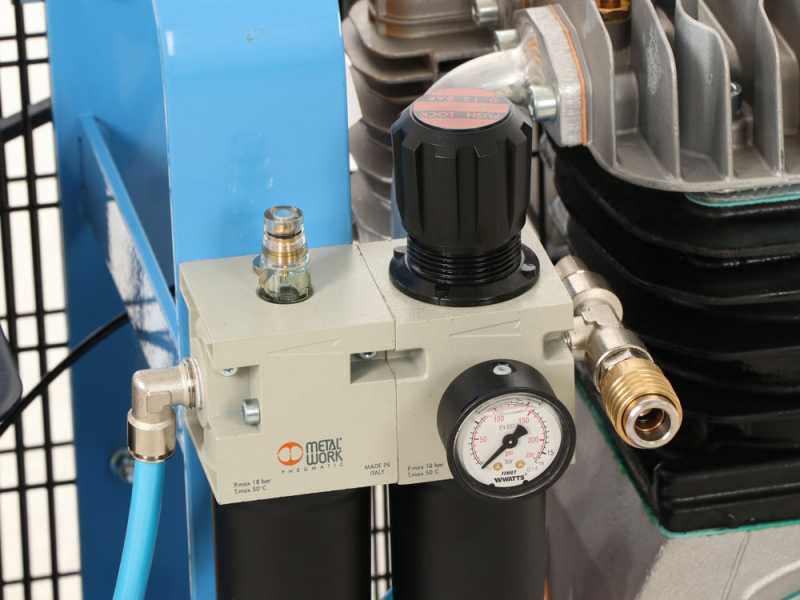

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate. These tools are all included in the control panel

Other features

Dimensions (L x W x H): 85 x 72 x 80 cm (without handle)

Weight: 92.7 Kg

Equipped with removable front handle for easy grip and practical storage.

Focus on the handle removal system

Large rear tractor wheels

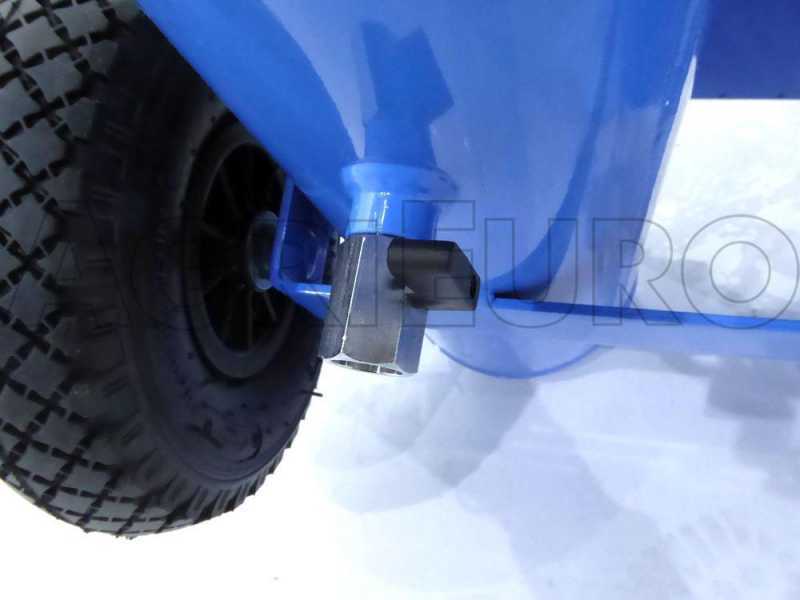

Sturdy front supports directly connected to the tanks.

The Campagnola MC 658 engine-driven air compressor is also equipped with a filter regulator/lubricator unit and a safety valve and pilot valve/unloader

Focus on the hose reel holder supplied

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Included: 2 Tuono Evo olive harvesters + 2x 20 m hoses

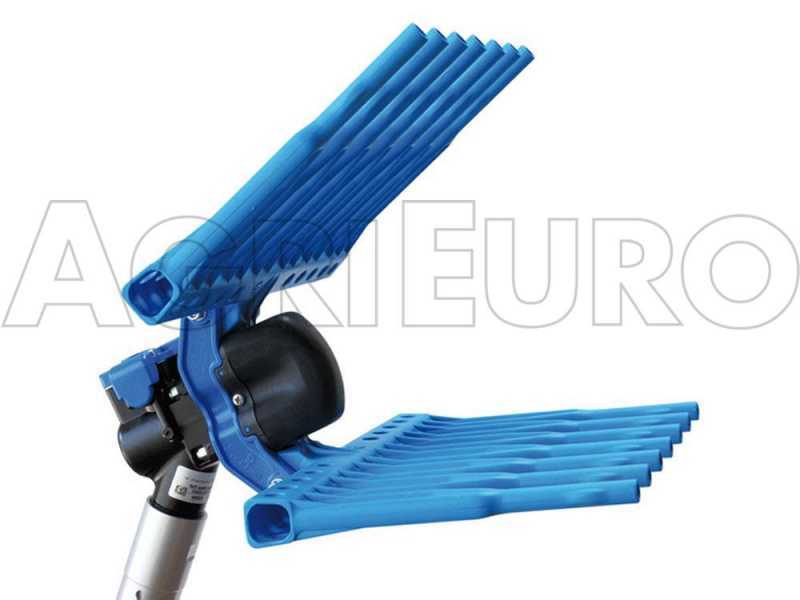

The Olistar Tuono olive harvester has kept the main characteristics of Campagnola olive harvesters, but its great innovation is the "short stroke" system, which reduces the opening of the rakes and increases their speed up to 1800 strokes per minute .

This allows the machine to pass smoothly through the foliage and not damage the olive tree. Rakes feature prongs with the "diapason” shape and are able to work with all types of olives, regardless of the degree of ripeness.

The engine, in magnesium alloy, favours the thermal exchange and prevents the formation of ice in case of low temperatures. While requiring a low operating pressure (6 bar max), Olistar Tuono is a powerful tool that allows even the smallest and most hard-to-detach olives to be collected with great ease.

The Olistar Tuono olive harvester weighs only 1000 g and, thanks to its perfect balance, guarantees a particularly comfortable use.

ATTENTION: pool not included

Free items included

Original documents and instructions manual included in the package

The machine is shipped in its original packaging on pallet.

Instructions manual and engine maintenance wrench

Hose reel holder supplied
