Campagnola MC 550 Petrol Engine-driven Air Compressor (554 L/min) with Honda GX200 Engine

Questions & Answers (2)
ID: K601318

EAN: 9993089410048

MPN: KITS:0148compressore

Campagnola MC 550 Petrol Engine-driven Air Compressor (554 L/min) with Honda GX200 Engine
+40 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
22 L
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Cylinder head brand
Fini
Air intake flow
554 L/min
Pump type
Single-stage
Cylinder head rpm
1300 RPM
Automatic throttle
Yes
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
MC 550
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 4
Quantity of powered chainsaws:
1 not for intensive use
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
6.5 HP
Rated power (HP):
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Manufacturing country:
Japan
Pump data
Pump brand:
Fini
Cylinder head brand:
Fini
Model:
Mk113
Air intake flow:
554 L/min
Pump type:
Single-stage
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Cylinder head rpm:
1300 RPM
Pulleys material:
Aluminium
Transmission protective cover:
rete metallica
Equipment
Automatic throttle:
Yes
Recoil start system (with rope):
Yes
No. of outlet couplings:
4
Hose reel support/s:
Yes
Pressure regulator:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
73x62x72 cm
Net weight:
70 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
84x76x70 cm
Gross weight (packaging included) :
70 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 3.211,82
VAT Included
You're viewing:
Customers also viewed:
Description

Campagnola MC 550 Petrol Engine-driven Air Compressor

The Campagnola MC 550 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

The pumping unit is driven by a Honda GX 200 petrol engine, a powerful 4-stroke engine of the latest generation.

The air compressor is mounted on a balanced frame with double tank to reduce the condensate effect. This model is equipped with a pair of tanks of 11 L each.

The Campagnola MC 550 air compressor features a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.

This operation allows a considerable saving on fuel, a reduction in the wear of the mechanical parts and also a decrease in exhaust emissions.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during working phases.

This engine-driven air compressor allows the use of 3 olive harvesters at the same time, up to 4 pneumatic shears and a pneumatic chain pruner.

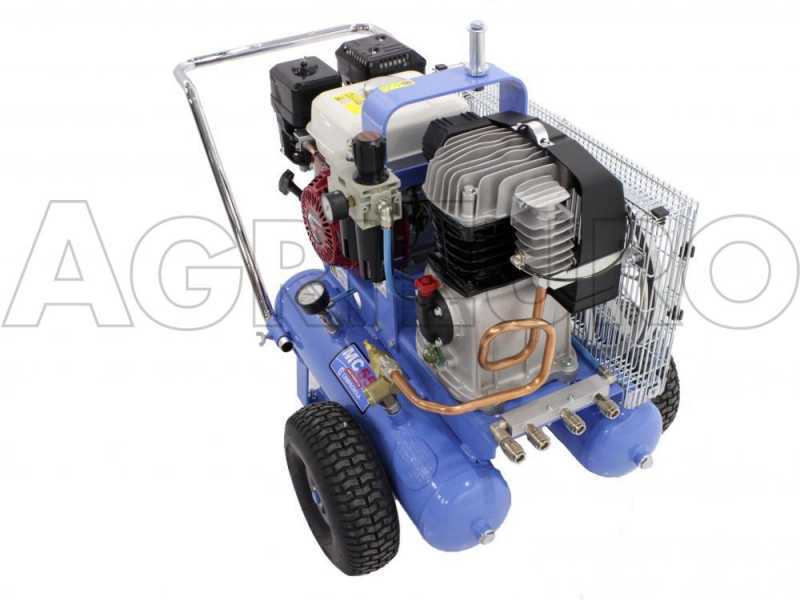

Cylinder head

Air intake flow: 554 L/min
Head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1300 rpm


The pumping unit mounted on this Campagnola MC 550 is made by Fini and is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- shafts and cylinders entirely made in cast iron

- die-cast aluminum heads

- stainless steel reed valves

oil level indicator in the pumping unit

Fini provides MADE IN ITALY high quality materials: the pumping unit is entirely manufactured in Italy

HONDA GX 200 engine

The Honda GX 200
engine is professional, powerful and with the latest generation overhead valve technology.


Features:

Engine type:
4-Stroke, single cylinder 4 stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
196 cm³
Max. rpm:
3600 rpm
Torque value:
12.4 Nm / 1.26 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.7 L/h 3600 rpm



The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterized by great durability and reliability.




The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

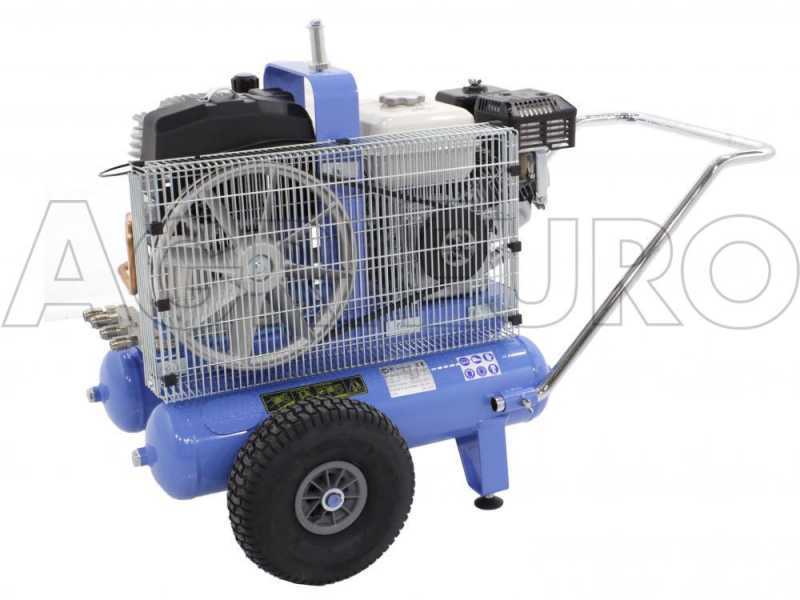

Belt drive

The Campagnola MC 550 engine-driven air compressor features a belt drive.

The use of transmission belt guarantees a very high level of safety, and makes this machine the top of the range. Combined with Honda petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

Detail of the drive pulley

Detail of the drive belt

Double tank and controls

The compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model is equipped with a pair of tanks of 11 L each.

Maximum pressure: 11 bar

Equipped with pressure gauge directly connected to the 2 tanks that control the tank air pressure

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

4-outlet air divider that allows you to use 3 pneumatic harvesters at the same time

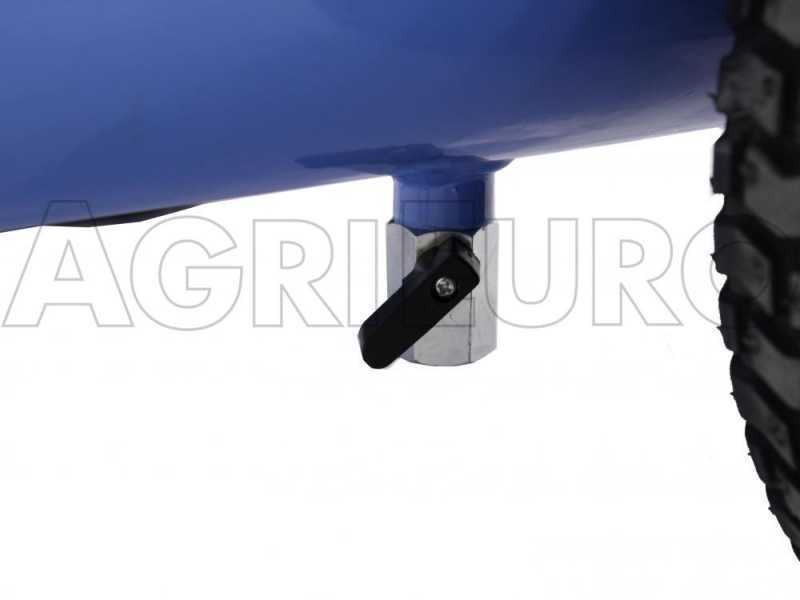

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

Other features

Dimensions (L x W x H): 73 x 72 x 62 cm (without handle)

Weight: 70 kg

Equipped with removable front handle for comfortable grip and easy storage.

Detail of the handle removal system

Large rear tractor wheels

Sturdy front supports directly connected to the tanks.

The Campagnola MC 550 engine-driven air compressor is also equipped with a filter/regulator/lubricator unit and a safety valve and pilot valve/unloader

Detail of the hose reel holder supplied

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

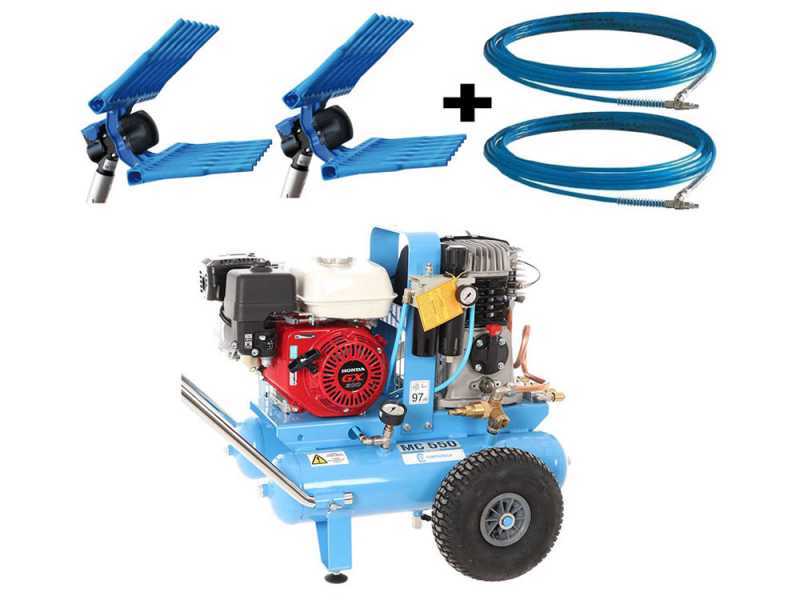

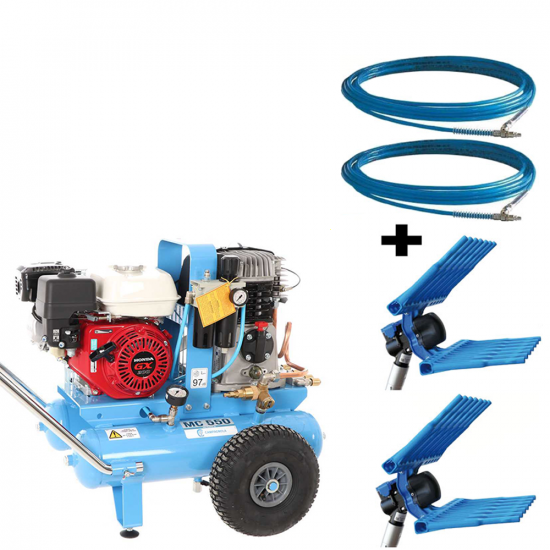

Free items included: 2 Tuono Evo olive harvesters + 2 20 m hoses

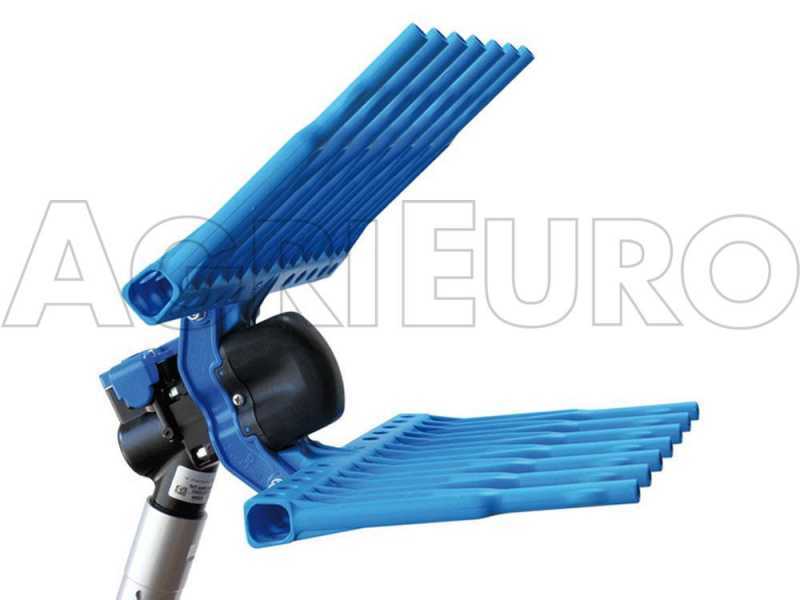

The Olistar Tuono olive harvester has kept the main characteristics of Campagnola olive harvesters, but its great innovation is the "short stroke" system, which reduces the opening of the rakes and increases their speed up to 1800 strokes per minute .

This allows the machine to pass smoothly through the foliage and not damage the plant. Rakes feature prongs with the "diapason" shape and are able to work with all type of olive, regardless of the degree of ripeness.

The engine, in magnesium alloy, favors the thermal exchange and prevents the formation of ice in case of low temperatures. While requiring a low operating pressure (6 bar max), Olistar Tuono is a powerful tool that allows even the smallest and most hard to detach olives to be collected with great ease.

The Olistar Tuono olive harvester weighs only 1000 g and, thanks to its perfect balance, guarantees a particularly comfortable use.

ATTENTION: pole not included

Free items included

Original documents and instructions manual included in the packaging.

The petrol engine-driven air compressor is equipped with:

  • lubricant spout

    The machine is shipped in its original packaging on pallet
  • Hose reel holder supplied
