Campagnola MC 545 Petrol Engine-driven Air Compressor Honda GP160 KIT + 2 Tuono Evo Pneumatic Olive Harvesters + Victory Pneumatic Pruning Shears

Questions & Answers (3)
ID: K605738

EAN: 9993089184642

MPN: KITS.0175

9,1/10
After-sales assistance & Spare parts
Campagnola MC 545 Petrol Engine-driven Air Compressor Honda GP160 KIT + 2 Tuono Evo Pneumatic Olive Harvesters + Victory Pneumatic Pruning Shears
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
22 L
Motor brand
Honda
Motor Model
GP160
Motor type
4-stroke
Cubic capacity
163 cm³
Nominal power
4.8 HP
Cylinder head brand
Fiac
Air intake flow
554 L/min
Pump type
Single-stage
Automatic throttle
Yes
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
MC 545
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 4
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GP160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
4.8 HP
Rated power (HP):
3.9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Oil tank capacity:
0.6 L
Noise level:
97 dB(A)
Manufacturing country:
Japan
Pump data
Pump brand:
Fiac
Cylinder head brand:
Fiac
Air intake flow:
554 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
2
Hose reel support/s:
Yes
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
260x85
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(La x Lu x Alt) 78 x 67 x 72 cm
Net weight:
70 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
(La x Lu x Alt) 86 x 70 x 86 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 18/11/2024 - 20/11/2024
€ 3.071,93
VAT Included
You're viewing:
Customers also viewed:
Description

Campagnola MC 545 Petrol Engine-driven Air Compressor

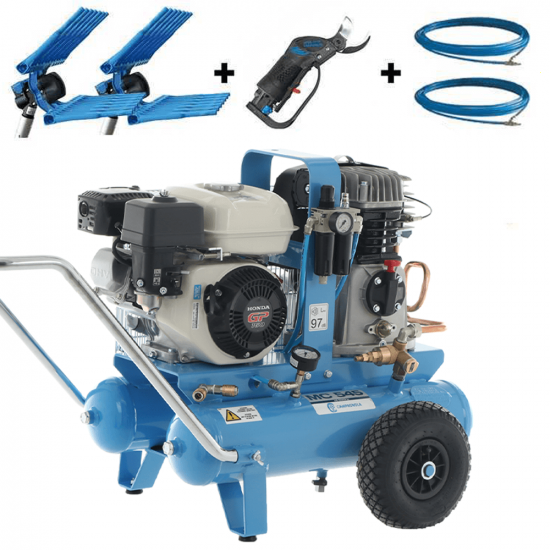

The KIT includes:

  • MC 545 Engine-driven air compressor with Honda GP 160 engine
  • Victory pneumatic shears
  • 2 Tuono Evo pneumatic oilve harvesters
  • 2 hoses (20 m)
  • 2 oil bottles

The CampagnolaMC545 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

The pumping unit is driven by a Honda GP160 petrol engine, a powerful 4-stroke engine of the latest generation.

The air compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

On the Campagnola MC 545 air compressor there is a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.

This operation allows a considerable saving on fuel, a reductionin the wear of the mechanical parts and also a decrease in exhaust emissions.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during work sessions.

This motor compressor supports the use of 2 olive harvesters simultaneously, up to 5 pneumatic shears and a pneumatic chain pruner.

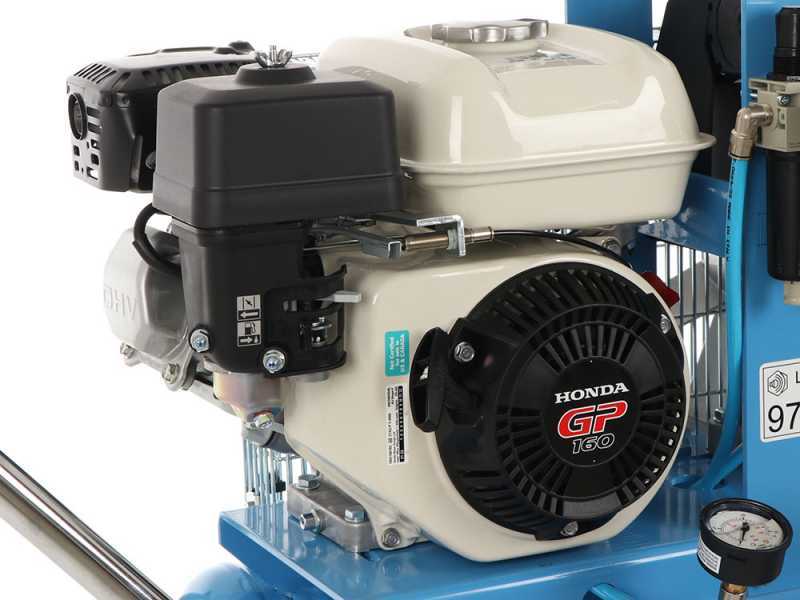

HONDA GP 160 Engine

The Honda GP 160 production engine is heavy-duty and powerful and with the latest generation OHV technology.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cubic capacity: 163 cc
Max. rpm: 3600 rpm
Torque value: 10.3 Nm / 1.05 kgfm / 2500 rpm
Fuel tank capacity: 3.1 L

Nominal power: 4.8 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.9 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.


ATTENTION

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

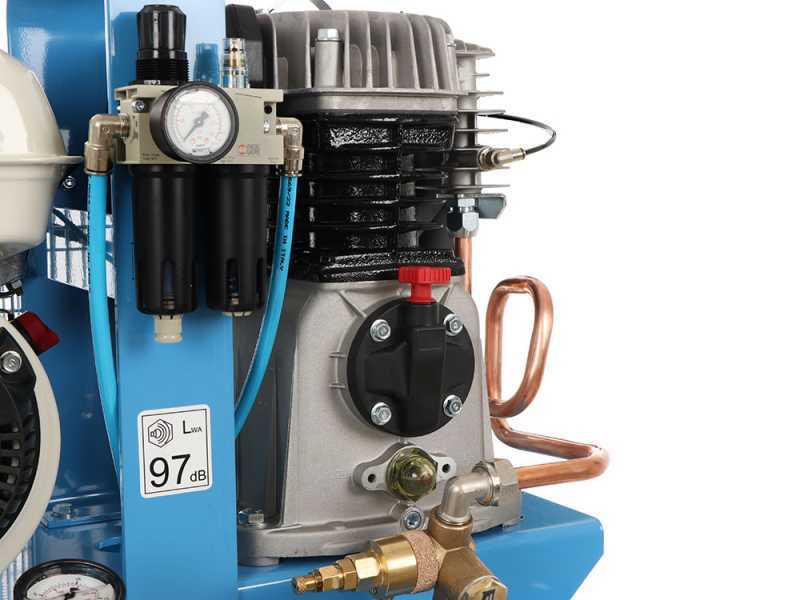

Cylinder head

Air displacement: 554 L/min
Head type:twin-cylinder with cast iron cylinders
Induction type: Single-stage
Lubrication:oil-lubricated


The pumping unit mounted on this Campagnola MC 545 is made by Fiac and is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- Shafts and cylinders entirely made in cast iron

- Die-cast aluminium heads

- Stainless steel reed valves

Oil level indicator in the pumping unit

Head tank cap

The Fiac brand offers MADE IN ITALY high-quality materials: the pumping unit is entirely manufactured in Italy

Belt drive

The belt drive characterizes this Campagnola MC 545 engine-driven air compressor.

The use of the belt guarantees a very high level of safety and makes this machine the top of the range. Combined with the Subaru petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder headand reducing wear.

The protective housing is metallic, very sturdy and solid, it allows excellent cooling.

Double tank and controls

The compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

Max. pressure: 11 bar

Equipped with pressure gauge directly connected to the 2 tanks that controls the tank air pressure.

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

2-outlet air divider that allows you to use 2 pneumatic harvesters at the same time

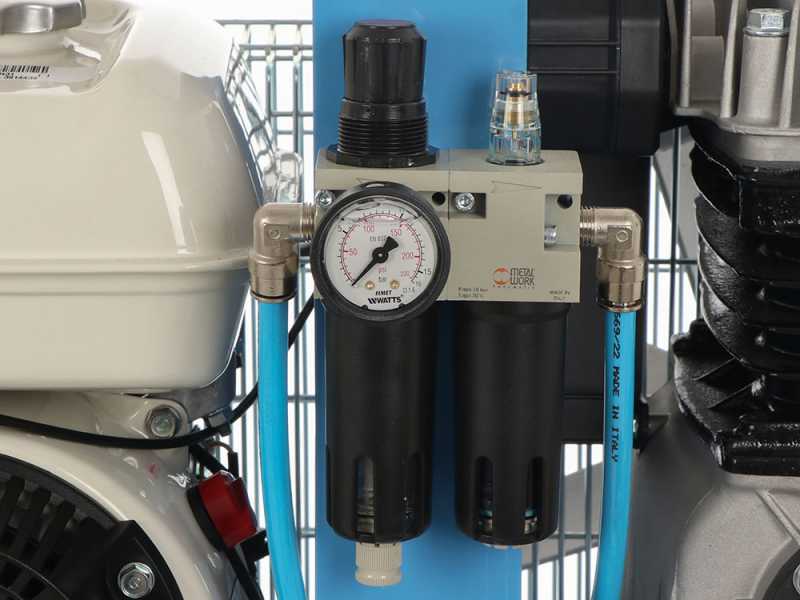

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomizes oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate. These tools are all included in the control panel

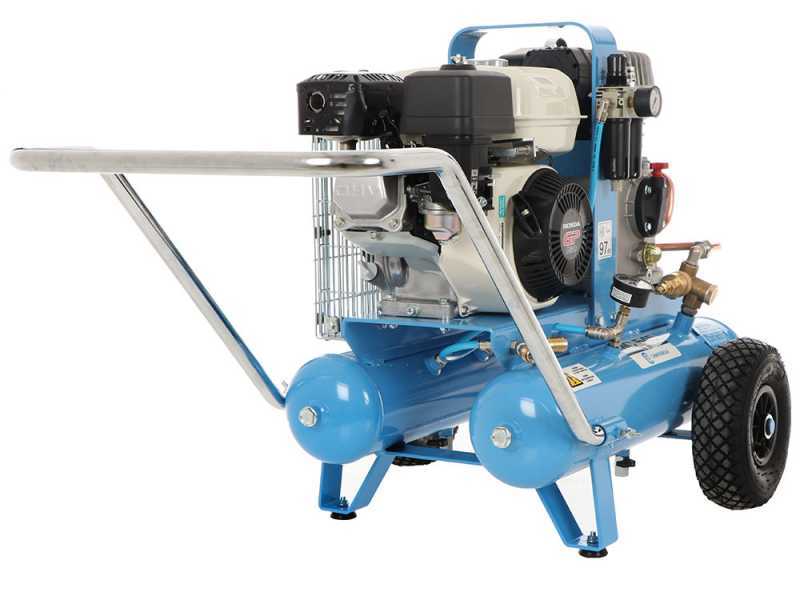

Other features

Dimensions (L x W x H): 78 x 67 x 72cm (without handle)

Weight: 70 Kg

Equipped with removable front handle for easy grip and practical storage.

Large rear tractor wheels

Sturdy front supports directly connected to the tanks.

Focus on the bleed valve

Focus on the hose reel holder with hook supplied.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included: 1 Victory pneumatic shears

Victory are the latest pneumatic shears by Campagnola.

Victory are traditional one piston shears, with a very strong cut and performs more 3 strokes per second.

Although their very large cutting diameter, compared to Campagnola other pneumatic shears, they have an ergonomic grip that make them very easy to handle.

The blades are sturdy but also flexible, and resistant to transversal bendings, made of high-resistant forged steel

A practical adapter available to mount the shears on the pole very quickly without disassembling the shears or using special tools.

ATTENTION: the adapter and the compressed air quick coupling are not included but must be purchased separately.

Free items included: 2 Tuono evo olive harvesters + 2x 20 m hoses

The Olistar Tuono olive harvester has kept the main characteristics of Campagnola olive harvesters, but its great innovation is the "short stroke" system, which reduces the opening of the rakes and increases their speed up to 1800 strokes per minute .

This allows the machine to pass smoothly through the foliage and not damage the olive tree. Rakes feature prongs with the "diapason” shape and are able to work with all types of olives, regardless of the degree of ripeness.

The engine, in magnesium alloy, favours the thermal exchange and prevents the formation of ice in case of low temperatures. While requiring a low operating pressure (6 bar max), Olistar Tuono is a powerful tool that allows even the smallest and most hard-to-detach olives to be collected with great ease.

The Olistar Tuono olive harvester weighs only 1000 g and, thanks to its perfect balance, guarantees a particularly comfortable use.

ATTENTION: pool not included

Free items included

Original documents and instructions manual included in the package

The machine is shipped in its original packaging on pallet.

Instructions manual and engine maintenance wrench

Hose reel holder supplied
