Name: Campagnola MASTER PLUG-IN - 185-270 cm Carbon and Aluminium Pole - Electric Battery-powered Olive Harvester - 21.6v 5Ah
Brand: Campagnola
SKU: K608923
Price: 838.51 EUR
Availability: InStock

Description

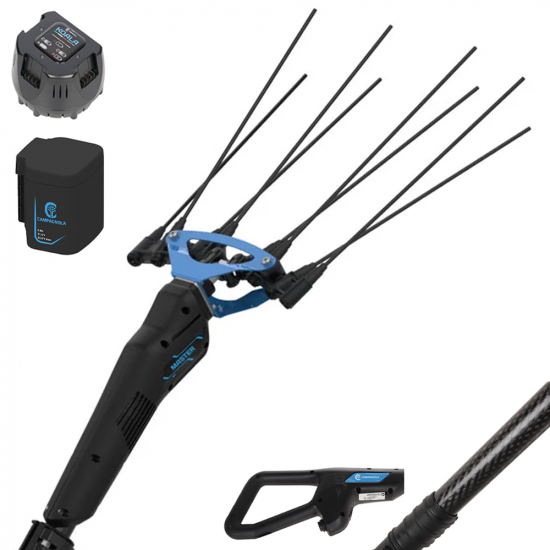

Campagnola MASTER Battery-powered Olive Harvester

Campagnola's MASTER olive harvester is a high quality Italian device, carefully designed to guarantee exceptional results in olive harvesting. This tool was developed with a focus on preserving the health of plants and fruits, allowing efficient harvesting without damaging branches.

One of the main features of the MASTER harvester is its telescopic pole, made of carbon and aluminium, with an adjustable length from 185 to 270 cm.

This design provides extraordinary lightness and facilitates handling, making work easier.

The high-quality engine, integrated in the harvester head, guarantees high performance, allowing efficient and effortless harvesting.

The harvester is equipped with 8 carbon prongs, each 32 cm long, that work gently, ensuring maximum respect for the plants during harvesting.

The 12 V brush motor delivers a nominal power of 325 W, ensuring reliable and consistent operation over time.

The light, resistant and durable pole structure ensures a long product life.

The adjustable telescopic pole allows the harvester to easily adapt to different heights, meeting every need during harvesting.

The device is powered by a car battery, which offers greater autonomy and convenience in the field

Additionally, it is compatible with 12 V lead acid or lithium-ion batteries with a nominal voltage of 21.6 V and a maximum of 25.2 V, thus providing flexibility according to available energy sources.

In conclusion, the Campagnola MASTER harvester is the ideal choice for those seeking superior performance and reliability in olive harvesting, offering a perfect balance between efficiency, comfort and durability.

Campagnola MASTER PLUG-IN - 185-270 cm Carbon and Aluminium Pole - Electric Battery-powered Olive Harvester - 21.6v 5Ah

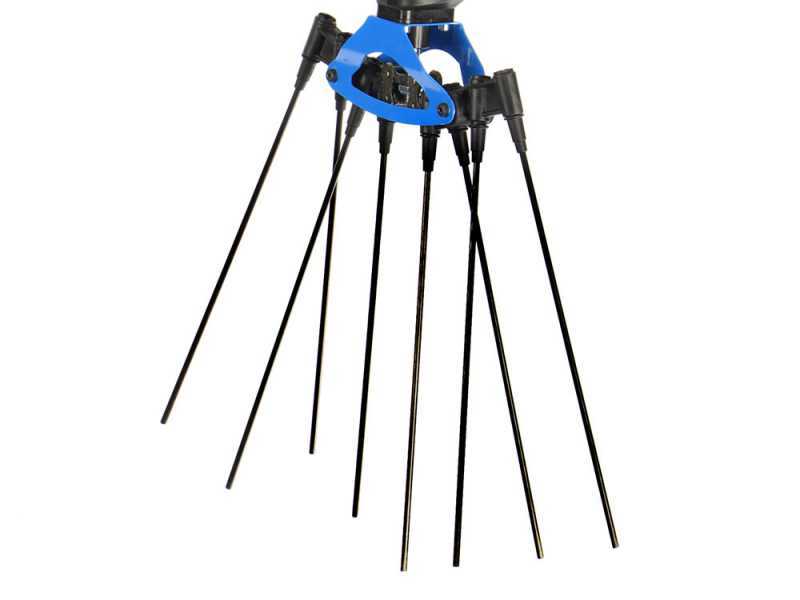

Prongs

The rakes are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

Each prong can harvest many olives.
Superior collection capacity over 50%

The Campagnola MASTER is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique to use the MASTER. It can be used like a rake on well pruned and thin plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

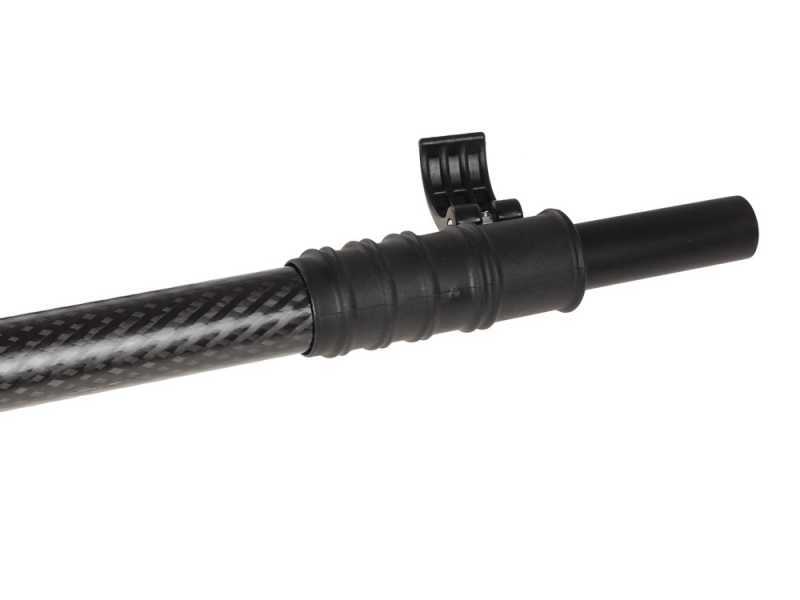

185-270 cm Carbon an Aluminium Telescopic Pole

New telescopic pole (longer than the previous models), made of ALUMINIUM and CARBON, equipped with quick coupling.

Length of the rotating aluminium telescopic pole: 185-270 cm

The rotating extension rod for power tools is made of carbon and aluminium, making it robust and extremely light.

Technical Specifications

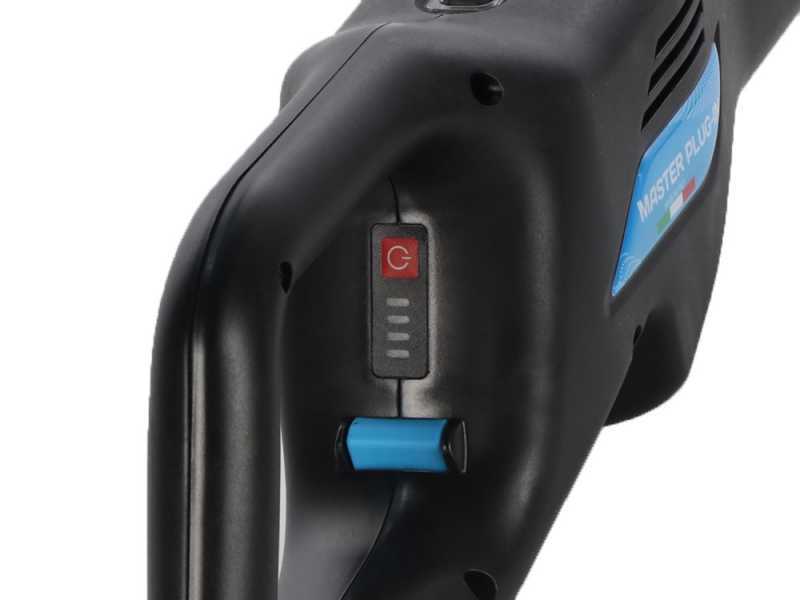

Professional-type interlocking socket. Support base with cable passage eyelet.

Provides full protection of the extension cable and the motor connection socket. Both in the working phase, when the cable is constantly being pulled, and in the other phase, when the machine is resting vertically on the ground.

The tines are individually interchangeable one by one in the event of accidental breakage

The most powerful engine in the market: an impressive 325 watts.

It generates up to 1200 rpm despite the rake's considerable size.
Professional brush motor.

In fact, in case of overheating, it is the only engine on the market that will stop and restart after it cools down (thus preventing it from burning out)

SUPER LIGHT-WEIGHT: The head of this harvester, despite its large size, weighs only 1420 grams

RELATED ADVANTAGES:

improved penetration into foliage;
higher respect of the tree and lower breakage of branches and leaves compared to other olive harvesters with rigid prongs.

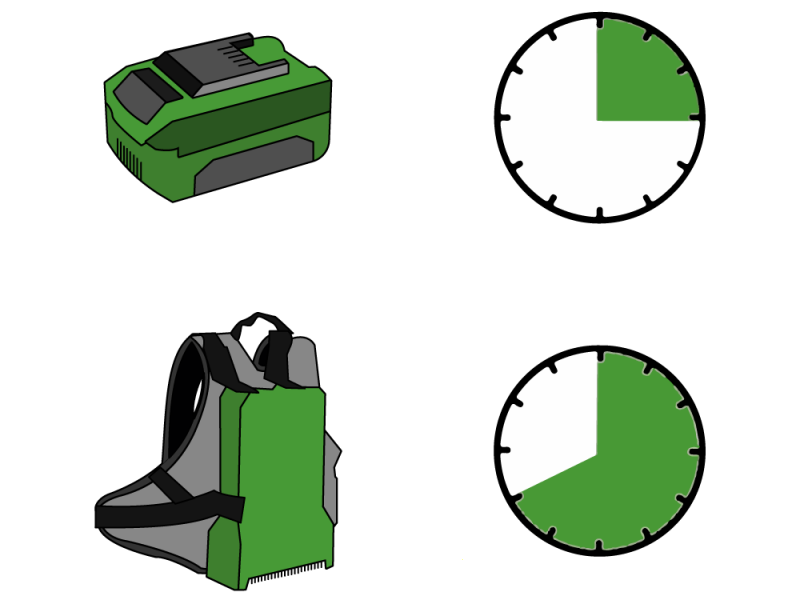

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

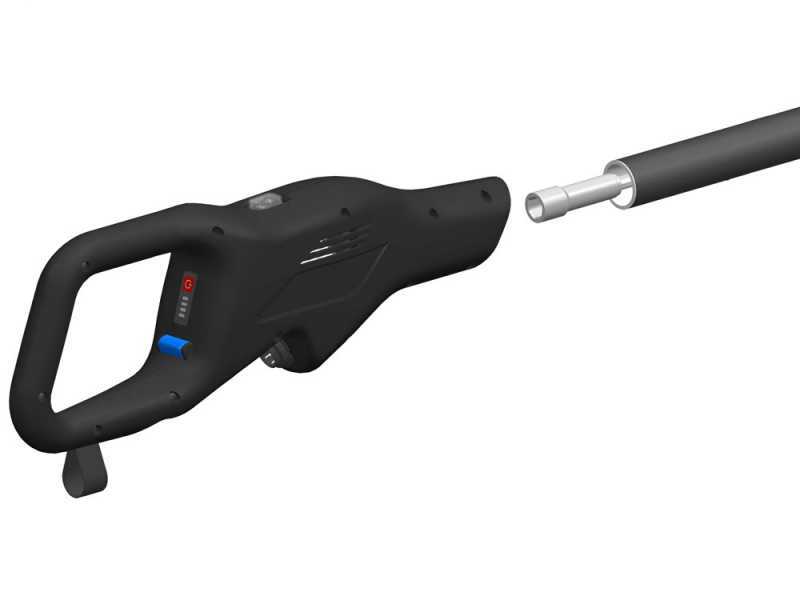

PLUG-IN Electric Engine and Head

The Campagnola MASTER is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21V lithium battery.

Campagnola's MASTER olive harvester mounts 4+4 carbon harvesting progs on the head.

The arms, therefore, carry a total of 8 carbon fibre prongs with easy replacement.

The 32 cm long prongs allow deep access into the plant.

Technical details of the head:

Working width: max. 460 mm.
Shakes per minute: 1200.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
