Campagnola MASTER PLUG-IN - 100-150 cm Carbon & Aluminium Pole - Electric Battery-powered Olive Harvester

Add a question
ID: K609065

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola MASTER PLUG-IN - 100-150 cm Carbon & Aluminium Pole - Electric Battery-powered Olive Harvester
FREE
Campagnola capCampagnola cap
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
46 cm
Pole material
Carbon/aluminium
Telescopic pole
Max. length
150 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
Items included
Battery and battery charger NOT included
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
MASTER Plug-in
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
On the head
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
46 cm
Min. length:
100 cm
Max. length:
150 cm
Pole material:
Carbon/aluminium
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
Yes
Energy Saving System:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Telescopic pole:
Extension power cable:
13 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
200-250x50x21
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Weight including packaging:
4.1 Kg
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 12/05/2025 - 14/05/2025
€ 584,98
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

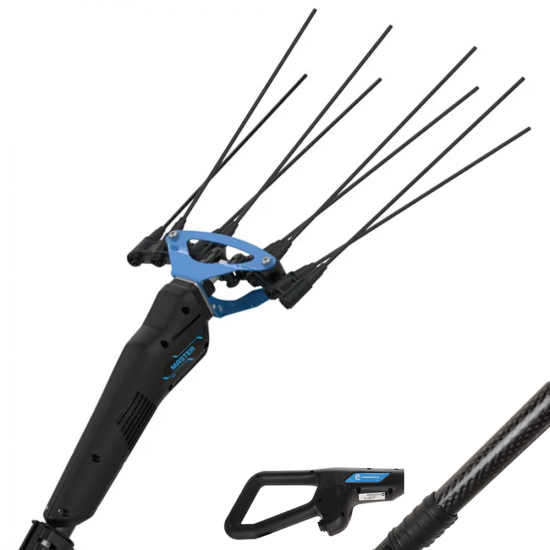

Campagnola MASTER Battery-powered Olive Harvester

Campagnola's MASTER olive harvester is an Italian excellence, carefully designed to offer high performance in olive harvesting.

Its state-of-the-art structure is designed to preserve the health of the plants and fruit, ensuring efficient harvesting without damaging the branches.

One of the MASTER's strengths is the telescopic carbon and aluminium pole, adjustable from 100 to 150 cm.

This design not only guarantees a remarkable lightness, but also facilitates its use, making it practical and manageable.

The high quality engine, built directly into the head of the harvester, ensures optimum performance, enabling efficient and effortless harvesting.

The 8 carbon prongs, 32 cm long, operate gently, ensuring the utmost care for the plants during the harvesting process.

With a 12 V brush motor and a 325 W power rating, the harvester ensures reliable and consistent performance over time. The pole's durable carbon and aluminium structure ensures long service life and robustness.

Power is supplied by car battery, with the possibility of also using 12 V lead-acid or lithium-ion batteries (21.6 V nominal and 25.2 V maximum), offering operational flexibility.

To sum up, Campagnola's MASTER harvester is the ideal choice for those seeking quality and reliability in olive harvesting.

WARNING: BATTERY NOT INCLUDED!

Prongs

The rakes are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • greater harvesting capacity of each prong, i.e. greater separation of the olives
  • collection capacity exceeding 50 %

The Campagnola MASTER is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique to use the MASTER. It can be used like a rake on well pruned and loose plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

WARNING: BATTERY NOT INCLUDED!

100-150 cm Carbon and Aluminium Telescopic Pole

New aluminium and carbon telescopic pole with quick fastening system.

The length of the rotating carbon telescopic pole is adjustable from 100 to 150 cm.

Made of a combination of carbon and aluminium, this rotating extension pole for electrical equipment stands out for its robustness and extreme lightness.

WARNING: BATTERY NOT INCLUDED!

Technical Specifications

The engine of the purchased harvester stands out for its high performance and user-friendliness, thanks to advanced technical features.
With a 325 W power output, it offers energy-efficient and constant operation.
Power consumption ranges between 7 and 8 Ah, maintaining a good compromise between performance and battery life.

The 1,200 rpm speed (± 5%) ensures optimal operation in olive harvesting, while the ergonomic design assists in practical use. A 1,420 g harvesting head.

The engine is enclosed in a thermoplastic shell, guaranteeing resistance and lightness, although the protection rating is IP00 (not protected against dust or water). It has an ON/OFF button for easy operation and a 15 A fuse (light blue) for overload protection.

The power supply is flexible, thanks to compatibility with 12 V lead acid or lithium-ion batteries with a nominal voltage of 21.6 V and a maximum voltage of 25.2 V.

To sum up, this brush motor is a reliable, powerful, manoeuvrable and versatile choice.

Main technical data:

  • Power: 325 W
  • Energy consumption: 7–8 Ah
  • Speed: 1,200 rpm (± 5%)
  • Harvest head weight: 1,420 g
  • Shell material: Thermoplastic
  • Protection rating: <IP00
  • Fuse: 15 A (light blue)
  • Compatible battery voltage: 12 V (lead) / 21.6 V - 25.2 V (lithium-ion)

Rakes with spacers:

It is equipped with two pre-installed spacers that increase the crossing of the rakes, but can be removed if necessary.

WARNING: BATTERY NOT INCLUDED!

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

PLUG-IN Electric Engine and Head

The Campagnola MASTER is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21V lithium battery.

The Campagnola MASTER is equipped with 4+4 carbon harvesting prongs on the head.

The arms, therefore, carry a total of 8 easy-to-replace carbon fibre prongs.

The 32 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 460 mm.
  • Shakes per minute: 1200.

WARNING: BATTERY NOT INCLUDED!

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

The product is shipped in its original packaging.

  • Professional cable
  • 100-150 cm carbon telescopic pole
  • Instruction manual
  • Campagnola cap

WARNING: BATTERY NOT INCLUDED. The harvester requires an automotive-grade battery of at least 60/70 amps to safely provide a full day's work range
