Campagnola IRON NEW - Pneumatic Compressed Air Olive Harvester

Add a question
ID: K601367

EAN: 9999991090699

MPN: ATRA.0242

9,1/10
After-sales assistance & Spare parts
Campagnola IRON NEW - Pneumatic Compressed Air Olive Harvester
Free gifts from AgriEuro
Campagnola capCampagnola cap
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
Magnesium
Motion
Vertical, double
Speed (bpm)
1470 bpm
Max. prongs opening
22.5 cm
Max. operating pressure
8 bar
Air consumption
170 L/min
Olive harvester head weight
1000 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Iron
Head material:
Magnesium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
1470 bpm
"Wave" prongs:
No
No. of prongs:
7+7
Prongs length:
22.5 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
22.5 cm
Max. operating pressure:
8 bar
Minimum operating pressure:
4 bar
Air consumption:
170 L/min
Lubrication type:
With oil for pneumatic tools
Adjustable head:
no
Olive harvester head weight:
1000 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
Power supply:
Compressed air
Dimensions and logistics
Net weight:
1 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
32x15x29 cm
Weight including packaging:
2 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
€ 445,68
Vat included
You're viewing:
Customers also viewed:
Description

Campagnola IRON olive harvester

IRON olive harvester is provided with the same main features of Campagnola olive harvesters, with the additional innovative system “short stroke”. This system reduces the opening of the combs but increases the speed up to 1470 BPM.

This tool can therefore go deeply into the branches without damaging them. The combs feature distinctive “diapason-shaped" prongs that can harvest any type of olives, regardless of their ripeness grade.

The motor body is made of magnesium alloy which easily transfers thermal energy, thus avoiding condensation to ice up at low temperatures. With IRON olive harvester, you will be able to harvest even the smallest and hardest olives, despite a low operating pressure (max 8 bar).

IRON olive harvester weighs 1000 g and it is perfectly balanced in order to allow maximum operating comfort.

ATTENTION: extension pole not included

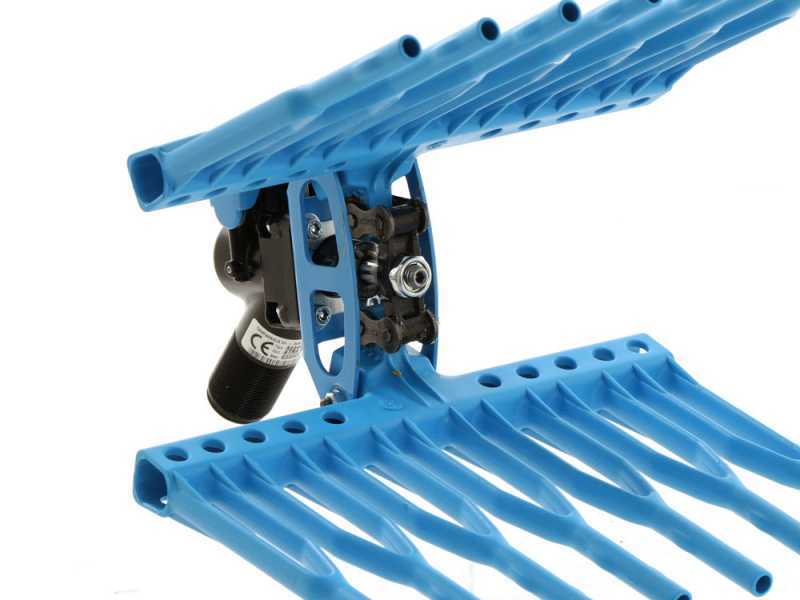

Technical features

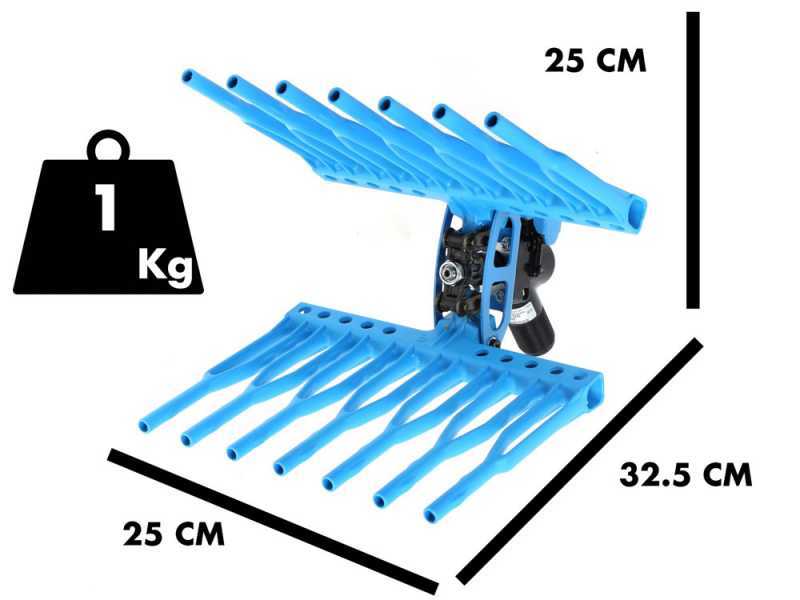

Main technical features:

  • Combs width: 25 cm.
  • Combs opening: 25 cm.
  • Weight: 1000 g.
  • Very fast: 1470 BPM.
  • Very powerful even with low operating pressure
  • Max. pressure: 8 bar
  • Air consumption: 170 L/min.
  • Short Stroke: this system reduces the opening of the combs in order to penetrate deeply into the tree foliage without damaging the branches
  • Distinctive “diapason-shaped” prongs that allow harvesting even the smallest and hardest olives.
  • The moving parts are protected by a shield in order to reduce possible wearing and therefore requiring less maintenance.



Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Extra features

IRON pneumatic olive harvester is shipped in its original packaging with instructions and maintenance manual provided on standard kit.

Complimentary convenient cap.
