Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

Professional
Add a question
ID: K608976

EAN: N/A

MPN: N/A

Campagnola
Catalogue Campagnola
9,1/10
After-sales assistance & Spare parts
32Pictures
3Videos
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Special offer
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Carbon
Telescopic pole
✔
Max. length
340 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
✔
Li-ion battery-powered
Yes
No. of batteries
1
Battery Amperes
5 Ah
Carbon prongs
✔
Manufacturing country
Italy
Product Features
Model:
Icarus V1 ECO Plug-in
Use:
For olive harvester only
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery included
Motor position:
At the bottom of extension pole
Motion:
Double side
Integrated battery:
✔
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
36 cm
Prongs material:
Carbon
Carbon prongs:
✔
Max. prongs opening:
50 cm
Min. length:
255 cm
Max. length:
340 cm
Pole material:
Carbon
Carbon pole:
✔
Max. power even with low battery:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
5 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Working autonomy:
8 h
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Telescopic pole:
✔
Extension power cable:
15 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
255-340x50x21 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Weight including packaging:
5.7 Kg
Assembly time:
15 minutes
Prompt Delivery
15 items in stock
Free Shipping
Estimated delivery: 09/05/2025 - 13/05/2025
Free returns (up to 30 days after receipt) *
Lowest price:
€ 1.150,49
-10 %
€ 1.035,44
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
Available versions
You're viewing:
Customers also viewed:
Description

ICARUS ECO Battery Harvester - 150-220 cm carbon pole

The Hercules ECO 6 PLUG-IN is a harvester designed to optimize operating efficiency in different agricultural contexts, while guaranteeing the protection of plants and fruits during harvesting.

Equipped with a high efficiency 325 W brush motor and a rotation speed of 1200 rpm , the PLUG-IN Icarus V1 ECO offers fast and precise performance , making it perfect for intensive agricultural operations.

Operating at a rated voltage of 12V and using power from 7 to 8 Ah, this device provides an optimal balance between high performance and low power consumption, enabling efficient power management.

Weighing of only 3 kg, the Hercules ECO 6 PLUG-IN is easy to manoeuvre, reducing fatigue even during extended use.

The harvester head, made of sturdy materials, is equipped with interchangeable carbon fibre tines, allowing efficient harvesting while preserving the integrity of the fruit.

An additional strength is the tear-proof protection system integrated into the power cable, which prevents accidental damage during use, thus increasing operator safety.

The adjustable telescopic pole, ranging from 150 to 220 cm in length, offers good flexibility, allowing it to adapt to different heights and operational needs.

Additionally, the Hercules ECO 6 PLUG-IN can be powered either via a car battery or by a Campagnola 21.6V plug-and-play battery, making it versatile and suitable for a wide range of working conditions.

Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

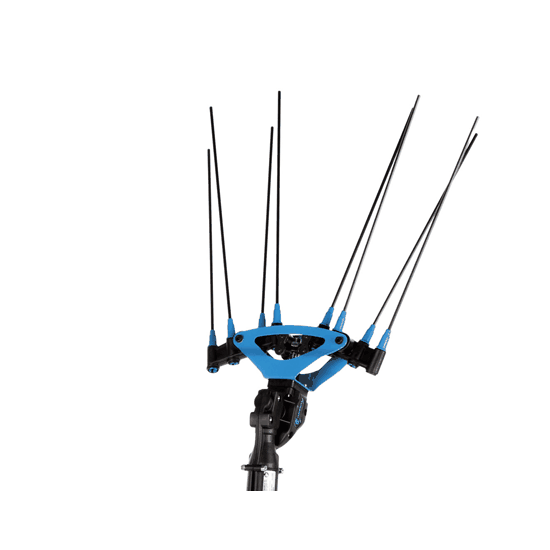

Prongs

The prongs are made of the purest carbon and make a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • Each prong can harvest many olives.
  • Superior collection capacity over 50%

The Campagnola Icarus is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique of use for the Icarus. It can be used like a comb on well pruned and thin plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to comb through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional lenght of the teeth.

Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

Pole

Telescopic carbon pole with quick coupling.

Length of the telescopic pole:150 cm

* with its head fitted, the ICARUS reaches a length of 340 cm with the pole at maximum extension

The pole at such length is always the ideal configuration of this harvester, precisely because it fits the motor at the bottom of the pole

Excellent in case of smaller olive trees, we recommend holding the pole in the middle to keep the weight balance at 50% - 50%, making it even more manageable to use

Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

PLUG-IN Electric Motor

The Campagnola HERCULES 6 PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola HERCULES 6 PLUG-IN features 9 carbon pick-up rods on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 34 cm.
  • Shakes per minute: 1200.
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah

Standard Equipment

Standard equipment:

  • 15 m PROFESSIONAL connection cable with battery terminal clamps
  • 36 cm carbon tines
  • Instruction manual
  • Battery
  • Battery charger
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah Campagnola Icarus V1 ECO Plug-in - 185-270 cm Carbon Pole - Battery-powered Electric Harvester - 21V 5Ah
