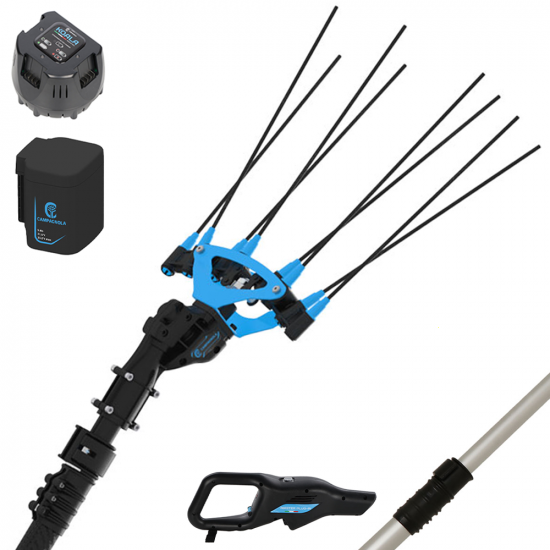

Campagnola Icarus V1 ECO Plug-in - 150-220 cm Aluminium Pole - Electric Battery-powered Olive Harvester - 21V 5Ah

Add a question
ID: K608971

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola Icarus V1 ECO Plug-in - 150-220 cm Aluminium Pole - Electric Battery-powered Olive Harvester - 21V 5Ah
Special offer
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1200 bpm
Max. prongs opening
50 cm
Pole material
Aluminium
Telescopic pole
Max. length
290 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
No. of batteries
1
Battery Amperes
5 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Icarus V1 ECO Plug-in
Use:
For olive harvester only
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger included
Motor position:
At the bottom of extension pole
Motion:
Double side
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
4+4
Prongs length:
36 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Min. length:
225 cm
Max. length:
290 cm
Pole material:
Aluminium
Max. power even with low battery:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
5 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Working autonomy:
8 h
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Telescopic pole:
Extension power cable:
15 m
Free gifts/extra features
Prongs/rods:
2
Instructions manual:
Yes

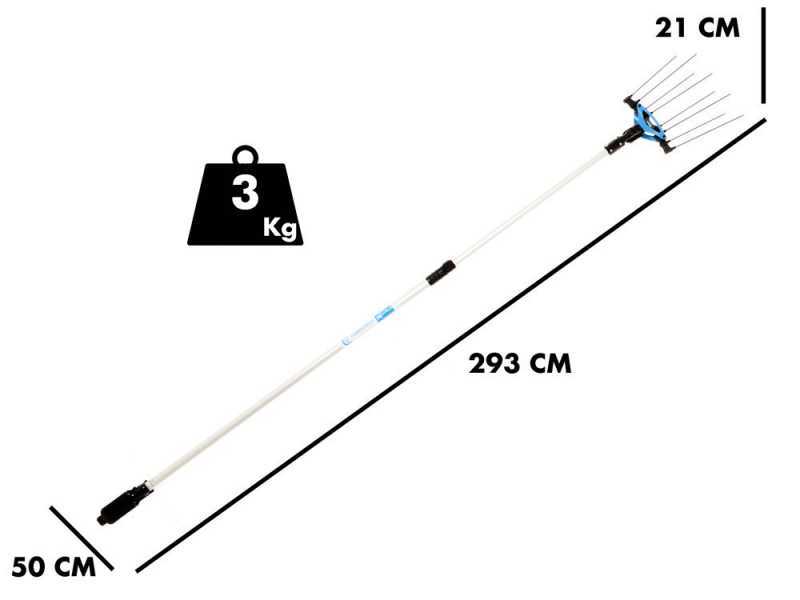

Dimensions and logistics
Product dimensions in cm (L x W x H):
225-290x50x21 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48.5X31.5X18
Gross weight (packaging included) :
5.7 Kg
Assembly time:
15 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
Lowest price:
€ 1.074,41
-10 %
€ 966,97
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

ICARUS ECO Battery-powered Olive Harvester - 150-220 cm Aluminium Pole

The Icarus V1 ECO PLUG-IN is an olive harvester designed to improve operating efficiency in a variety of agricultural contexts, while ensuring plant and fruit protection during harvesting.

This device is equipped with a high-efficiency brush motor, which delivers 325 W power and reaches a rotation speed of 1200 rpm, making it particularly suitable for fast and precise harvesting operations.

The Icarus V1 ECO PLUG-IN operates at a rated voltage of 12V and a power consumption between 7 and 8Ah, ensuring an optimal balance between high performance and low power consumption.

This enables effective energy management, extending the service life of the device.

Weighing only 3 kg, the harvester offers high manoeuvrability, reducing operator fatigue even during extended work sessions.

The harvester head, made of durable materials, is equipped with interchangeable carbon fibre prongs, which allow efficient harvesting without compromising the integrity of the fruit.

This robust and flexible design ensures gentle but effective operation while protecting the crop.

An additional safety feature is the anti-tear protection system built into the power cable, designed to prevent accidental damage during operation, contributing to the durability of the device.

The adjustable telescopic pole, with a length ranging from 150 to 220 cm, offers great flexibility, allowing the operator to adapt the tool to different operating needs, reaching even the most difficult areas.

Finally, the Icarus V1 ECO PLUG-IN can be powered either via a car battery or by a Campagnola 21.6V plug-and-play battery, thus offering versatility that makes it suitable for different working conditions.

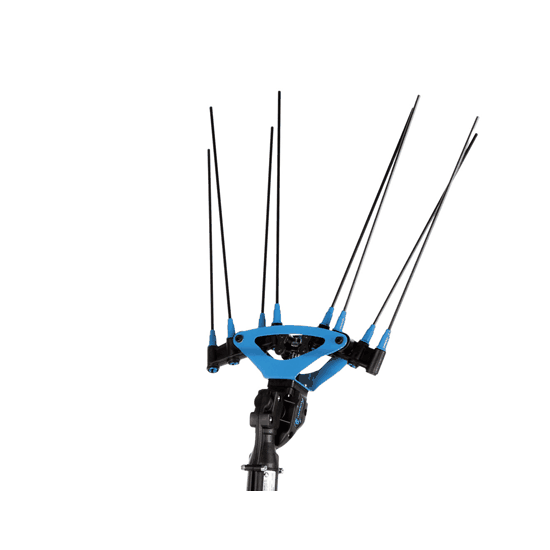

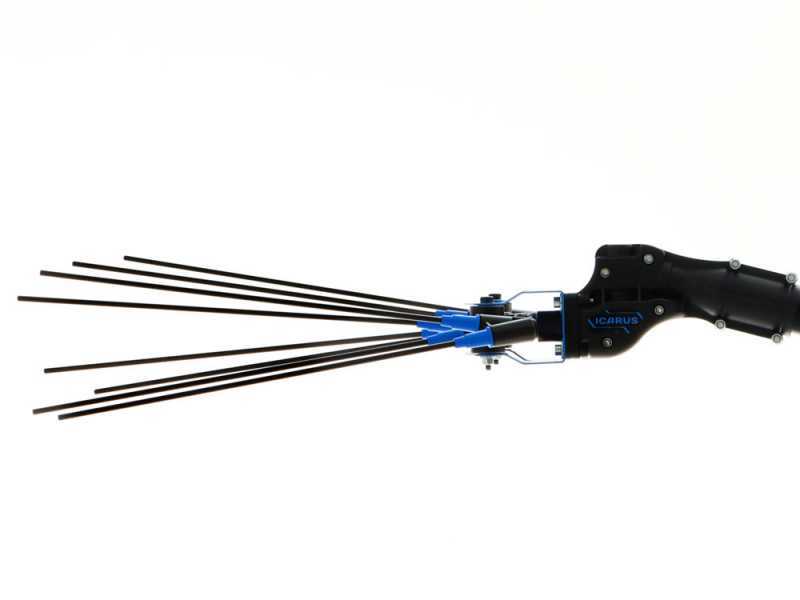

Prongs

The rakes are made of pure carbon and perform a characteristic double side-to-side motion.

The rakes swing in a right-to-left motion, which allows for a wider collecting radius. This special swinging motion reduces to minimum the vibrations transferred to the operator.

Amazing advantages:

  • greater harvesting capacity of each prong, i.e. greater separation of the olives
  • collection capacity exceeding 50 %

The Campagnola Icarus is one of the battery-powered harvesters with the highest hourly harvesting capacity. Unlike all harvesters on the market, there is no specific technique of use for the Icarus. It can be used like a rake on well pruned and loose plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to rake through).

The advantage is an exceptional ability to penetrate into foliage, thanks to the scattered front, and very deep thanks to the exceptional length of the prongs.

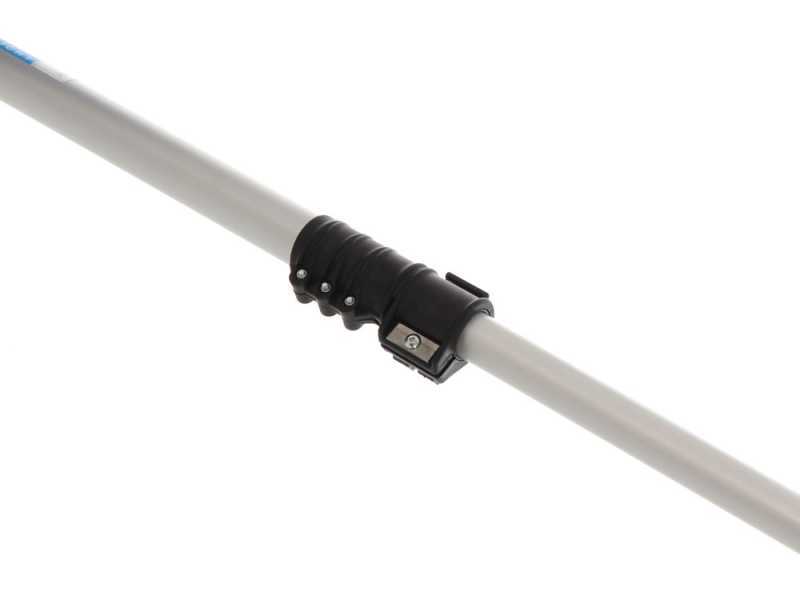

Pole

Telescopic pole made of aluminium, equipped with quick coupling.

Length of the telescopic pole: 150–220 cm

* with its head fitted, the Icarus reaches a length of 290 cm with the pole at its maximum extension

The pole at such length is always the ideal configuration of this harvester, precisely because it fits the motor at the bottom of the pole

Excellent in case of smaller olive trees, we recommend holding the pole in the middle to keep a 50%-50% weight balance, making it even more manageable to use

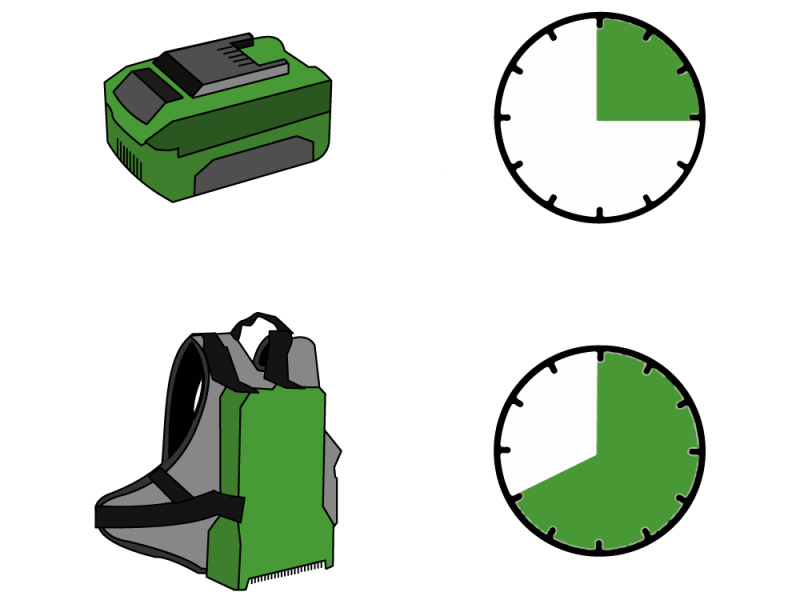

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

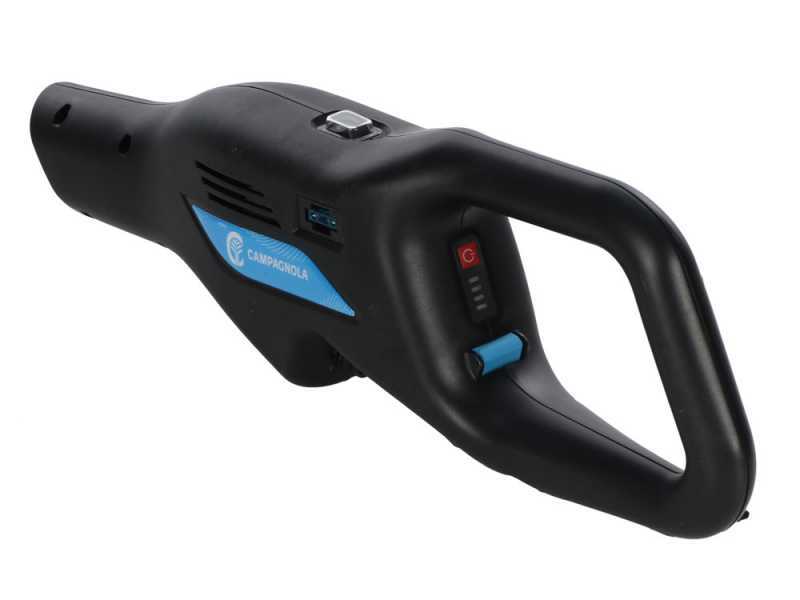

PLUG-IN Electric Motor

The Campagnola ICARUS V1 ECO PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola ICARUS V1 ECO PLUG-IN features 9 carbon harvesting prongs on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 34 cm.
  • Shakes per minute: 1200.

Battery and Charger

Description of the 21.6V 5Ah Campagnola Battery and Charger

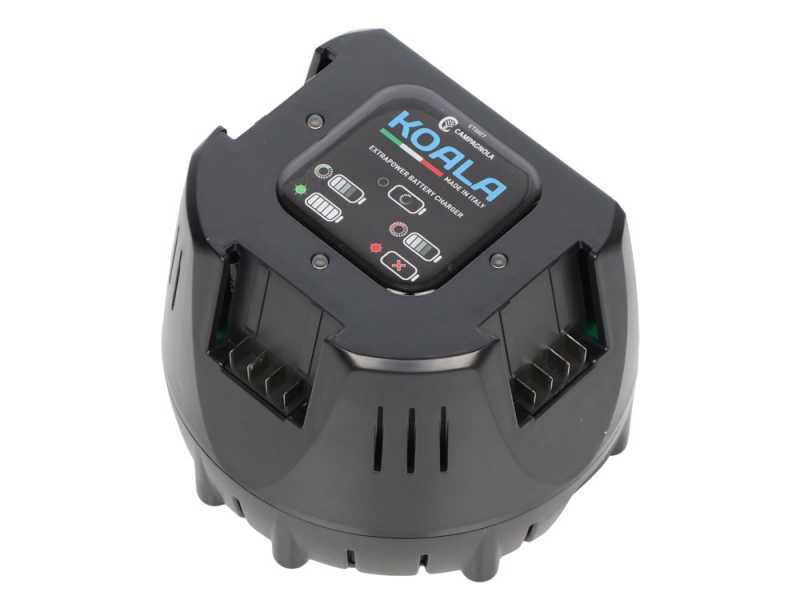

Campagnola battery charger:

The Campagnola battery charger is designed for charging 21.6V lithium-ion batteries used in Campagnola devices.

The compact design makes it suitable for intensive use in both private and professional settings.

The charger provides a fast and safe charging process, thanks to a smart charge management that protects the battery from overcharging and overheating.

Equipped with LED lights, the charger provides real-time information on charging status, allowing the user to easily monitor the process.

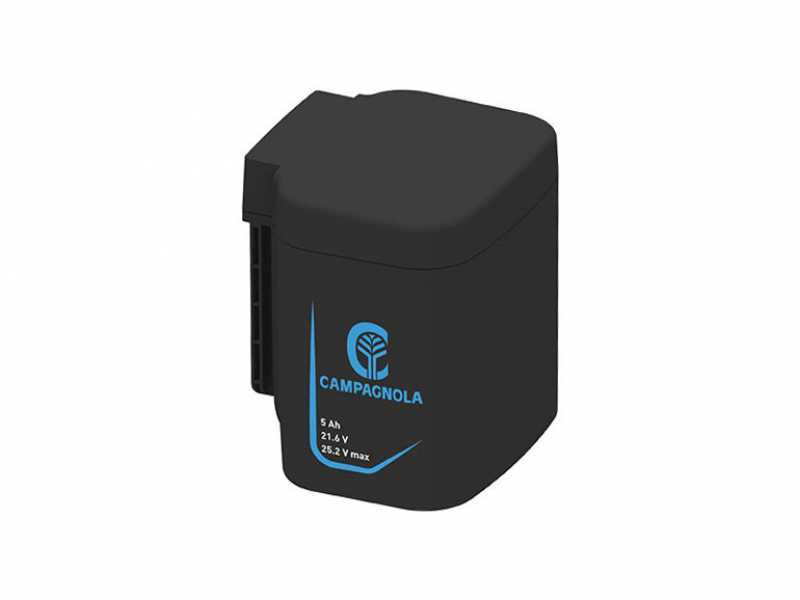

Campagnola 21.6V 5Ah battery:

The Campagnola 21.6V / 5Ah battery is ideal for powering a wide range of Campagnola tools and equipment.

With a capacity of 5Ah, this battery provides good autonomy, allowing handy and fast work.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

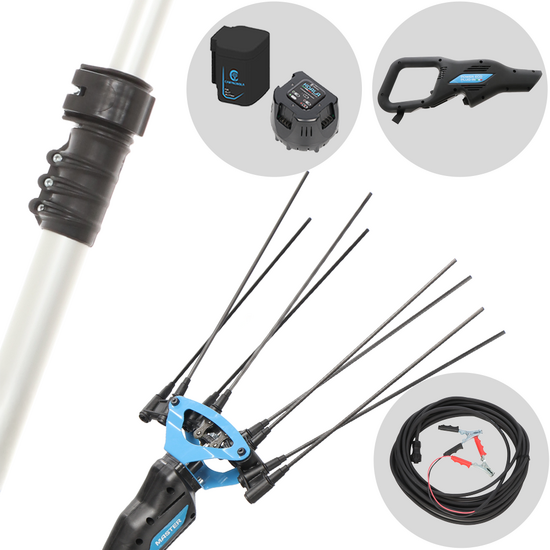

Standard Equipment

Standard equipment:

  • 15 m long PROFESSIONAL connection cable with battery terminal clamps
  • 36 cm carbon prongs
  • Instruction manual
  • Battery
  • Charger
