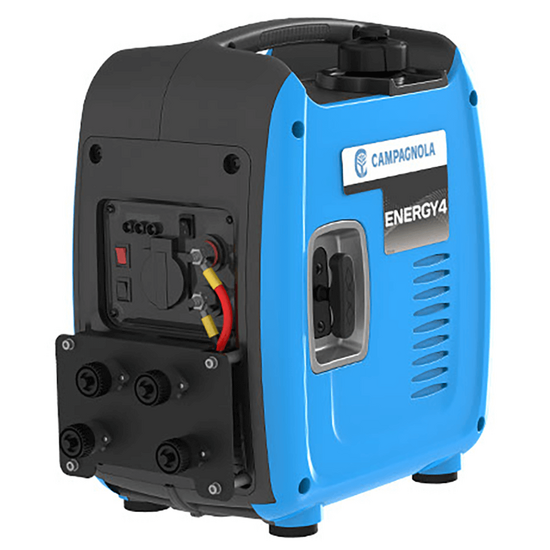

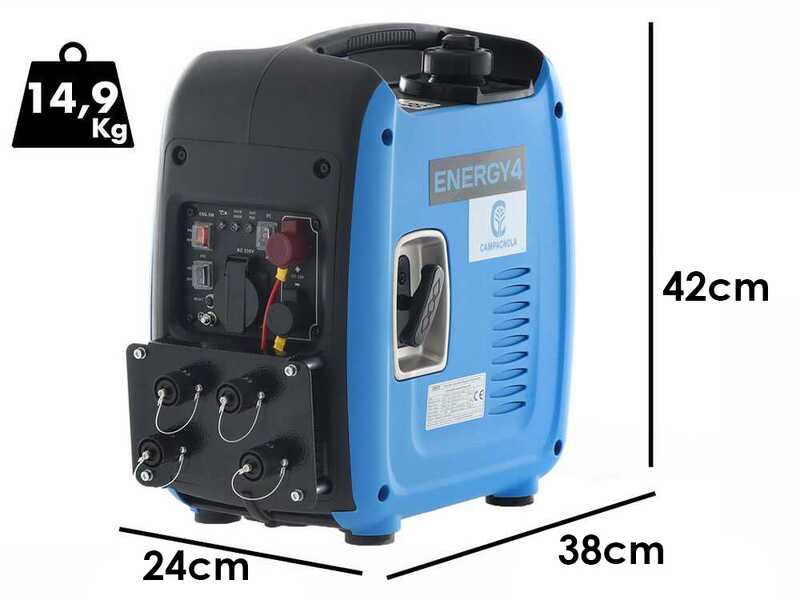

Campagnola Energy 4 Silenced Inverter Generator

The Campagnola Energy 4 inverter/12V current generator can supply both standard 230 V and 12V current to power battery-powered products and equipment such as olive harvesters.

It can power up to 4 olive harvesters simultaneously, making it perfect for all operators who need both high performance and long working autonomy during harvesting operations.

On the front side there is a panel with 4 12V outputs where the harvesters can be directly connected. The compatible models are the ones listed below: Alice Premium, Hercules, Holly, Icarus in both the 58 and ECO versions and finally also the Elektra ECO.

A product with small dimensions, it is easily transportable and usable and allows electricity to be available wherever it is needed.

Portable generator with a 2.5 L tank.

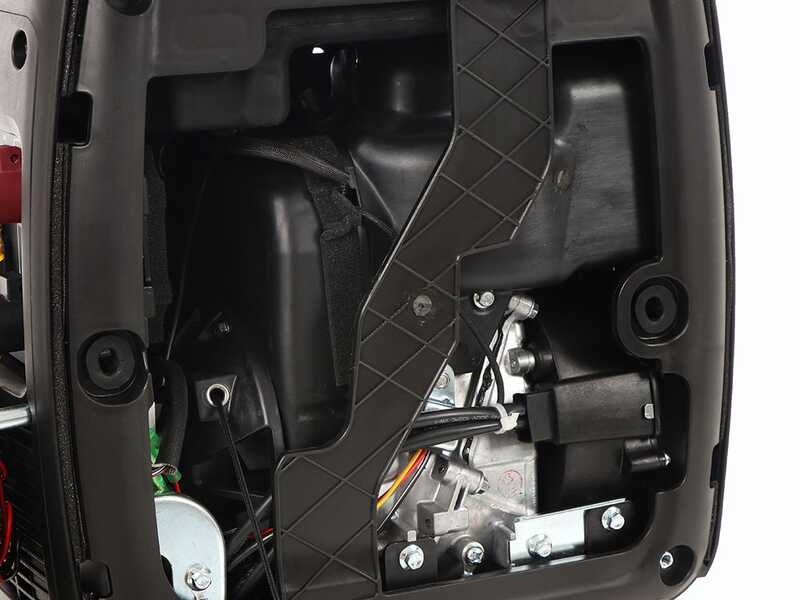

It mounts a single-cylinder 4-stroke 60 cc petrol engine.

On the control panel there is a schuko socket that guarantees a nominal output power of 1.1 kW.

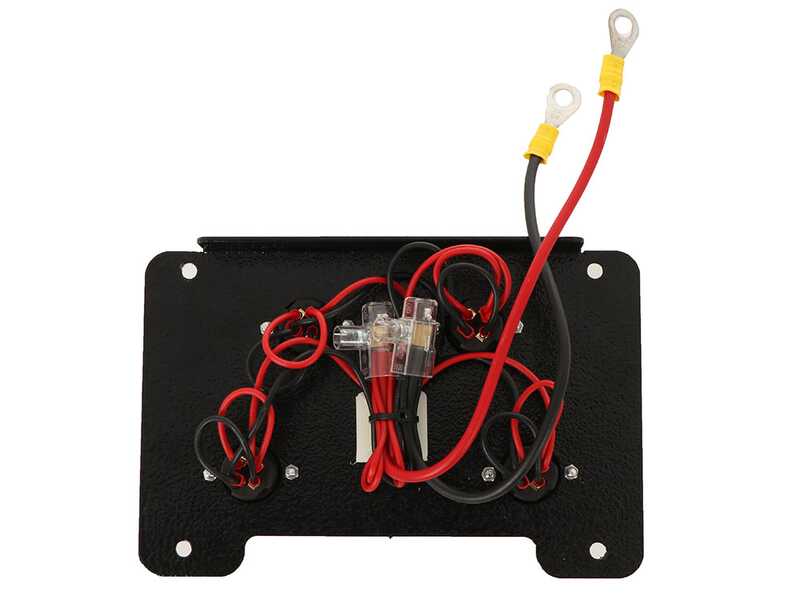

Included with the generator are 4 connectors that allow the user to wire the cables to make them compatible, should they have traditional cables to be connected with the 2 poles directly to the battery.

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments, and any particularly device sensitive to variations in voltage and frequency.

Silenced Generator: This aspect allows the use in camping sites, mobile homes, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Engine type: 4-stroke petrol

Displacement: 60 cc

Number of cylinders 1

Frequency: 50 Hz

Rated Power: 1.1 kW

Power 12V - DC: 700 W

Fuel tank capacity: 2.5 L

Cooling type: air

Start type: recoil start with self-recovery

WARNING: Engine without oil
(make sure to add oil for 4-stroke engines before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start especially after long periods of inactivity
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

Silenced Generator:

The silencer allows you to use the current generator for camping, camper, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

Therefore, it stands out to be a generator that can offer dual functions:

• 12 V current supply (for the operation of harvesters or other battery-powered equipment)


• 220 volts standard current supply like all standard current generators on the market

Maximum nominal power: 1.1 kW

Nominal power in continuous running (COP): 1 KW
*This s the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 3.5 L

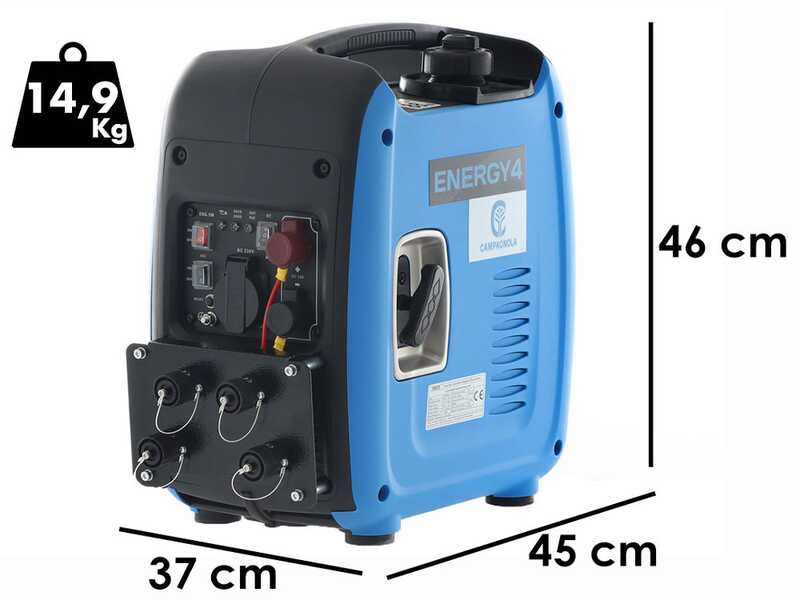

Weight: 14.9 kg

Noise level: 88 dB[A]

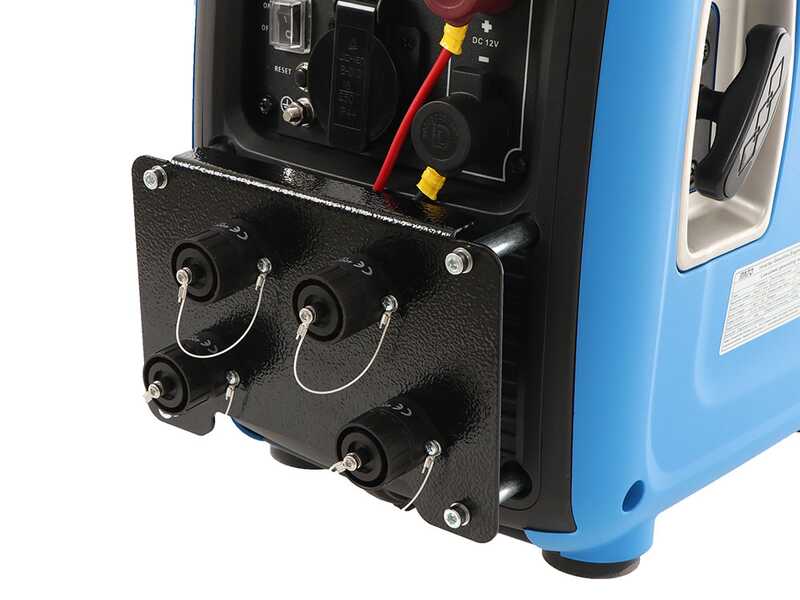

Focus on the 4 connectors for olive harvesters

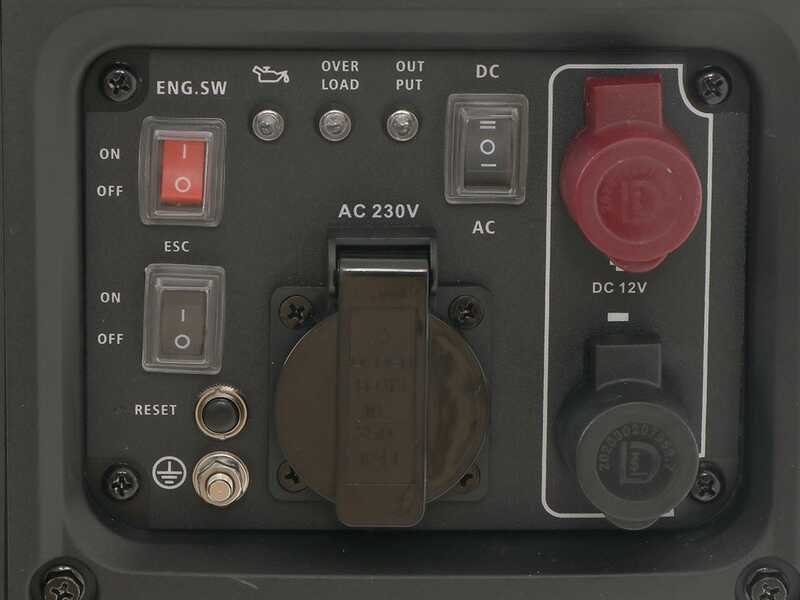

ESC button:

When the ESC switch is set to ON, the control unit adjusts the motor speed according to the connected load, reducing consumption and noise.

When the ESC switch is in the OFF position, the engine runs at rated power (rpm), regardless of whether or not a load is connected.

Reset button

Panel mountings with connectors

Indicating lights:

- Overload signal If the generator is overloaded or if there is a malfunction or a short circuit in a device connected, this red overload indicator lights up. After several seconds the power supply will be interrupted and the green light will turn off. In this case, stop the engine and find out the cause of the overload

- Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level can drop below the safety limit, the red oil warning light turns on and the oil alarm system will stop automatically the engine. * Warning: the engine is provided without oil.

- Output The light appears when the generator starts generating power

1 Power socket: 230 V

DC - AC switch for switching from direct current to alternating current

Ground Terminal: It is used to connect the ground line to avoid electric shocks When the electrical appliance is grounded, the generator must also be grounded.

Transportation handles

Fuel tank cap

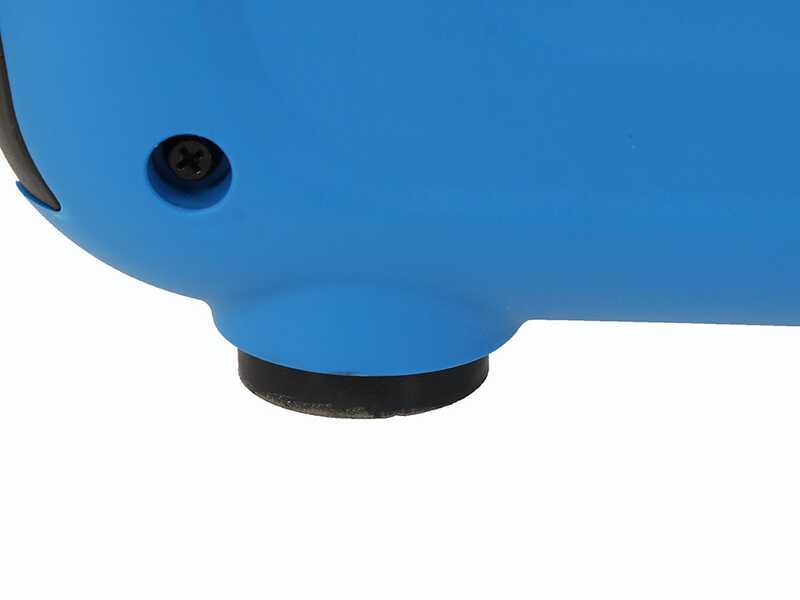

Supporting pads

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• This inverter generator is equipped with an electronic card in order to stabilize the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also not suitable for other.
  Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for vacation and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATION FIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
