BullMach ZEUS 150 H-PTO - Tractor-mounted shredder - With hydraulically controlled drive rollers

Add a question
ID: K608813

EAN: 8053435094016

MPN: WS72RS

9,0/10
After-sales assistance & Spare parts
BullMach ZEUS 150 H-PTO - Tractor-mounted shredder - With hydraulically controlled drive rollers
Operating mode
Tractor-driven PTO
Tractor power
Form 40 to 80 HP
Cutting Rotor Type
Disc
No. of blades
4
Max. Branch Diameter
152 mm
Wood Chip size
3 - 4 cm
N° of hoppers
1
Safety button
Yes
Upper discharge system
Discharge chute rotation
Manual
No. of rollers
Two
Reverse
Roller drive type
Hydraulic
Cardan shaft
Yes
Weight
538 Kg
Product Features
Model:
ZEUS 150 H-PTO
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
Yes
Self-feeding roller system:
Hydraulic
Anti-jam system:
Yes
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
70 cm
Hopper opening size (width):
90 cm
Electric start:
No
3-point hitch category:
First and Second
Foldable:
Yes
Min. power:
40 Hp
Max. power:
80 HP
Tractor power:
Form 40 to 80 HP
No. of rollers:
Two
Reverse:
Safety button:
Yes
Manufacturing country:
China
Transmission data
Roller drive type:
Hydraulic
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
152 mm
Cutting Rotor Type:
Disc
No. of blades:
4
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
3 - 4 cm
Equipment
Discharge chute rotation:
Manual
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
259x257x125 cm
Net weight:
538 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
197x118x150 cm
Gross weight (packaging included) :
568 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 5.297,69
€ 4.238,15
Vat included
You're viewing:
Customers also viewed:
Description

BullMach ZEUS 150 H-PTO tractor shredder

The BullMach ZEUS 150 H-PTO tractor shredder is a robust and versatile machine designed to deliver high performance in agricultural and forestry contexts. Thanks to its solid construction and advanced technical features, this shredder is ideal for shredding branches and large plant residues, ensuring efficient and safe operation.

Weighing 568 kg, this shredder can handle materials with a maximum diameter of 152 mm. The feed hopper is designed with two openings: A lower one of 185 x 244 mm and an upper one of 899 x 750 mm, which facilitate the insertion of the material. The rotor, with a diameter of 756 mm, is equipped with 4 rotating knives and a fixed knife, ensuring high cutting capacity.

The feed system consists of two hydraulic rollers, which ensure that the material inside the machine is constantly and evenly dragged. The hydraulic control and voltage of the 12V solenoid valve further improve operational efficiency. In addition, the BullMach ZEUS 150 H-PTO features an advanced safety system, with an emergency stop button to stop operation immediately if necessary.

Main features:

  • Weight: 568 kg
  • Maximum chipping diameter: 152 mm
  • Rotor with 4 knives and 1 counter-knife
  • Feeding system with two hydraulic rollers
  • Compatible with 55-80 HP tractors
  • 540 RPM PTO system with safety bolt

Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and other vegetation that may be attached to the branches)

Garden shredders intended use:
- The wood chipper must grind only green branches, recently cut from the tree and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The declared cutting diameter is the maximum, so in use, it is the exception and not the rule. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the consistency of the wood (e.g: oak, olive, plum and peach are hard woods and can reduce the cutting capacity of the wood shredder);

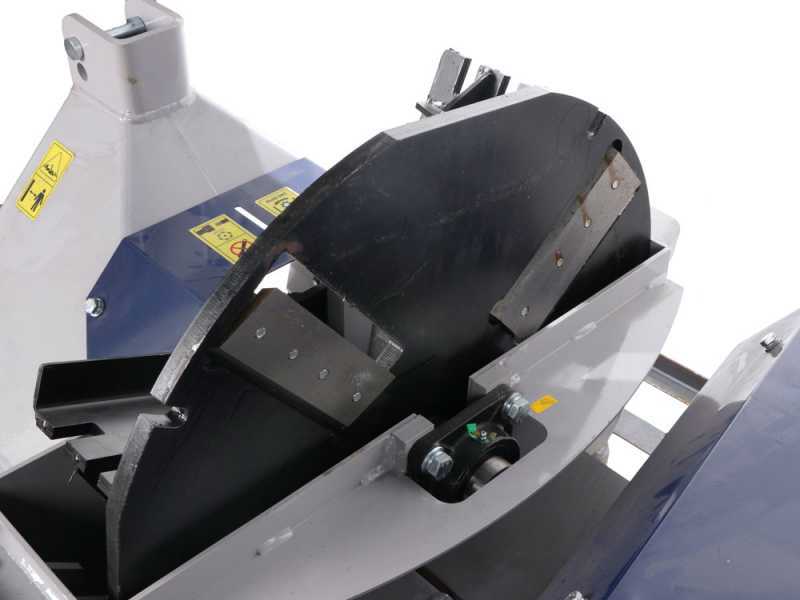

Central rotor and shredding chamber

The shredding system consists of:
No. 4 large blades, mounted on a swivelling steel plate placed at the end of the hopper.

The rotor has the following characteristics:

  • Diameter: 75 cm
  • Weight 88 Kg

Equipped with a large and robust grinding chamber. It features a rounded shape that ensures great productivity and long durability of the cutting system. Detail of the flap opening system.

The counter-blade is mounted directly on the outer side of the shredding chamber.

Rotor lock handle.


Warning: Before starting the machine, make sure to adjust the counter-blade by means of the specific bolts in order to avoid damaging the rotor.

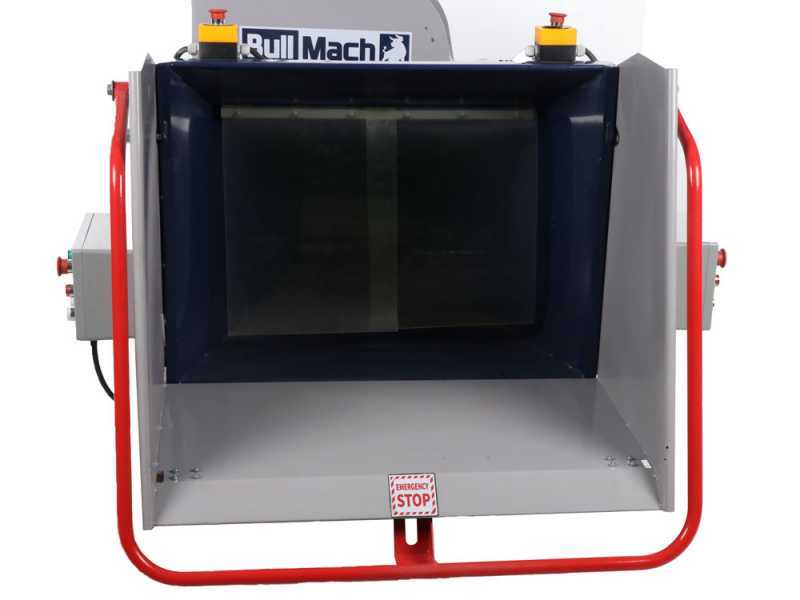

Unified hopper with self-feeding rollers

The steel hopper is large, with a dimension of 90x70 mm

The machine is equipped with two toothed rollers mounted on an effective spring system, for the automatic dragging of the twigs.

The wood chipper is equipped with anti-clogging system: In the event that the rotor comes under strain or locks during shredding, the lever on the loading hopper must be operated. Indeed, this lever acts on the motor hydraulic valves and reverses the rotor rotation direction, unlocking it.

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

It also has a larger capacity that allows you to put a lot of material into it at once.

Fully electrical control of the 2 roller feed. Controls located on both the right and left.

FEED button to power the bio shredder, Reverse button to reverse operation.

Foldable hopper for easier transport.

Protective rubber bulkheads at the entrance of the hopper.

Stop button and emergency lever.

Safety System

Here below the main features of this wood chipper:

- Self-driving roller activation for shredding (fully electronic control)
Immediate stop system (safety)
Reverse function for jam clearance

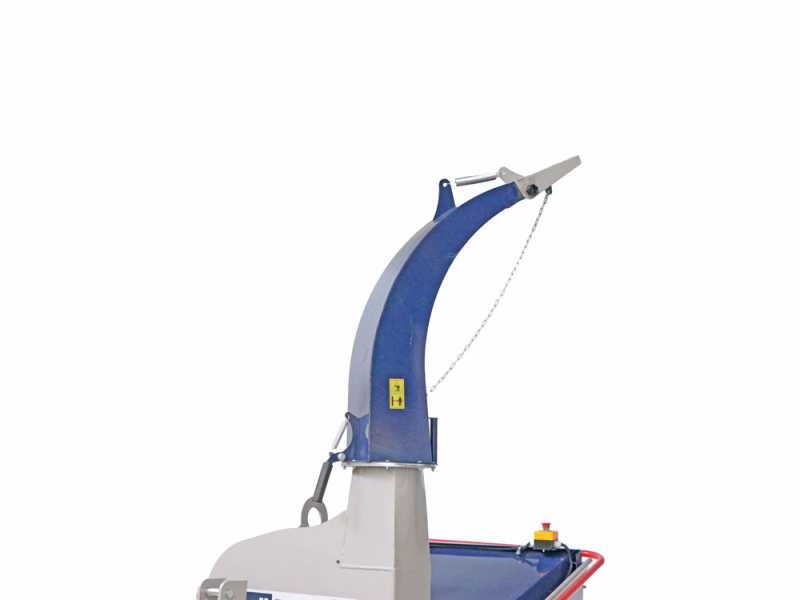

Swivelling 290° exhaust chimney

The exhaust chute, with which this shredder is equipped, can be rotated through 290° and has a maximum ejection height of about 2.5 metres.

Some examples:

  • Position 1
  • Position 2
  • Position 3
  • Position 4
  • Position 5

Simply pull down the lever and turn it with the help of the handle to your preferred position.

Closing chain.

Examples of positioning to check the woodchip ejection distance:

    • Position 1
    • Position 2

General features

Tractor-mounted PTO to drive the bio-shredder

Number of PTO revolutions 540-1000 rpm

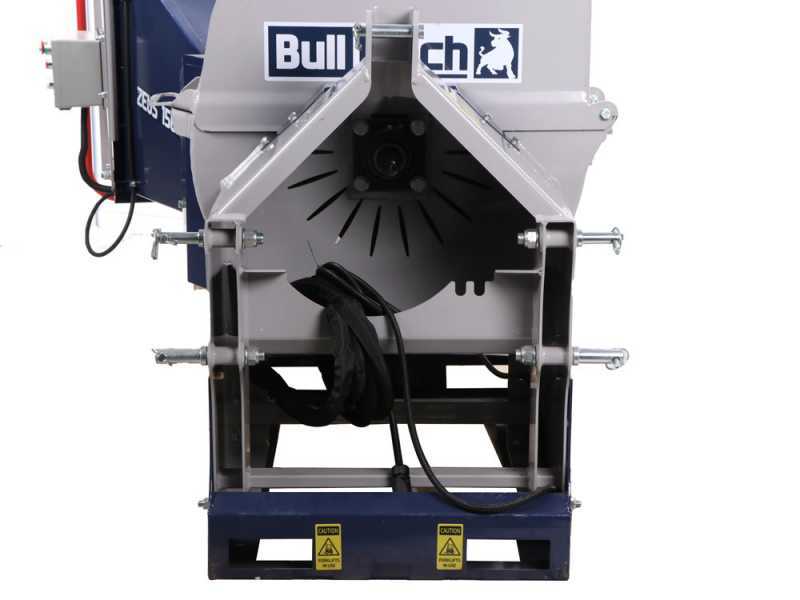

Detail of the robust 3-point hitch

The shear bolt torque limiter makes it possible, in the event of unexpected or excessive stresses and torques, to avoid damage to the mechanical parts of the operating machine in use.
In fact, when the torque exceeds the power that the bolt can withstand, it shears off and the transmitted power is reduced to zero.
To restore the transmission afterwards, it must be replaced with one of the same strengths, diameter, thread and length.

The wood chipper is equipped with an additional support under the hopper to stabilise the machine.

It is possible to quickly open the hopper by turning it on two hinges for quick access to the rotor in case of clogs.

Screw to adjust the distance between the rollers.

The machine is adjustable in 4 levels.

Detail of screw tensioner.

Detail of the 7-pole connector


Warning: Check the machine only when switched off.
Carefully read the instructions manual before starting the unit.

Free items & Standard equipment

Free items included

The machine is shipped on a pallet.

Instruction and assembly booklet.
