Name: BullMach ZEUS 150 PTO - Tractor-mounted garden shredder - chipper with 3-point hitch
Brand: BullMach
Price: 2010.71 EUR
Availability: InStock
Rating: 4 (6 reviews)

Description

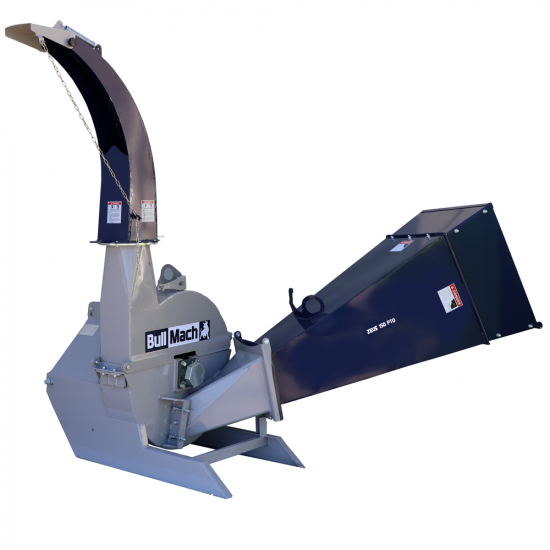

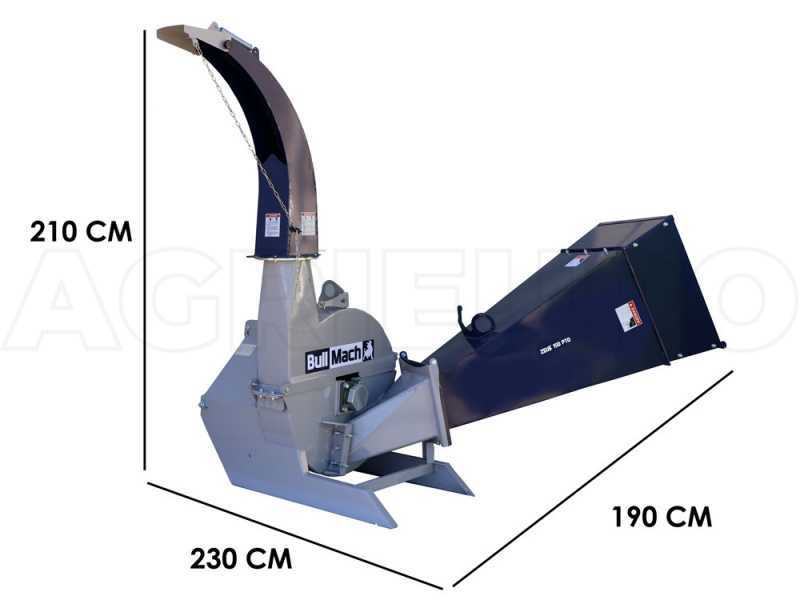

BullMach ZEUS 150 PTO tractor-mounted garden shredder

The BullMach ZEUS 150 PTO is a heavy-duty tractor-mounted garden shredder, specifically intended for shredding large quantities of vegetable waste.

The discharge chute can rotate 360° and it is 2 m high, thus allowing discharging wood chips directly into the boxes.

With a high quality/price ratio, this machine is suitable for both hobby and professional use and for everyone who’s looking for a high-performing equipment at an affordable price.

The garden shredder is equipped with a large hopper, which facilitates processing waste branches and wood residuals, resulting in the possibility of shredding woods with a maximum diameter of 150 mm.

Equipped with 3-point hitch for tractor + PTO drive.

Large hopper opening: 69 x 69 cm.

The rotor consists of 4 large-sized interchangeable blades and a counter blade.

Warning: Like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc.… (it is designed to shred branches, but it can also grind the leaves, needles and other vegetation that may be attached to them).

NOT SUITABLE FOR SMALL AND WEAK BRANCHES, ESPECIALLY FOR OLIVE TREE BRANCHES!

BullMach ZEUS 150 PTO - Tractor-mounted garden shredder - chipper with 3-point hitch

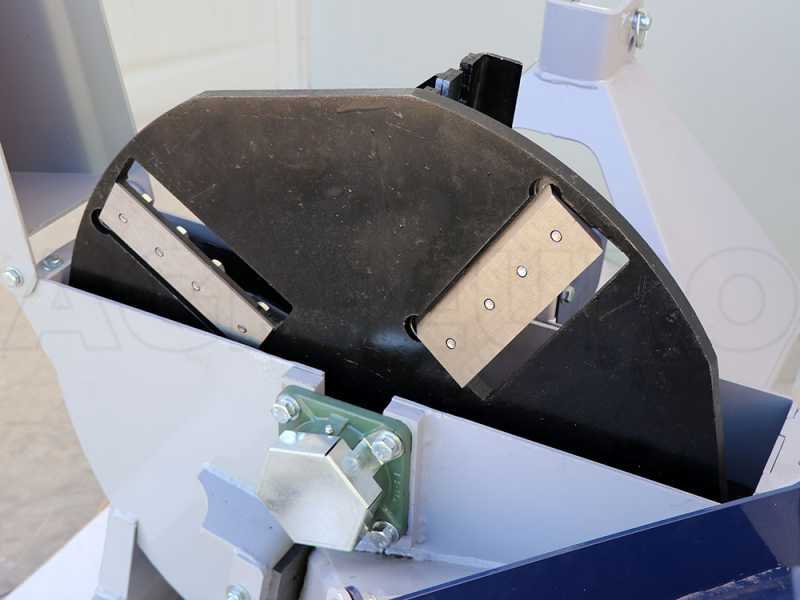

Central rotor and shredding chamber

The cutting system consists of:
- No. (220 mm) 4 large and thick cutting blades, mounted on a swivelling steel plate located at the end of the hopper.

Rotor features:

Thickness: 20 mm
Diameter: 762 mm
Weight: 50 Kg

Equipped with large and sturdy shredding chamber. It features a rounded shape that ensures great productivity and long durability of the cutting system. Focus on the flap opening system.

The counter blade is mounted directly on the outer side of the shredding chamber.

Warning: Before starting the machine, make sure to adjust the counter blade by means of the specific bolts in order to avoid damaging the rotor.

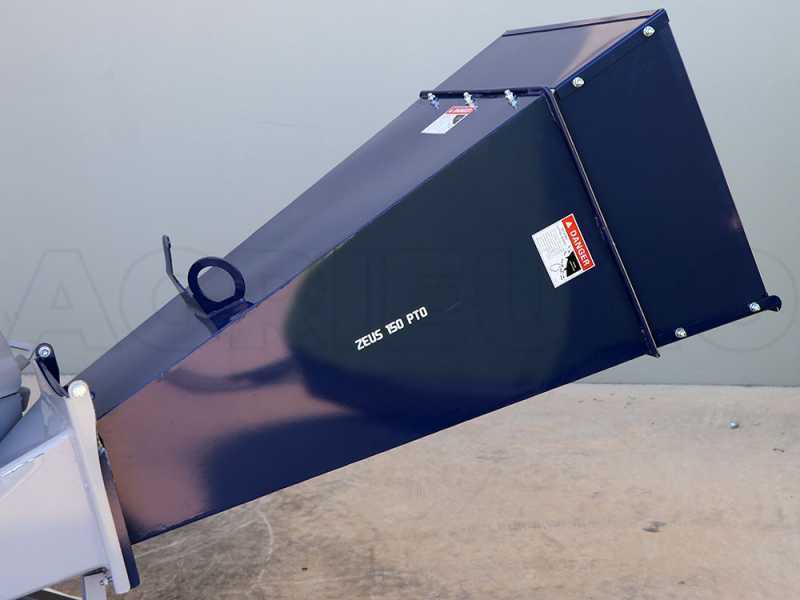

Unified hopper

Large steel hopper with 69x69 cm opening.

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

Thus, it also features a higher capacity that allows entering large volumes of material at a time.

It is possible to quickly open the hopper by turning it on two hinges for quick access to the rotor in case of blocks.

Operating procedure
Inspection or storage position.

Warning: Check the machine only when switched off.
Carefully read the instructions manual before starting the unit.

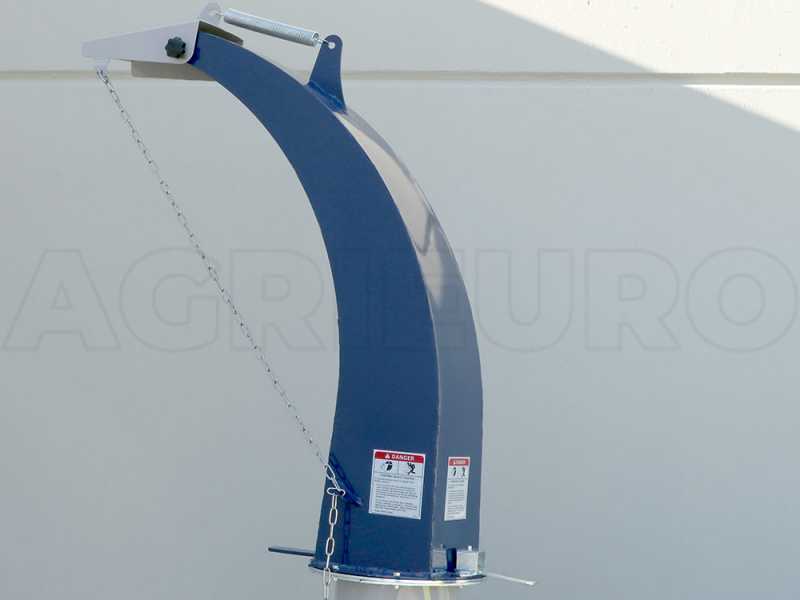

360° Swivelling discharge chute

The garden shredder is equipped with a 2 m high and 360° swivelling discharge chute.

Some examples:

Position 1
Position 2
Position 3
Position 4

You’ll just need to simply press the lever and rotate it in the desired position.

The discharge chute tilt can be adjusted by means a chain that then will return the chute in its original position.

Some examples about how to adjust the wood chips discharge direction:

Position 1
Position 2
Position 3

General features

Focus on the rubber bulkheads placed on the hopper opening.

Tractor PTO, which allows operating the garden shredder (focus on the PTO cover).

Focus on the sturdy 3-point hitch

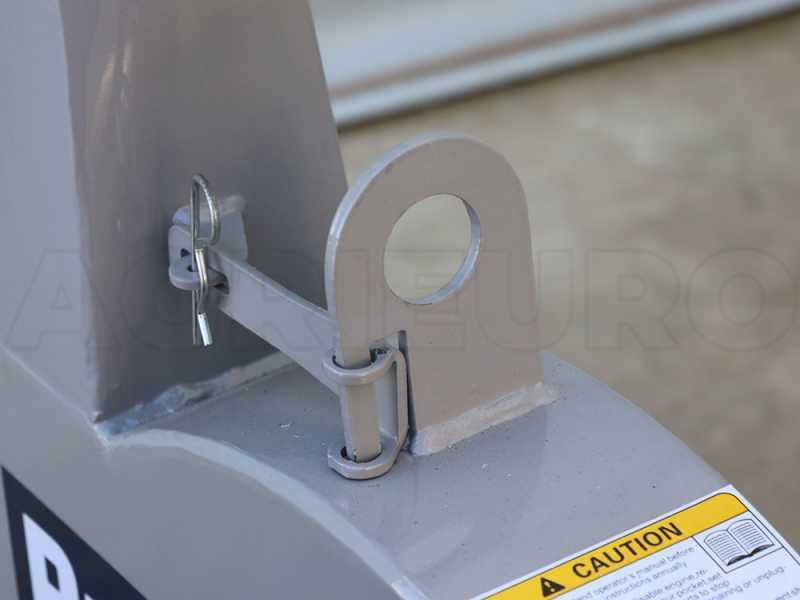

Supporting hook that allows lifting the equipment laced on the upper side of the machine.

The standard-supplied cardan shaft is equipped with safety bolt.

The torque limiter with safety bolt allows avoiding damage to the mechanical parts of the machine while operated in case of over-stress and unforeseen or excessive torque.

Indeed, when the torque exceeds the power bearable by the bolt, the latter breaks off and the power will be reset.

To restore the transmission, it must be replaced with one of the same strength, diameter, thread and length.
