BullMach ECTOR 46 H Self-propelled Lawn Mower - 4 in 1 - Honda GCVx170 petrol engine

BullMach ECTOR 46 H Self-propelled Lawn Mower - 4 in 1 - Honda GCVx170 petrol engine
Safe shipment: box secured to wooden pallet
Grass collector
Side discharge
Mulching system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Engine Model
Cubic Capacity
166 cm³
Rated output
6 HP
Surface recommended
1500 m²
Cutting width
46 cm
rear wheel traction
Cutting height adjustment
Centralized (1 lever)
High rear wheels
Free items: 2 bottles of 600 ml engine oil each
Free items: 2 bottles of 600 ml engine oil each
€ 491,47
VAT Included
Prompt Delivery
68 items in stock
Free Shipping
You should receive it by 03/11/2021
ID: K602292

EAN: 8054141541054

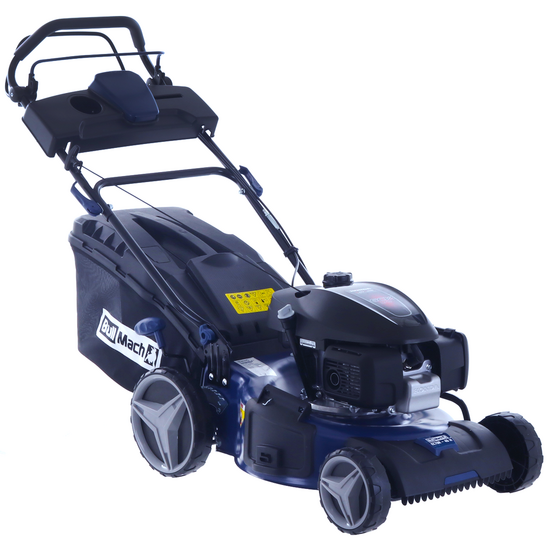

BullMach ECTOR - 46 H lawn mower

The BullMach ECTOR - H 46 lawn mower stands out to be a perfect mower to ensure the perfect care of your green area. It ensures optimal efficiency, minimizing the efforts that are normally required to the Operator, also thanks to the rear-wheel drive.

This lawn mower model is provided with rear-wheel drive. It is powered by a Honda GCVx170 engine with 166 cc: very powerful and high-quality engine, featuring a low pollutant content for versatile and high performances.

HIGH VERSATILITY It is possible to collect the grass in the reinforced grass collector, making mulching or discharging the grass clippings both from the side or from the rear of the machine. The grass cutting system can be quickly changed without any tool. Large-sized 60 L grass collector.

It is ideal for any user who wants to take care of the home garden and wants to obtain an excellent work in a short time.

It is equipped with a 46 cm steel cutting deck and 250 mm high rear wheels, which are mounted on ball bearings in order to reach the highest performances. The rear-wheel traction makes the mowing operation even more efficient on every lawn.

User-friendly and practical can-holder and tool compartment placed on the handlebar.

This lawn mower has a centralized cutting height adjusting system, offering 8 different positions, from 30 mm to 80 mm.

4-in-1 lawn mower, which allows using each cutting system and mowing options:

  • Grass collection system (60 L grass collector)
  • Standard-supplied mulching plug
  • Side discharge
  • Rear discharge

Equipped with a foldable handlebar, which reduces the required space and ensures an easy transport and storage. The quality of all its components and the care of details certainly make the difference between this lawn mower and other models on the market.

This lawn mower is suitable for surfaces up to 1500 s.q. m.

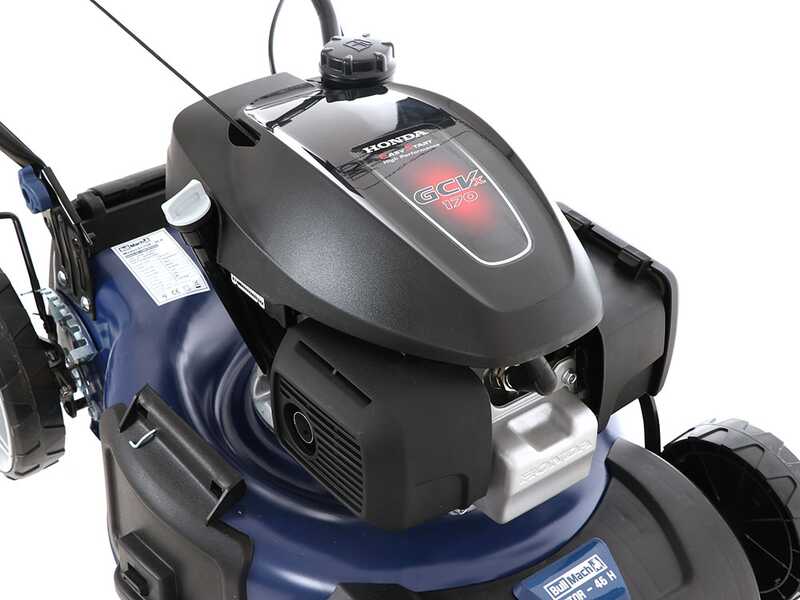

Honda GCVx170 engine

Honda GCVx170 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 166 cc.

Features: Values
Engine type: 4-Stroke, single cylinder
Cylinder type: Aluminium
Cubic Capacity: 166 cm³
Power supply: Petrol
Starting: Recoil starting
Recommended working area: 1500m²
Max rpm 3600 rpm

Rated Power: 6 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 4.8 HP (a rotation speed of 3600 rpm)
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor’s manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.


Make sure to carefully read the instructions manual before starting the unit.

Focus on the air filter

Focus on the spark plug

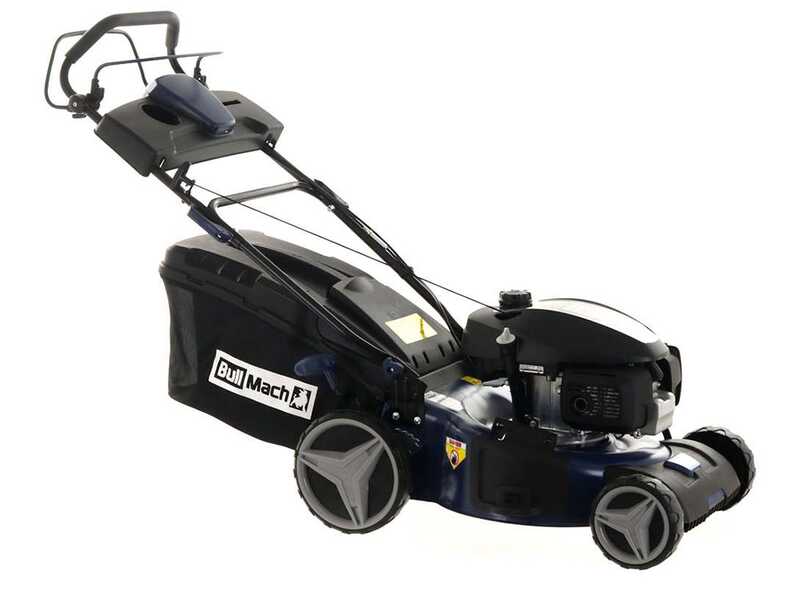

Steel housing and blade

Net blade cutting width: 46 cm

Universal hardened steel blade, suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

Its 49 cm steel housing gives this machine a high strength, combined with an excellent lightness. Overall weight: 33 kg.

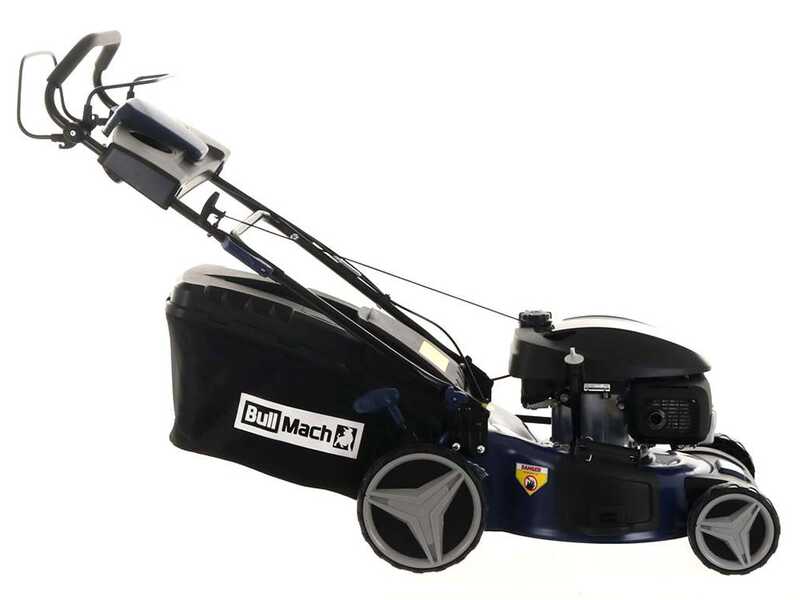

8 centralized cutting height options, high-wheel system

This lawn mower offers 8 adjustment cutting height options. They differ from a minimum of 30mm up to a maximum of 80mm.

The centralized adjustment is incredibly quick and intuitive: by means of a single lever, it is possible to adjust the cutting height.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

High-wheel system, mounted on ball bearings that guarantee greater manoeuvrability and sturdiness to the machinery.

Wheels size:

  • Rear wheels: 25cm (10")
  • Front wheels: 18cm (7")

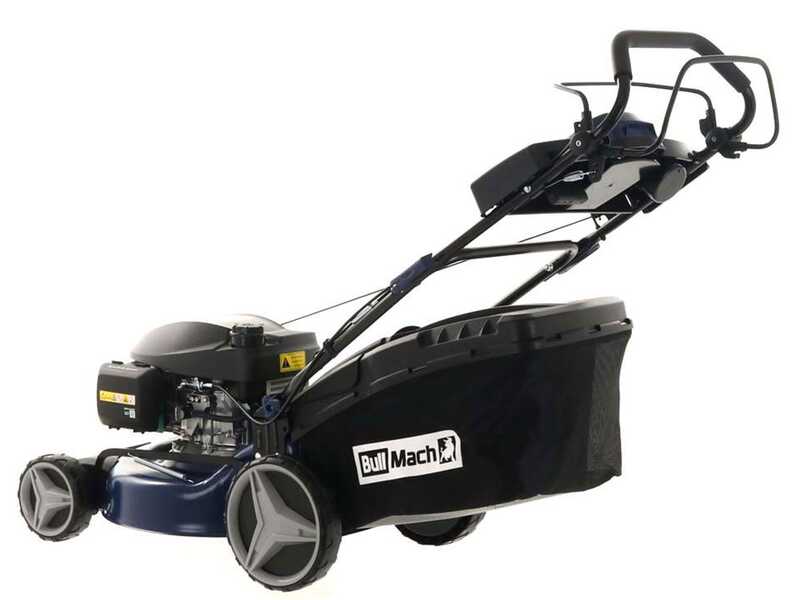

Mowing options: grass collection


It equipped with a large 60 L hybrid grass collector easy to remove and empty

. It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle, which is located on the upper side of the grass collector in order to facilitate the collector removal.

Focus on the full-grass collector indicator.

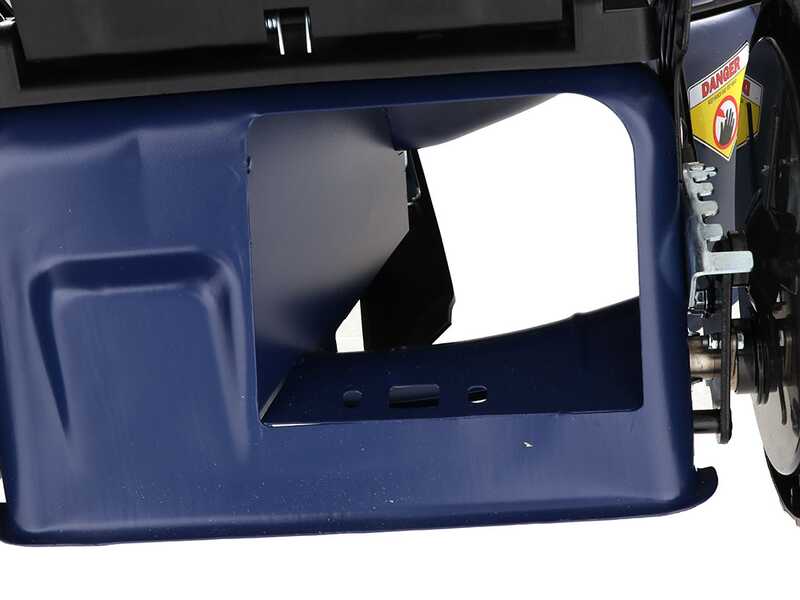

Four mowing system: rear discharge

: this system allows mowing grass without the grass collector, and discharging the grass clippings from the back of the lawn mower.

Simply remove the grass collector to let the rear discharge work.

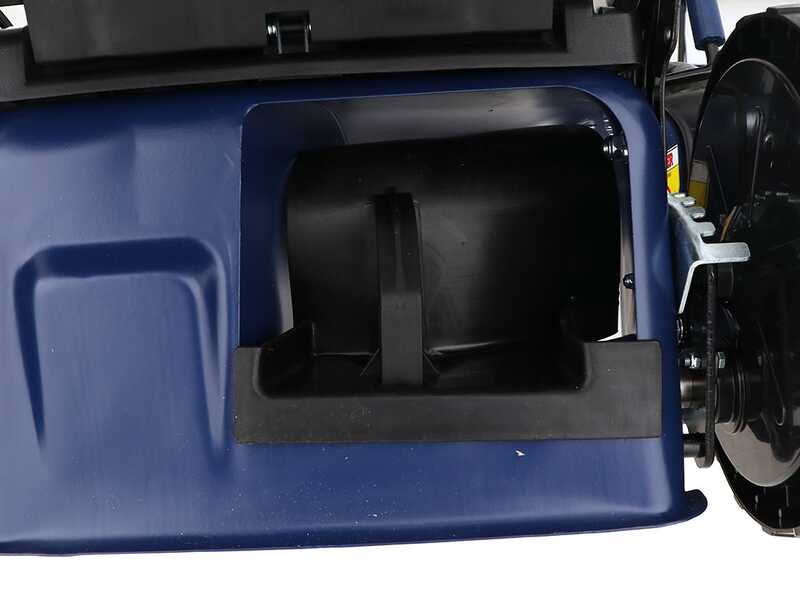

Four mowing systems: mulching plug

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, connect the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

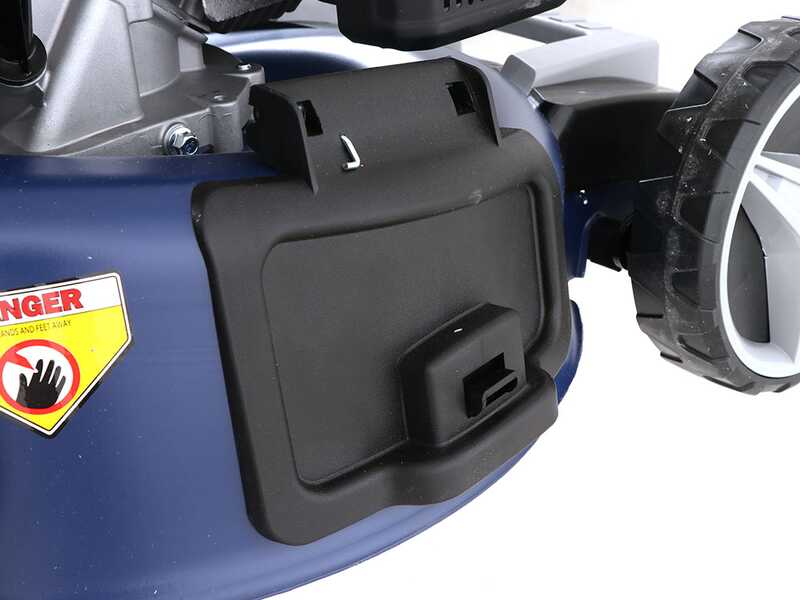

Four mowing systems: side discharge

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side exhaust deflector).

If you keep entered the mulching plug so as it occludes the grass rear discharge, you will just need to lift the side cover on the side of the mower housing and connect the side deflector with a single gesture.

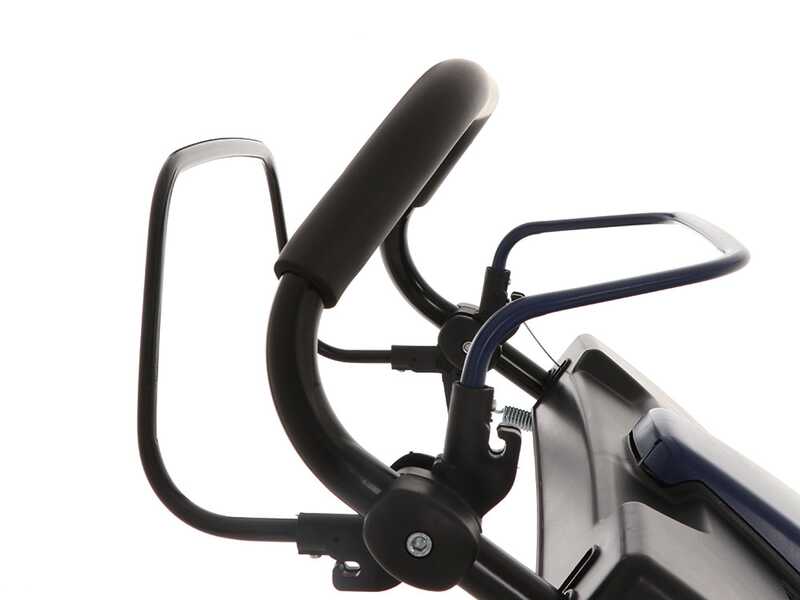

Controls and settings

Heavy-duty handlebar provided with quick-release system.

Coated handlebar to ensure the highest comfort to the Operator.

Simple and user-friendly controlsplaced on the handlebar.

Useful can-holder and tool compartment: unique for this type of machineries.

Blade brake lever (in front of the handlebar) - necessary to start the lawn mower, it must be pulled constantly for safety reasons; once released, it automatically switches the engine off and stops the blade.

Self-propelled engagement lever (behind the handlebar)

Detachable handlebar for easy storing.

Product Features
ECTOR - 46 H
Body material:
Enamelled steel
spark ignition
rear wheel traction
Deck width:
49 cm
Grass collector:
Standard equipment
Side discharge:
Standard equipment
Mulching system:
Standard equipment
Rear discharge:
Standard equipment
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Grass collector capacity:
60 l
Surface recommended:
1500 m²
Manufacturing Country:
Motor data
Motor/Engine brand:
Engine Model:
Motor type:
4 stroke
Cubic Capacity:
166 cm³
Number of pistons:
Rated output:
6 HP
Real power:
4.8 HP
Power supply:
Overhead valve
Engine lubrication type:
Oil bath
Tank capacity:
0.9 L
Oil tank capacity:
0.4 L
Noise level:
96 dB(A)/7m
Motor/blade transmission:
Manufacturing Country:
Transmission data
rear wheels
Actioning :
lever on the handle
Cutting data
Housing material:
Enamelled steel
Cutting width:
46 cm
Number of blades:
Blade type:
multi purpose
Blade security brake:
Cutting height adjustment :
Centralized (1 lever)
Maximum cutting height:
80 mm
Minimum cutting height:
30 mm
Nr. of Cutting positions:
Cutting width:
46 cm
Standard equipment
Grass side discharge deflector:
Recoil Starter (cord):
Rear wheels size:
250 mm
Front wheels size:
180 mm
High rear wheels:
Wheels mounted on ball-bearings:
Wheels type:
Rubber-coated soft grip:
Foldable/collapsible handlebar/s:
Free gifts/extra features
Kit mulching:
On standard equipment
Engine maintenance kit:
Free engine oil bottles :
Instructions manual:

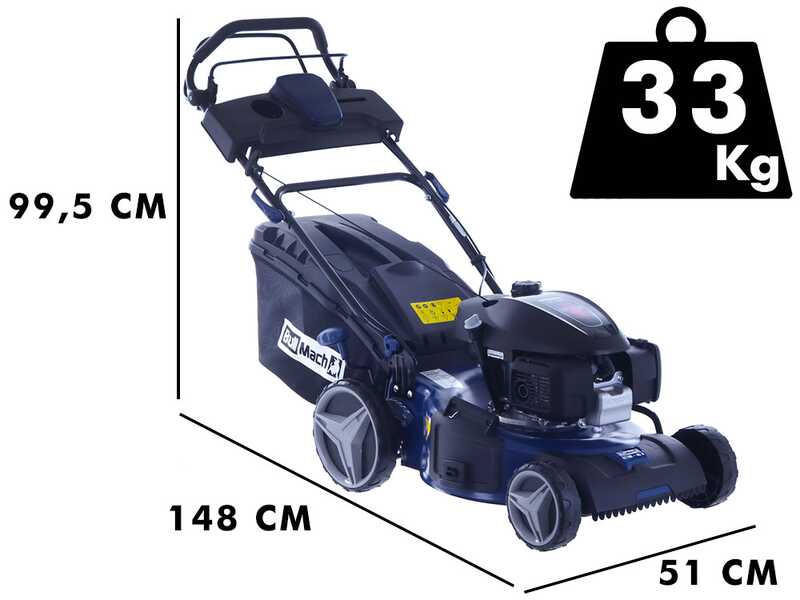

Dimensions and logistics
Product dimensions cm (LxWxH):
Net weight:
33 Kg
On pallet
Packaging dimensions cm (LxWxH):
Gross weight (packaging incuded) :
36.4 Kg
Assembly time:
15 minutes

FORE FREE: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items / Extra features

The lawn mower is shipped in its original packaging

Rear grass collector: 60 L

Mulching plug

Side discharging plug

Instruction manual included in the packaging.
