Name: BullMach BM-IDH 20KW - Diesel Hot Air Generator - Indirect Combustion
Brand: BullMach
SKU: 108505
Price: 384.73 EUR
Availability: OutOfStock
Rating: 4 (16 reviews)

Description

BullMach BM-IDH 20 Diesel hot air generator

The BullMach BM-IDH 20 KW is a diesel-powered hot air generator equipped with indirect heating and smoke exhaust chimney, ensuring high-performances.

Recommended for working in open spaces or indoor but well-ventilated areas (the instructions manual includes all the details and warnings to follow before use).

Thanks to the smoke exhaust chimney, the smokes come out separately from the hot air produced.

It produces a high hot air flow thanks to its 20 kW thermal power and large 600 m3/h air flow rate.

The generator is equipped with a thermostat knob to adjust the temperature according to your needs.

Indirect combustion hot air generators are equipped with a heat exchanger which, thanks to the chimney, allows discharging the smokes outside. It is therefore possible to place them indoor. The efficiency is 90%, as there is no heat loss due to the exhaust chimney.

Thanks to the 17cm plastic wheels and the convenient carrying handle, it is extremely easy to move and store.

It requires very easy and immediate maintenance, allowing you to heat different types of rooms quickly.

BullMach BM-IDH 20KW - Diesel Hot Air Generator - Indirect Combustion

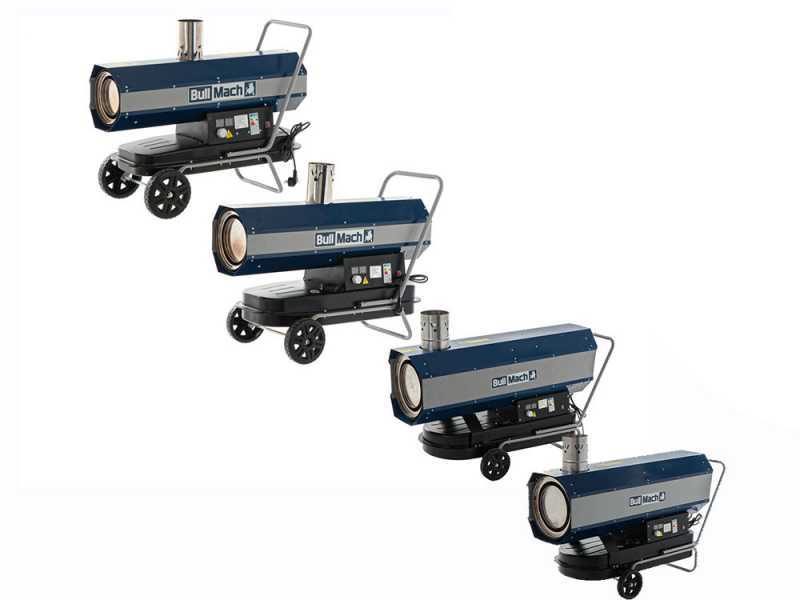

BullMach hot air generators BM-IDH series

BullMach hot air generators of the BM-IDH series are all diesel-powered and equipped with indirect heating.

They are divided into three models with different features:

BM-IDH 20 KW (22,9 KG)
BM-IDH 30 KW (27,5 KG)
BM-IDH 50 KW (53,5 KG)

Technical specifications and other details

Other Features:

Electric power supply: 220-240V
Generator power: 20 kW
Fuel consumption: 1.43 kg/h
Fuel Tank Capacity: 28 L
Air flow rate: 600 m³/h
Exhaust smokes chimney diameter: 90 mm
Max. surface: 110 m²

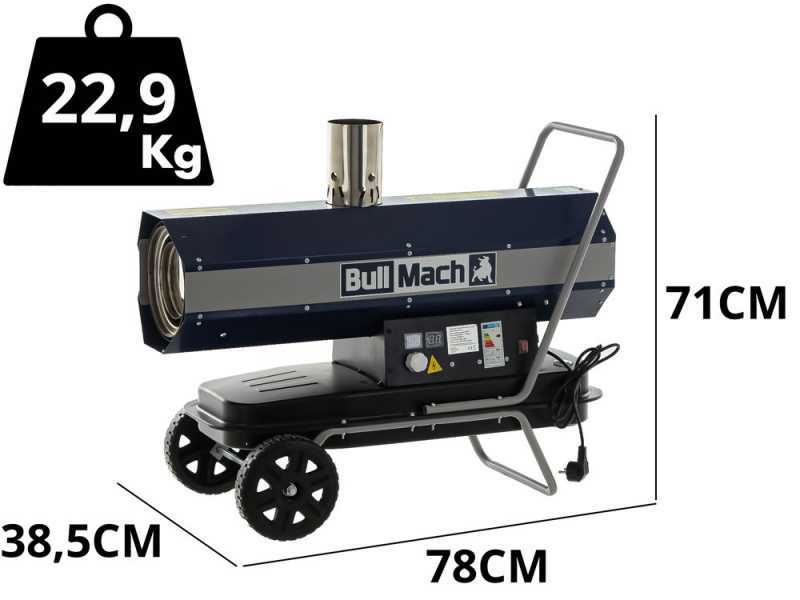

Weight: 22.9 kg

The supporting frame and handle are easy to assemble and keep the generator balanced, making it easy to move by means the two front wheels.

Focus on the fuel tank where it is possible to check the fuel level.

Focus on the controls that include:

The knob thermostat for adjusting the temperature

Indirect combustion generators are also equipped with a steel smoke exhaust chimney for smoke discharging.

Furthermore, the generator also features a pressure gauge where the operator can easily check the pressure level.

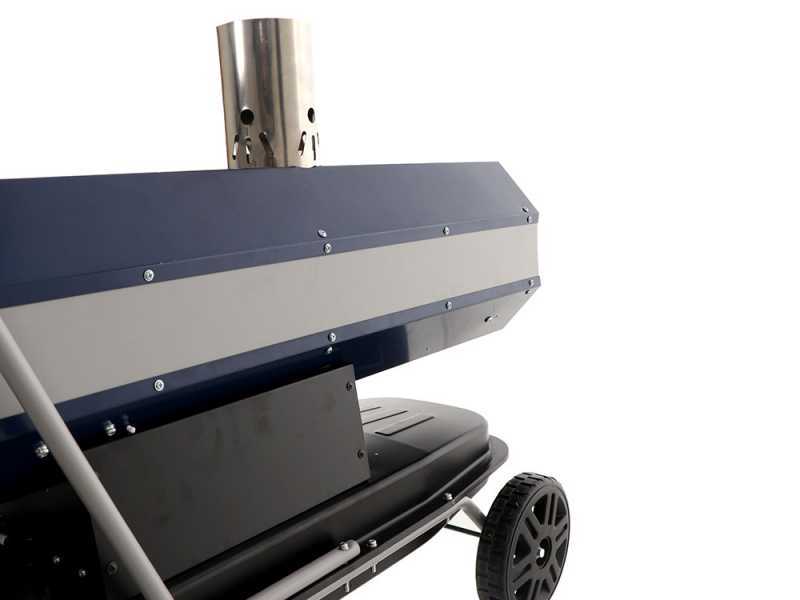

Focus on the smoke exhaust chimney

How to select the ideal hot air generator according to your needs

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free items included

The hot air generator is shipped in its original packaging.

The instructions manual is included in the package.
