BullMach ARES 61 - Tractor Stump Grinder

Questions & Answers (1)
ID: 110895

EAN: 8053435091985

MPN: ARES 61

9,0/10
After-sales assistance & Spare parts
BullMach ARES 61 - Tractor Stump Grinder
+40 sold
Body material
Enamelled steel
Operating mode
Tractor-driven PTO
Tractor power
30 to 45 HP
Cutting above the surface
12.7 cm
Rotor size
610 mm
Number of teeth
34
hydraulic pressure valves
yes
Cardan shaft
With clutch
Product Features
Model:
Ares 61
Body material:
Enamelled steel
Tractor power:
30 to 45 HP
Operating mode:
Tractor-driven PTO
3-point hitch category:
First
Manufacturing country:
China
Motor data
Motor speed:
540 RPM
Transmission data
Transmission type:
Coaxial type direct
Cutting data
Body material:
Steel
Number of teeth:
34
Underground cutting depth :
15.5 cm
Cutting above the surface:
12.7 cm
Rotor size:
610 mm
hydraulic pressure valves:
yes
Free gifts/extra features
Cardan shaft:
With clutch
Instructions manual:
Yes
Dimensions and logistics

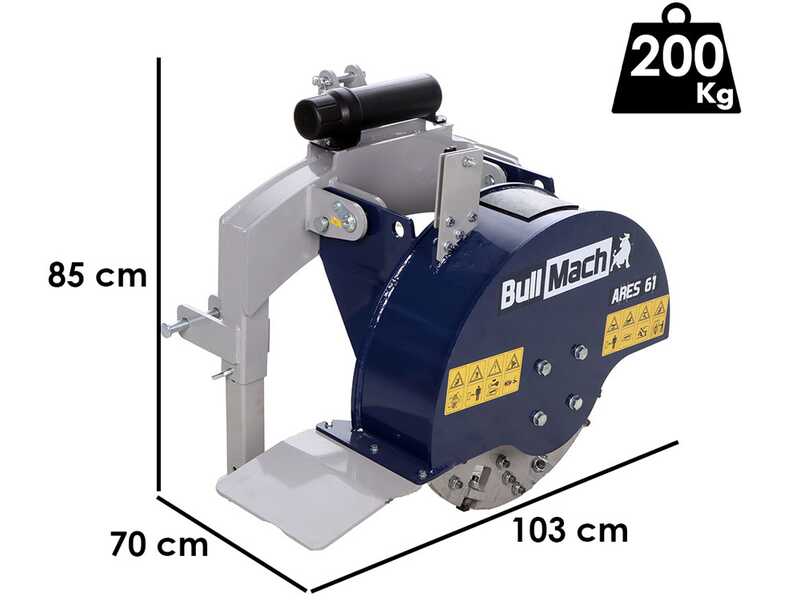

Product dimensions in cm (L x W x H):
103x70x85 cm
Net weight:
200 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
87x80x95 cm
Weight including packaging:
230 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 25/07/2025 - 29/07/2025
Suggested price:
€ 2.505,94
€ 1.879,45
Vat included
You're viewing:
Customers also viewed:
Description

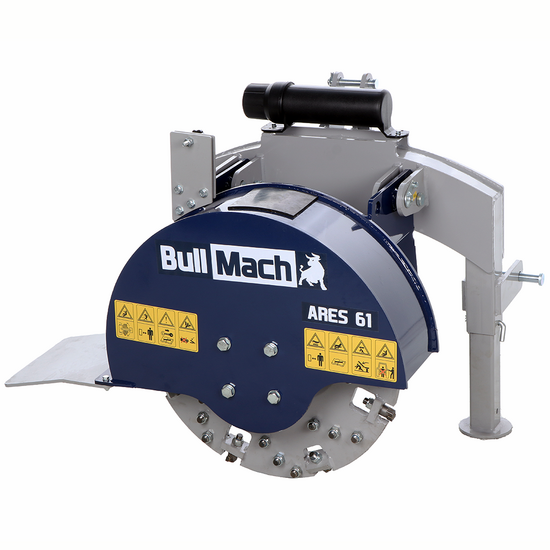

BullMach ARES 61 Stump Grinder

The BullMach ARES 61 stump grinder is an efficient machine designed for the removal of tree stumps and roots from the ground.

This model is specifically designed to be mounted on agricultural tractors with power ranging from 30 to 45 HP.

It is widely used in the forestry industry, park management, and landscape maintenance.

The BullMach ARES 61 features a robust three-point hitch that is securely mounted on the tractor.

Its milling unit consists of a high-quality rotating disc equipped with 34 sharp blades made of hardened steel. These blades can easily chip stumps and roots, turning them into smaller fragments.

The maximum cutting depth underground is 155 mm while the maximum cutting depth per pass is 127 mm.

The blade rotation speed is 540 RPM.

During the milling operation, the operator drives the tractor over the area where the stump is to be removed.

The milling unit of the ARES 61 is precisely lowered to begin the removal process. The height and angle of the milling unit can be adjusted according to the size of the stump and the ground conditions.

The ARES 61 by BullMach is capable of removing stumps of various sizes, including those of recently felled trees or older stumps. Thanks to the tractor's power and the traction provided by the wheels or tracks, this stump grinder can also work on uneven or steep terrain.

The use of the BullMach ARES 61 reduces the need for deep excavation and preserves the surrounding soil, offering an efficient and sustainable solution for stump removal. The wood chips resulting from the milling can be reused as compost material or for other purposes, contributing to waste reduction.

In conclusion, the ARES 61 BullMach is a tractor stump grinder specifically designed for the removal of stumps and roots. With its specific features and functionalities, it offers a reliable option for landscape management and soil preparation.

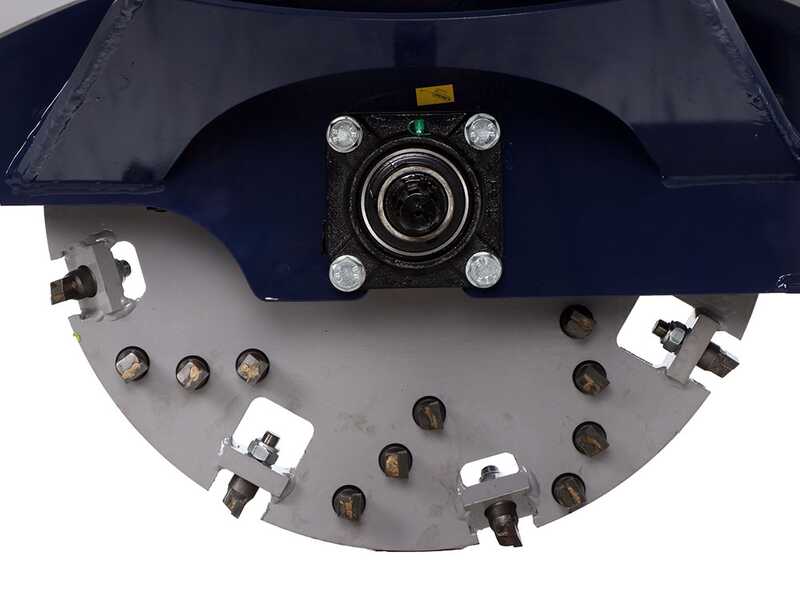

cutting apparatus and rotor

The Bull Mach stump grinder mounts on the rotor real hammers, which ensure greater durability.

The rotor disc is composed of 34 hammers, of which 8 are mounted vertically, the rest are mounted on the side of the blade to perform any cutting operation.

The milling capacity of these hammers is greater than normal blades also in terms of results, thanks to the greater robustness of the hammers compared to a simple curved blade.

The transmission from the blade to the power take-off is direct and entrusted to a 5th category cardan shaft with a safety bolt.

The machine has a maximum underground cutting depth of 155 mm while it can perform cuts up to 127 mm per pass.

The roller has a rotation speed of 540 RPM

Main Features

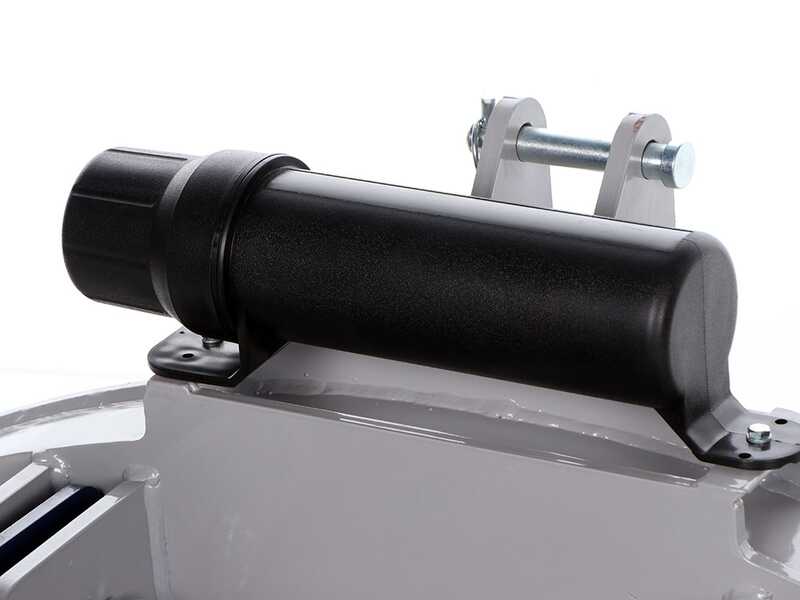

Manual holder, practical for keeping the machine's instruction manual always at hand

Support feet

Detail of the joint, thanks to which the machine can be tilted.

Adjustable height of the top point of the three-point hitch

Measurements of the three-point hitch triangle

8mm sheet metal

Detail of the chainsaw holder, a very convenient addition for performing cutting operations completely.

Free items & Standard equipment

Free items included

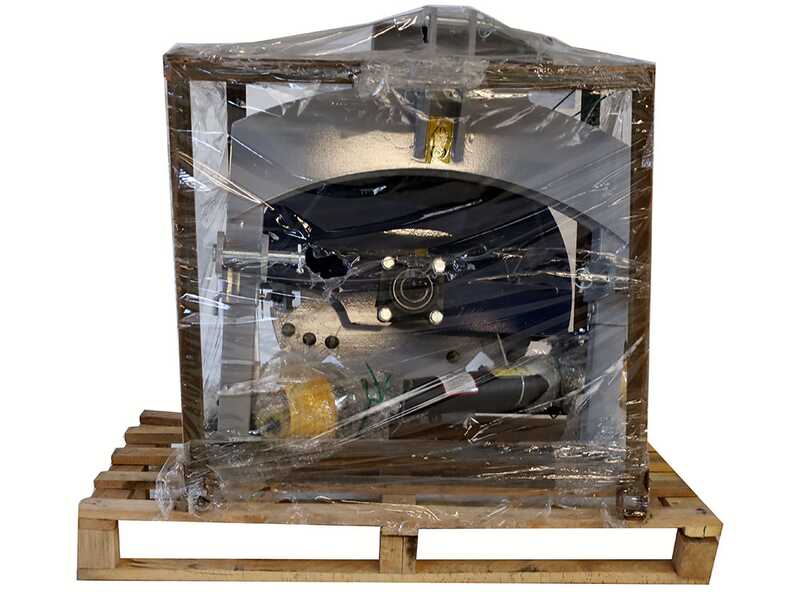

The machine comes with its original cage.

Included:

Cardan shaft with safety bolt

Instruction manual
